Module, Fuel Pump Control: Installation

  1. Position the fuel pump control module(s) onto the mounting bracket.

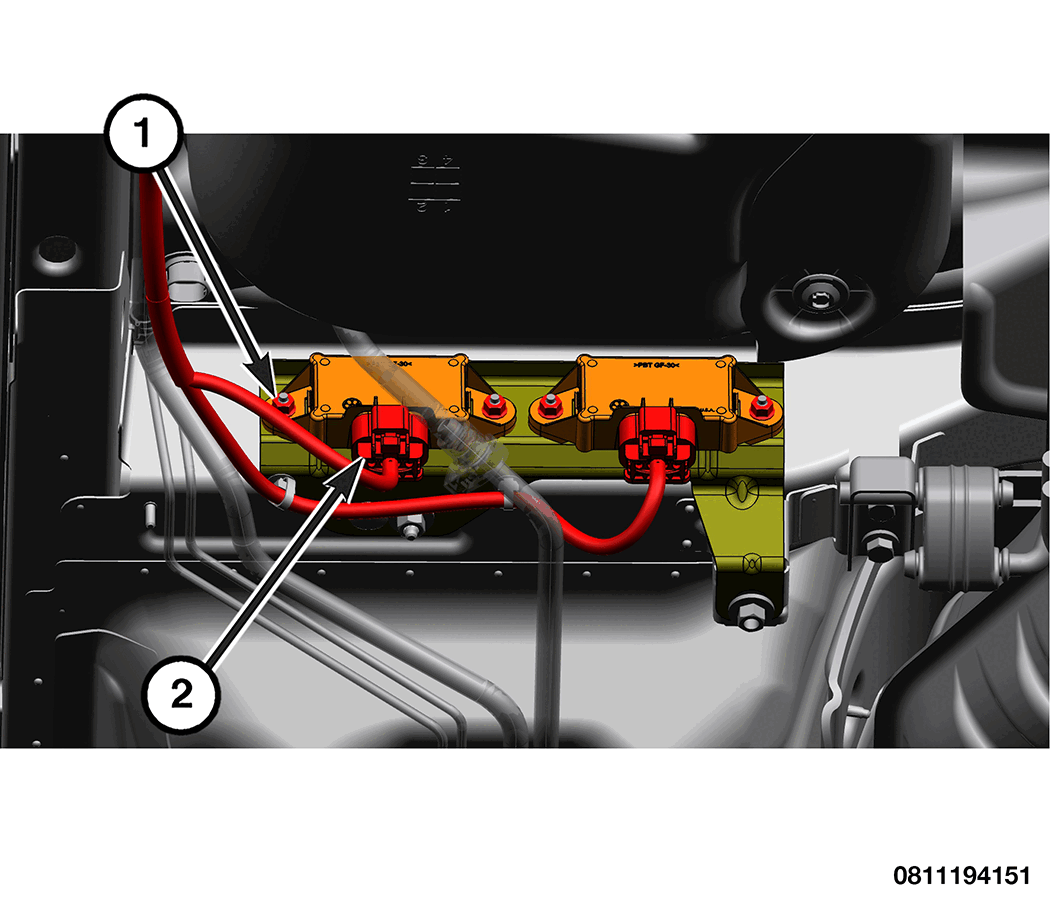

  2. Install and securely tighten the fuel pump control module fasteners (1).
    GC0207323Courtesy of CHRYSLER GROUP, LLC
  3. Connect the fuel pump control module wire harness connector(s) (2) to the module.

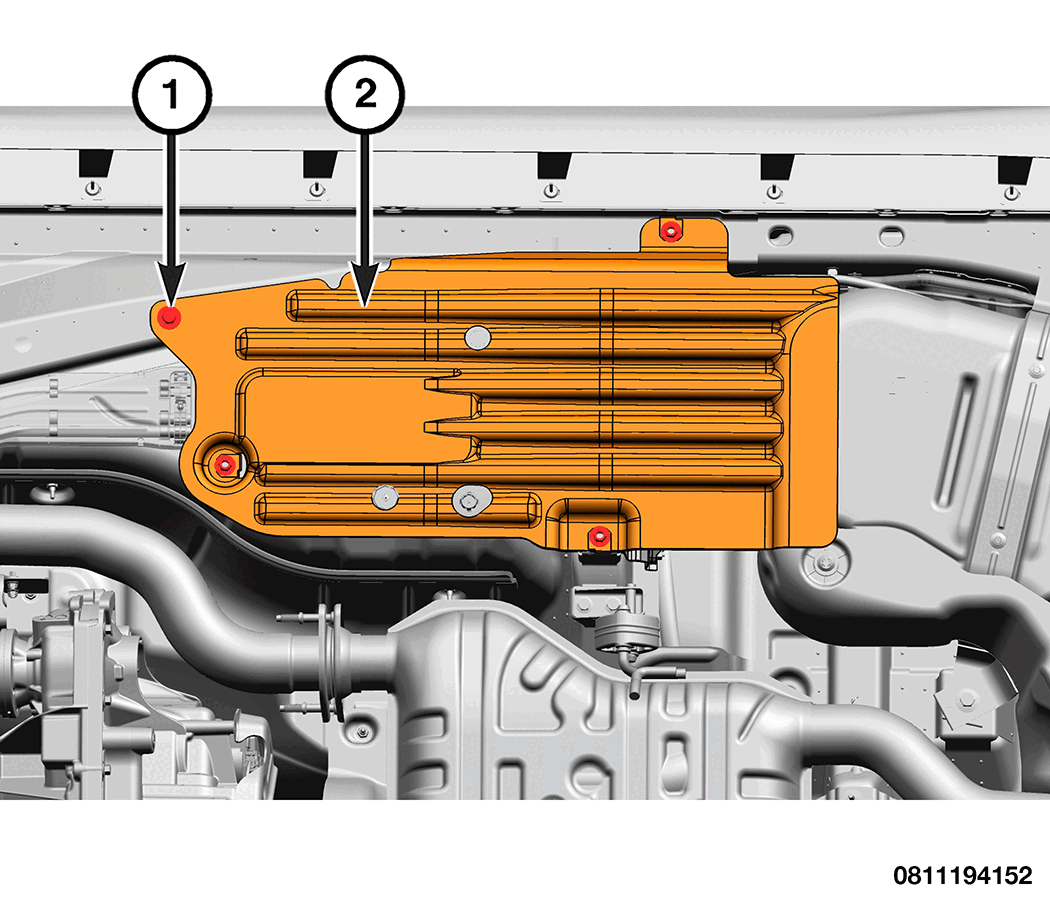

  4. Install the front fuel tank shield (2) and securely tighten the fasteners (1).
    GC0207313Courtesy of CHRYSLER GROUP, LLC
  5. Lower the vehicle.
  6. Connect the negative battery cable.
