Integrated Trailer Brake Module (ITBM)

INSTALLATION

1. Install the Integrated Trailer Brake Module (ITBM) to the bracket and press the latch until an audible "click" is heard, securing the module.
2. Connect the ITBM wire harness connectors.

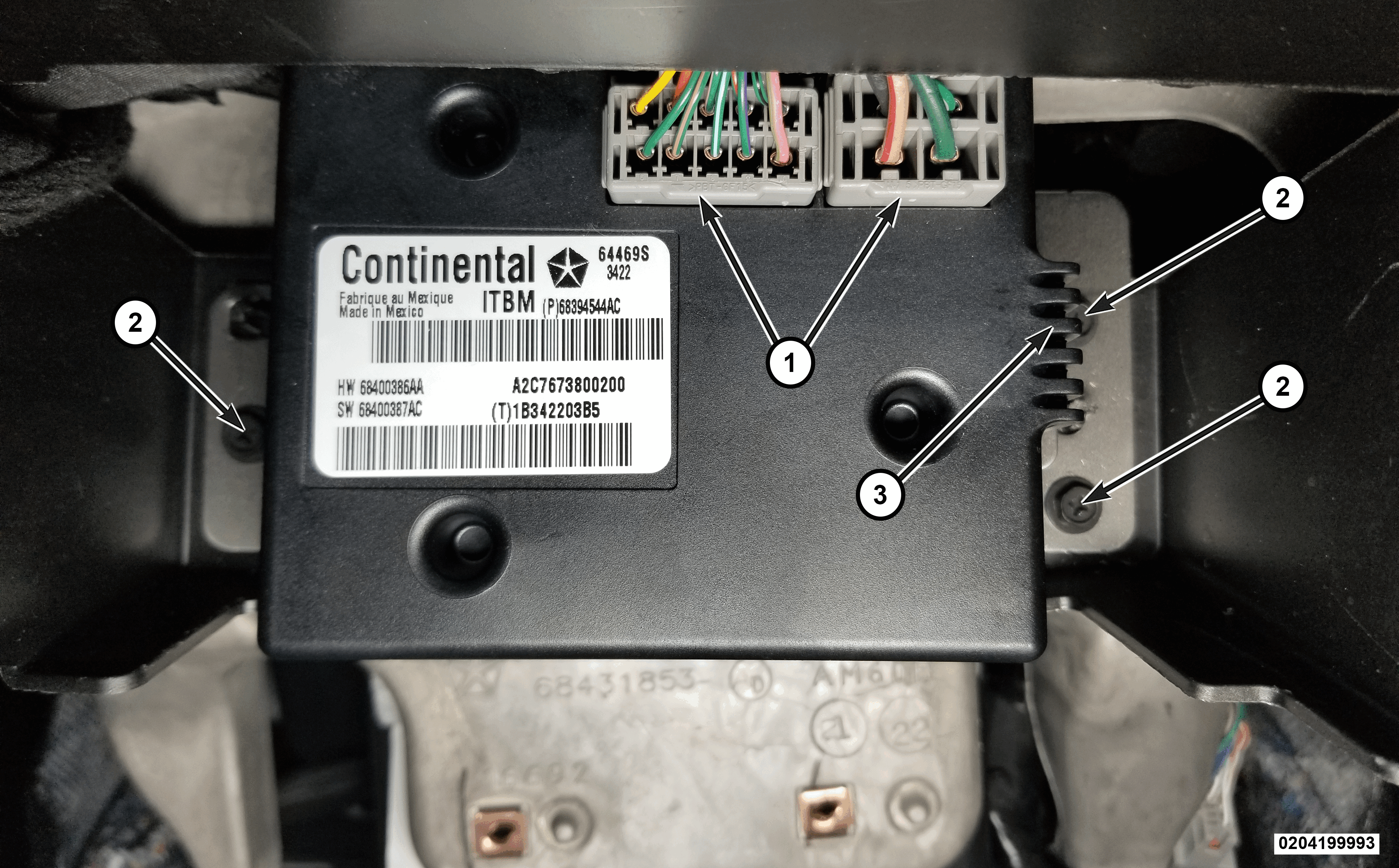

   Courtesy of CHRYSLER GROUP, LLC

   1 - Integrated Trailer Brake Module (ITBM) Wire Harness Connector

   2 - Integrated Trailer Brake Module (ITBM) Bracket Screws

   3 - Latch

3. Position the ITBM and bracket to the vehicle, and then install and tighten the screws securely.
4. Remove the instrument panel center closeout panel. Refer to CLOSEOUT, CENTER, INSTALLATION .
5. Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
