Integrated Trailer Brake Switch

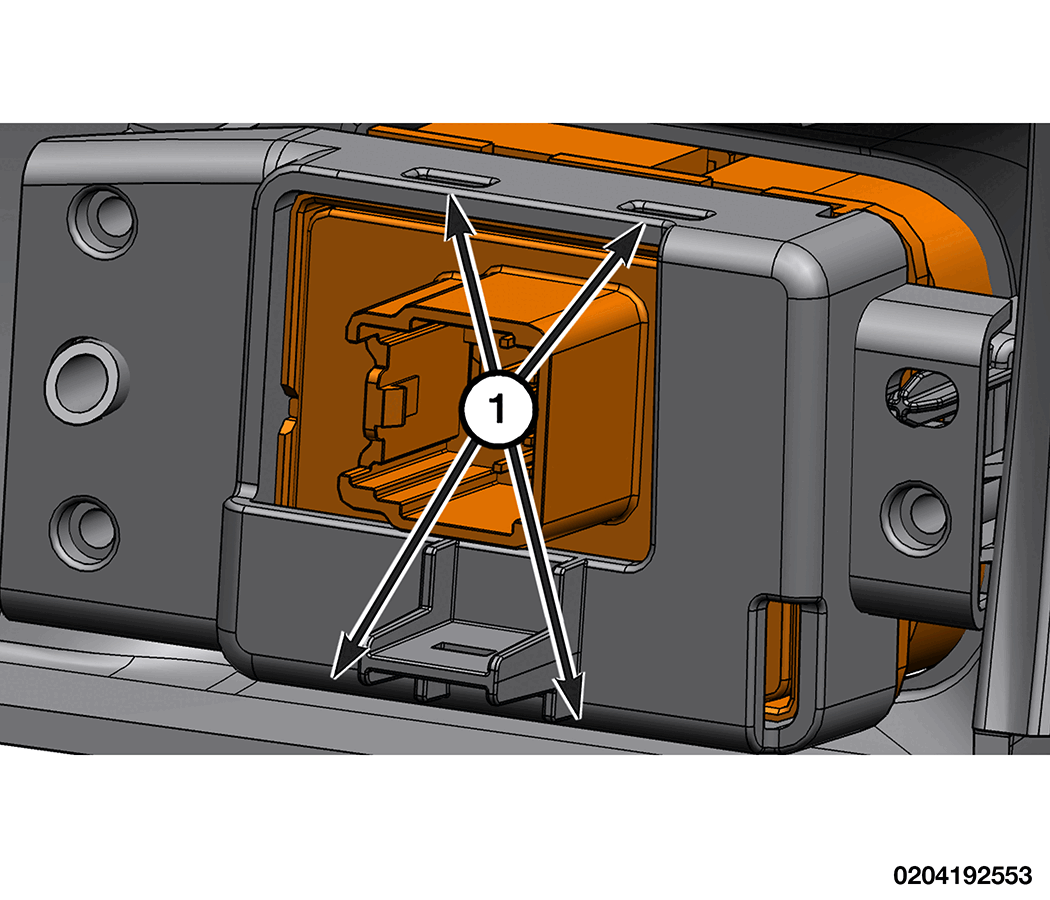

Insert the Integrated Trailer Brake Module ITBM into the ITBM bezel and engage the four tabs (1).

Courtesy of CHRYSLER GROUP, LLC
Position the ITBM bracket to the ITBM bezel.

Courtesy of CHRYSLER GROUP, LLC

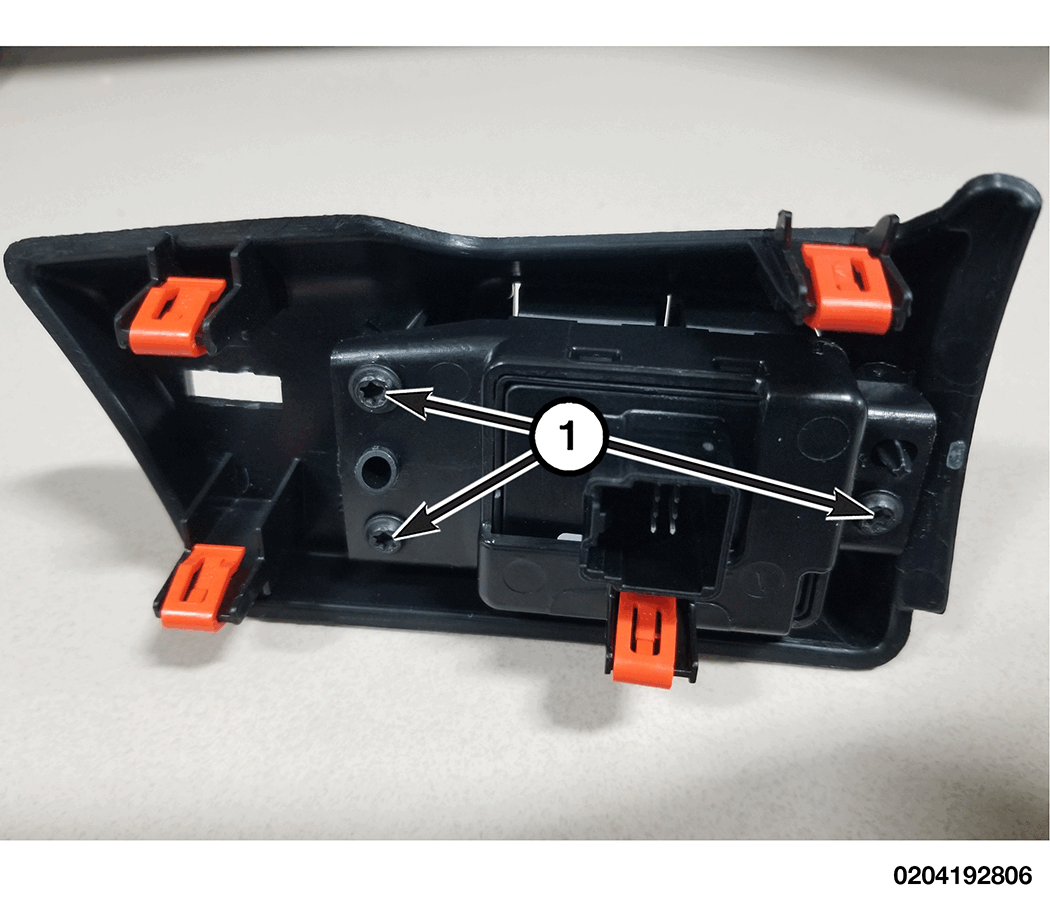

Install the screws (1) and tighten securely.
Position the ITBM near the instrument panel and connect the ITBM wire harness connector (1).

Courtesy of CHRYSLER GROUP, LLC

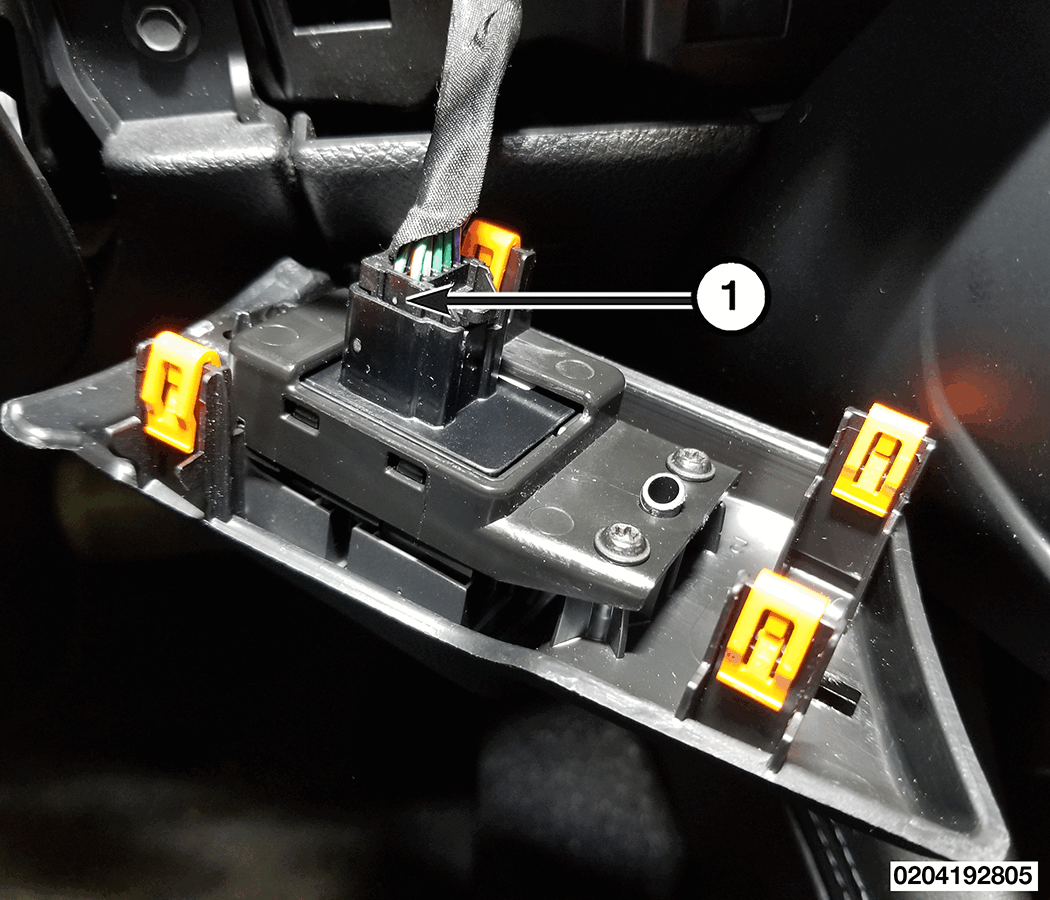

Position the ITBM bezel (1) near the instrument panel and connector the ITBM wire harness connector.

Courtesy of CHRYSLER GROUP, LLC

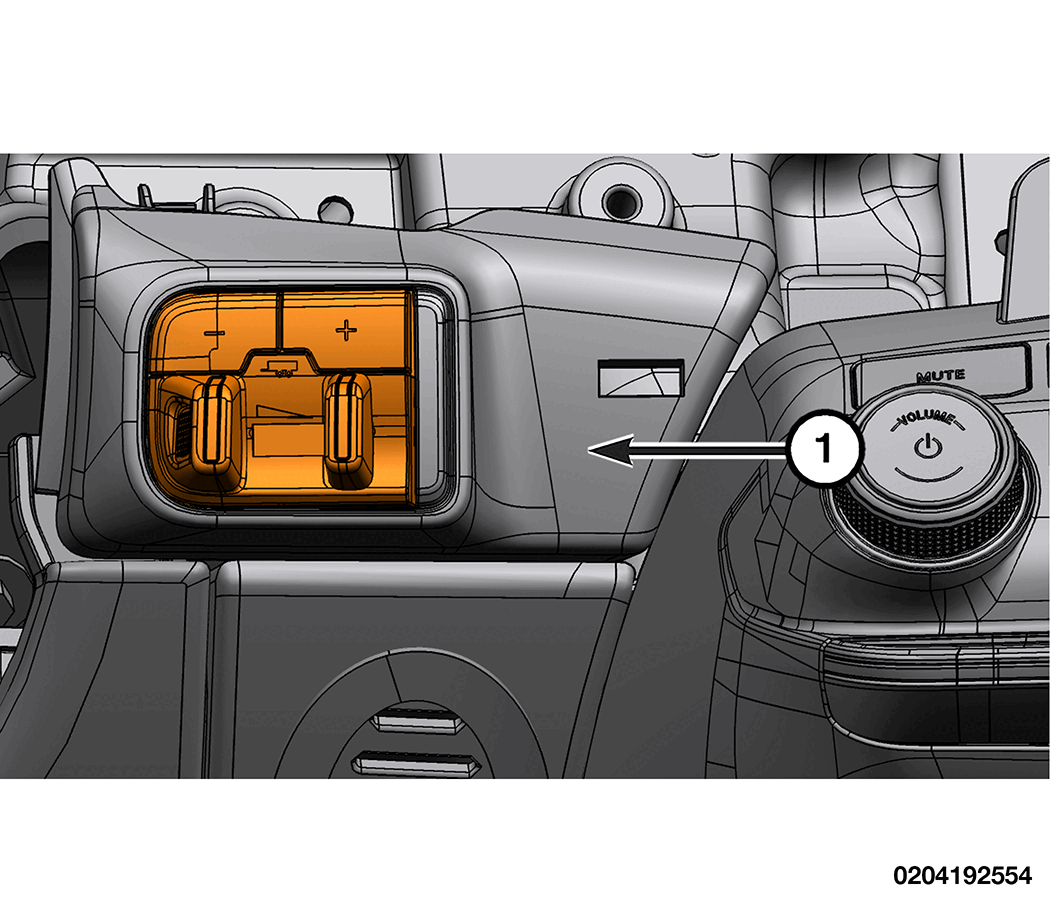

Install the ITBM bezel to the instrument panel.
Install the left inboard instrument panel applique. Refer to BEZEL, INSTRUMENT PANEL, APPLIQUE, INSTALLATION .
