Charging System (Service Information): Generator: Installation: 3.6L

Install the generator into the vehicle.
Install the three mounting retainers.
Tighten to the proper torque specifications. Refer to TORQUE SPECIFICATION .

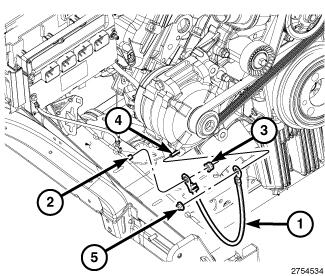

Install ground wire on mounting stud (4).

Courtesy of CHRYSLER GROUP, LLC
Install the lower front ground wire mounting nut (5).
Tighten to the proper torque specifications. Refer to TORQUE SPECIFICATION .
Install the serpentine belt. Refer to 3.6L, BELT, SERPENTINE, INSTALLATION .

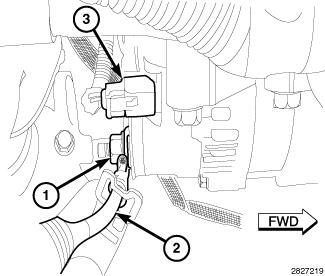

Plug in the field circuit (3) to the generator.

Courtesy of CHRYSLER GROUP, LLC
Connect the B+ terminal nut (1) and wire (2).
Connect the negative battery cable and tighten the nut to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
