Clearance and Design Specifications



Model 998 Specifications

The rear axle is a semi-floating type with a 19.2 cm (7 9/16 in) diameter ring gear.

Fluid Capacity And Converter Size:





Band Adjustment:

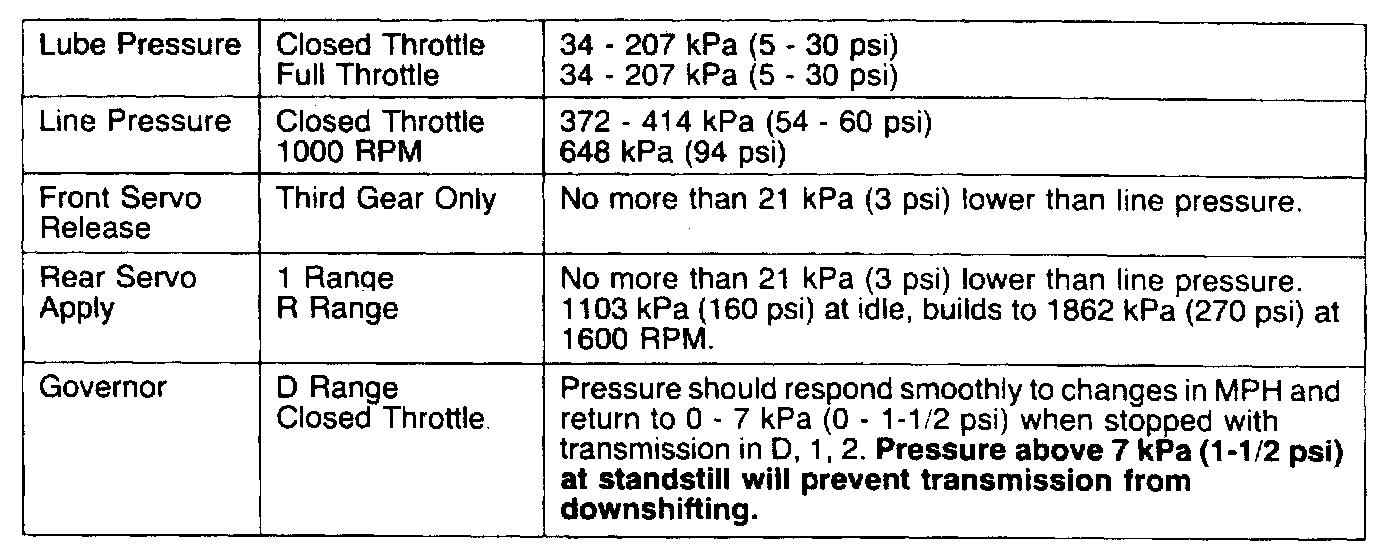

Hydraulic Pressure Specifications:





Stall Speed Specifications:





Axle Size And Ratio Identification:
