Manifold Pressure/Vacuum Sensor: Locations

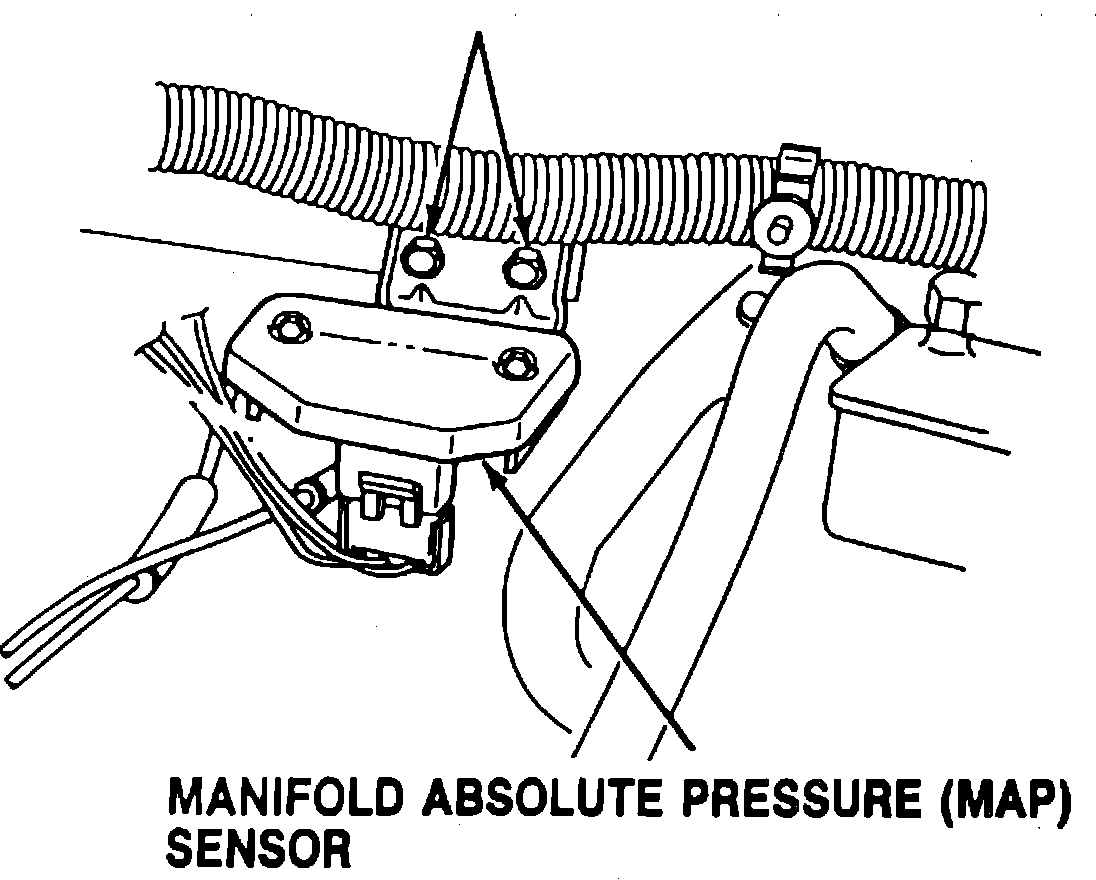

Manifold Absolute Pressure (MAP) Sensor Location:

Rear LH Side Of Engine Compartment
