Home
>>
Eagle
>>
1989
>>
Medallion L4-2165cc 2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

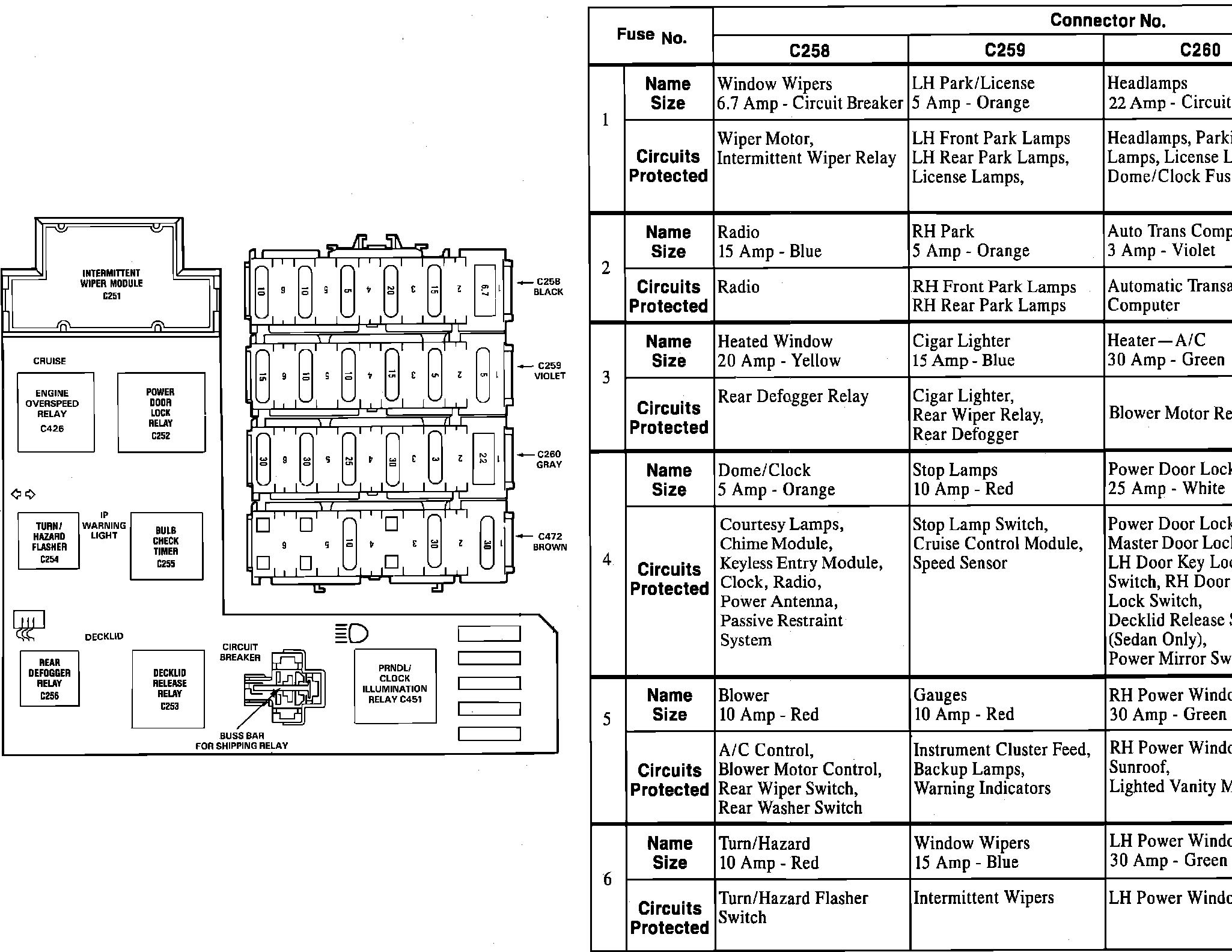

Fuse Block
��"Fuse Panel:
