Fault 1054 - Coolant Temperature Sensor Line Low

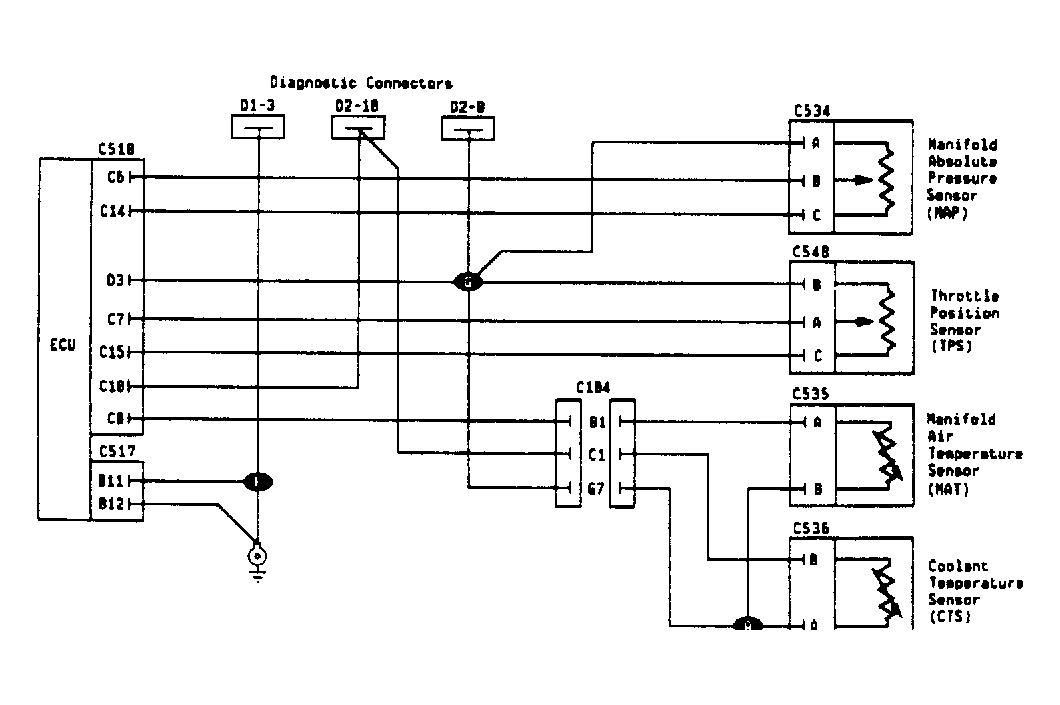

Fig 1: Fault 1054 - Coolant Temp. Sensor Line Low Schematic

Courtesy of CHRYSLER MOTORS

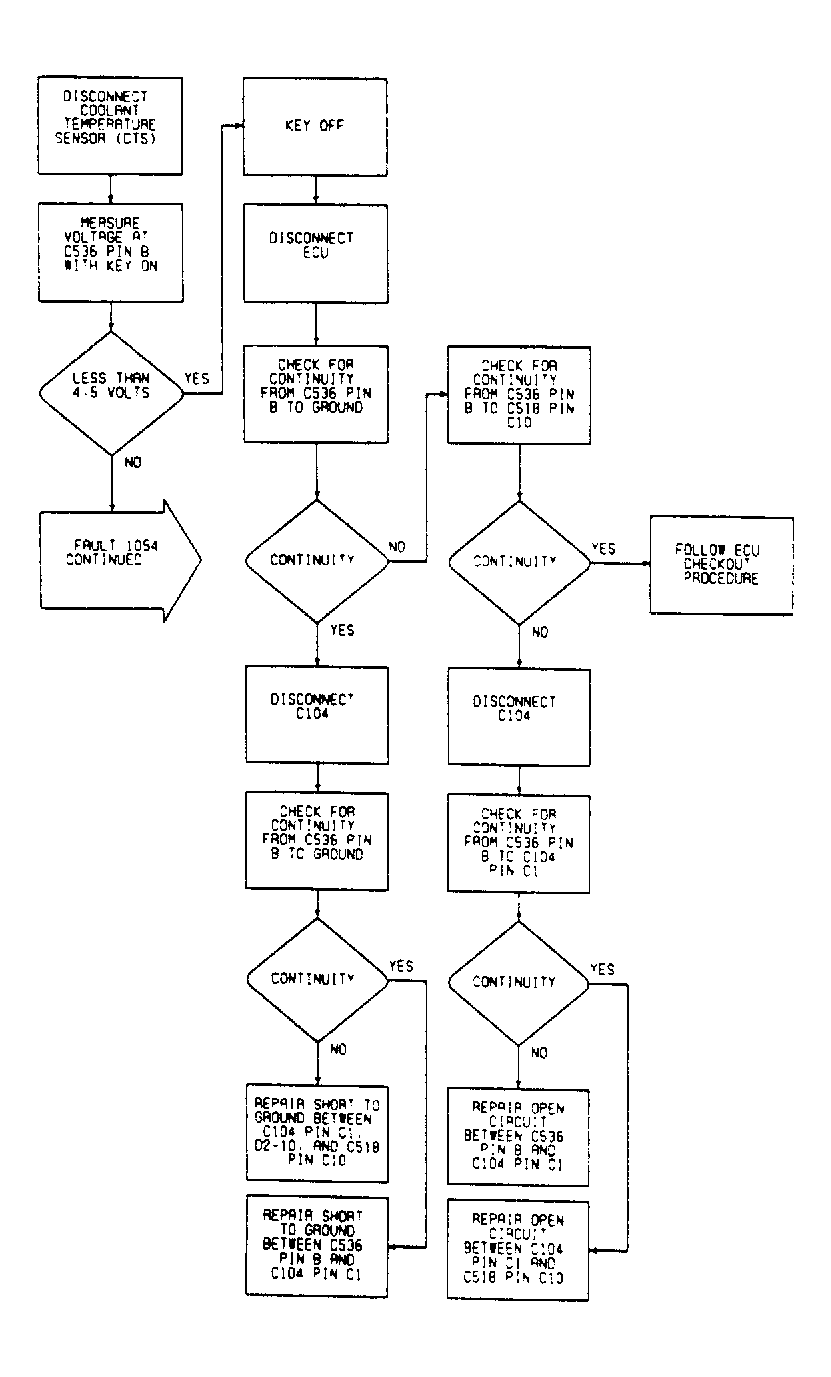

Fig 2: Fault 1054 (1 of 2) - Flow Chart

Courtesy of CHRYSLER MOTORS

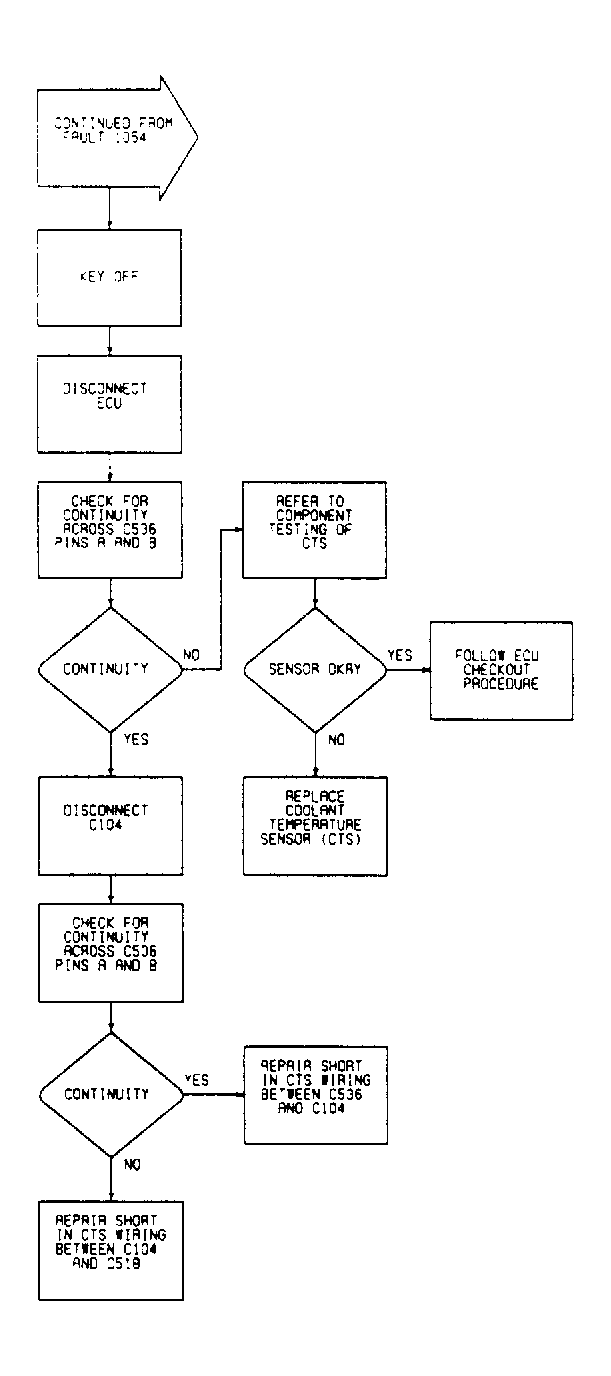

Fig 3: Fault 1054 (2 of 2) - Flow Chart

Courtesy of CHRYSLER MOTORS
