Fault 1068 - Latch Relay Line High

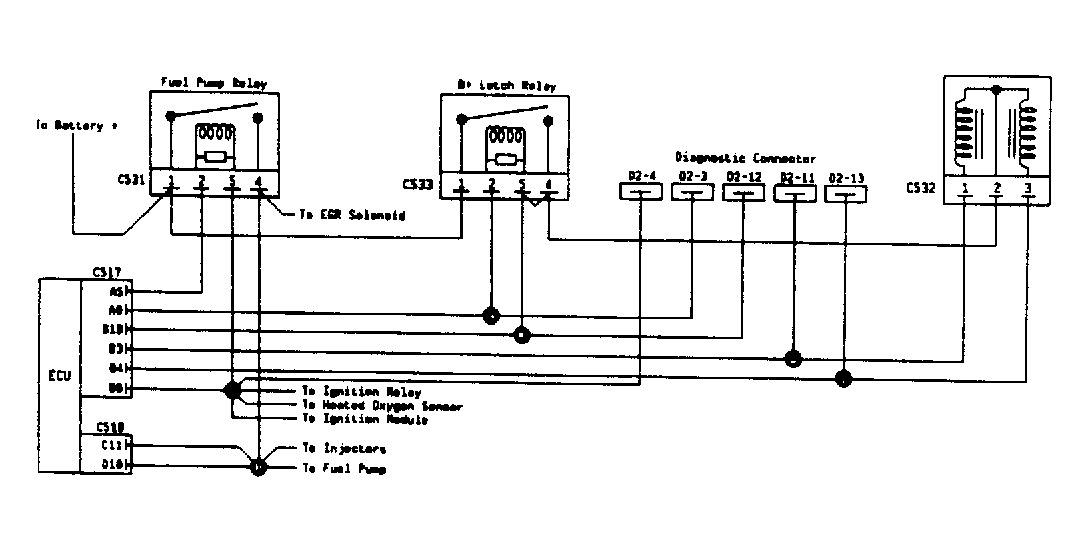

Fig 1: Fault 1068 - Latch Relay Line High Schematic
G108458Courtesy of CHRYSLER MOTORS

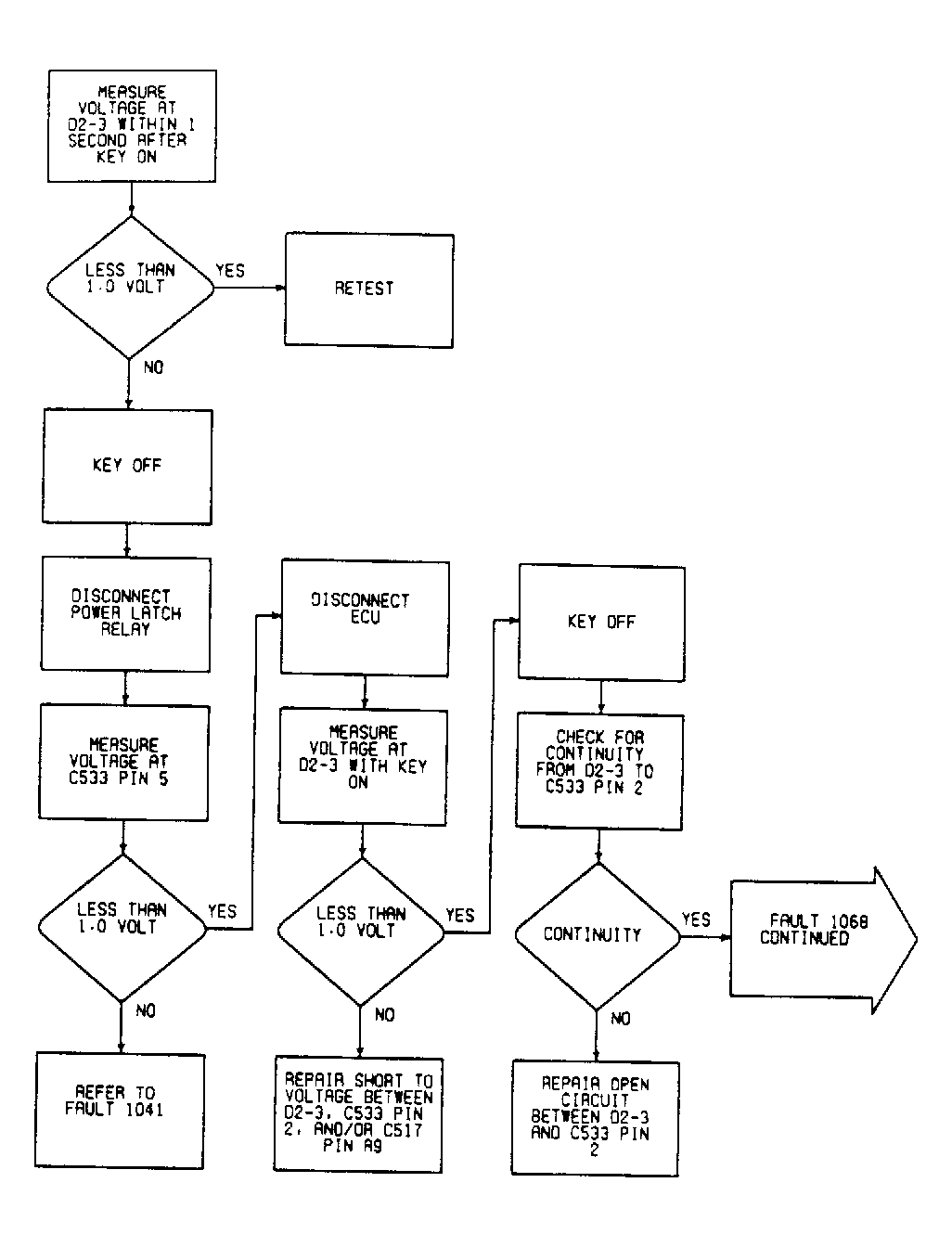

Fig 2: Fault 1068 (1 of 2) - Flow Chart
G108459Courtesy of CHRYSLER MOTORS

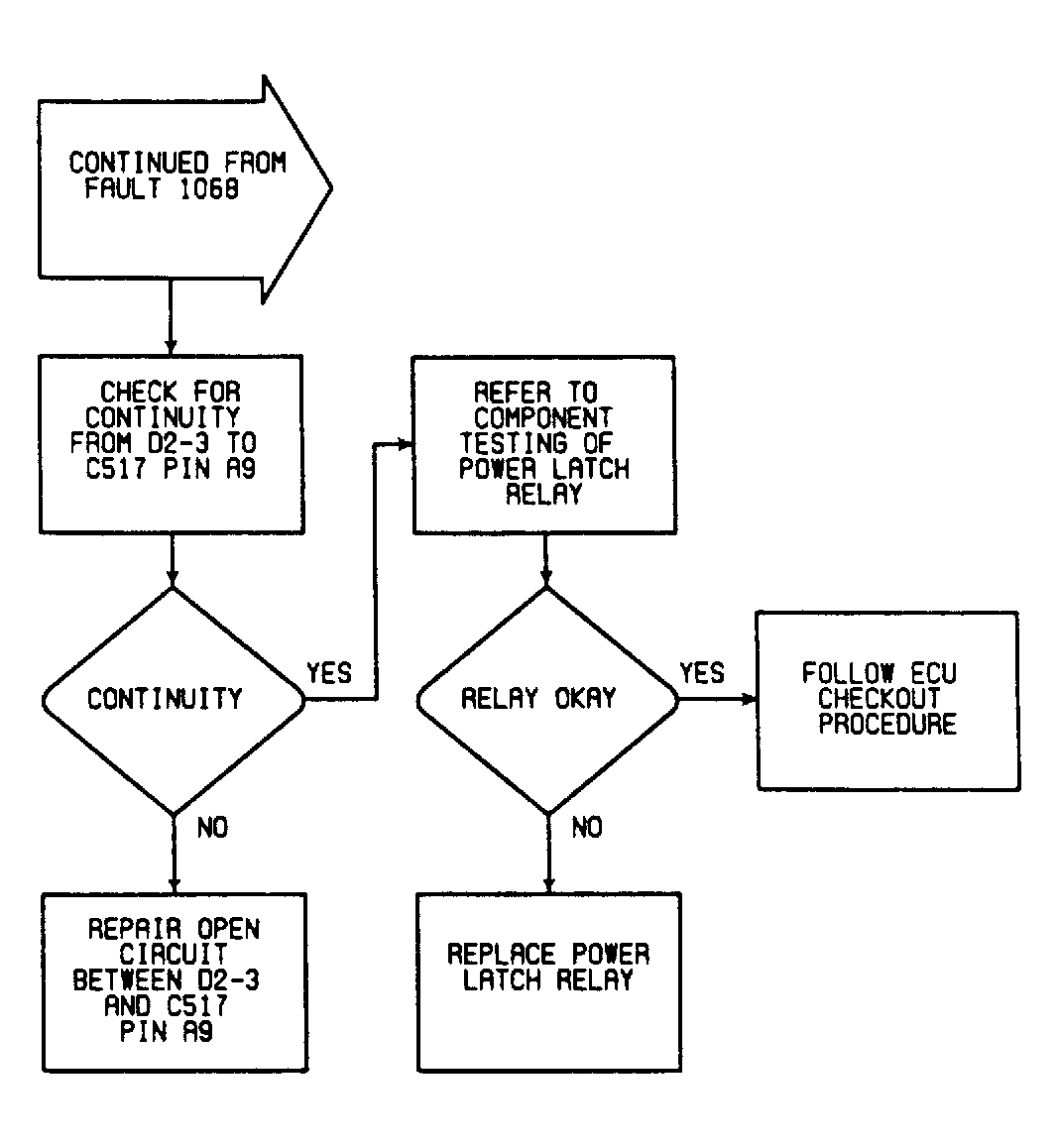

Fig 3: Fault 1068 (2 of 2) - Flow Chart
G108460Courtesy of CHRYSLER MOTORS
