M1 Mode

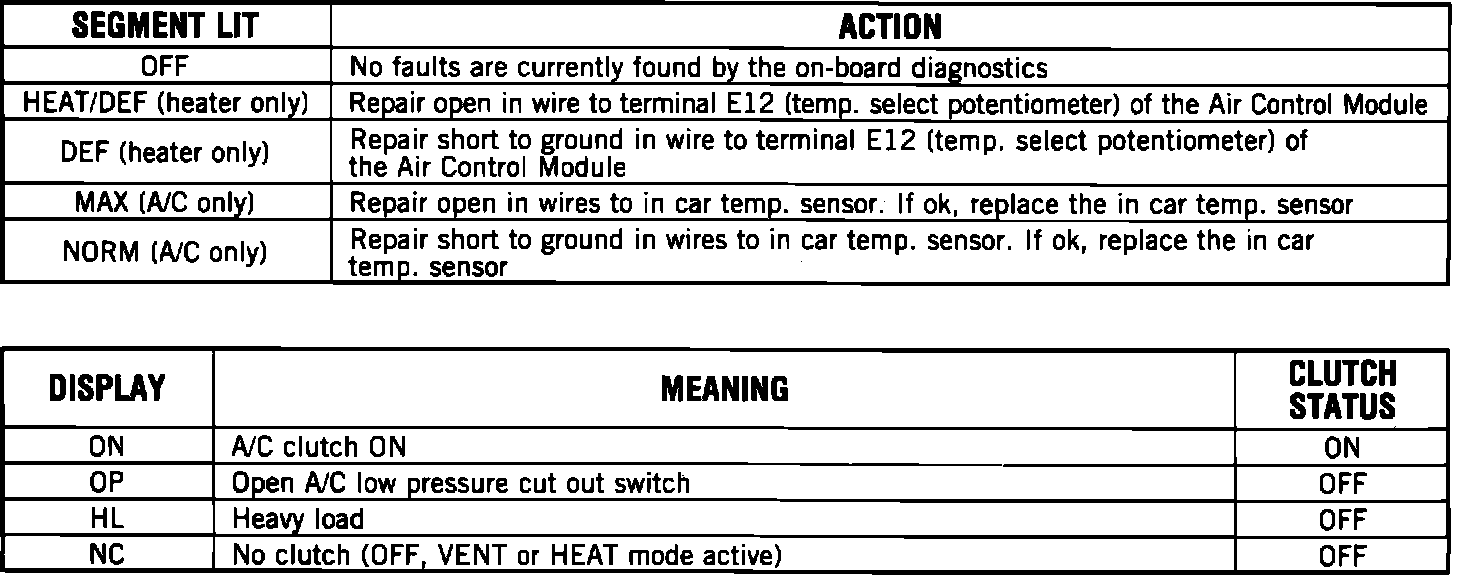

M1 Mode Diagnostic Chart:

Observe which mode select segments are illuminated and check against the chart. Make repairs if indicated by the chart. In this mode, the temperature digits will display the a/c clutch status.
