Manifold Pressure/Vacuum Sensor: Locations

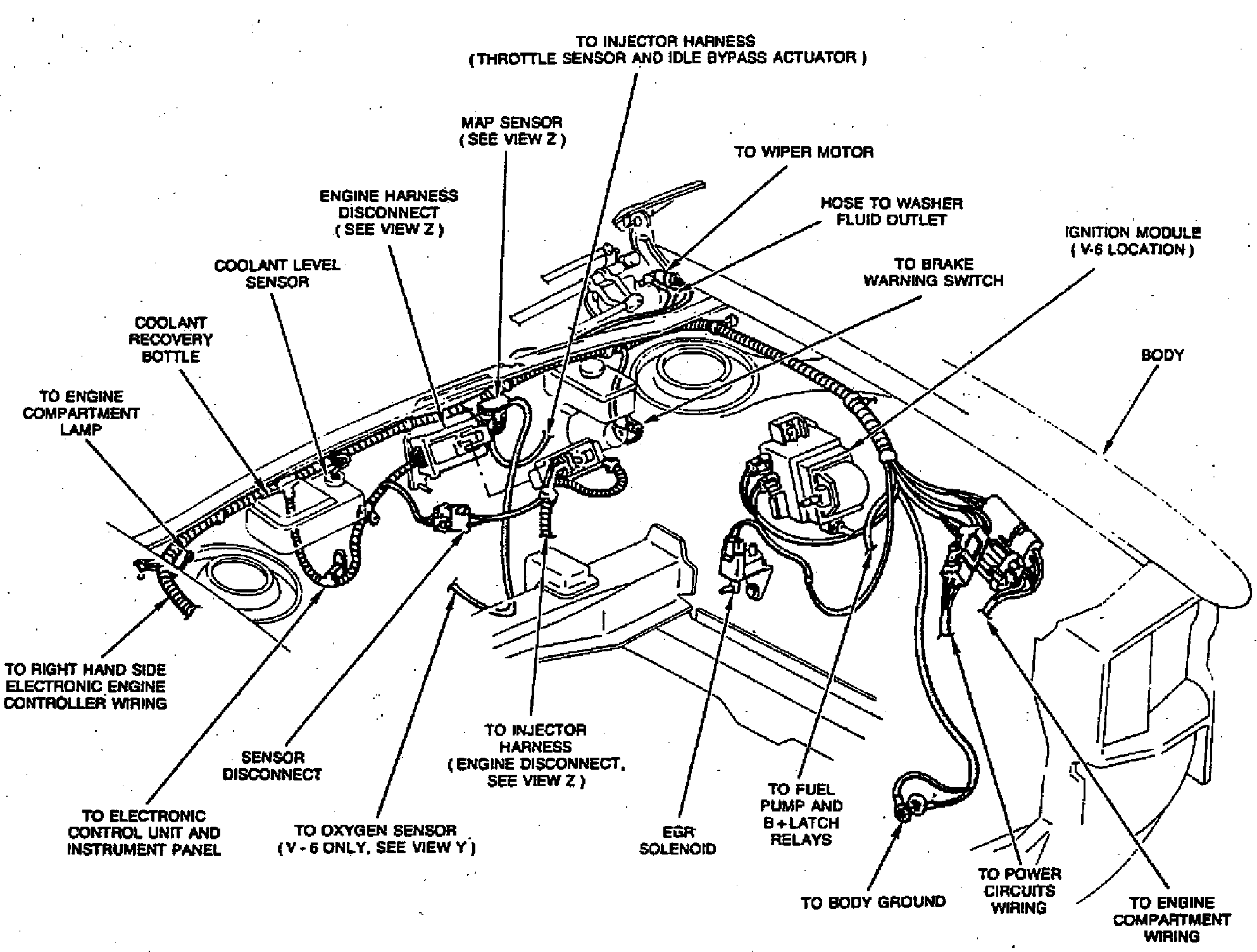

Rear Of Engine Compartment:




On Firewall

MAP & Oxygen Sensor Location:




On Engine Disconnect Bracket
