Select Cable

  1. Place transaxle side shift lever in Neutral. This will also place transaxle side select lever in Neutral. See Fig 1 .
  2. Loosen selector cable adjuster nuts (inside of vehicle). With select lever in Neutral, adjust select cable end so eye fits easily over select lever pin. See Fig 2 . Tighten adjuster nuts.

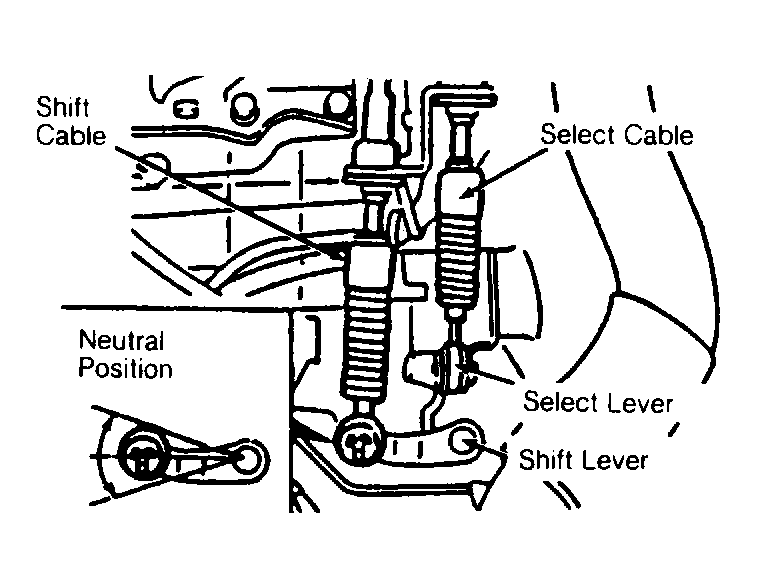

Fig 1: Typical Transaxle Control Cables
G90F01361Courtesy of CHRYSLER MOTORS.

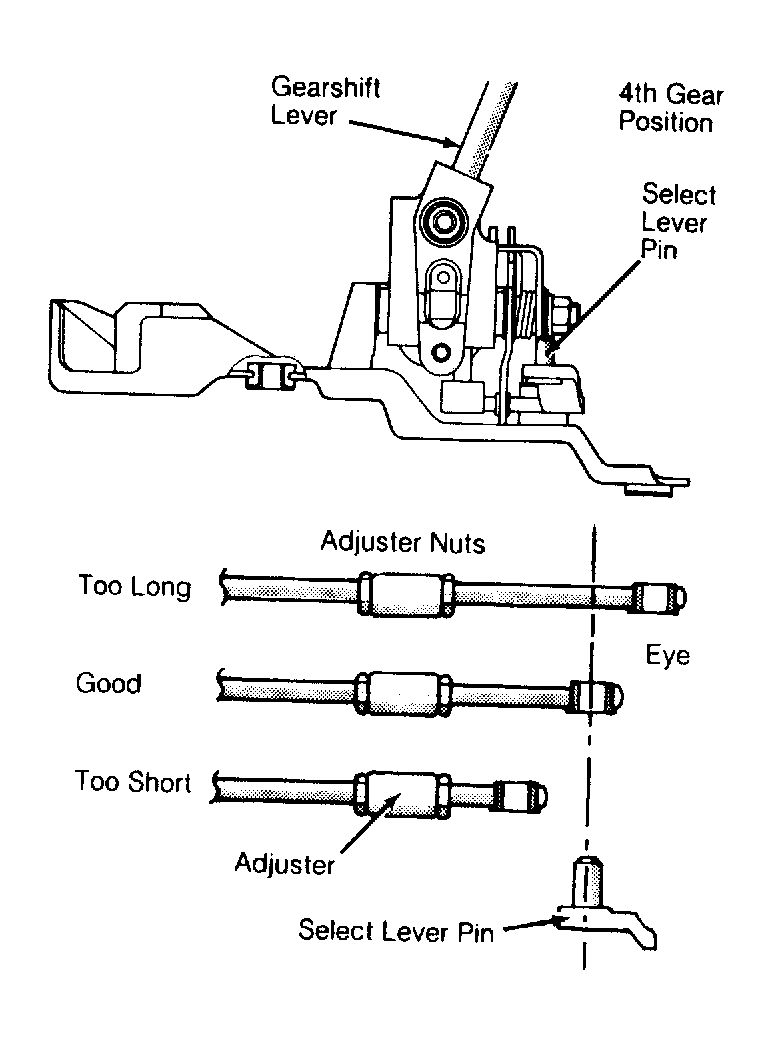

Fig 2: Adjusting Select Cable
G90H01362Courtesy of CHRYSLER MOTORS.
