Ignition Relay: Locations
Ignition Relay:

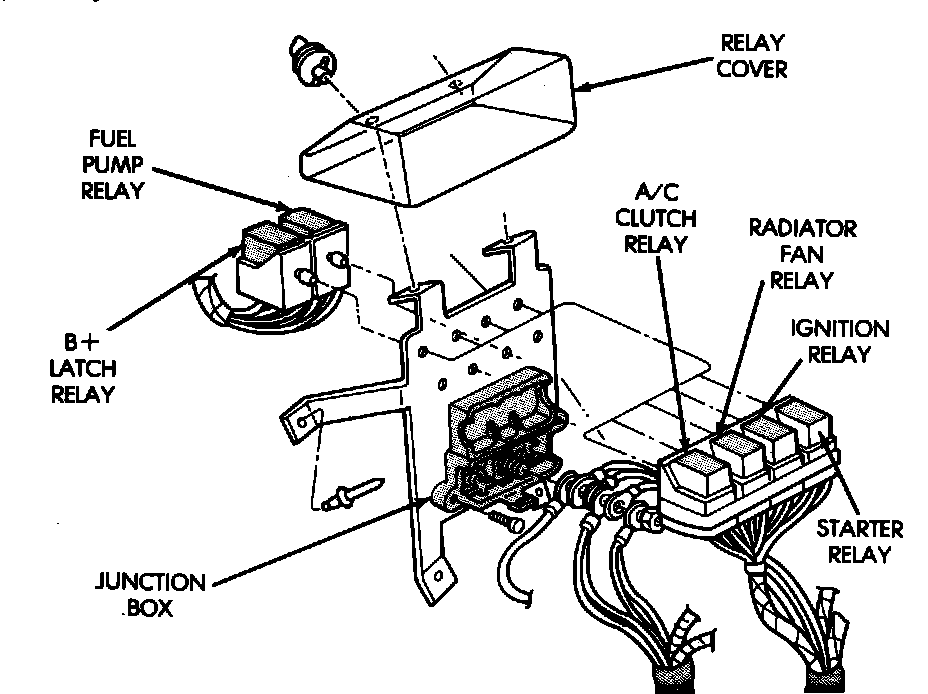

The ignition relay is in the relay assembly on the left front inner fender.
