Crankshaft Position Sensor: Testing and Inspection

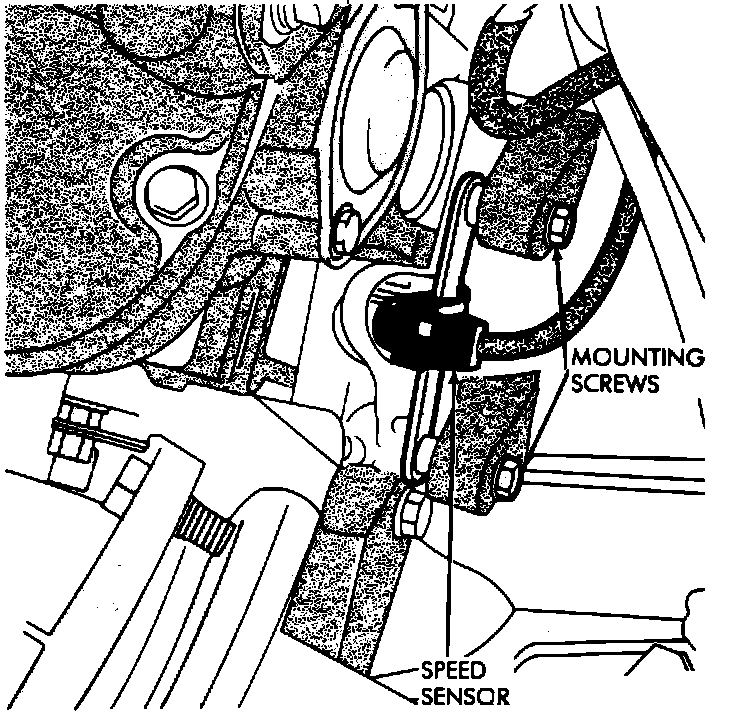

Engine Speed Sensor (CPS):

1. Disconnect the speed sensor connector and measure the resistance between terminals "A" and "B".
2. If the resistance for a hot engine is not between 125 and 275 ohms, replace the sensor.
