Knock Sensor: Locations

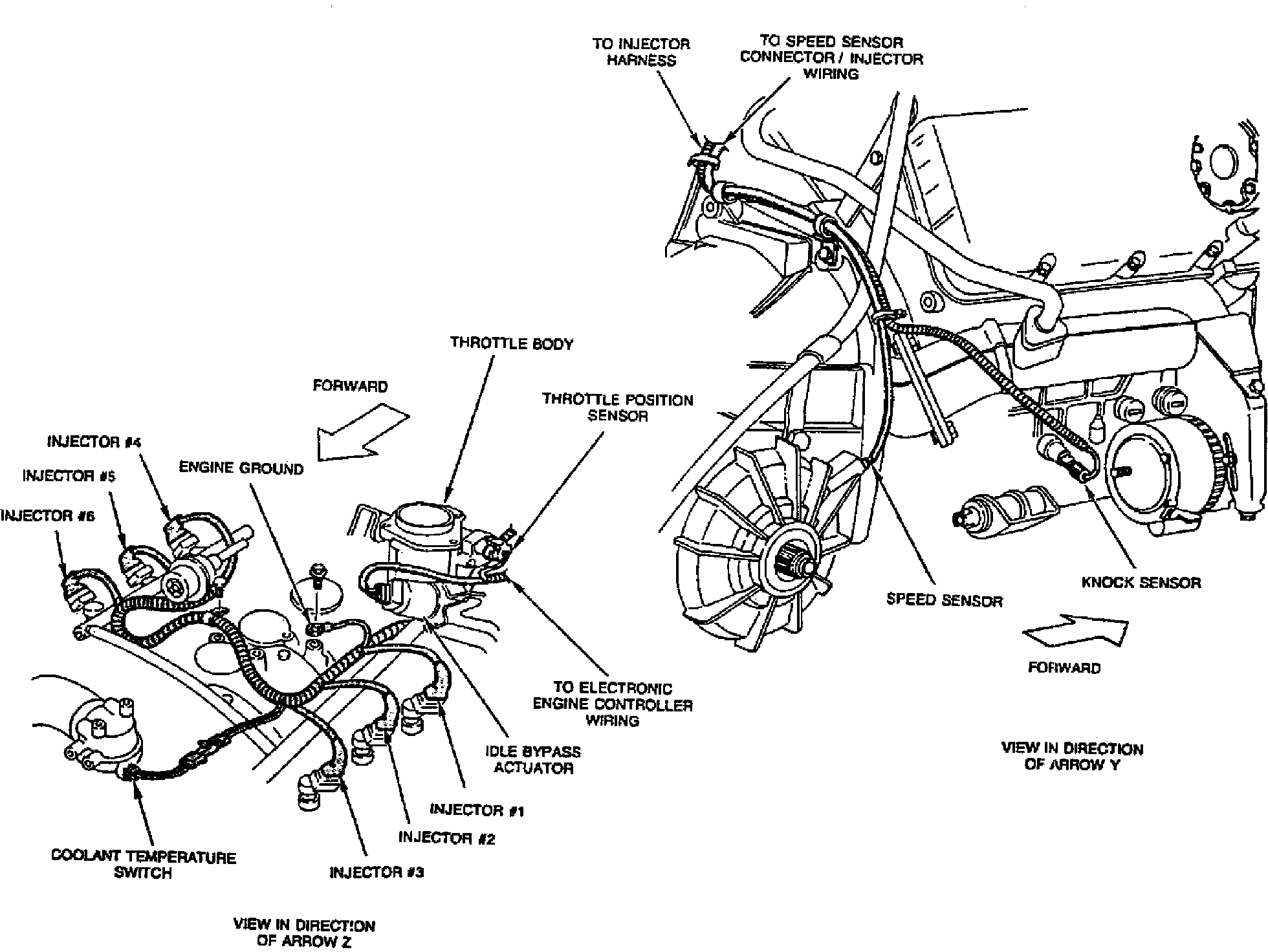

Injector Wiring & Component Location.:




Lower RH Side Of Engine

Applicable to: V6-181/3.0L Engine
