Manifold Pressure/Vacuum Sensor: Service and Repair

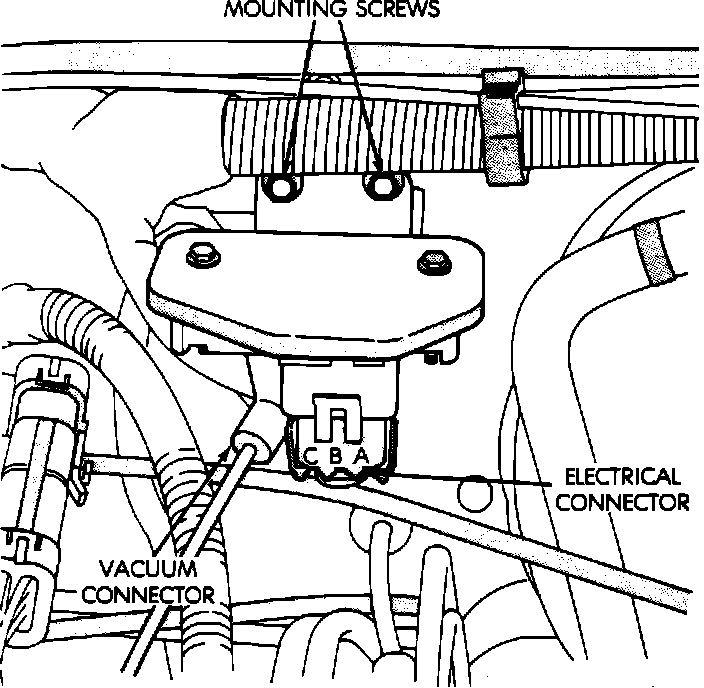

Manifold Absolute Pressure (MAP) Sensor:

1. Disconnect the electrical connector from the Manifold Absolute Pressure (MAP) sensor.
2. Disconnect the vacuum line from the MAP sensor.
3. Remove the MAP sensor mounting screws and remove the sensor from the vehicle.
4. Install the MAP sensor and screws.
5. Connect the vacuum line to the MAP sensor.
6. Connect the electrical connector to the MAP sensor.
