SERVICE MANUAL REVISIONS - JUNE, 1995

TECHNICAL SERVICE BULLETIN

Reference Number(s): 26-04-95, Date of Issue: June, 1995

CHRYSLER:	1994-1996 Town & Country; 1994 New Yorker/LHS/Concorde
DODGE:	1994-1996 Caravan; 1994 Intrepid; 1989-1991 Colt; 1993-1994 Colt
EAGLE:	1995 Talon; 1994 Vision; 1989-1991 Summit; 1993-1995 Summit
PLYMOUTH:	1994-1996 Voyager; 1989-1991 Colt; 1993-1994 Colt
GROUP:	Miscellaneous

SUBJECT

Service Manual Revisions

THIS TECHNICAL SERVICE BULLETIN CONTAINS REVISED SERVICE AND/OR DIAGNOSTIC MANUAL PAGES. REVISIONS ARE HIGHLIGHTED WITH ASTERISKS AND ARE DESCRIBED BELOW. PLEASE INSERT THE PAGES INTO THE APPROPRIATE MANUAL.

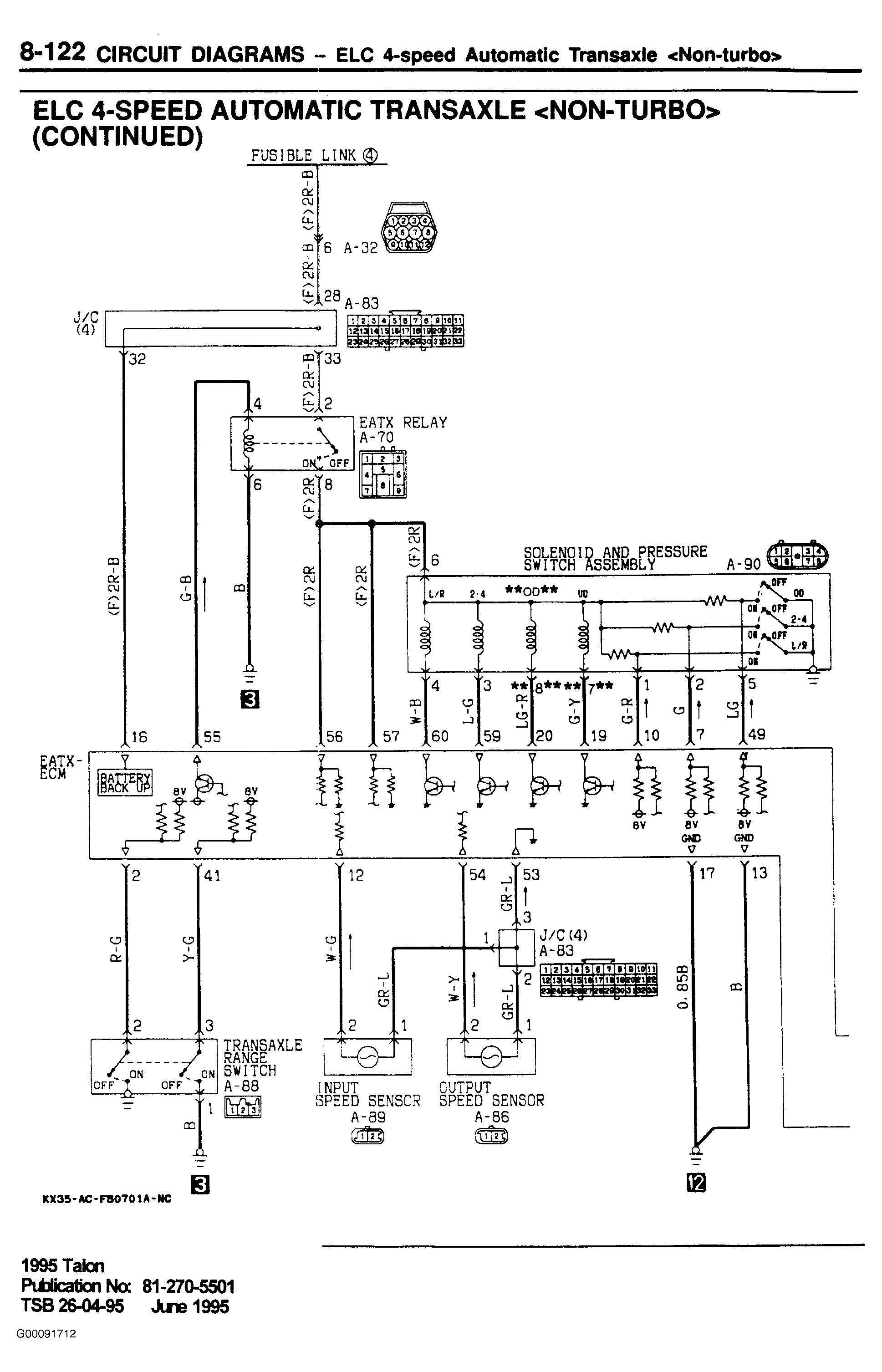

Fig 1: 1995 Talon Service Manual Revision - Page 8-122

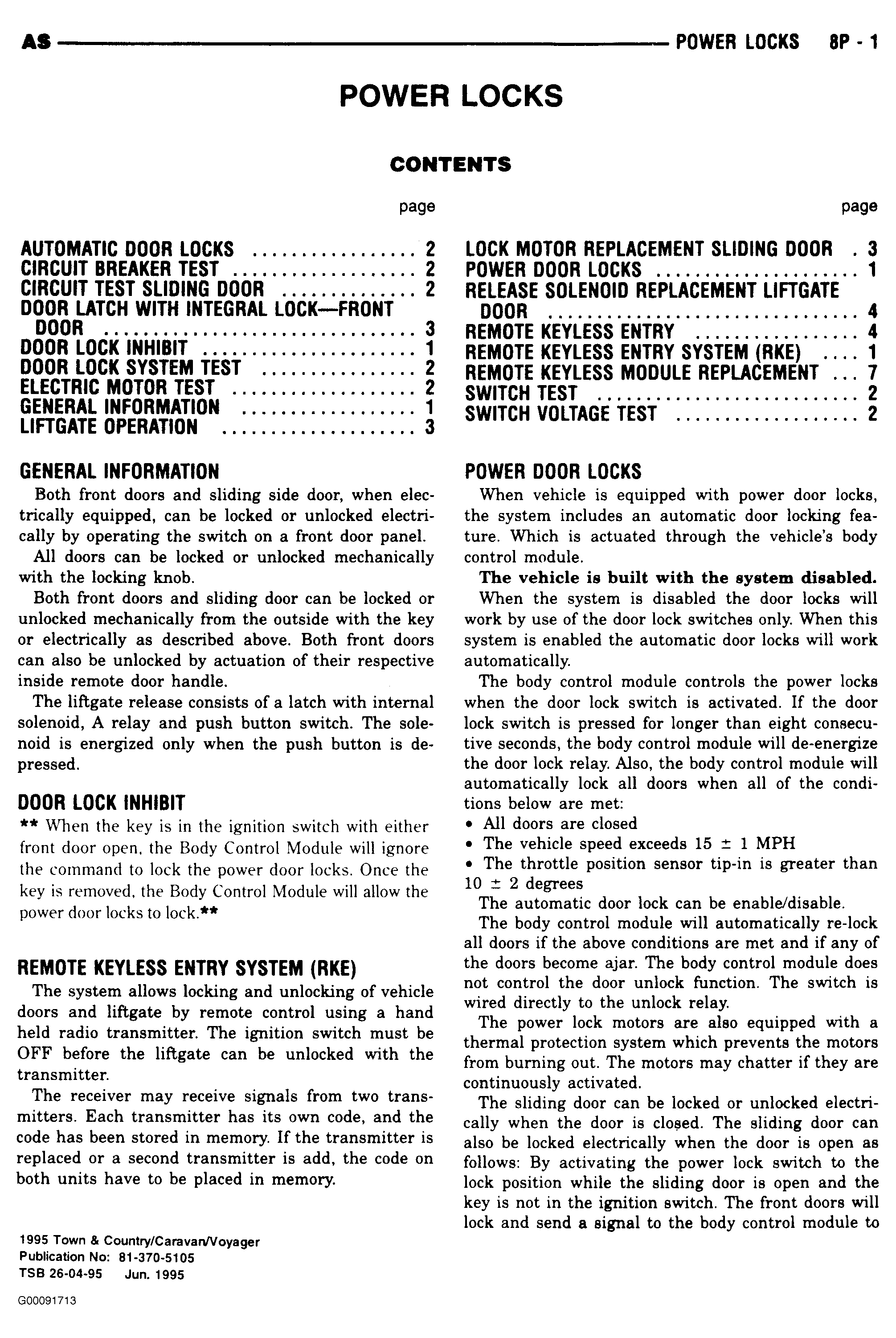

Fig 2: 1995 AS Service Manual Revision - Page 8P-1

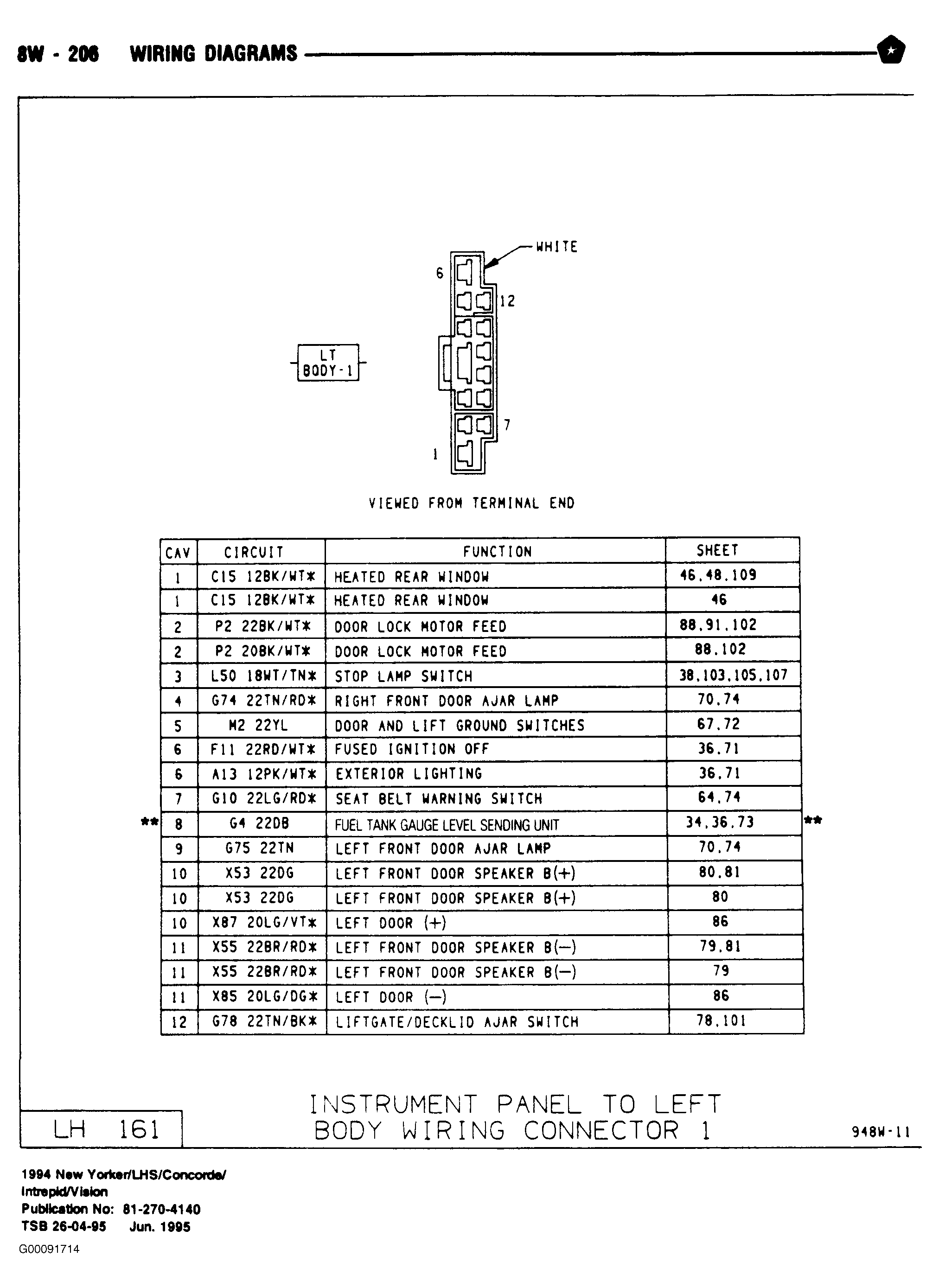

Fig 3: 1994 LH Service Manual Revision - Page 8W-206

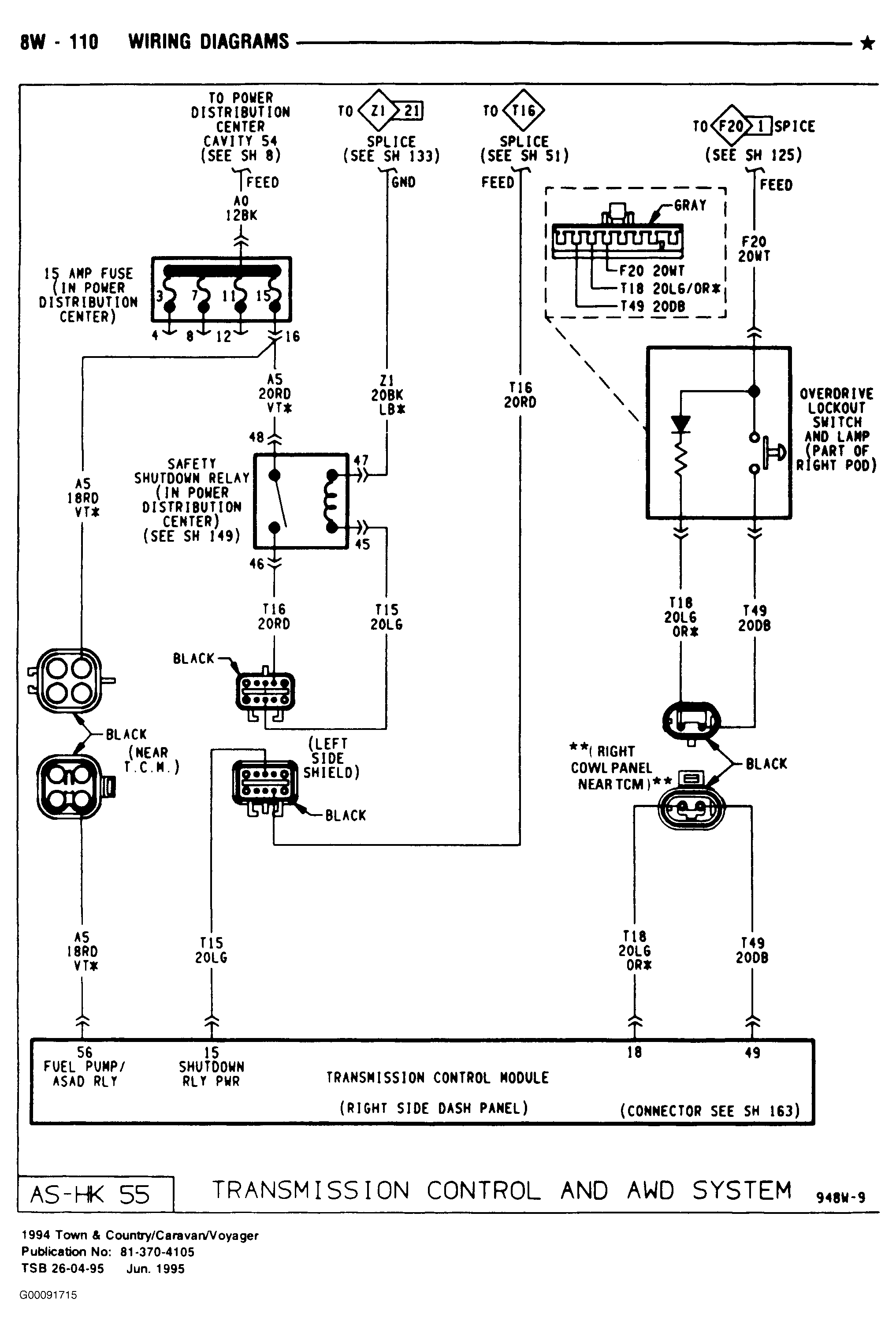

Fig 4: 1994 AS Service Manual Revision - Page 8W-110

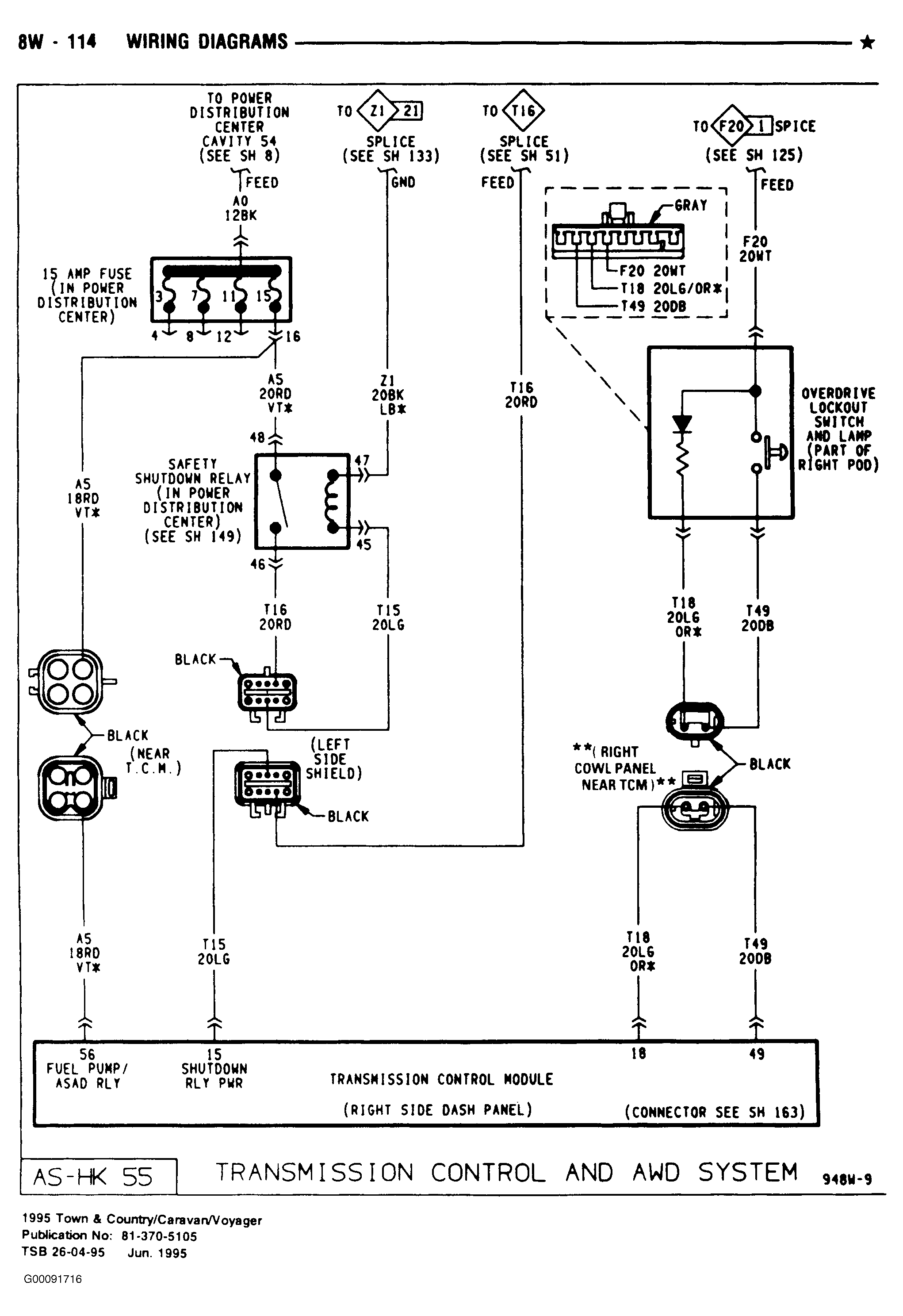

Fig 5: 1995 AS Service Manual Revision - Page 8W-114

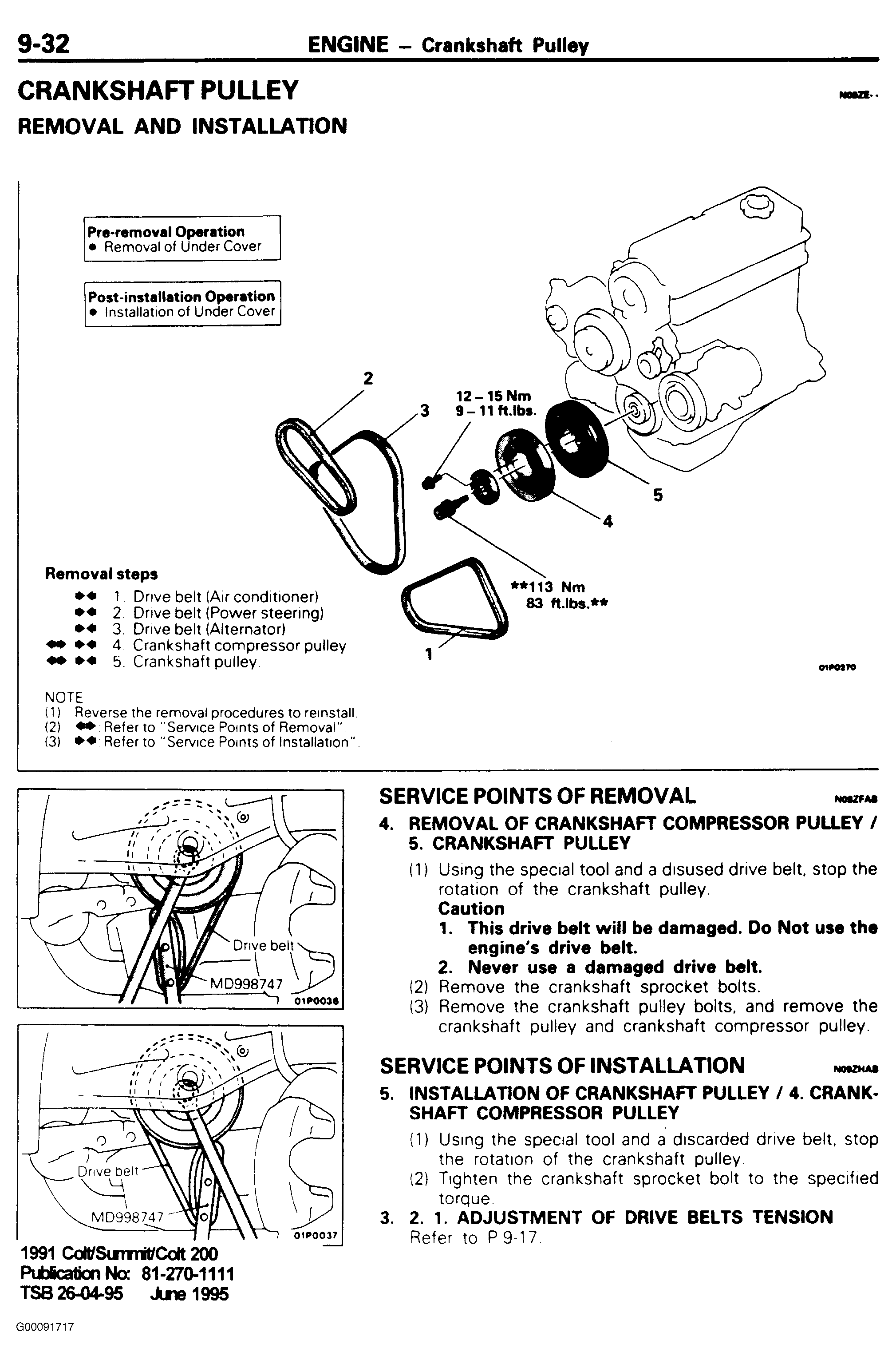

Fig 6: 1991 Colt/Summit/Colt 200 Service Manual Revision - Page 9-32

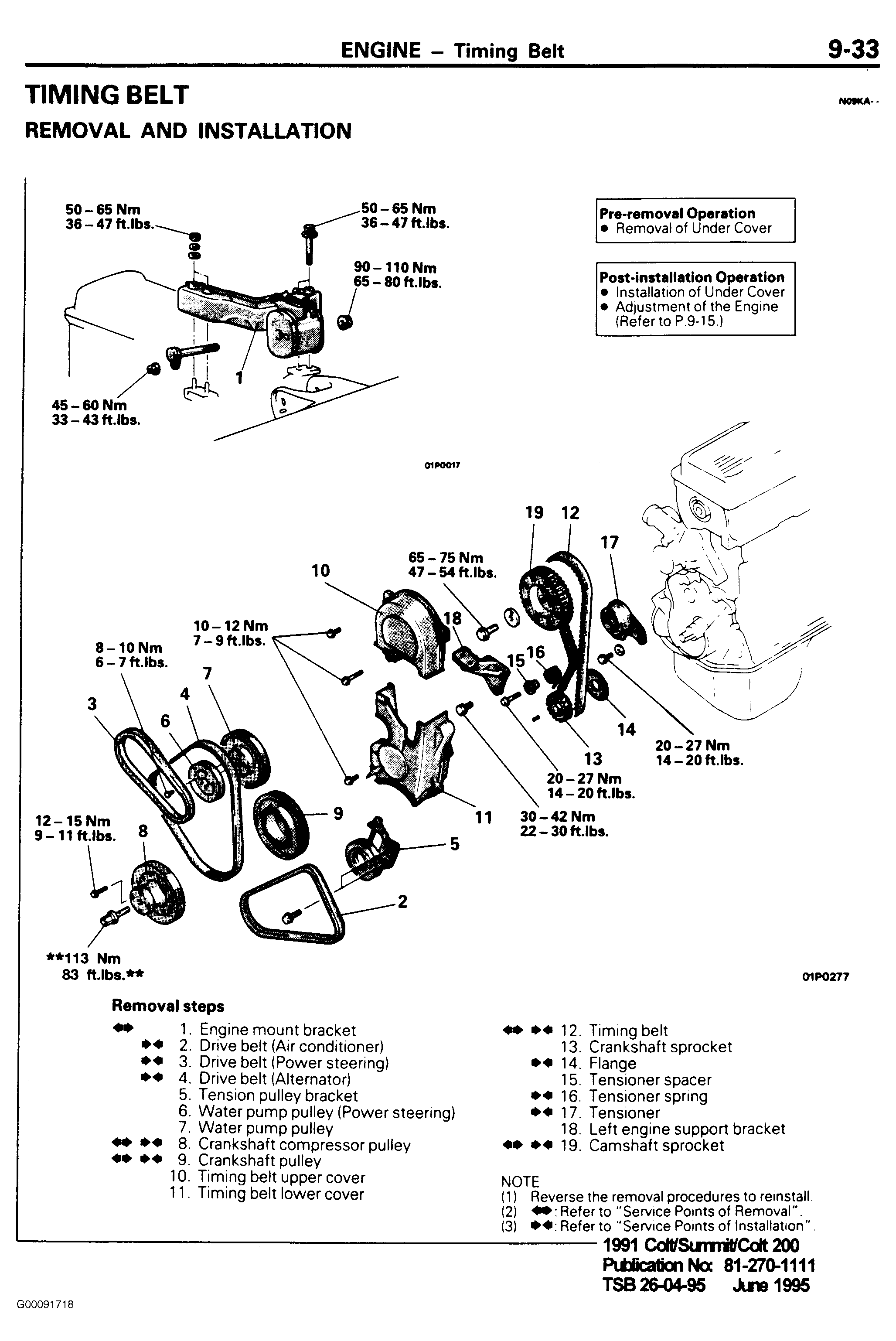

Fig 7: 1991 Colt/Summit/Colt 200 Service Manual Revision - Page 9-33

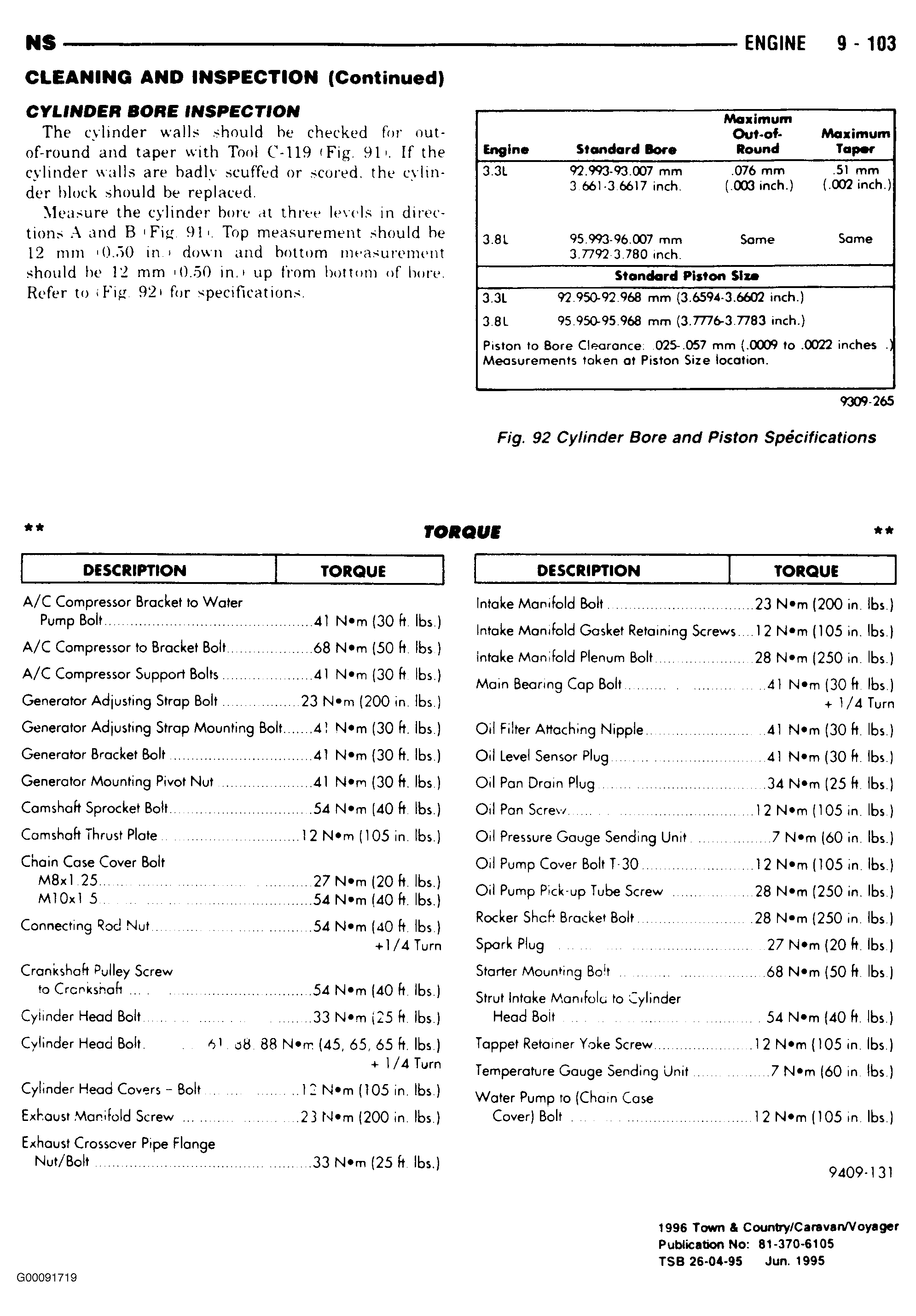

Fig 8: 1996 NS Service Manual Revision - Page 9-103

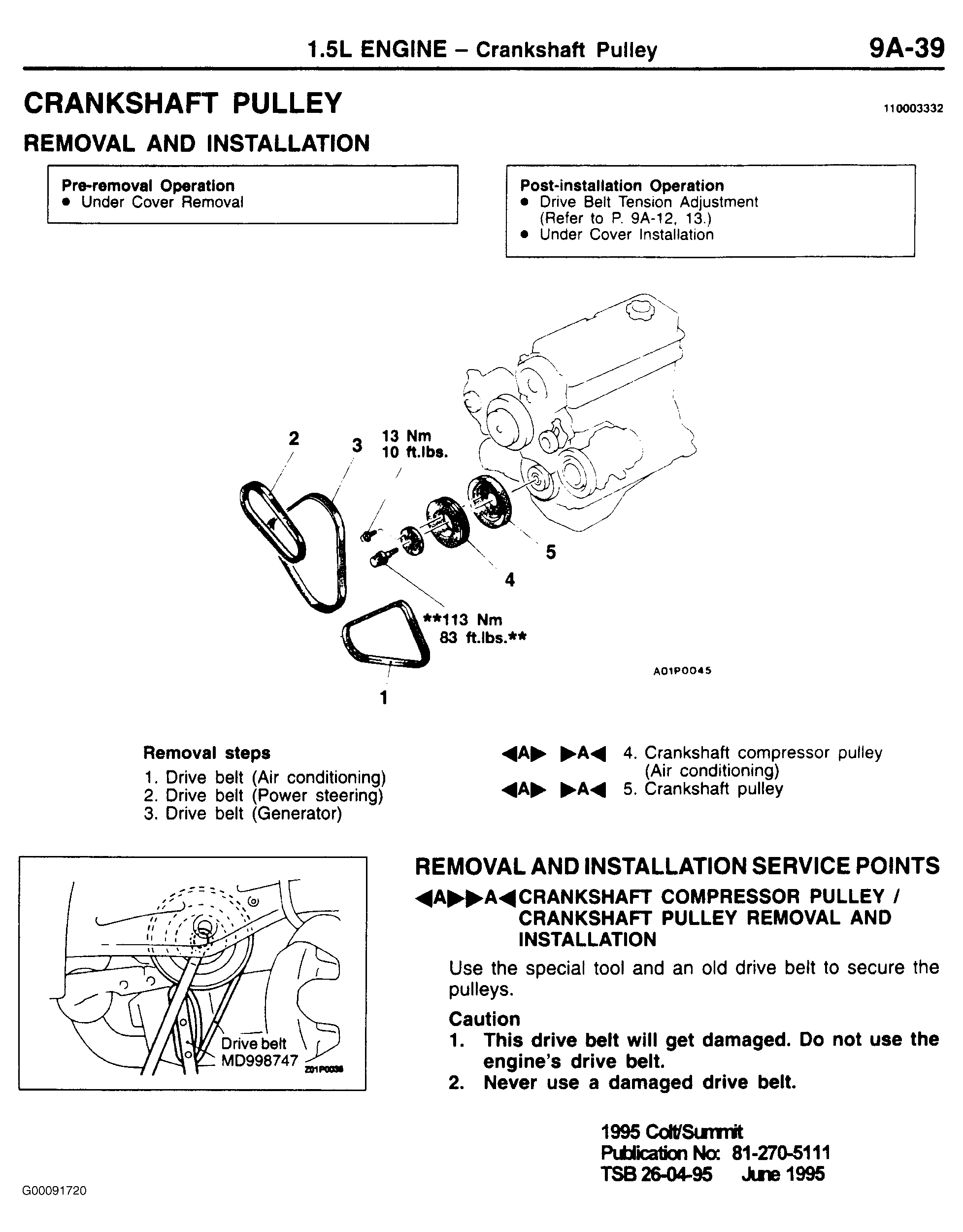

Fig 9: 1995 Colt/Summit Service Manual Revision - Page 9A-39

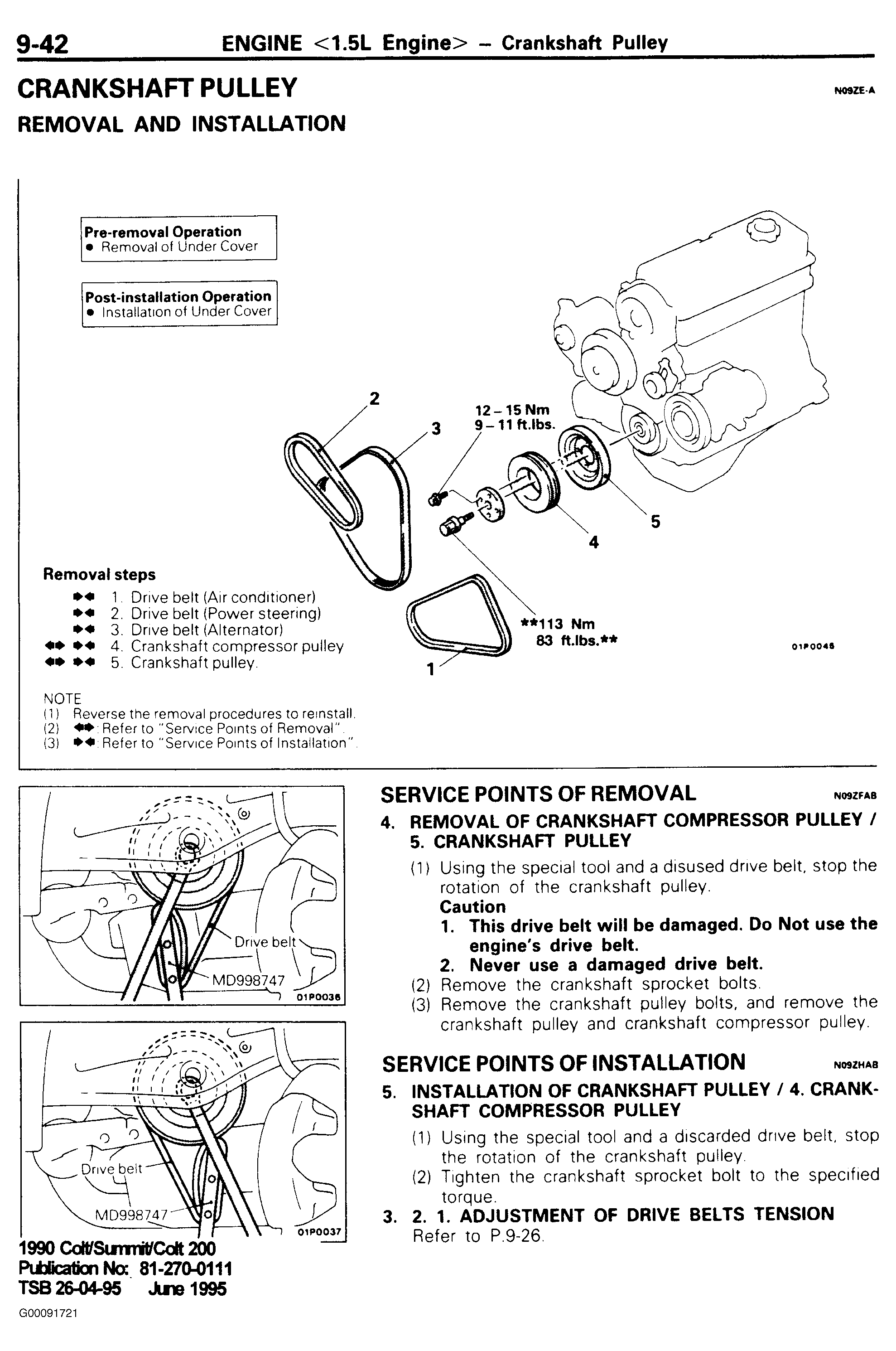

Fig 10: 1990 Colt/Summit/Colt 200 Service Manual Revision - Page 9-42

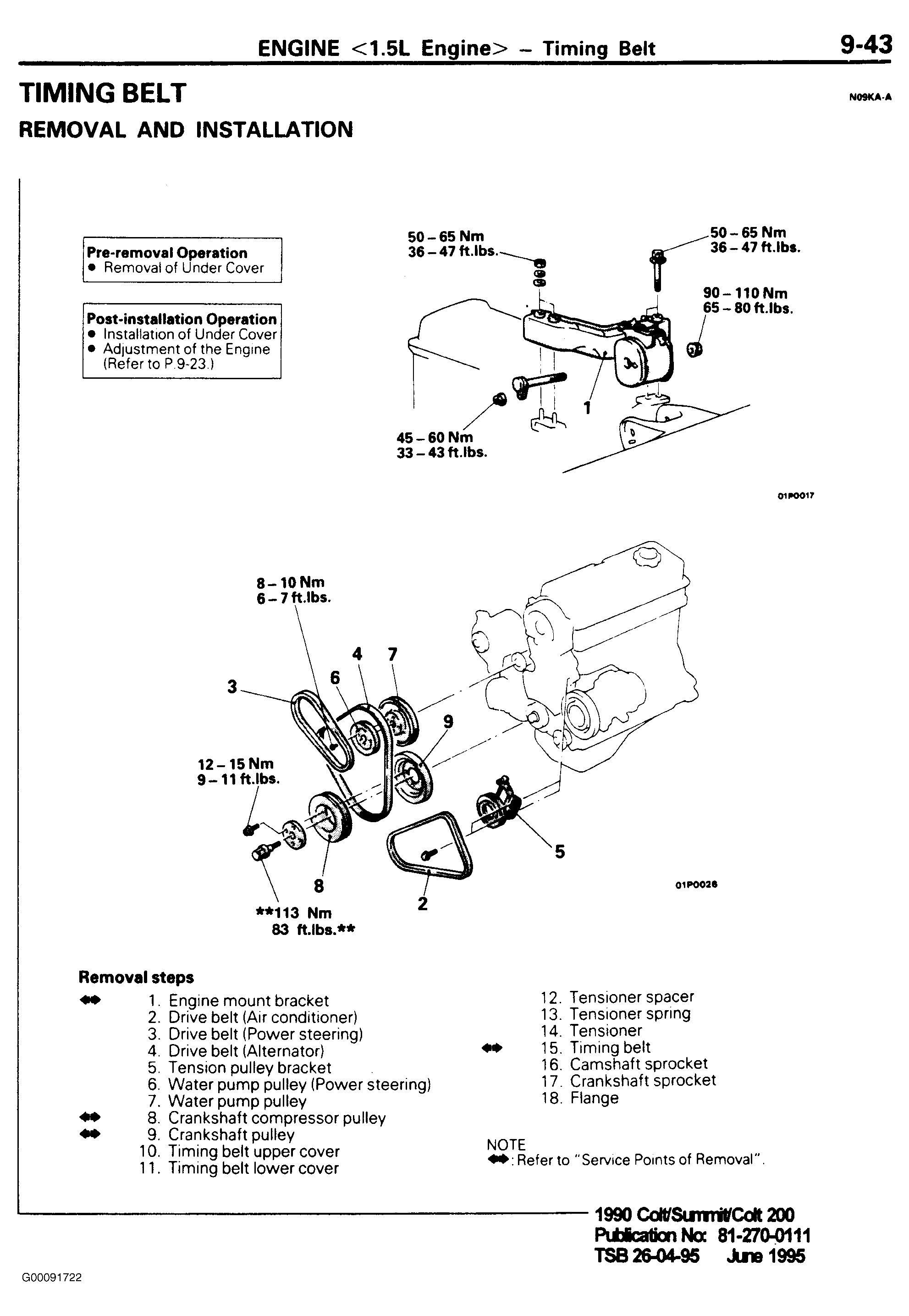

Fig 11: 1990 Colt/Summit/Colt 200 Service Manual Revision - Page 9-43

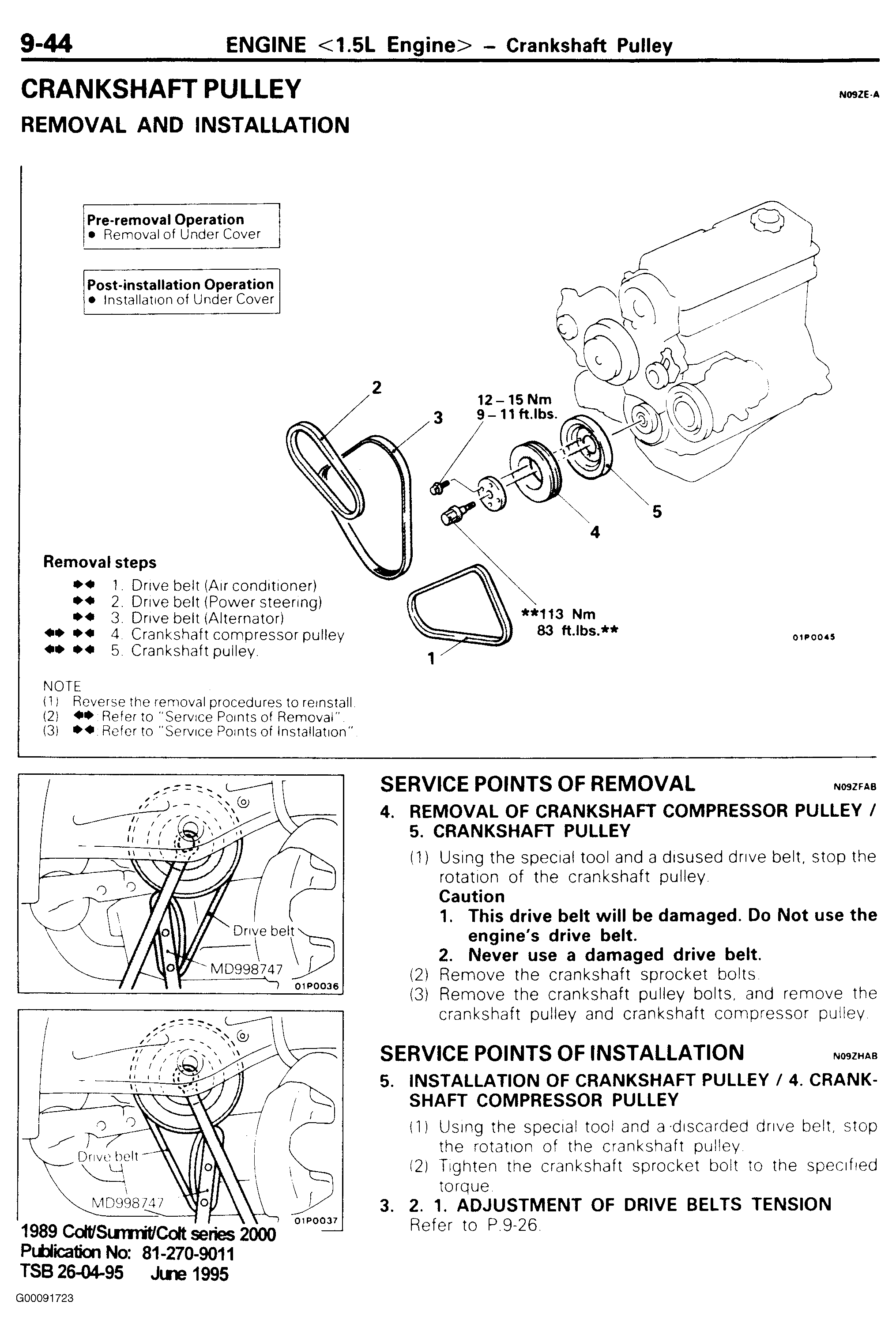

Fig 12: 1989 Colt/Summit/Colt Series 2000 Service Manual Revision - Page 9-44

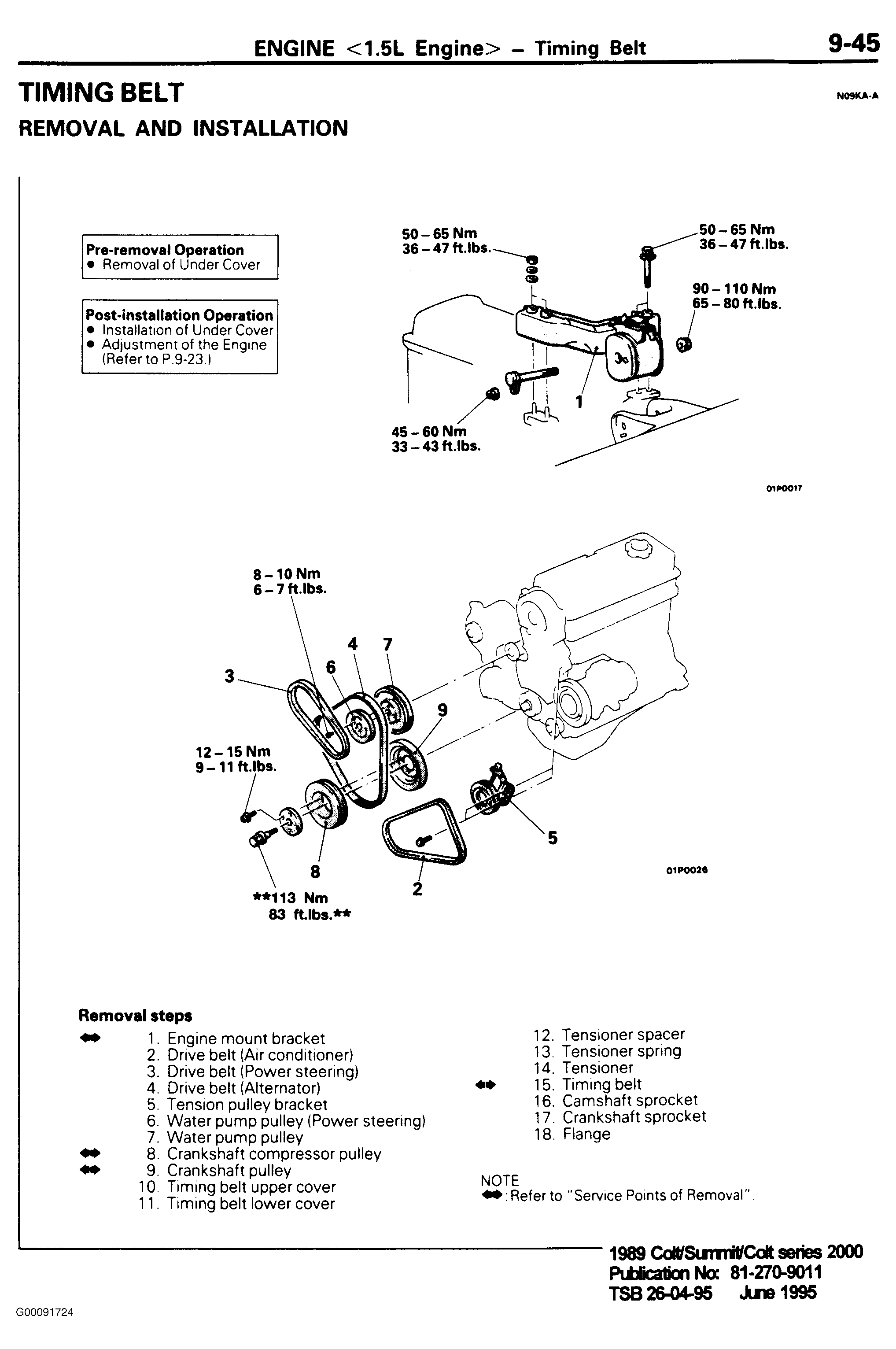

Fig 13: 1989 Colt/Summit/Colt Series 2000 Service Manual Revision - Page 9-45

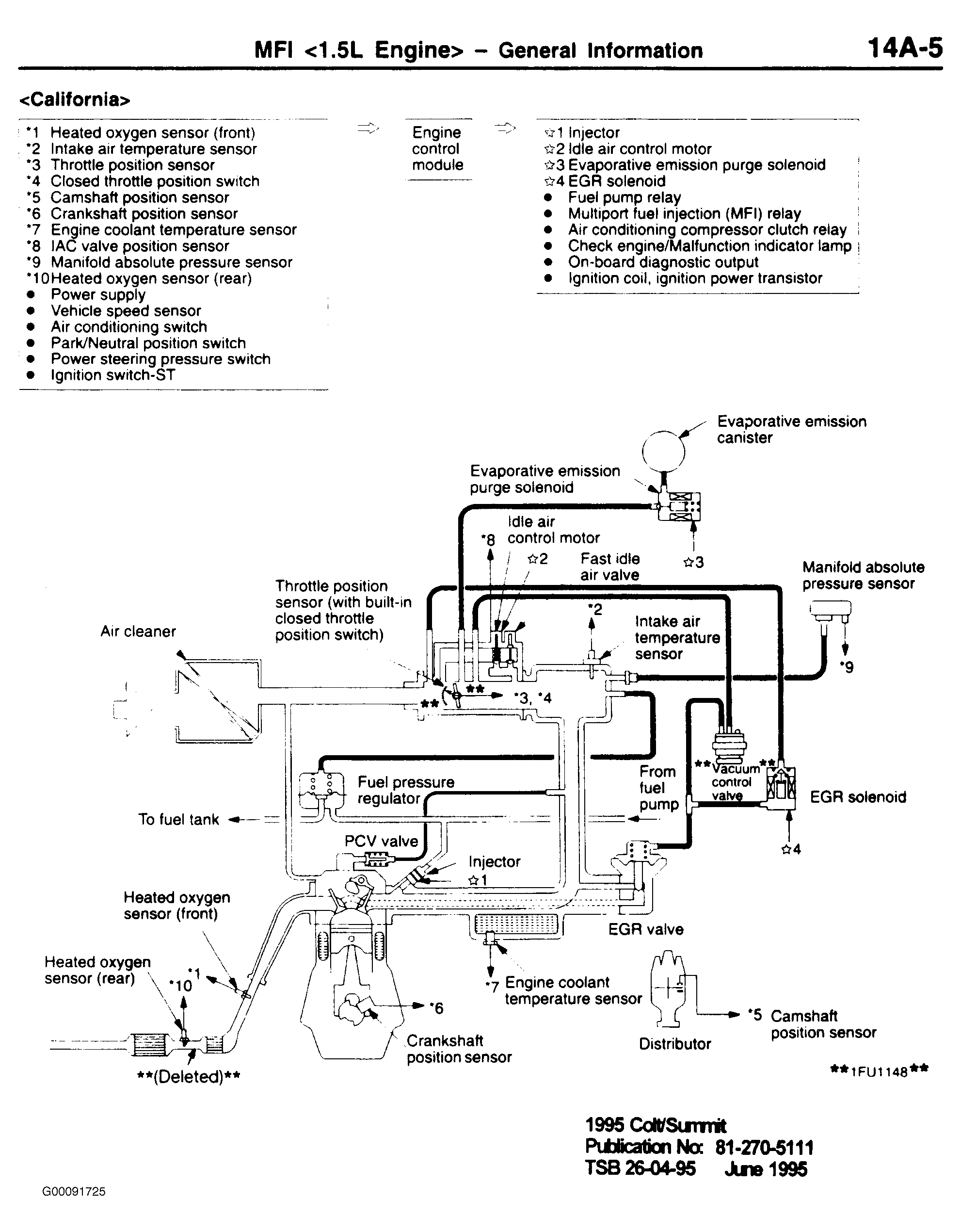

Fig 14: 1995 Colt/Summit Service Manual Revision - Page 14A-5

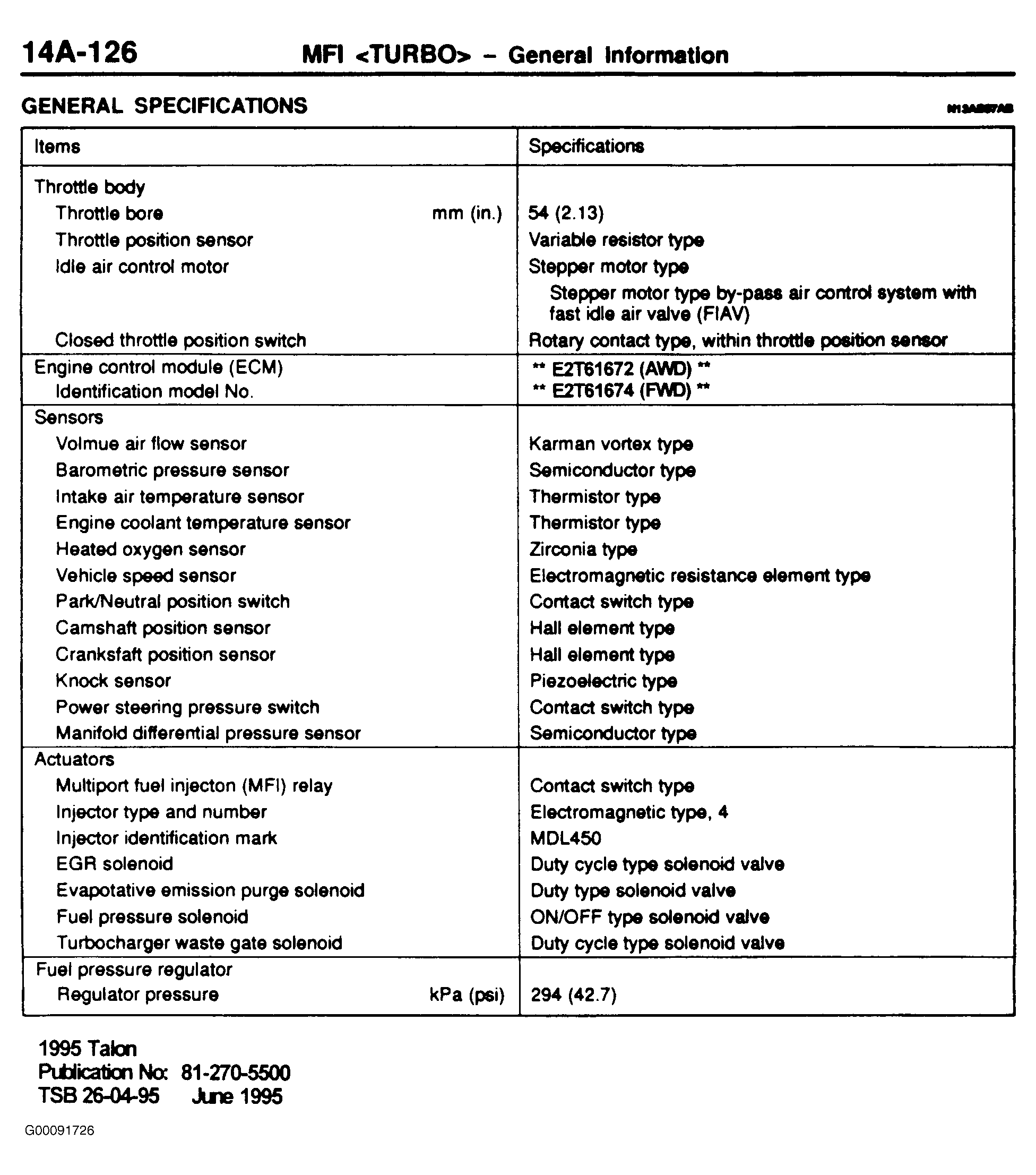

Fig 15: 1995 Talon Service Manual Revision - Page 14A-126

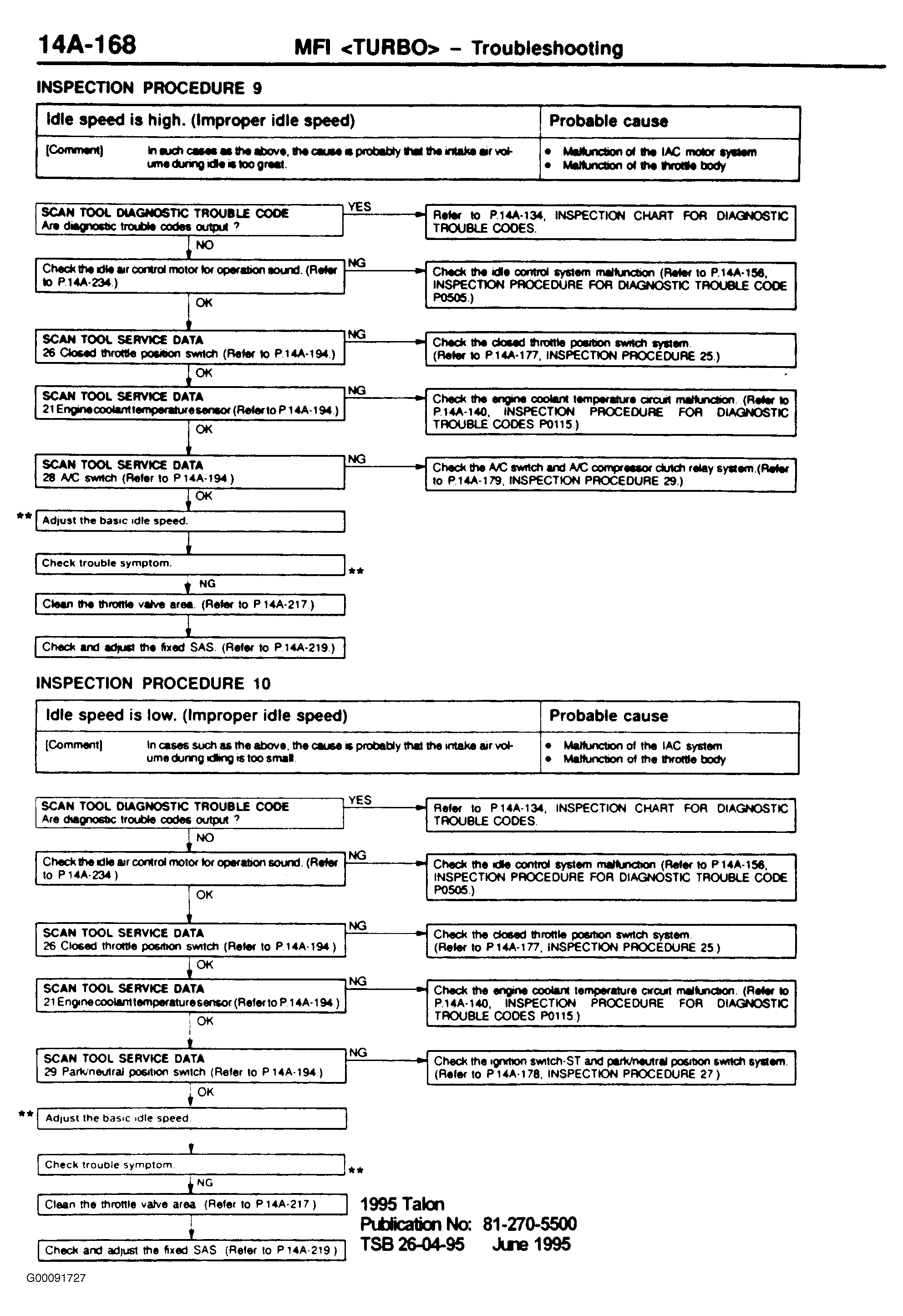

Fig 16: 1995 Talon Service Manual Revision - Page 14A-168

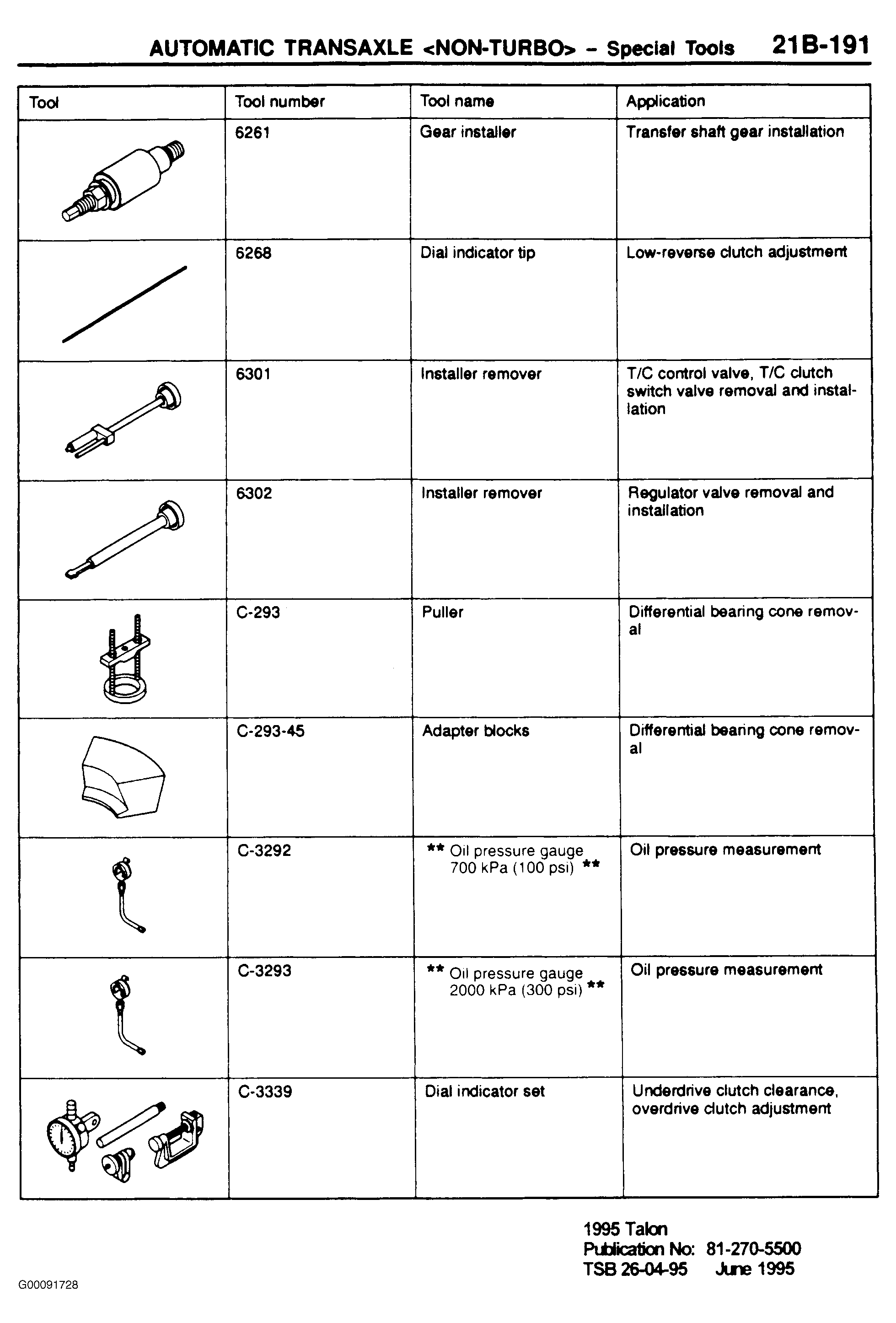

Fig 17: 1995 Talon Service Manual Revision - Page 21B-191

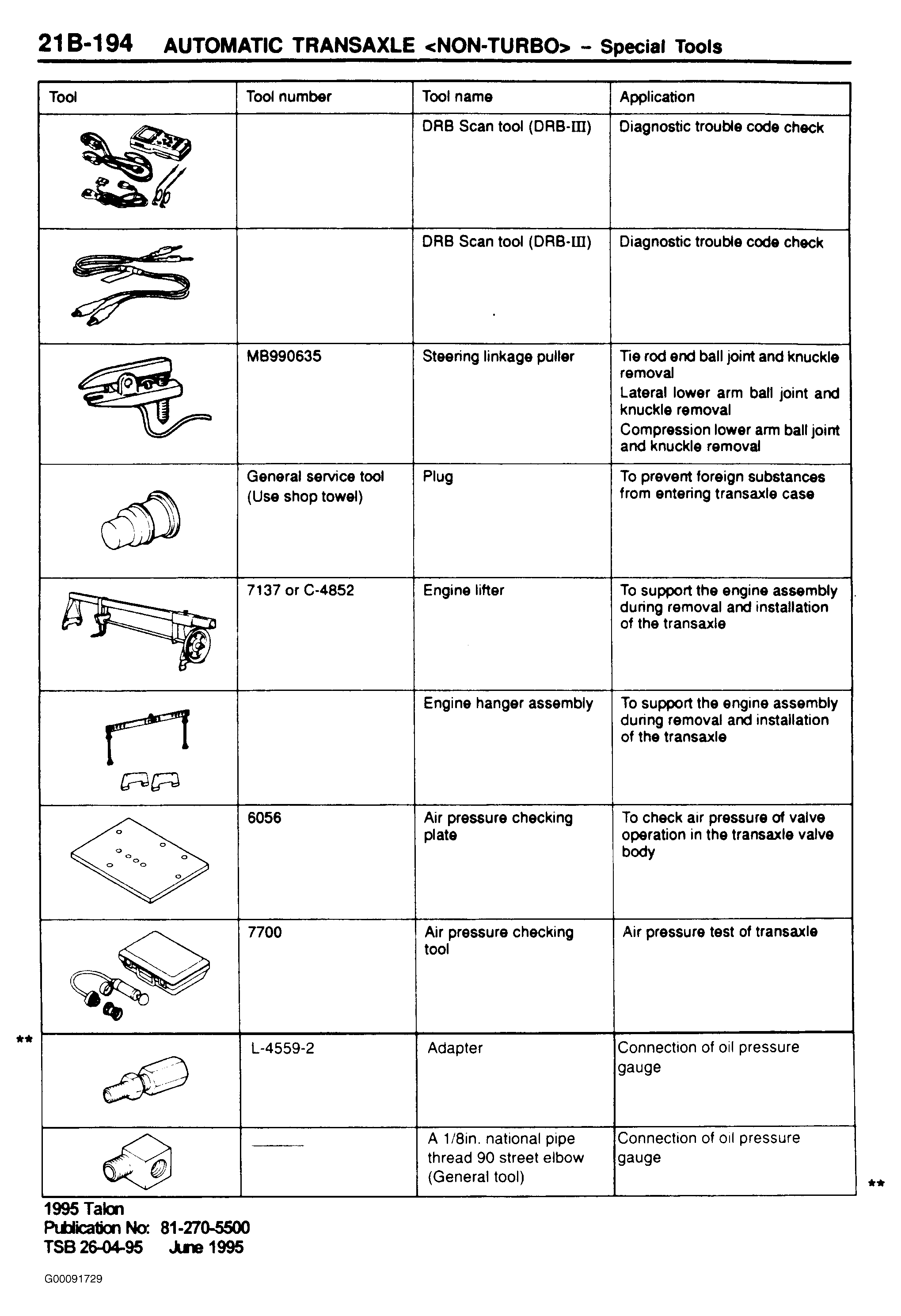

Fig 18: 1995 Talon Service Manual Revision - Page 21B-194

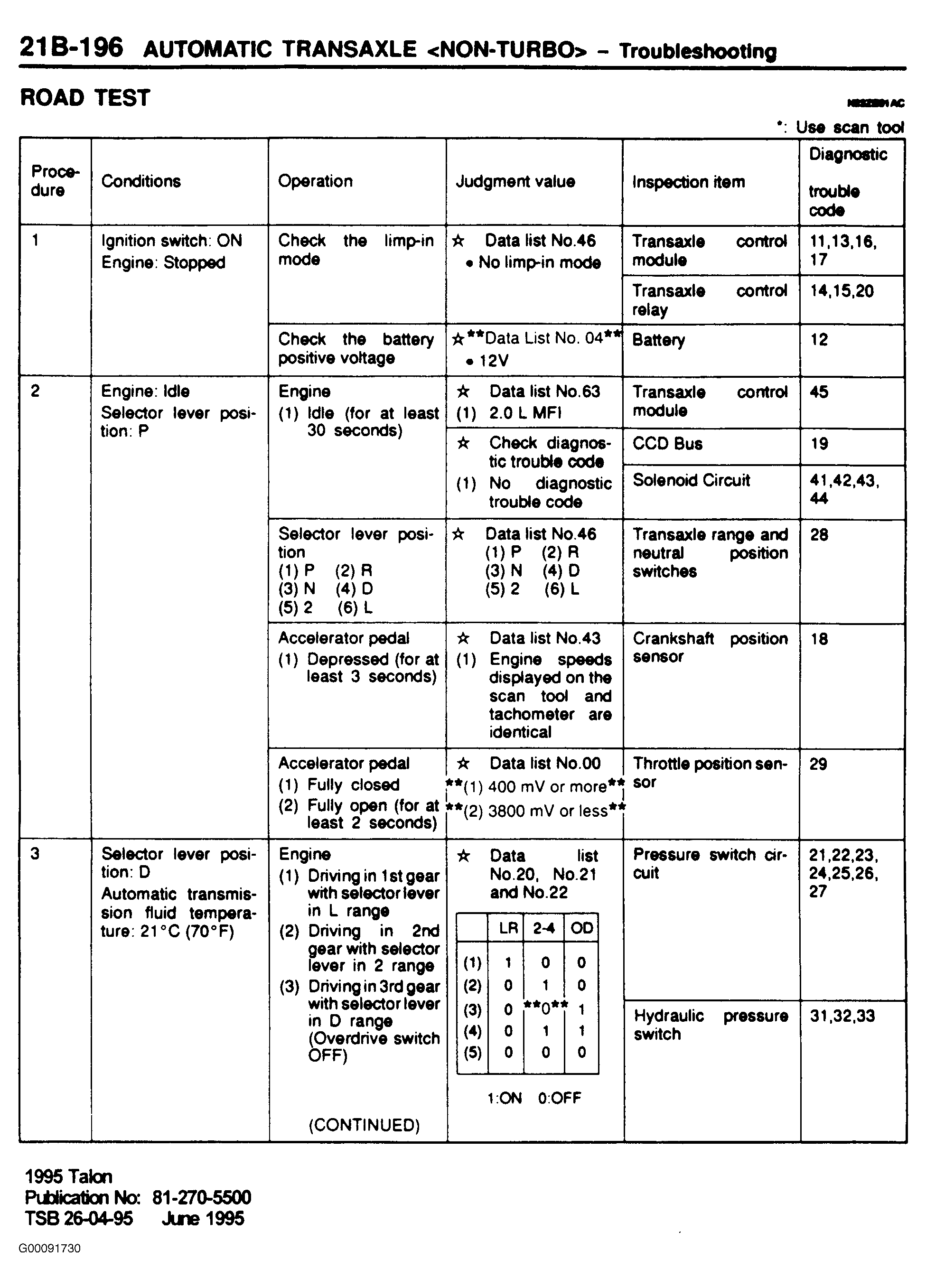

Fig 19: 1995 Talon Service Manual Revision - Page 21B-196

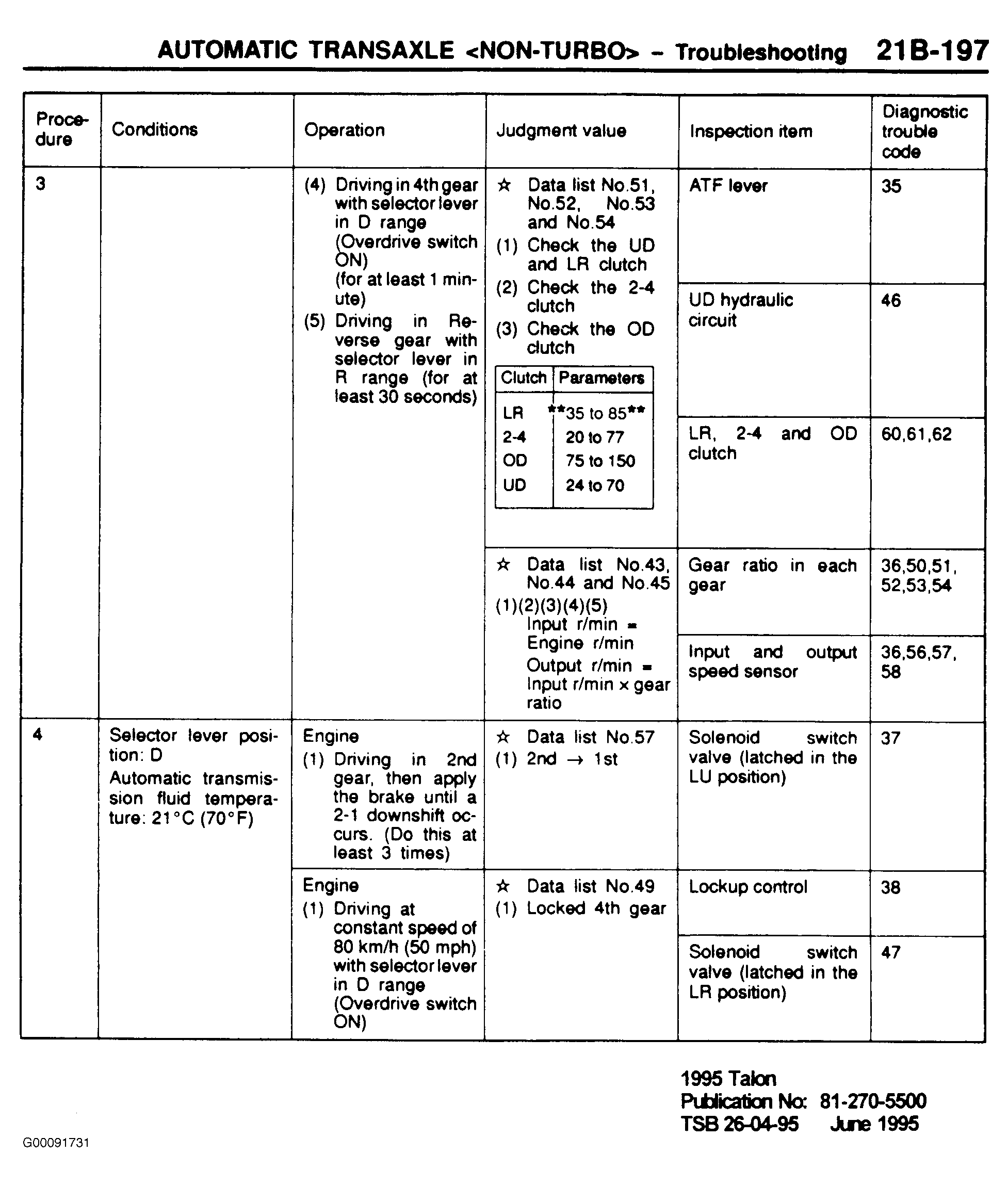

Fig 20: 1995 Talon Service Manual Revision - Page 21B-197

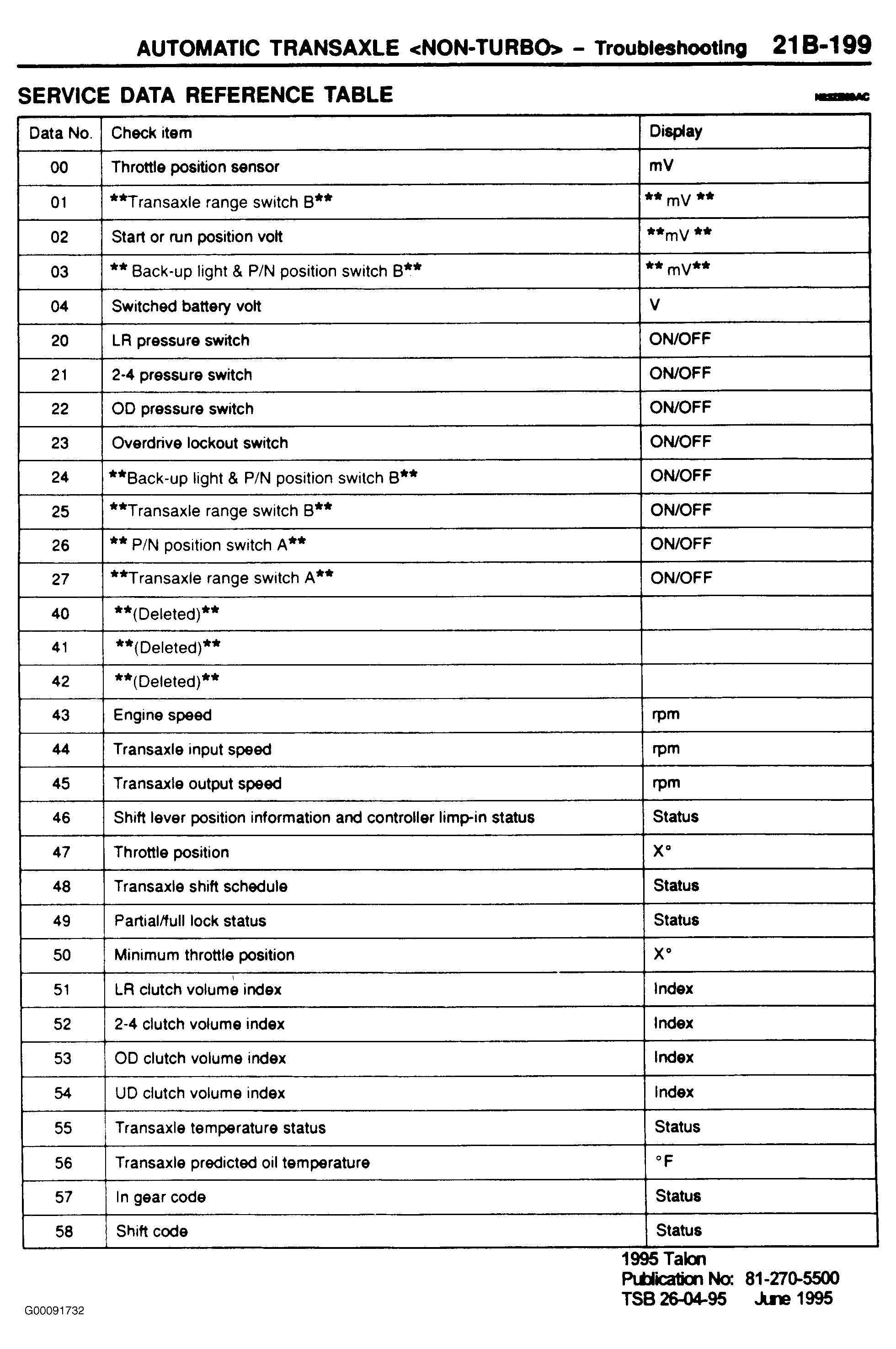

Fig 21: 1995 Talon Service Manual Revision - Page 21B-199

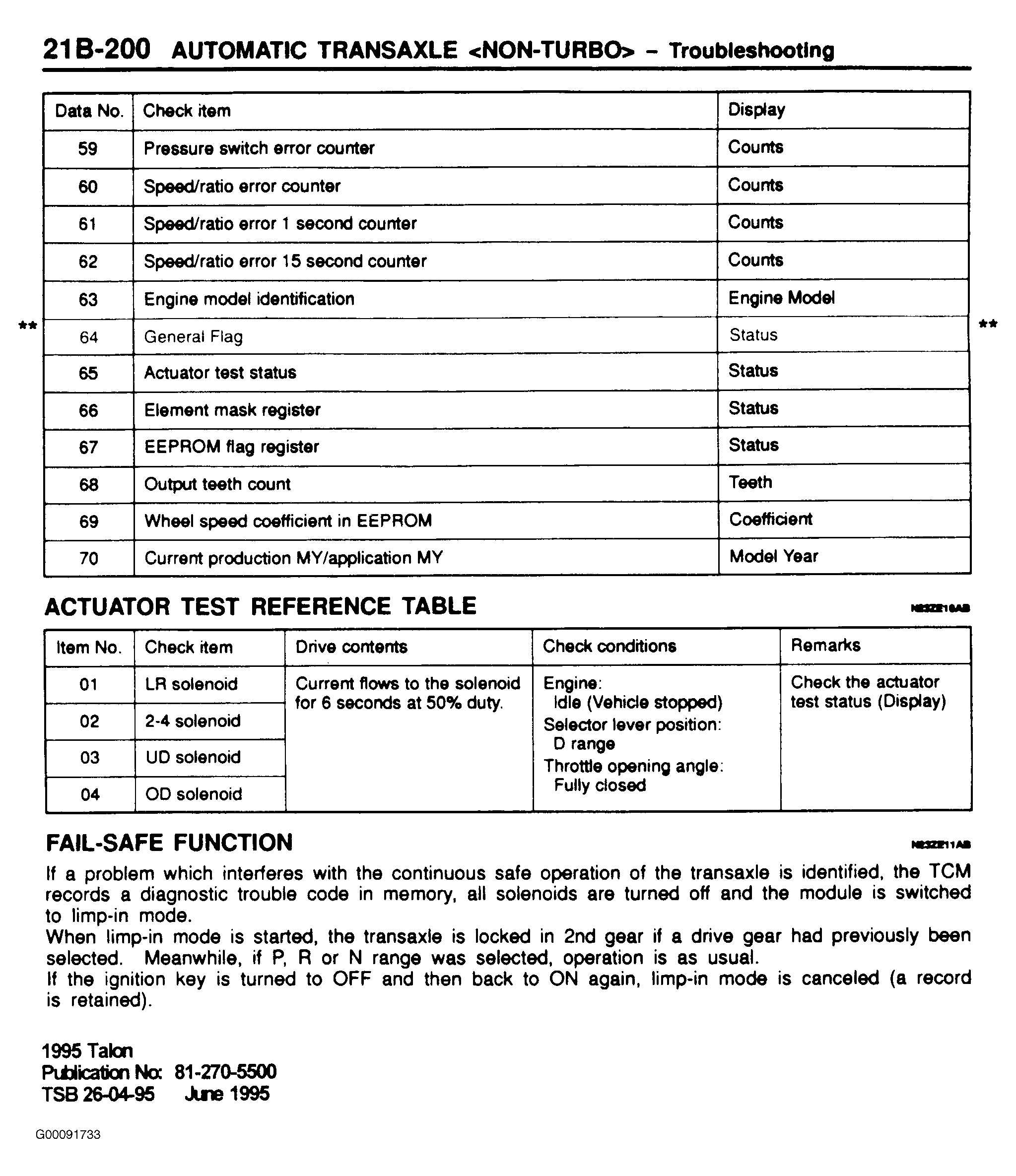

Fig 22: 1995 Talon Service Manual Revision - Page 21B-200

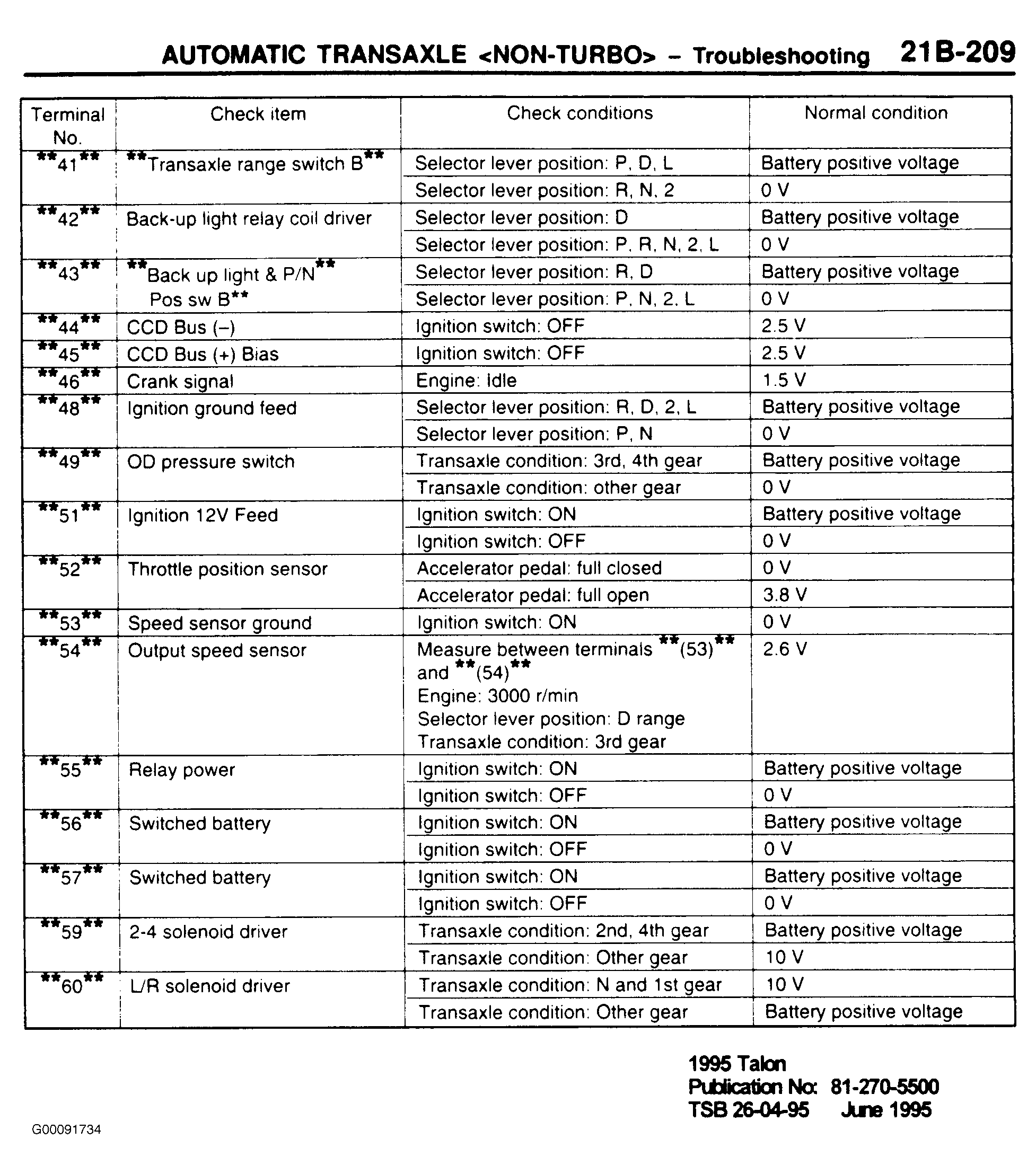

Fig 23: 1995 Talon Service Manual Revision - Page 21B-209

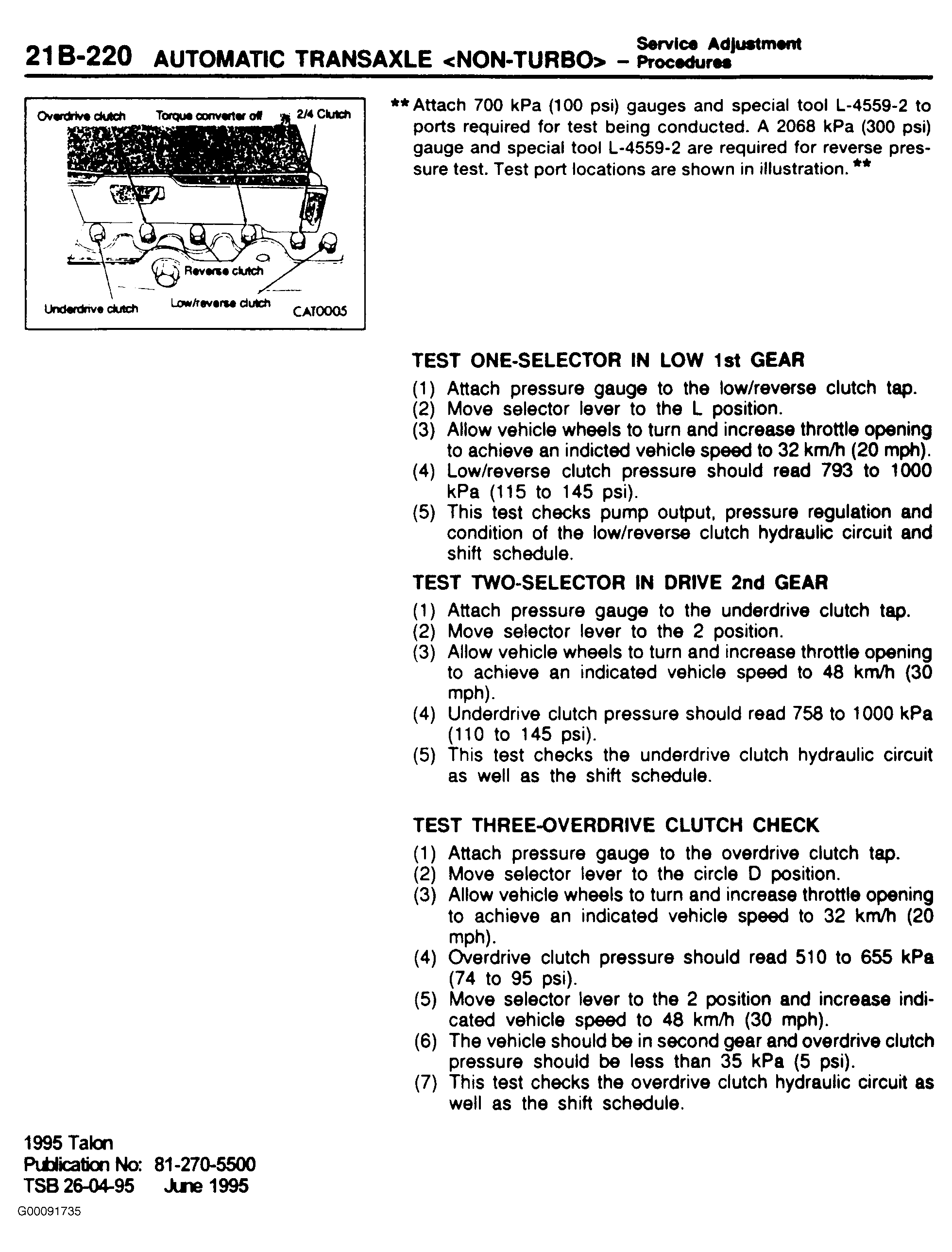

Fig 24: 1995 Talon Service Manual Revision - Page 21B-220

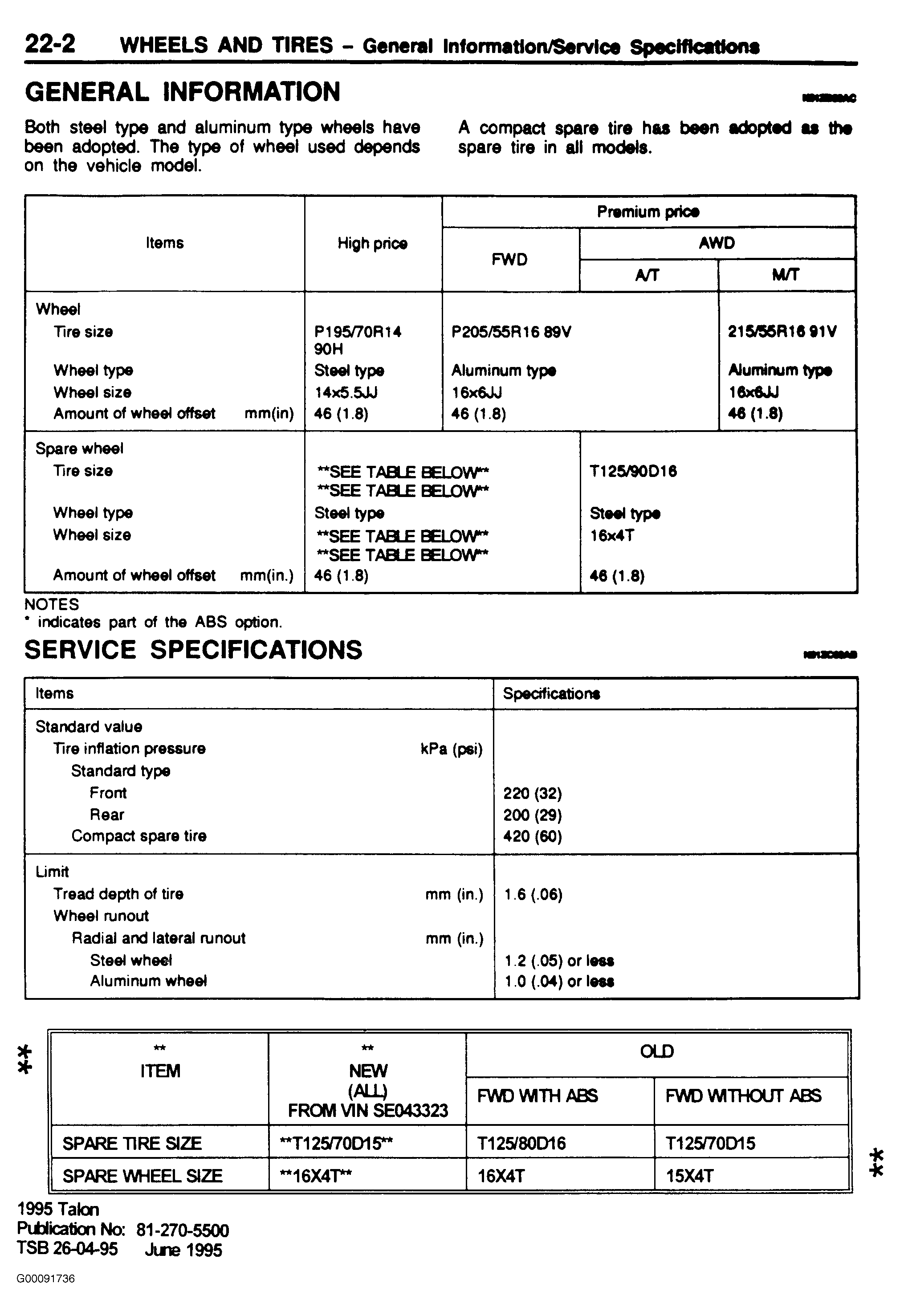

Fig 25: 1995 Talon Service Manual Revision - Page 22-2

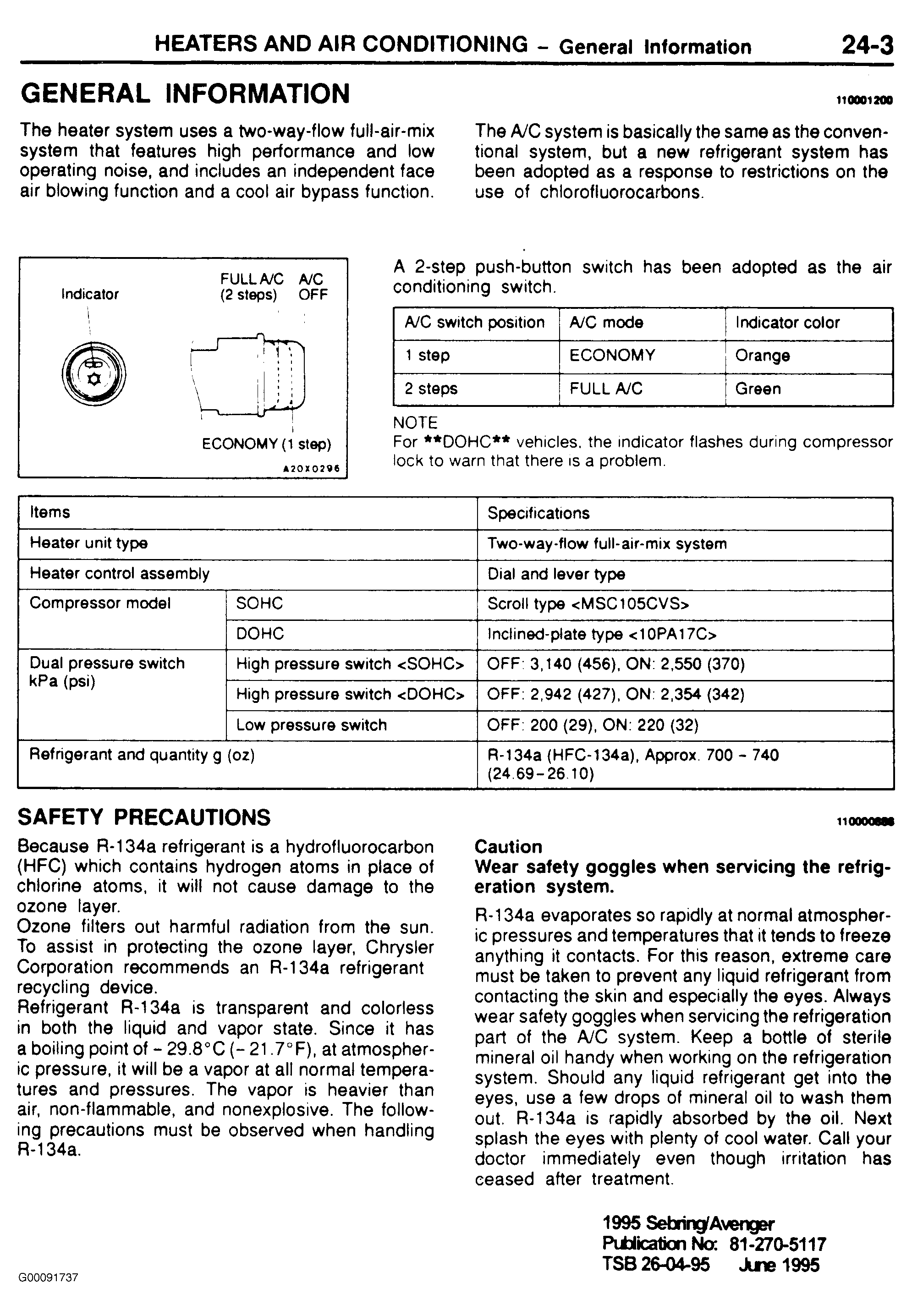

Fig 26: 1995 Sebring/Avenger Service Manual Revision - Page 24-3

Fig 27: 1995 Sebring/Avenger Service Manual Revision - Page 22-4

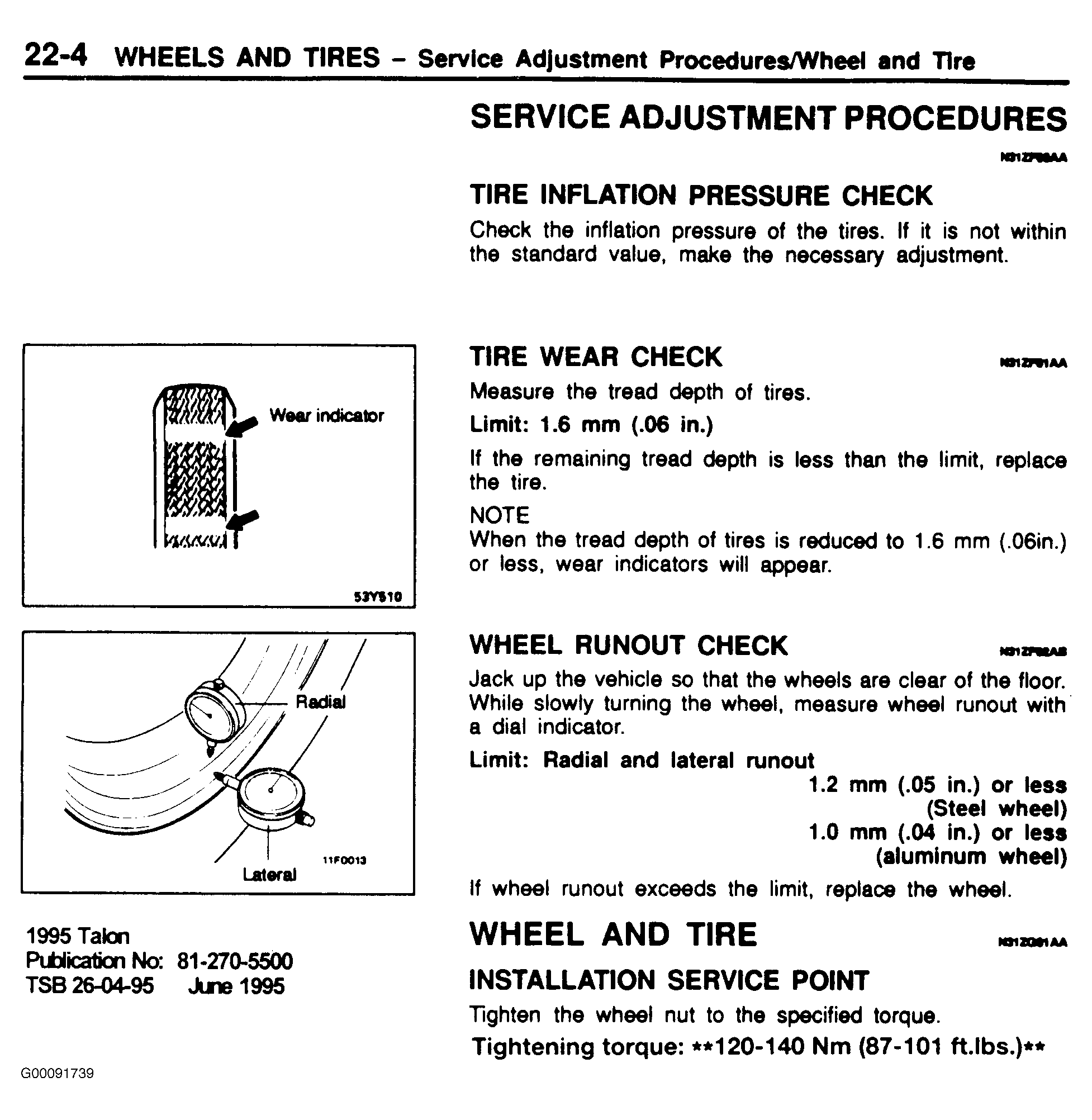

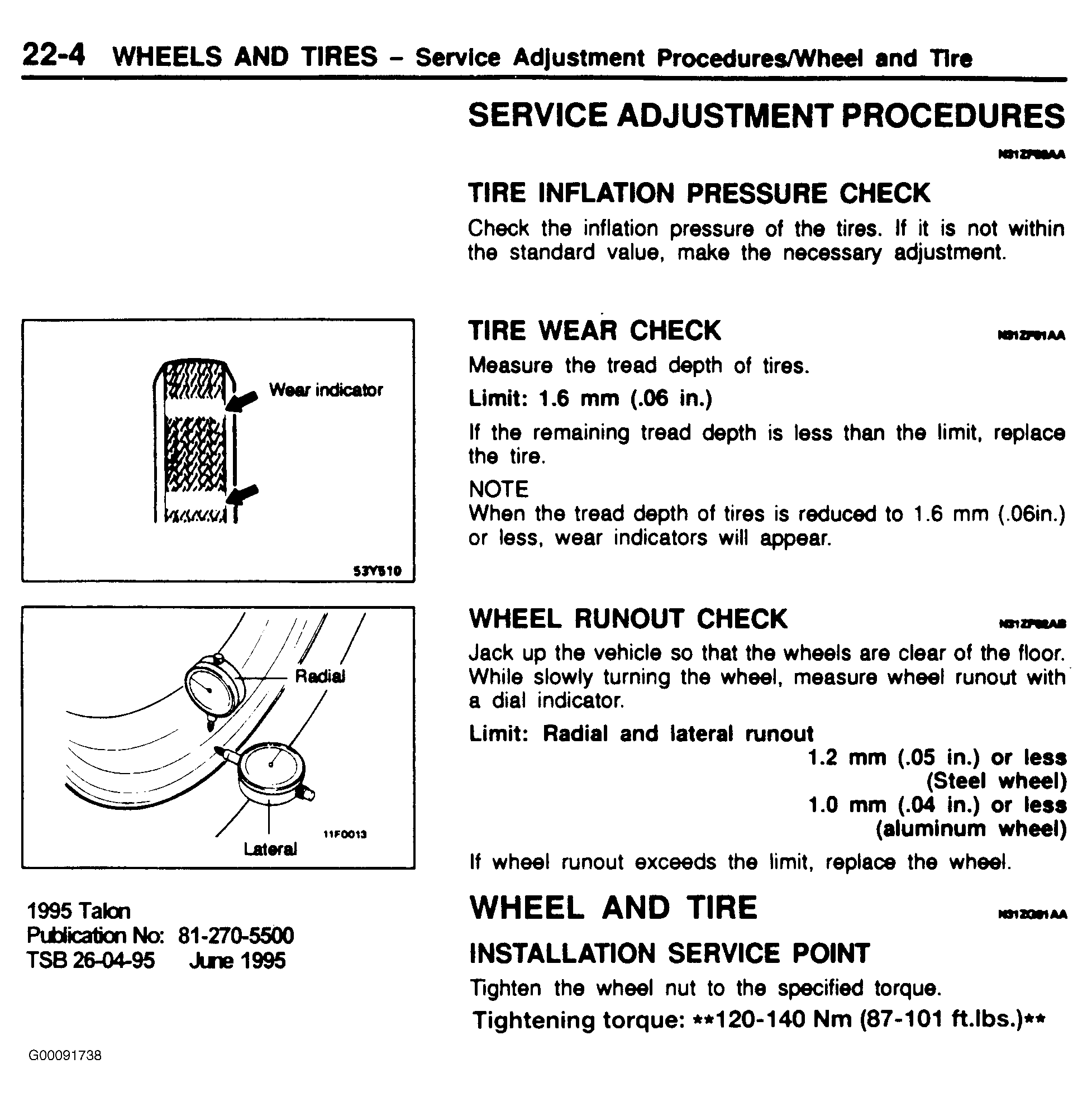

Fig 28: 1995 Talon Service Manual Revision - Page 22-4

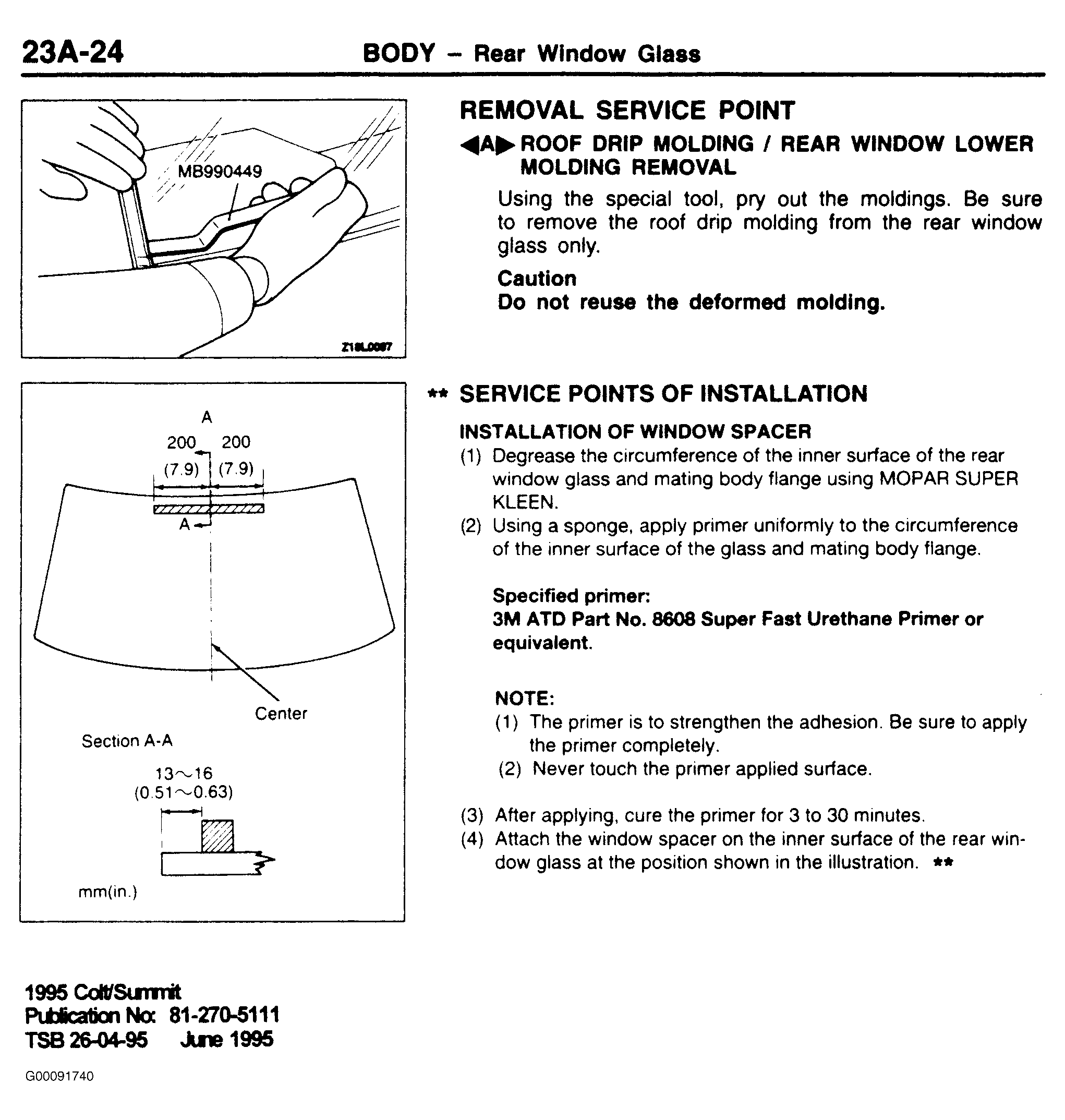

Fig 29: 1995 Colt/Summit Service Manual Revision - Page 23A-24

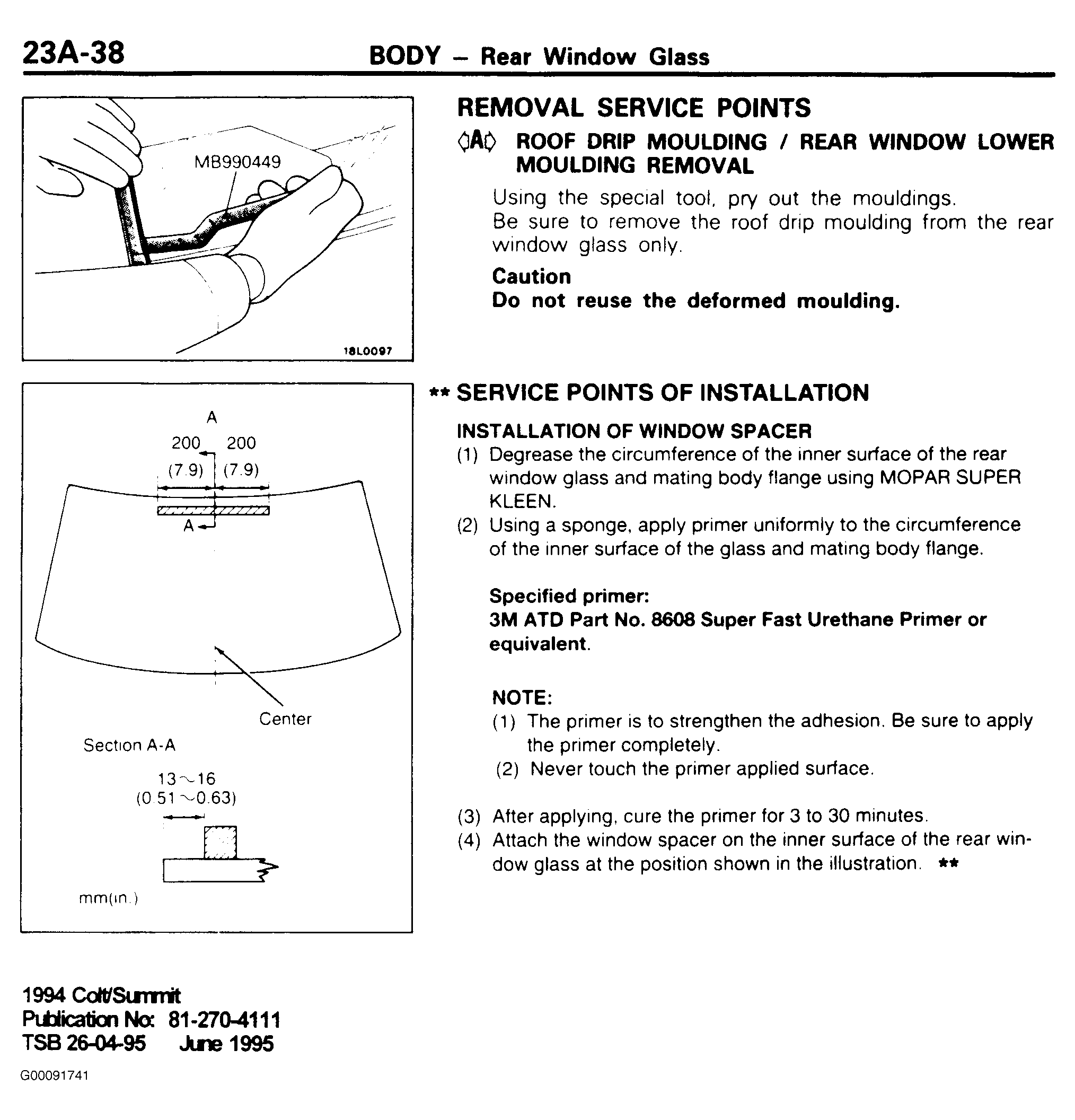

Fig 30: 1994 Colt/Summit Service Manual Revision - Page 23A-38

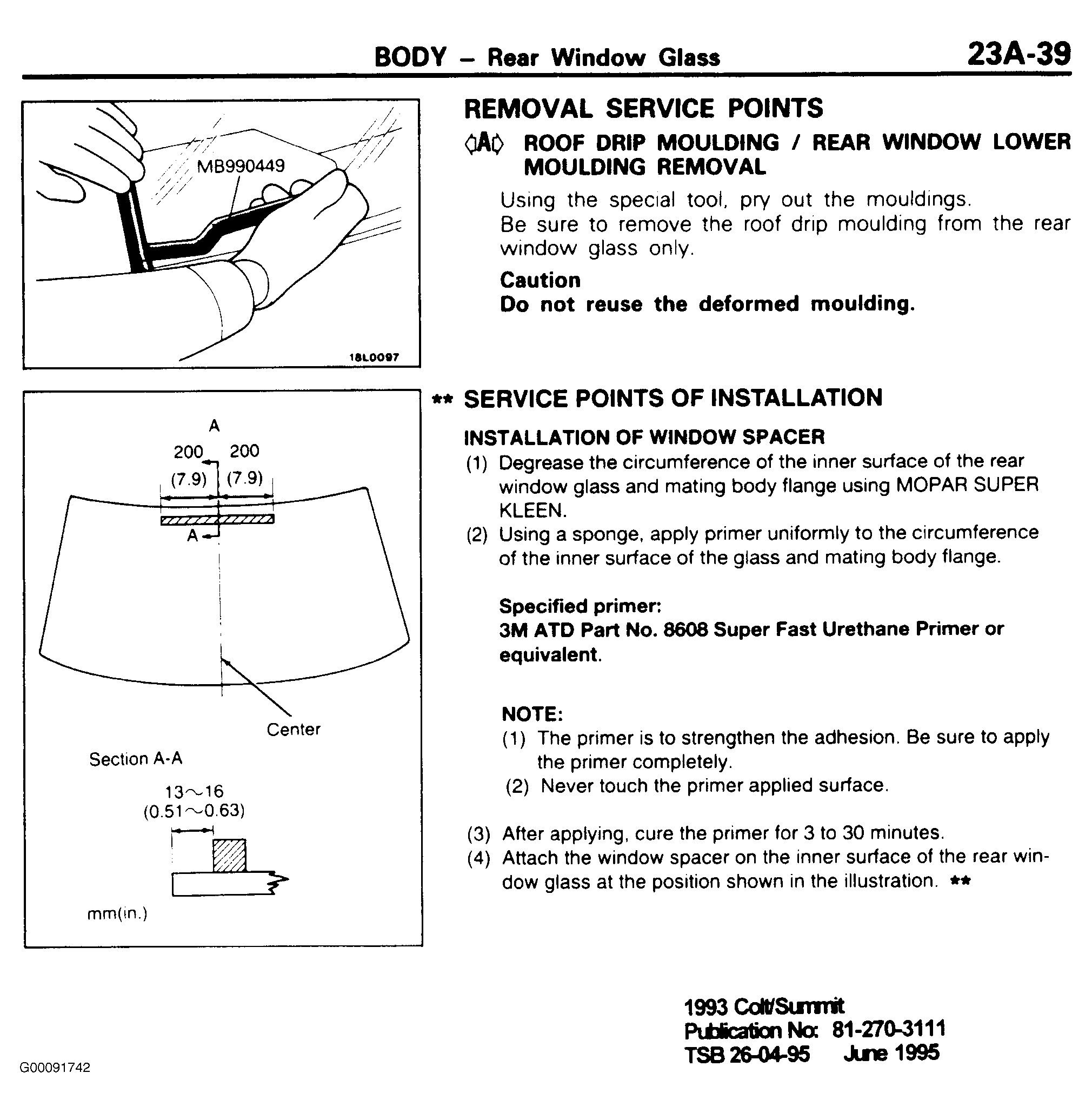

Fig 31: 1993 Colt/Summit Service Manual Revision - Page 23A-39

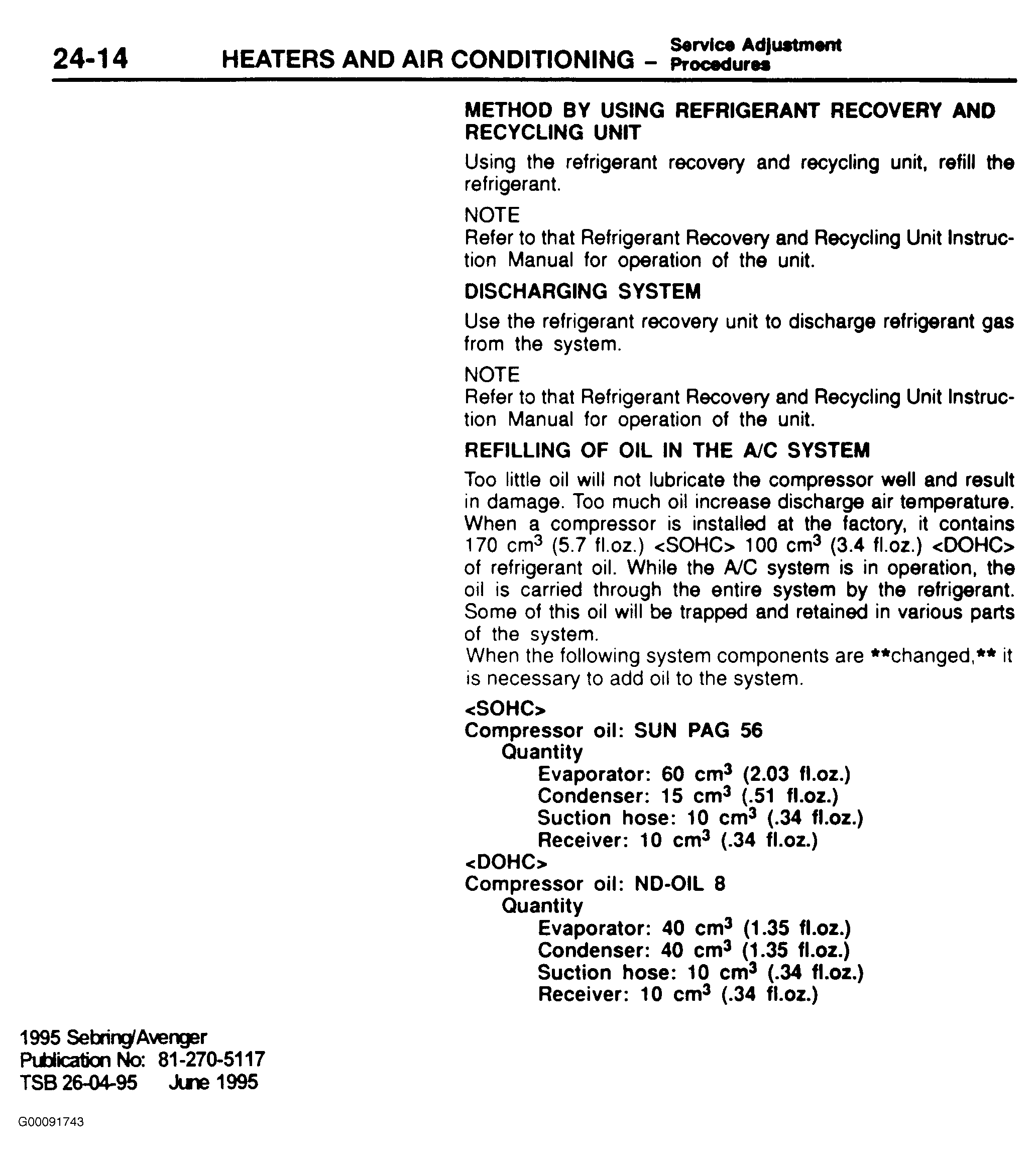

Fig 32: 1995 Sebring/Avenger Service Manual Revision - Page 24-14

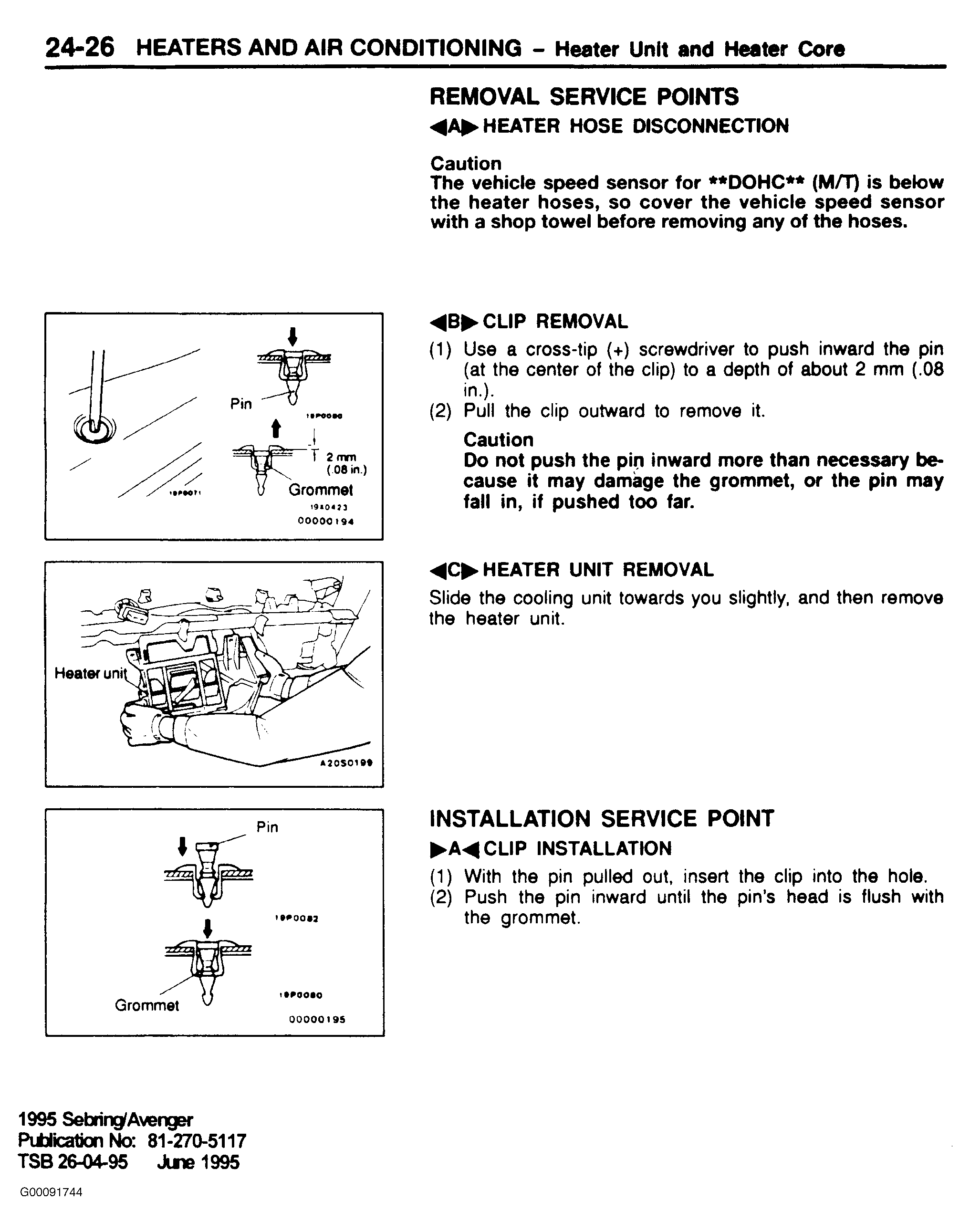

Fig 33: 1995 Sebring/Avenger Service Manual Revision - Page 24-26

Fig 34: 1995 Sebring/Avenger Service Manual Revision - Page 25-5

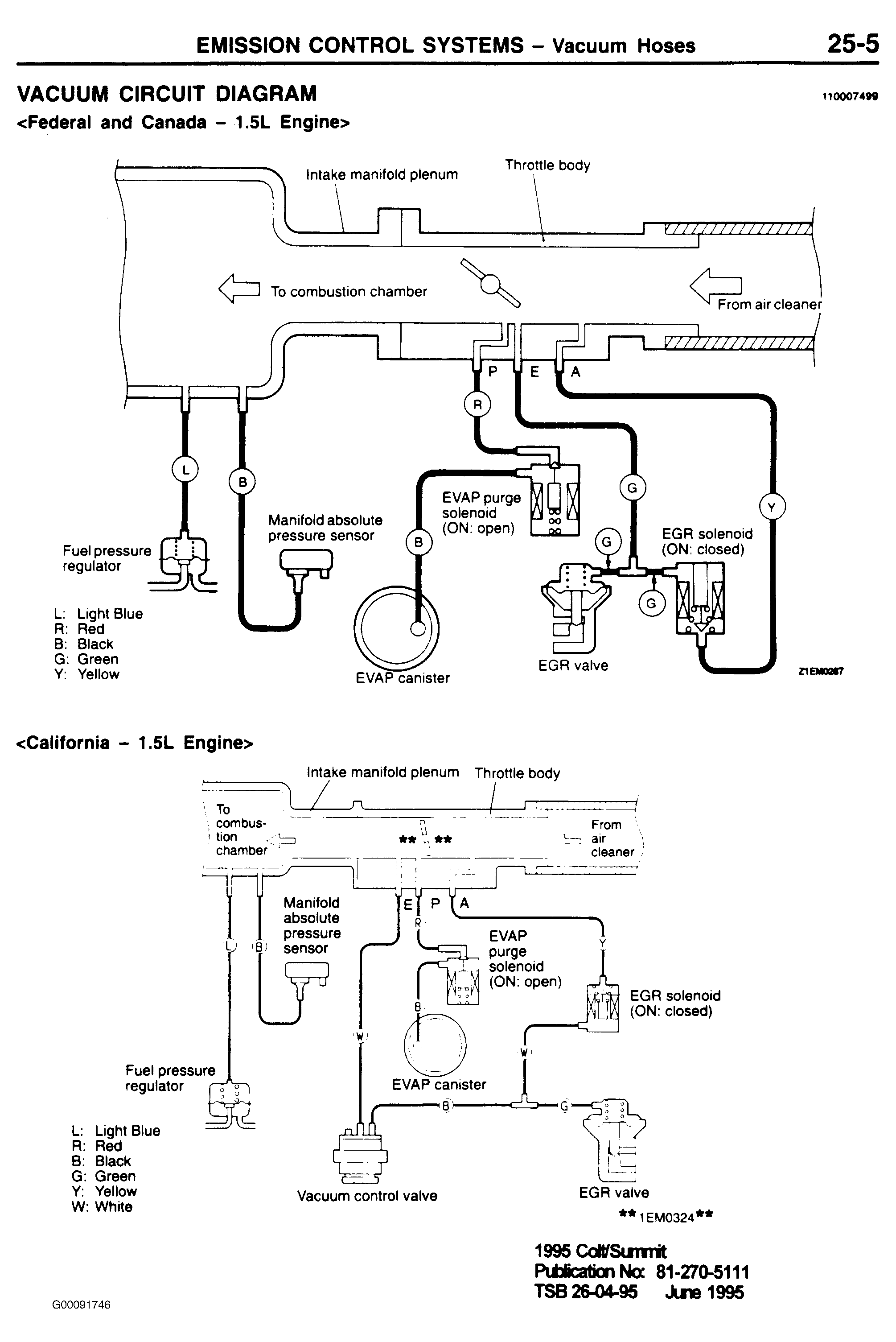

Fig 35: 1995 Colt/Summit Service Manual Revision - Page 25-5

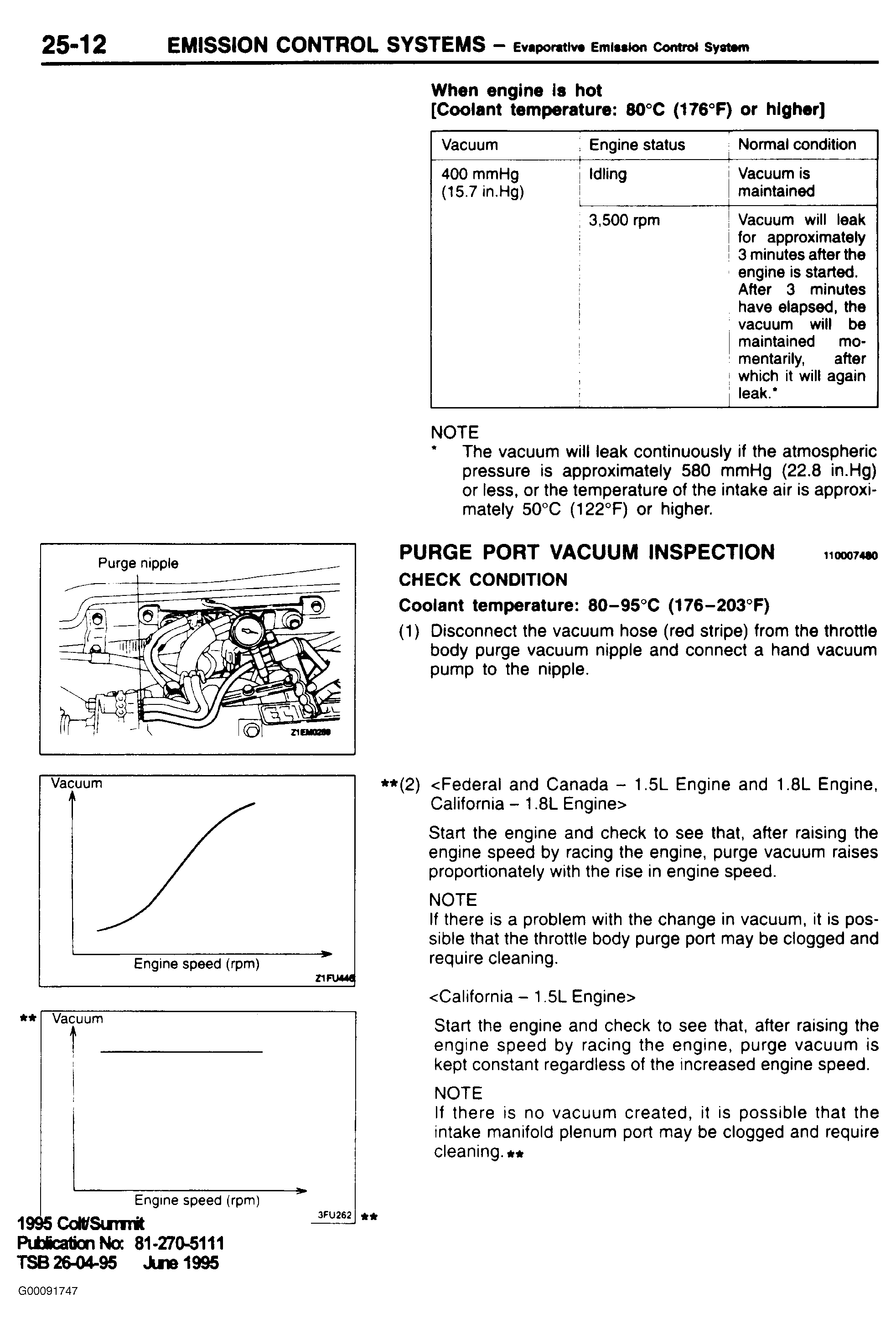

Fig 36: 1995 Colt/Summit Service Manual Revision - Page 25-12

WARRANTY INFORMATION

POLICY: Information Only.
