Operation Check

Disconnect the actuator's connector and in the order described below, check the actuator's operation and the circuit tester's indication. Replace the actuator assembly if any abnormal condition is discovered.

1. Checking the clutch coil solenoid operation. Connect terminal 1 of the actuator through the ammeter to the positive terminal of the battery, and connect terminal 2 to the negative terminal. See Fig 1 .

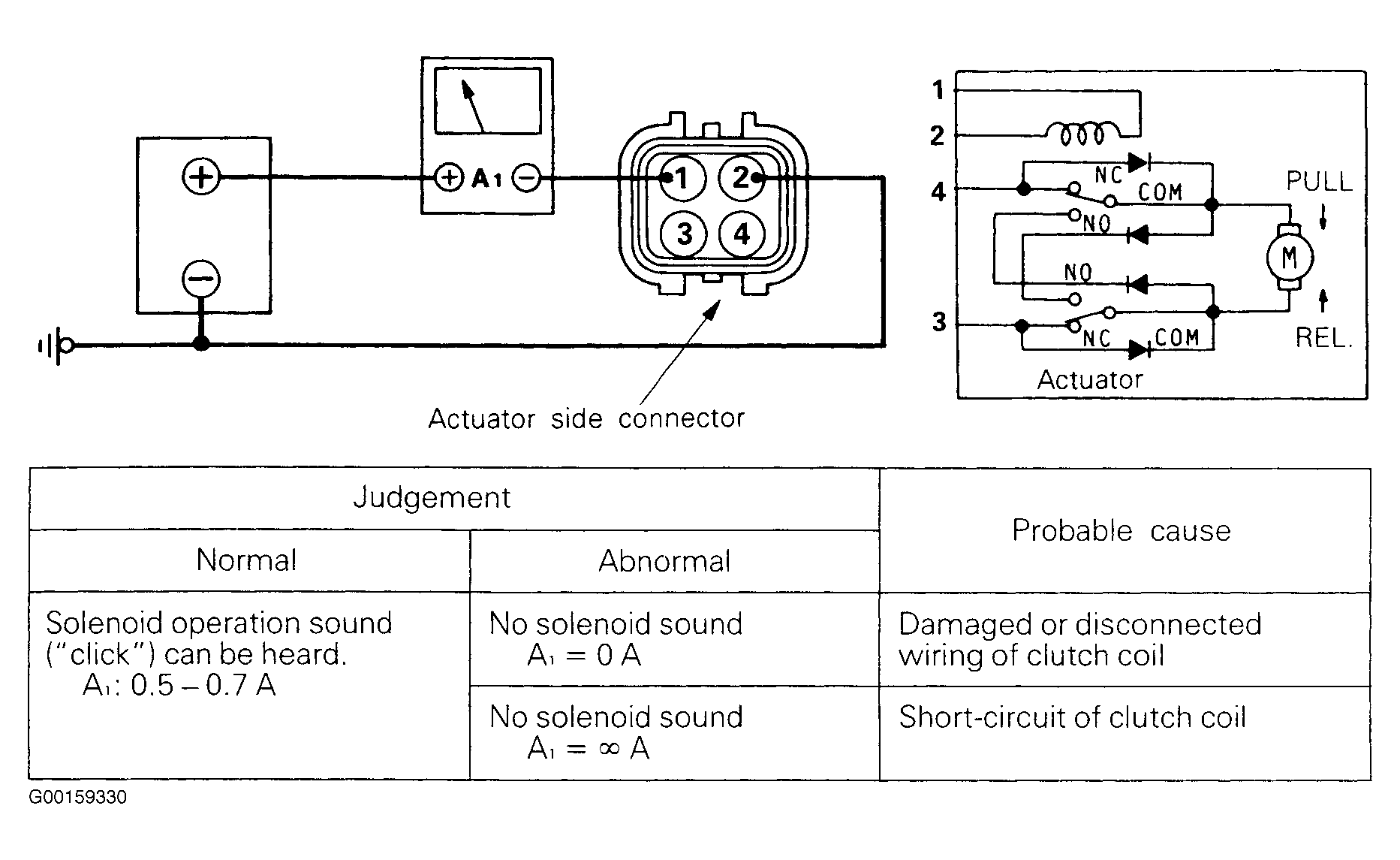

   Fig 1: Checking Clutch Coil Solenoid Operation

   Courtesy of CHRYSLER CORP.
2. Checking the motor (pull direction) and limit switch operation. In the condition described in step 1, connect terminal 4 of the actuator, through the ammeter, to the positive side and terminal 3 to the negative side. See Fig 2 .

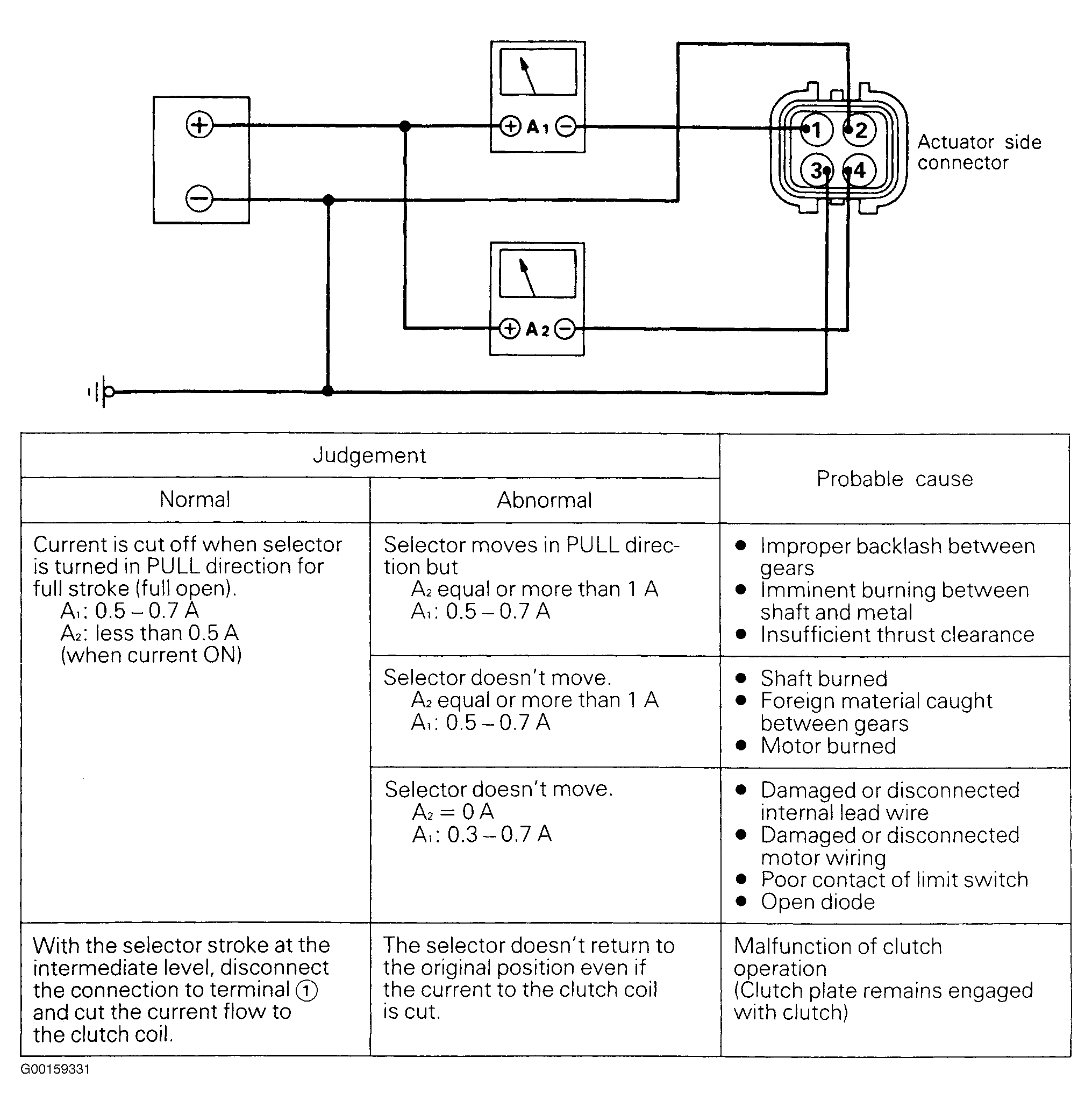

   Fig 2: Checking Motor (Pull Direction) & Limit Switch Operation

   Courtesy of CHRYSLER CORP.
3. Checking the motor (release direction) and limit switch operation. Reverse the connections to terminal 3 and terminal 4 from those described in step  2 . See Fig 3 .

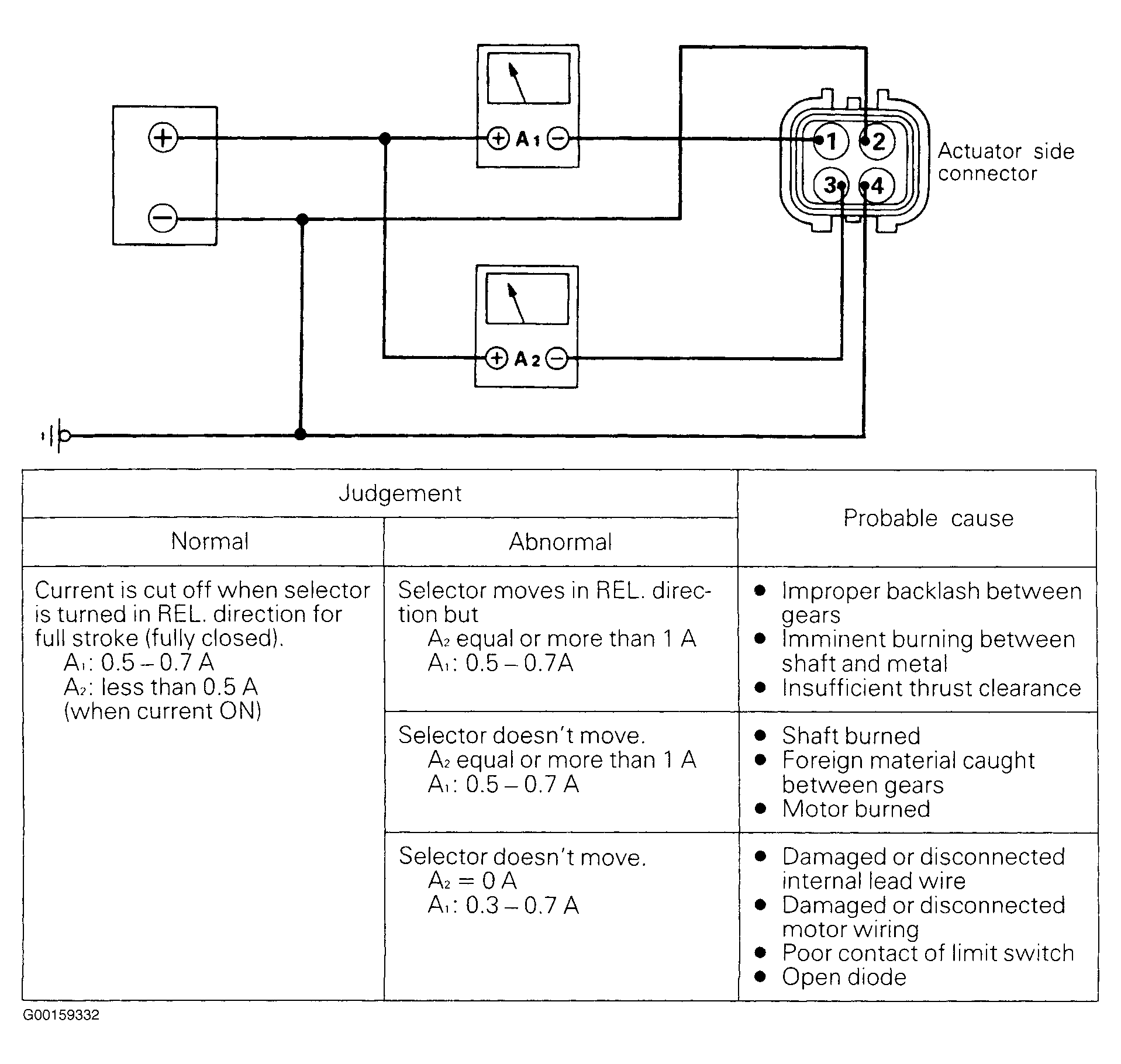

   Fig 3: Checking Motor (Release Direction) & Limit Switch Operation

   Courtesy of CHRYSLER CORP.
