Door Lock Power Relay

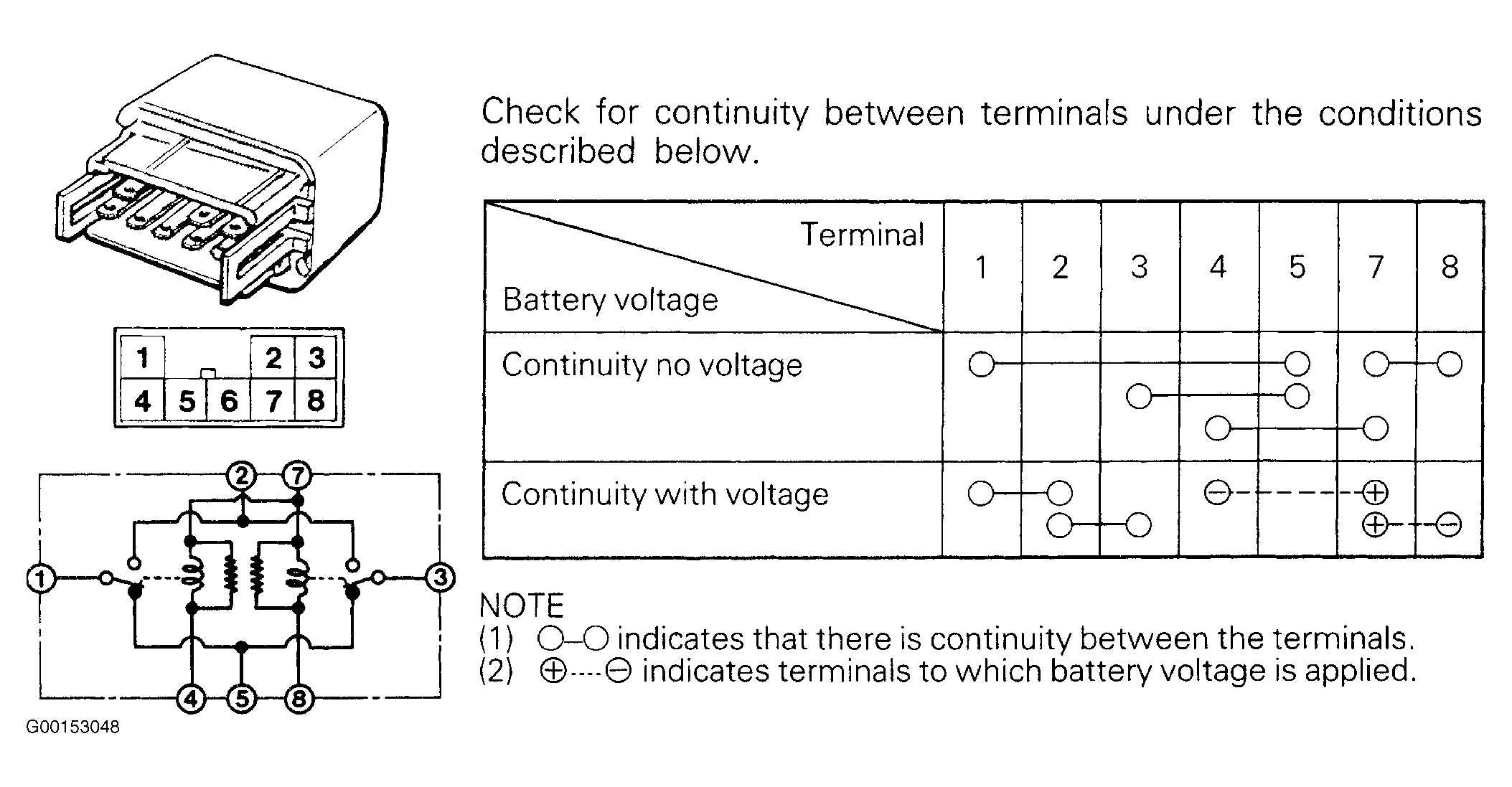

Fig 1: Testing Door Lock Power Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
