Power Window Motor & Circuit Breaker

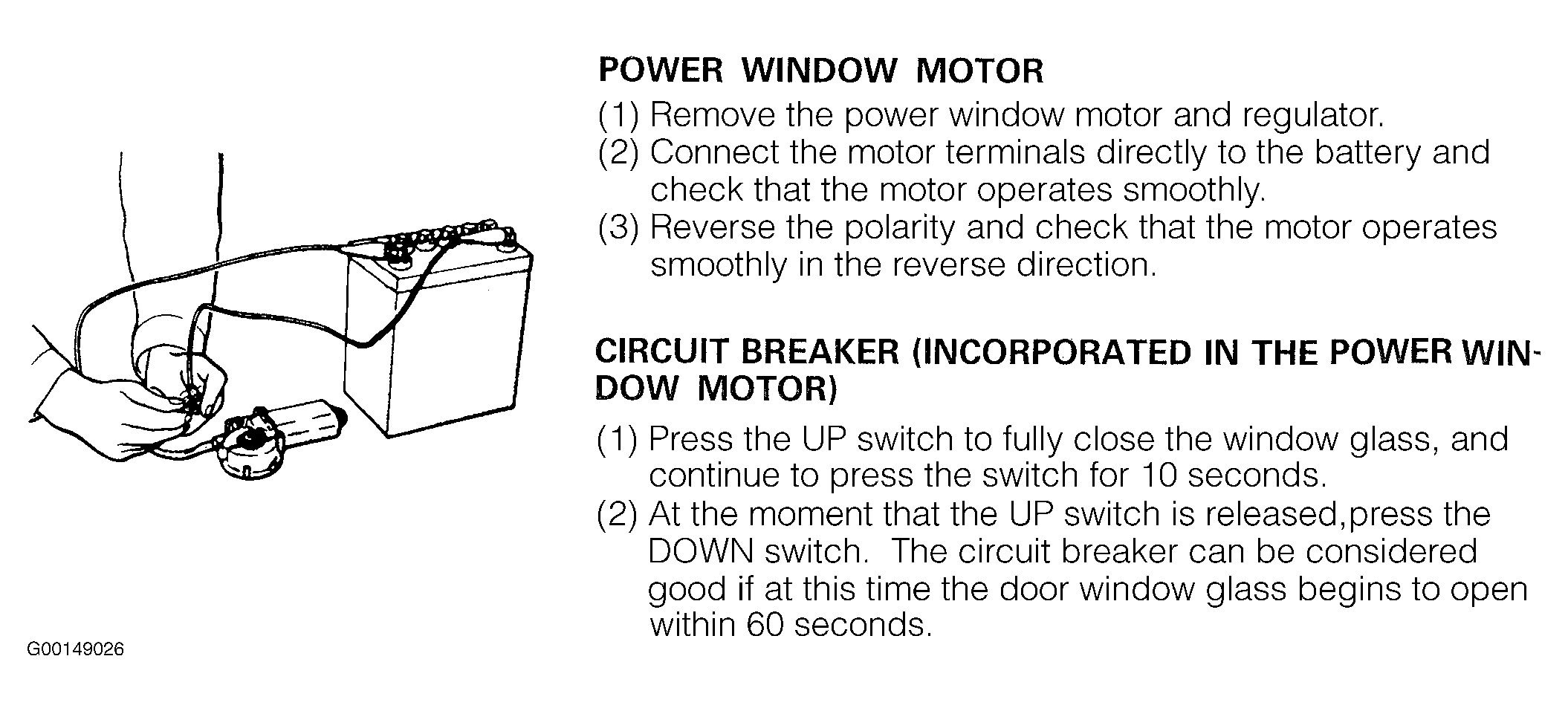

Fig 1: Testing Power Window Motor & Circuit Breaker
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
