Dr-3: Checking Airflow Sensor - Turbo

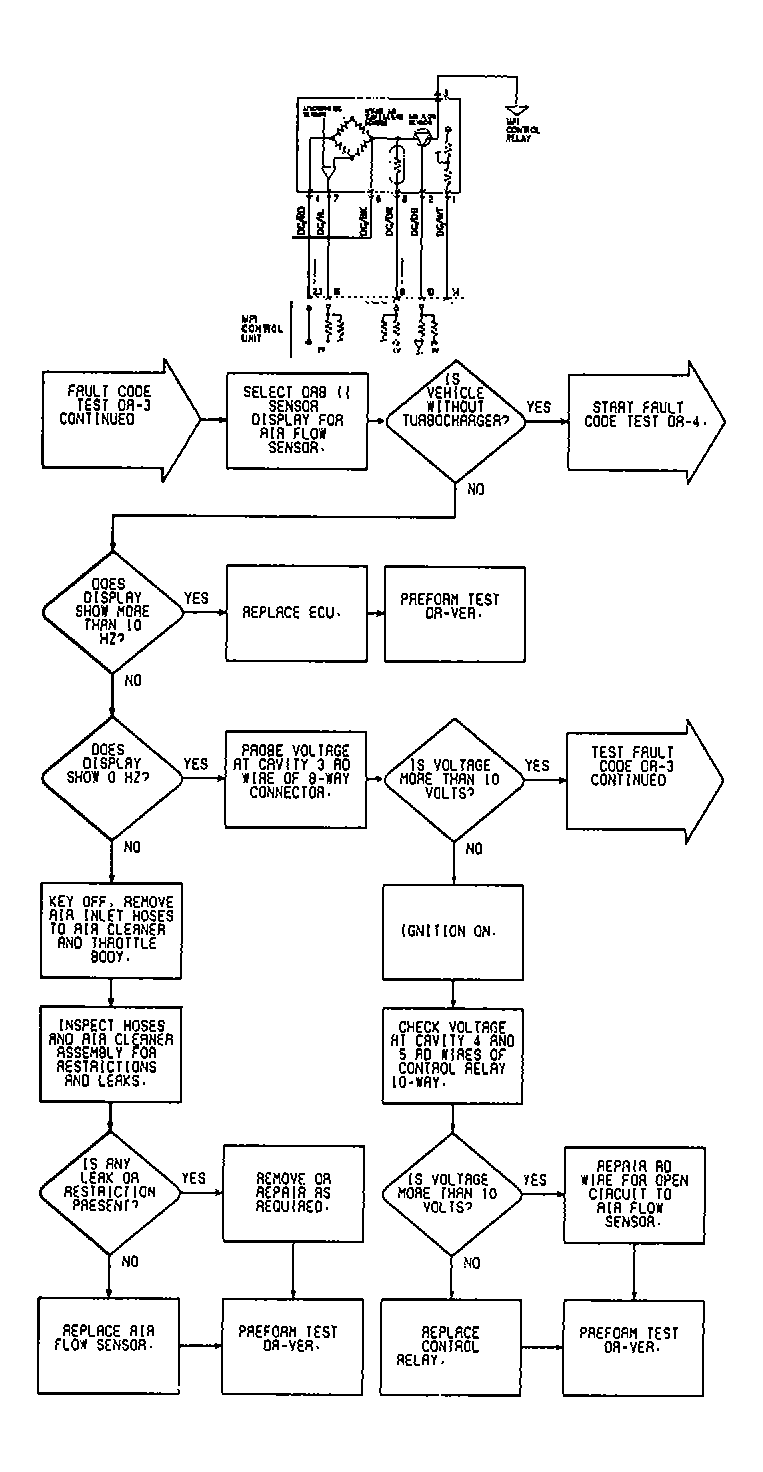

Fig 1: DR-3 Flow Chart & Circuit Diagram (2.0L Turbo) (1 of 3)

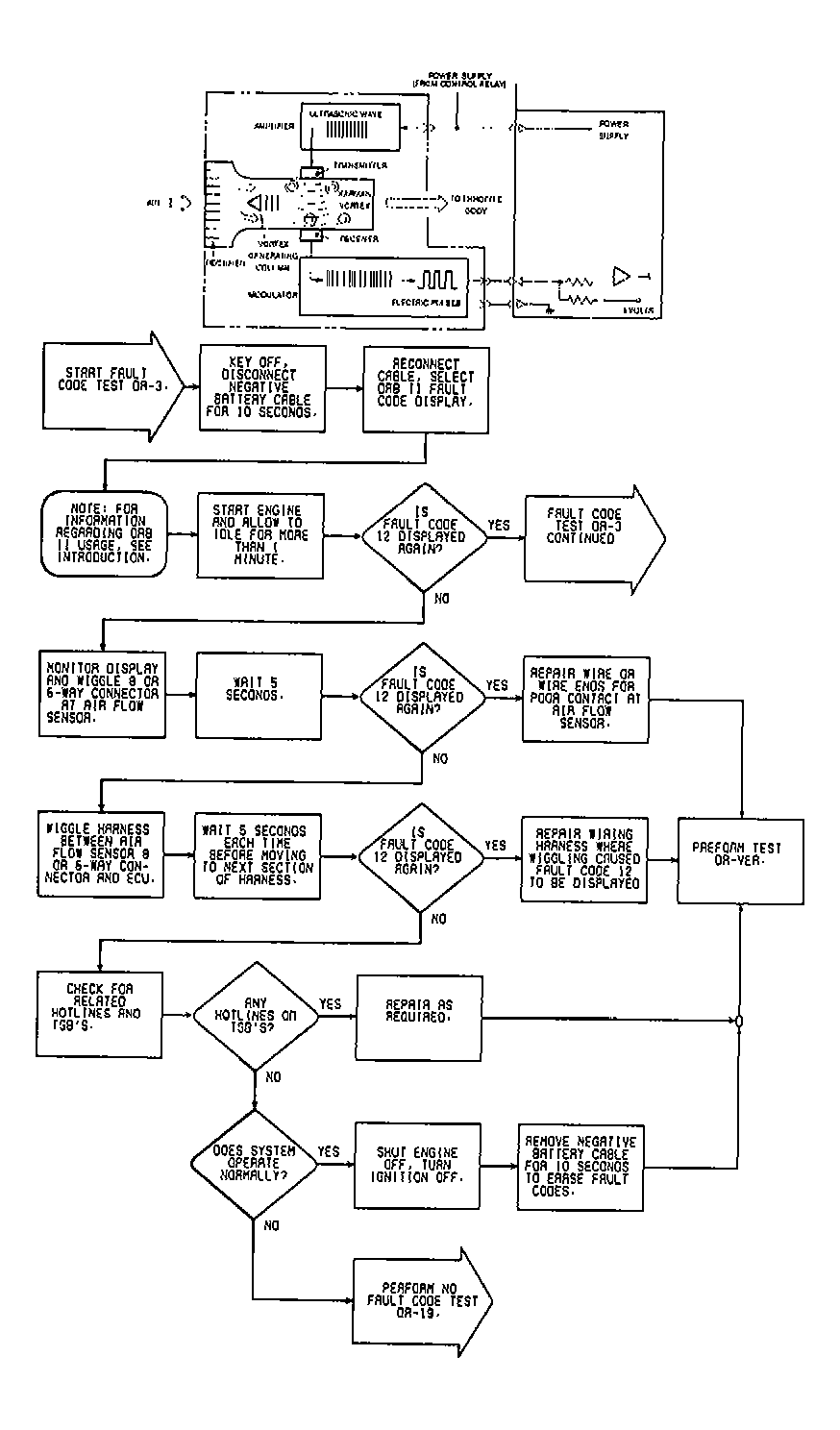

Fig 2: DR-3 Flow Chart & Circuit Diagram (2.0L Turbo) (2 of 3)

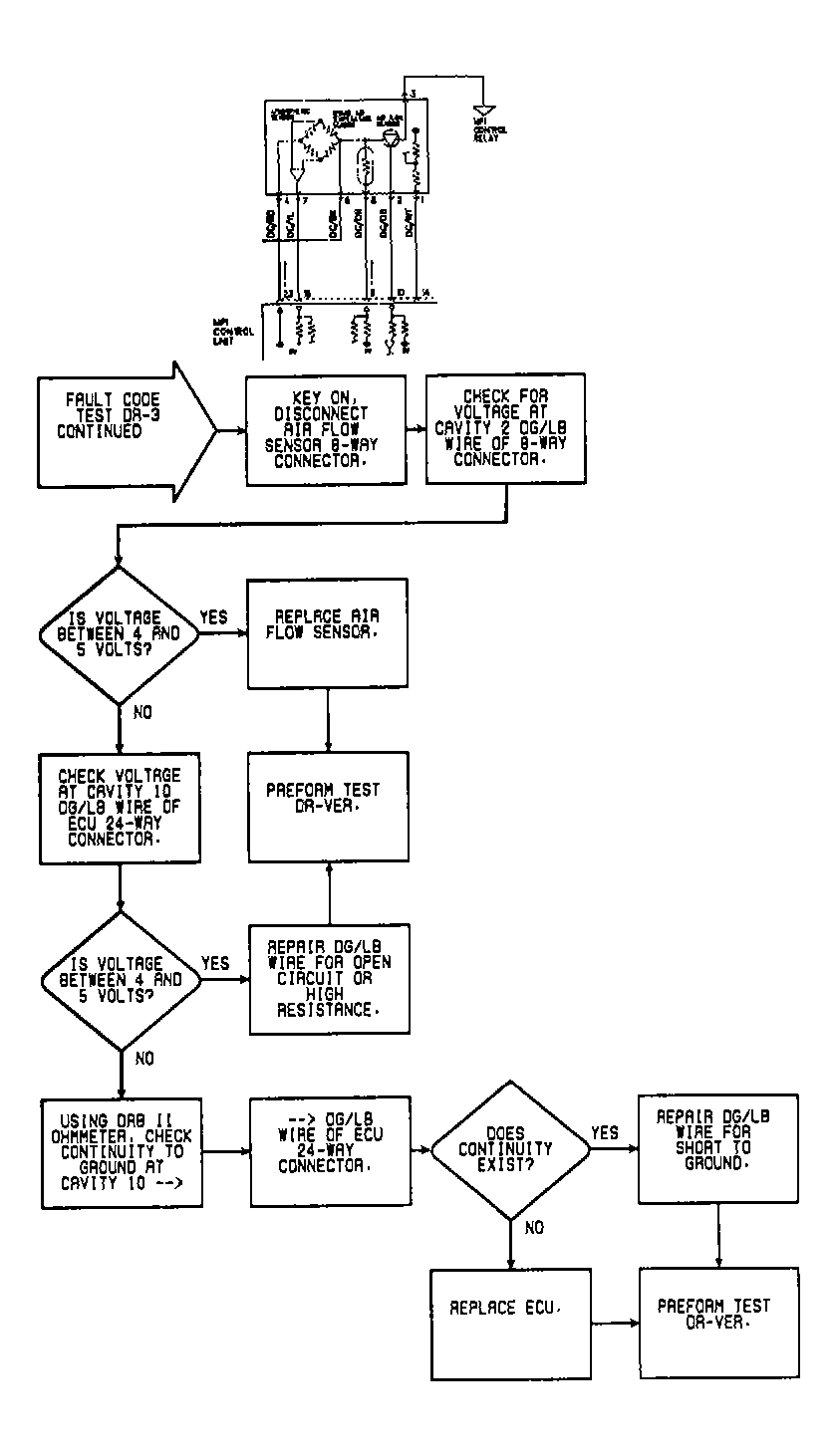

Fig 3: DR-3 Flow Chart & Circuit Diagram (2.0L Turbo) (3 of 3)
