Dr-5: Checking Intake Air Temp Sensor - Turbo

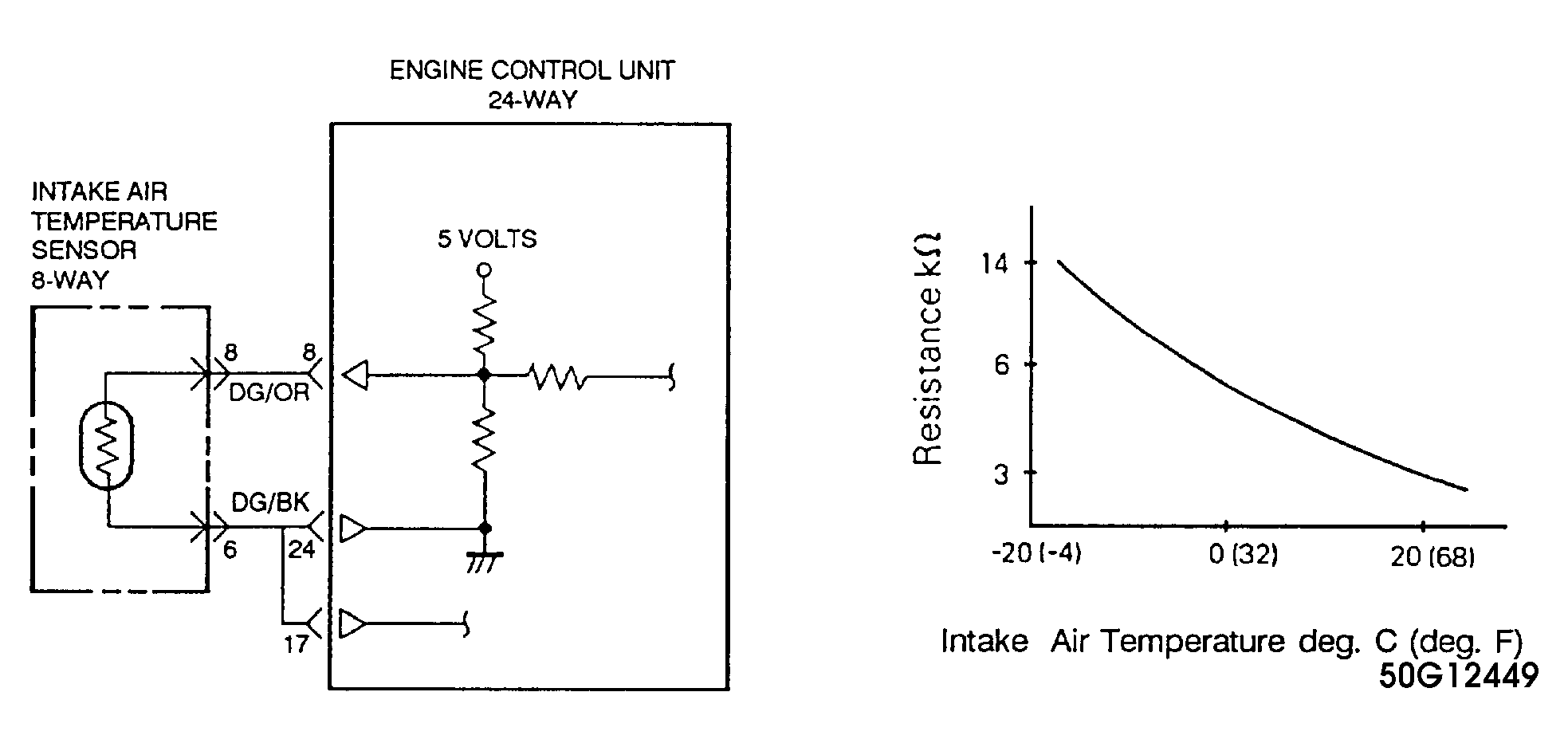

Fig 1: DR-5 Circuit Diagram (2.0L Turbo)

G50G12449

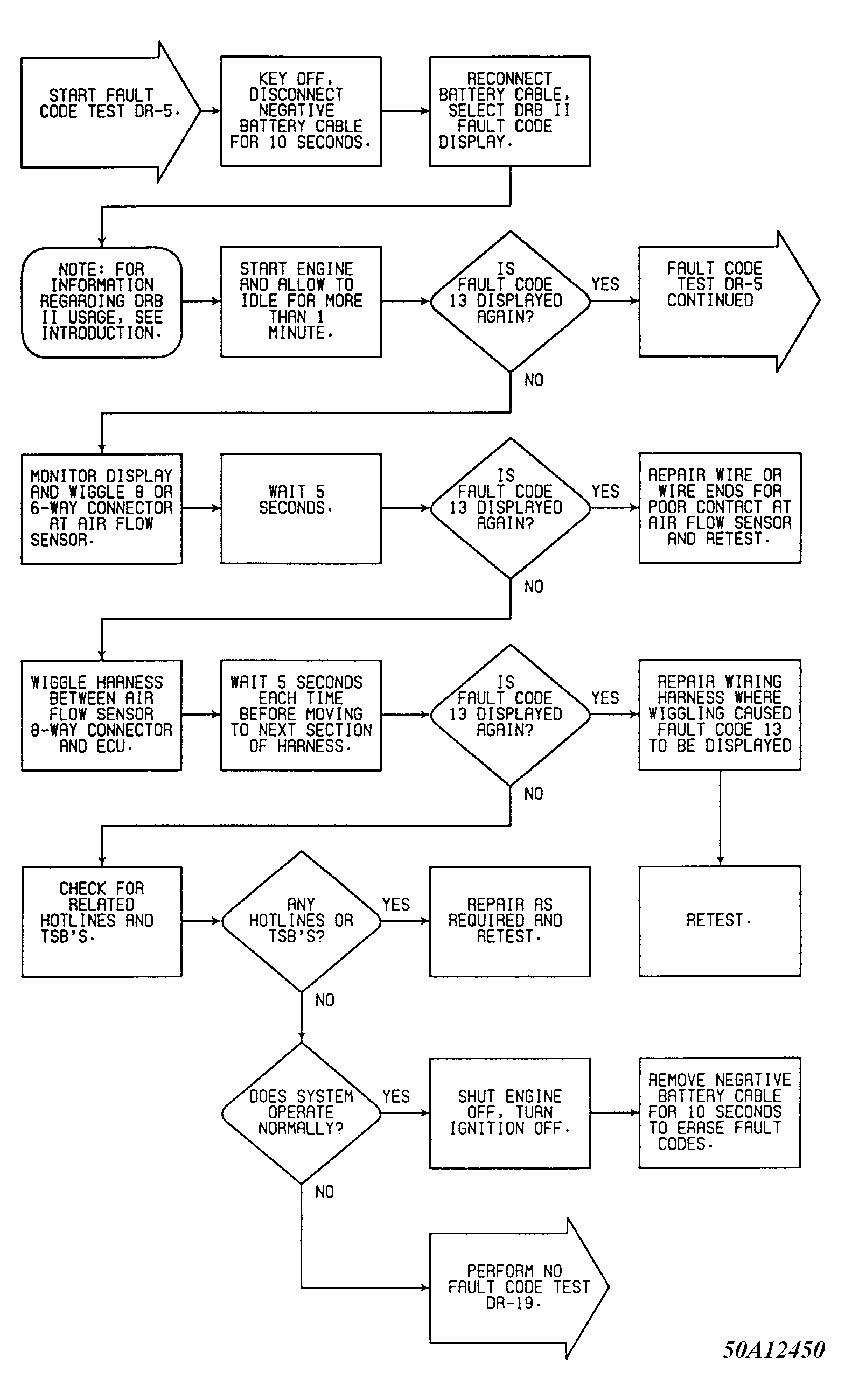

Fig 2: DR-5 Flow Chart (1 of 2) (2.0L Turbo)

G50A12450

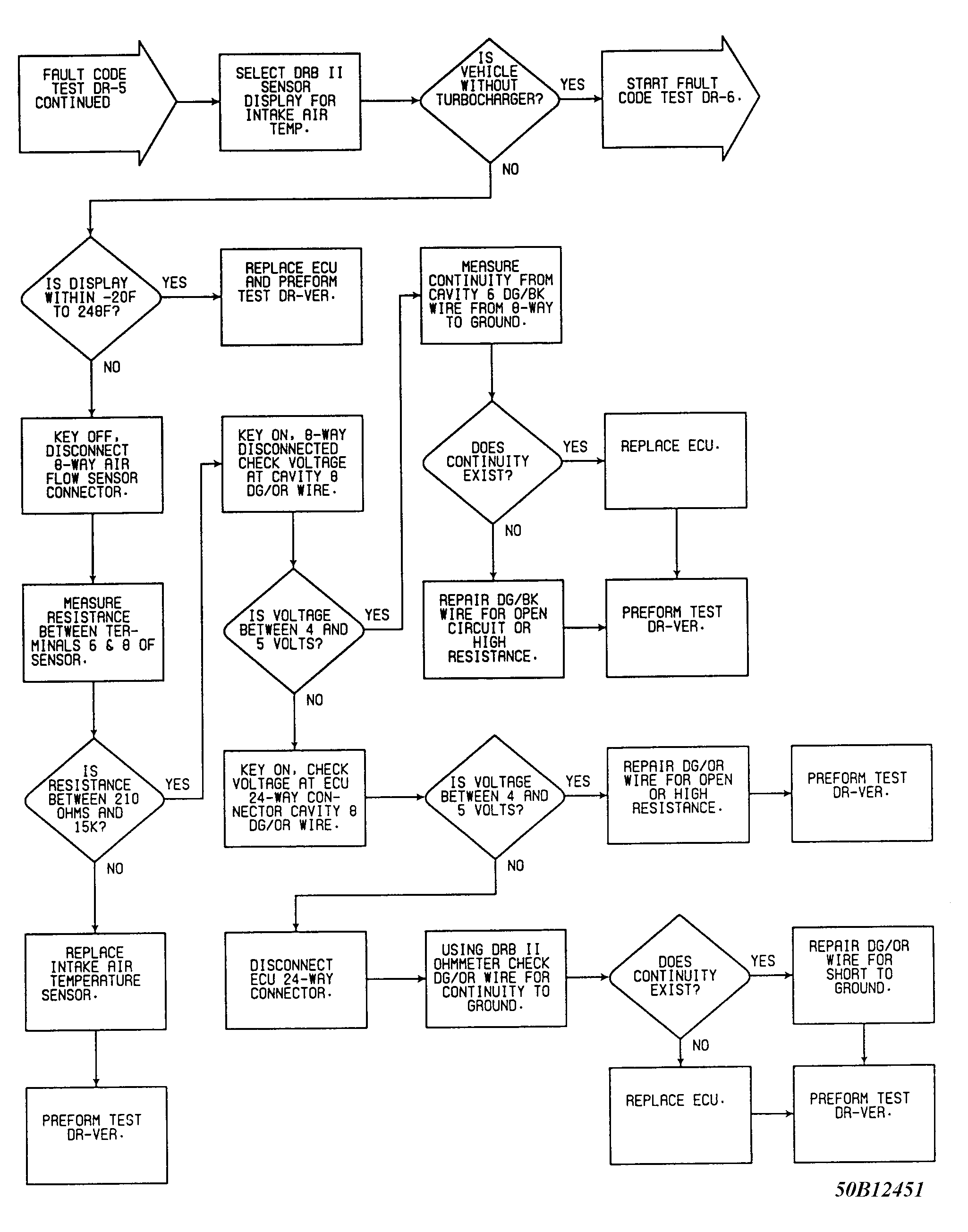

Fig 3: DR-5 Flow Chart (2 of 2) (2.0L Turbo)

G50B12451
