Dr-7: Checking Throttle Position Sensor (TPS)

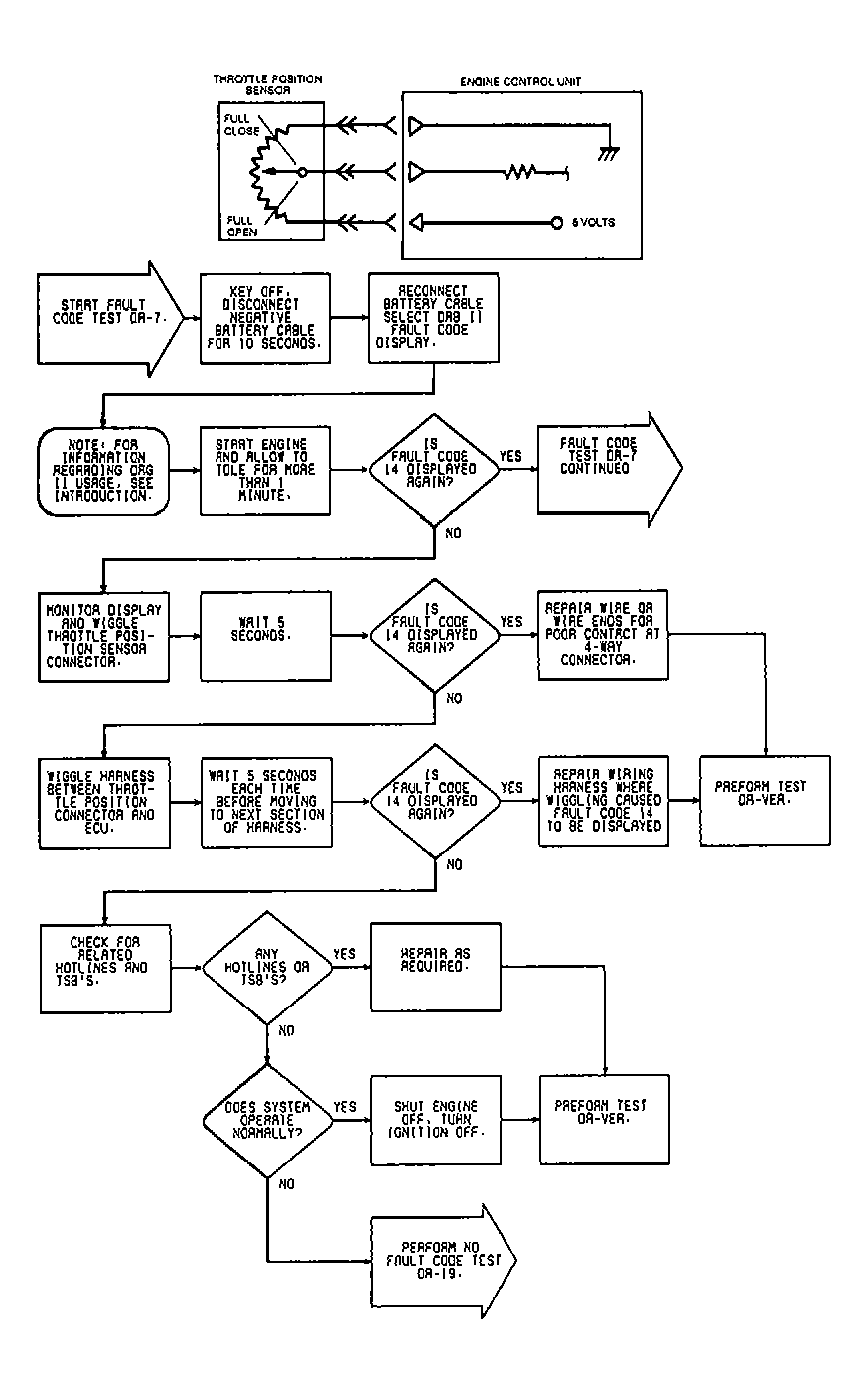

Fig 1: DR-7 Flow Chart & Circuit Diagram (2.0L) (1 of 3)

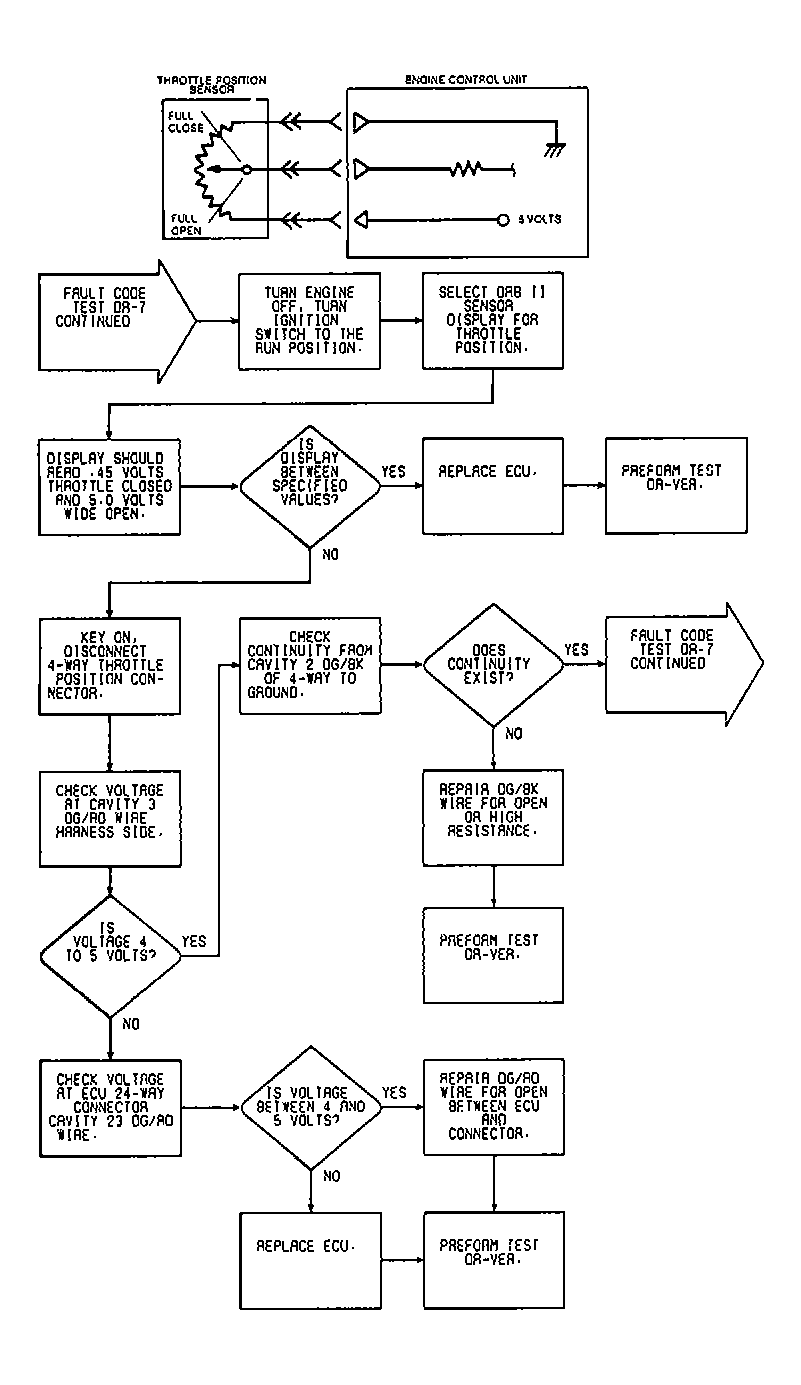

Fig 2: DR-7 Flow Chart & Circuit Diagram (2.0L) (2 of 3)

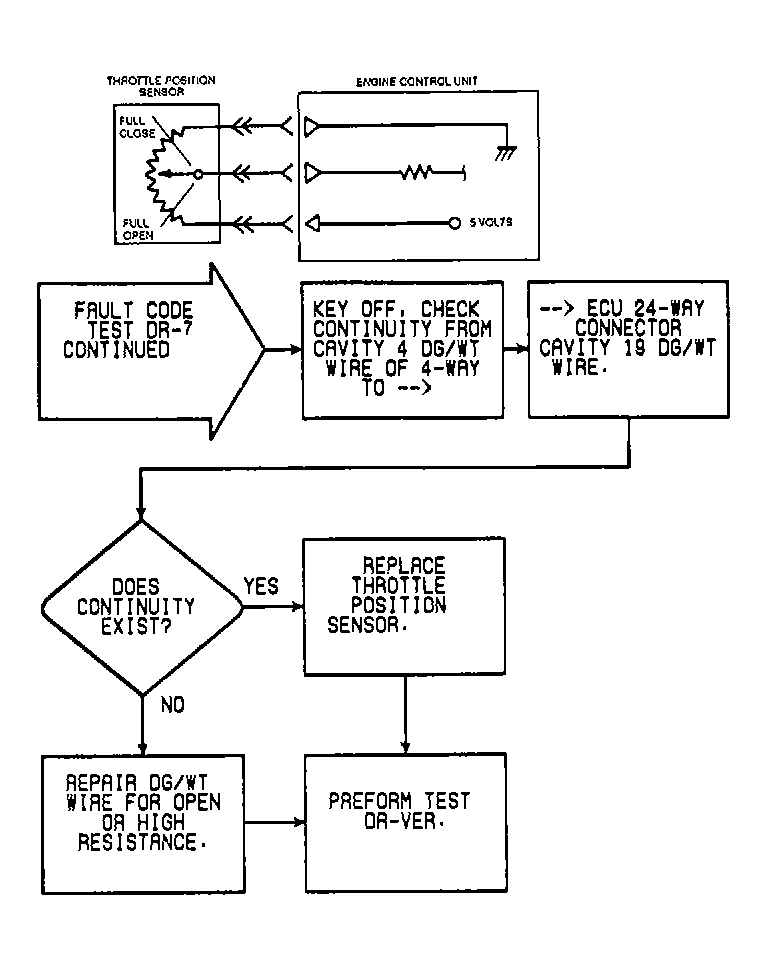

Fig 3: DR-7 Flow Chart & Circuit Diagram (2.0L) (3 of 3)
