Vehicle Speed Sensor: Service and Repair

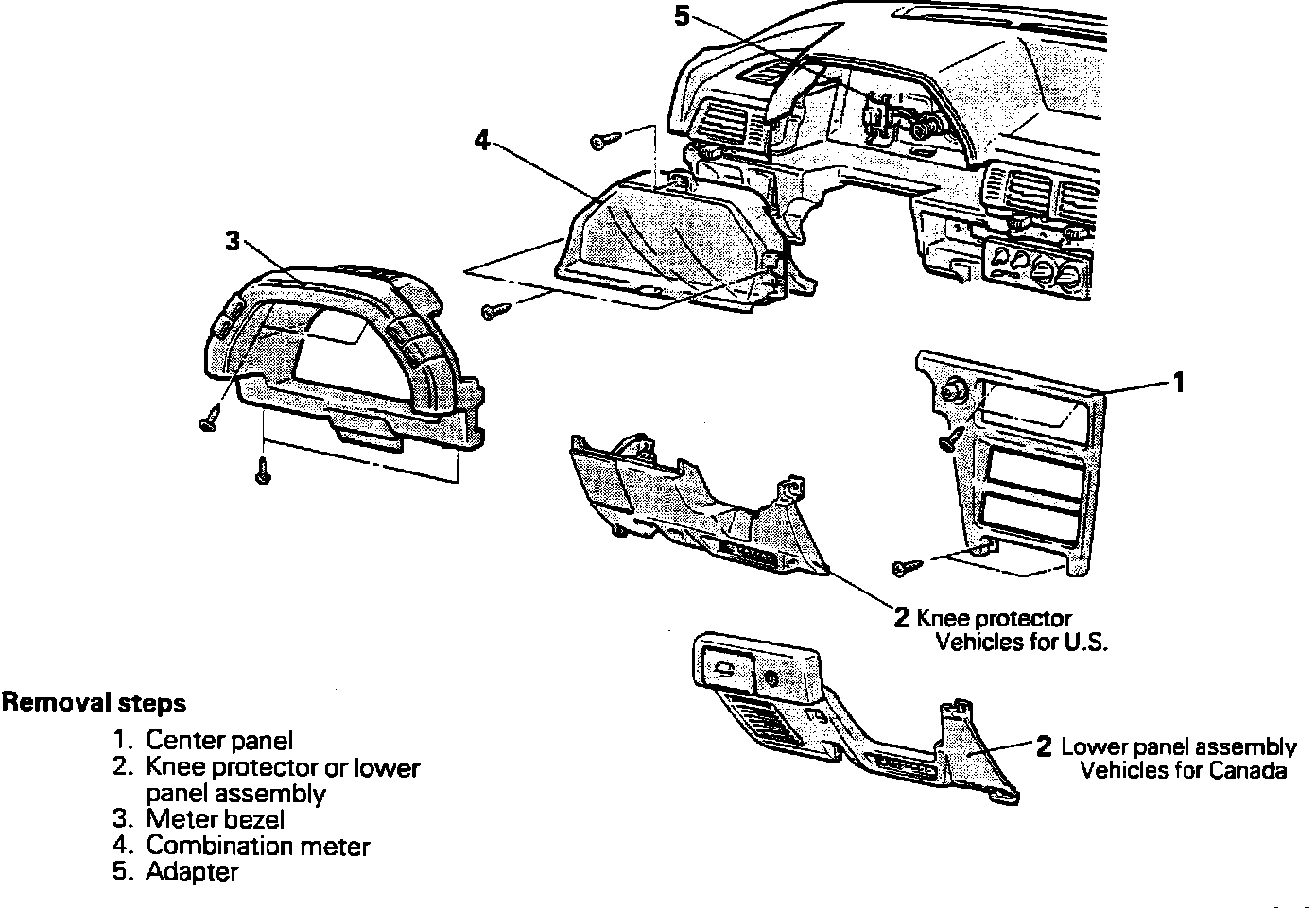

Instrument Panel Removal:
Installation is the reverse of removal.
