Clearance and Design Specifications
F3A21-2-ERA & F4A21-2-MRA
General Specifications:

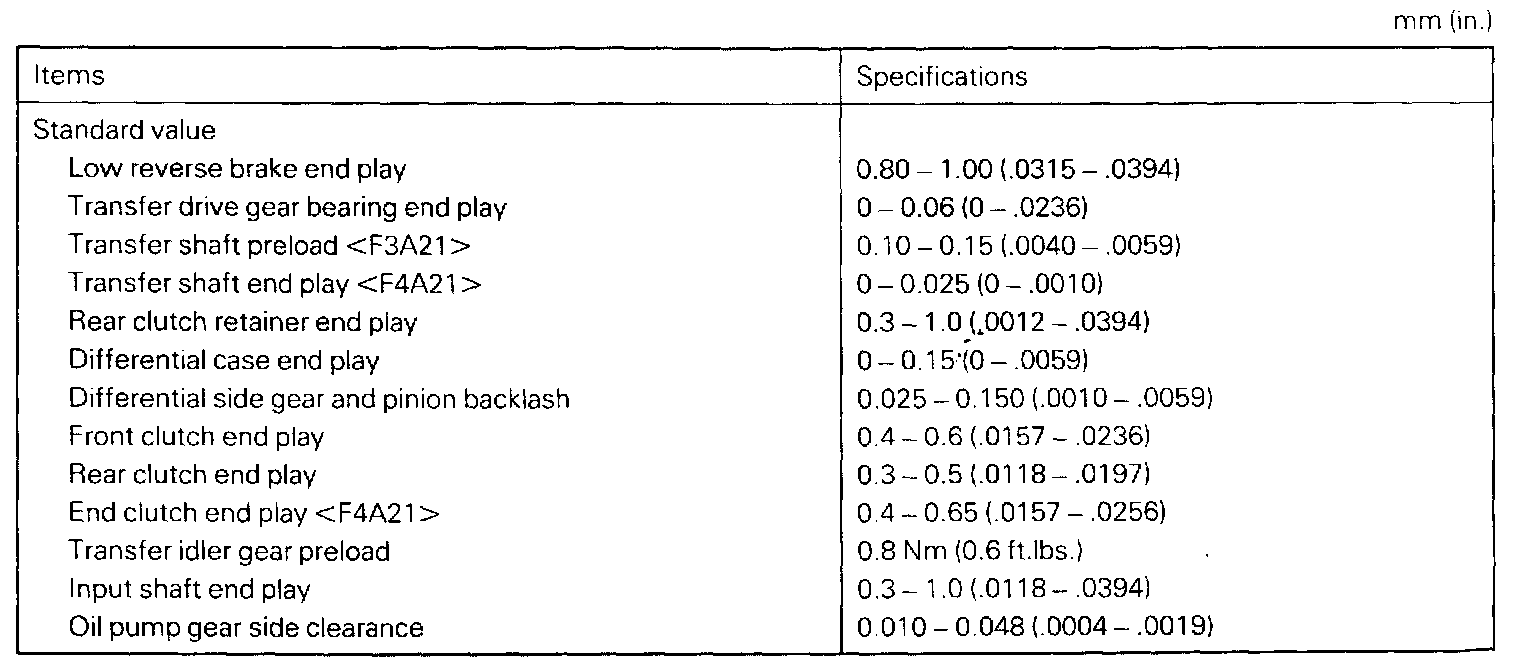

Service Specifications:

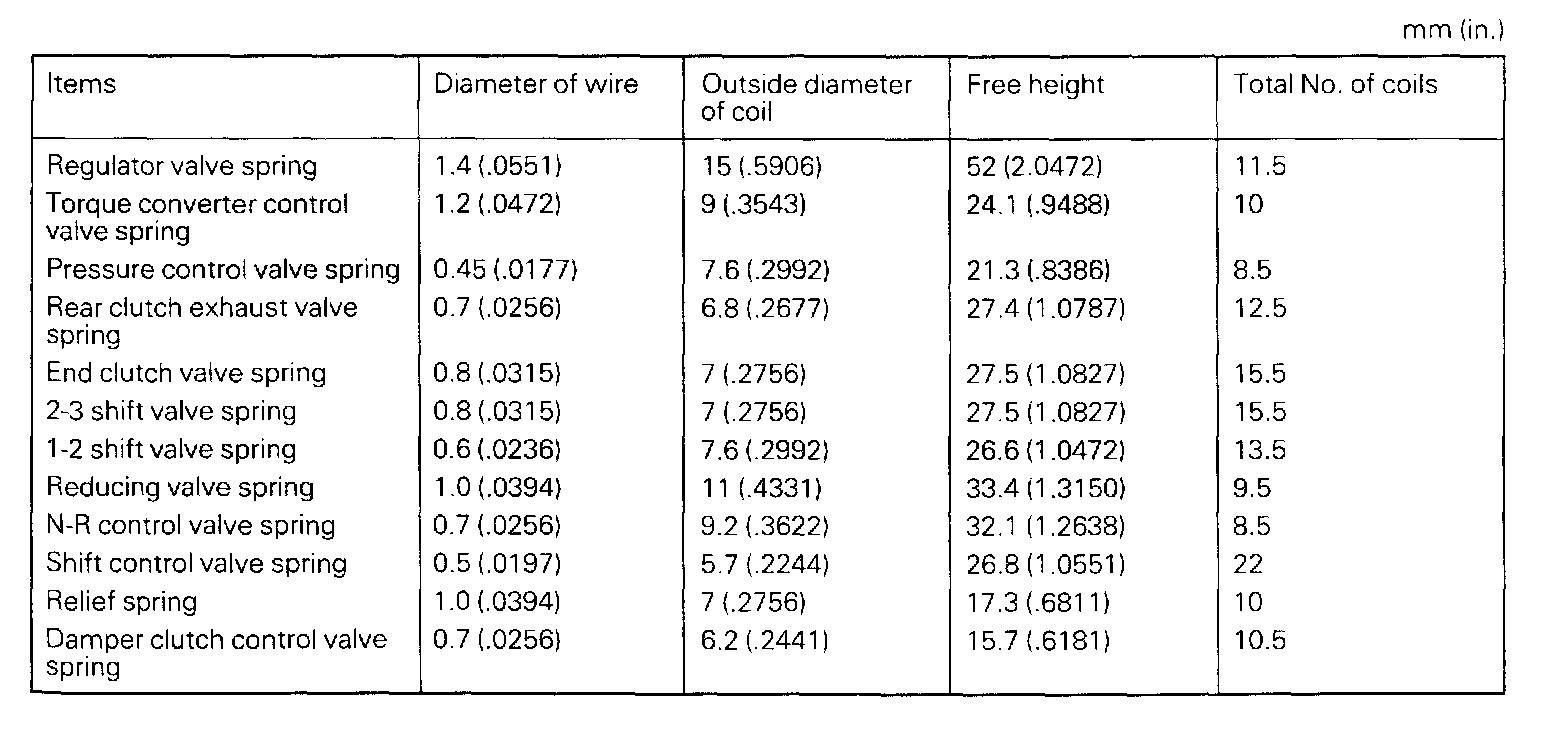

F3A21, Valve Body Spring Identification Chart:

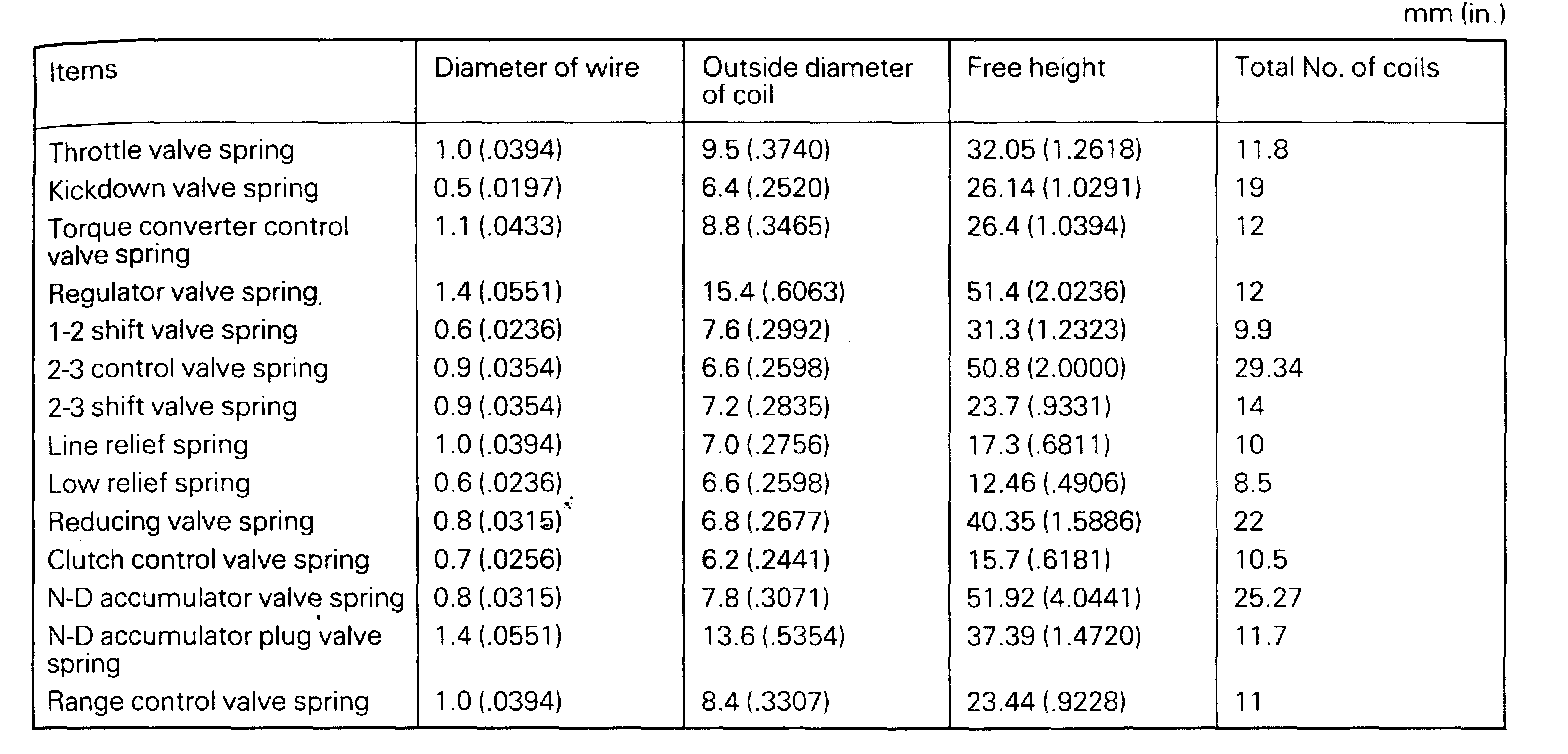

F4A21, Valve Body Spring Identification Chart:

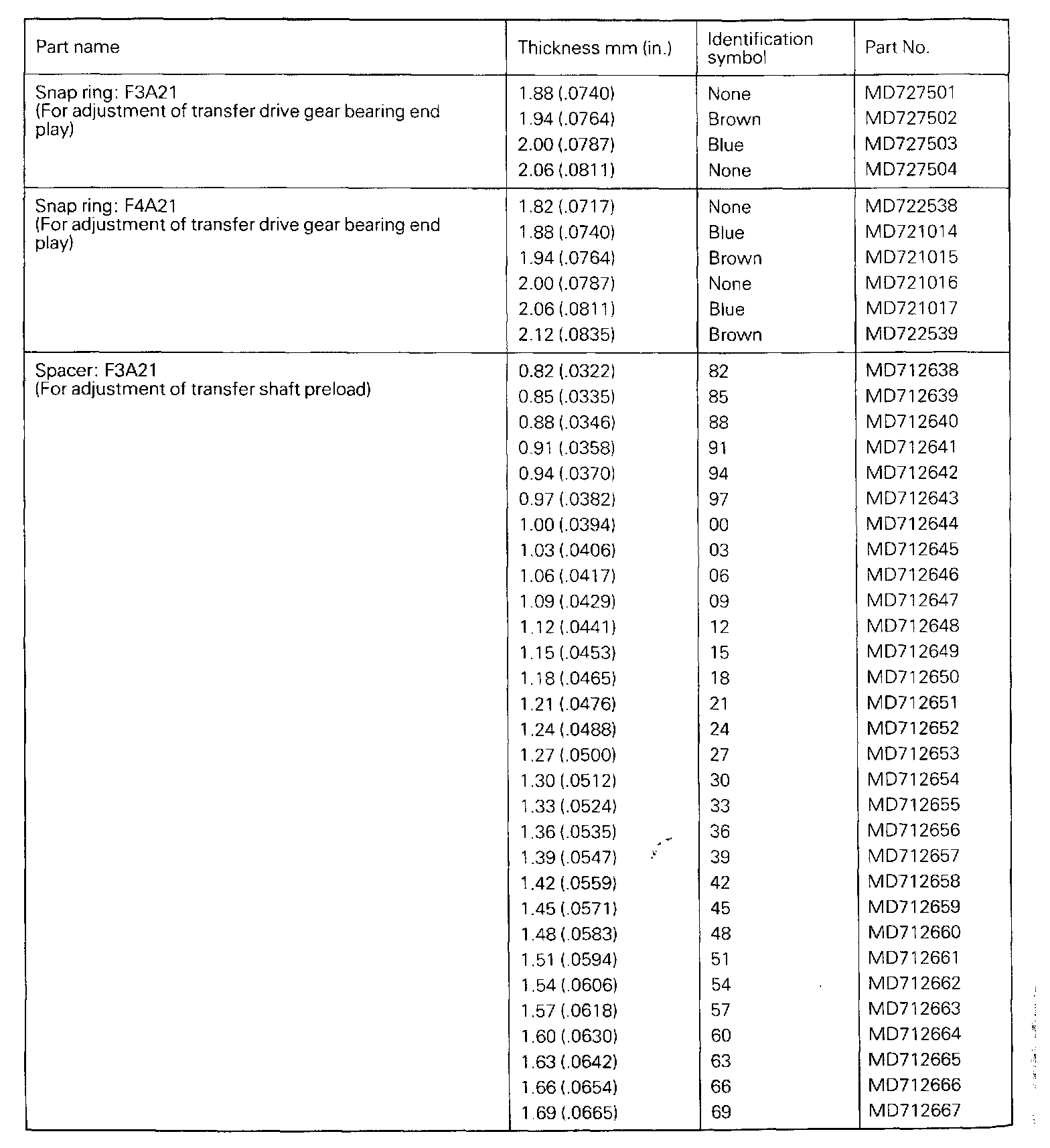

Spacer And Snap Ring Chart:

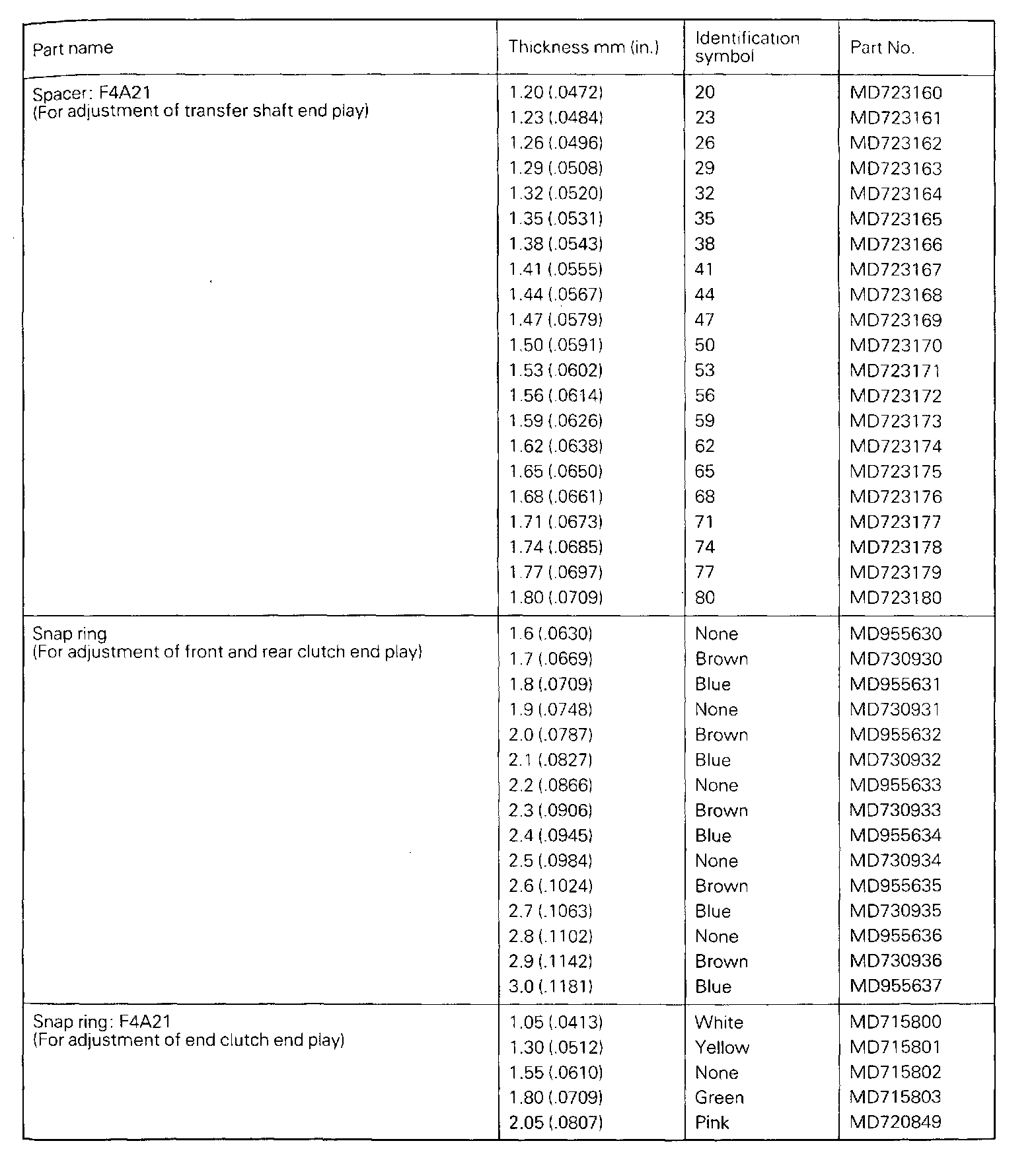

Continued:

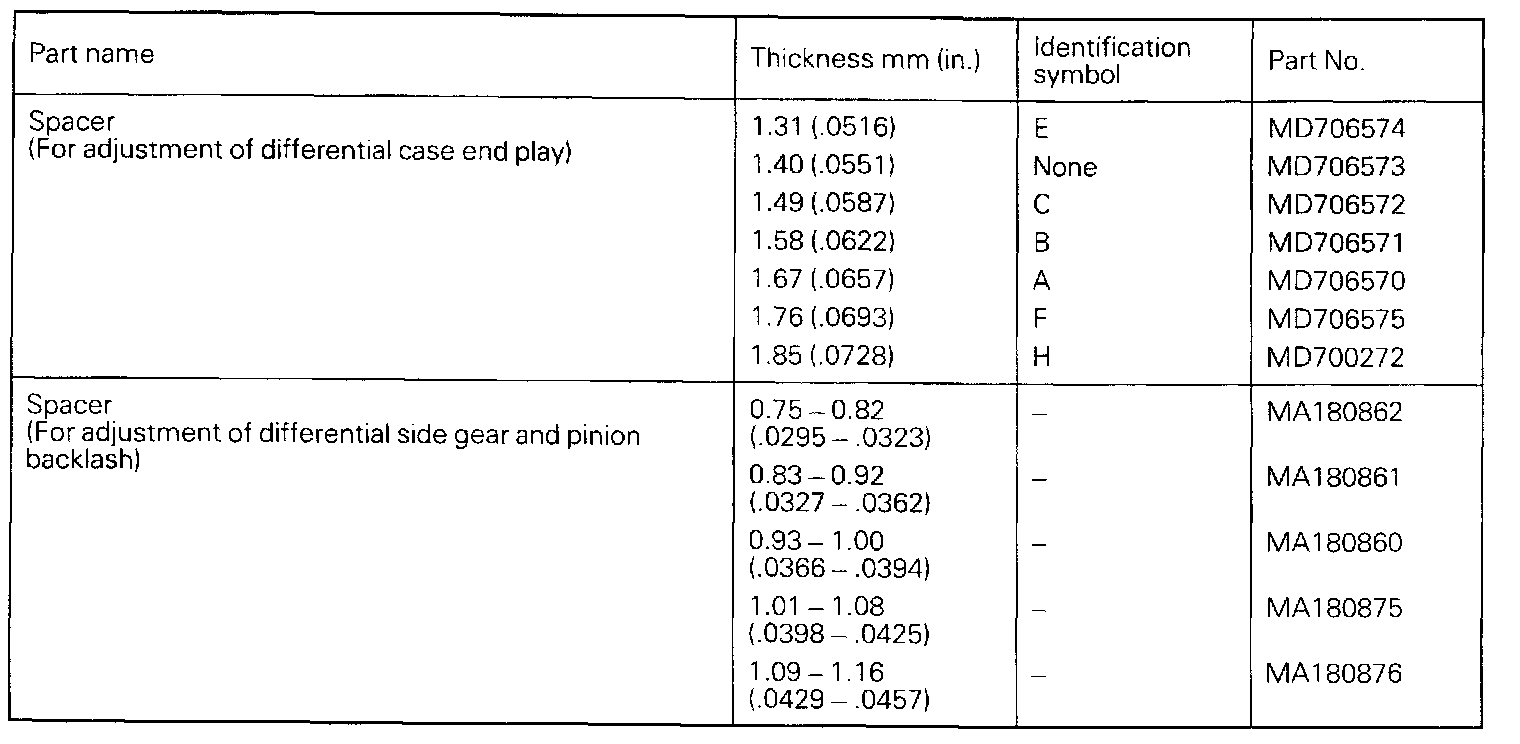

Continued:
Lubricants:
