Dr-10: Checking TDC Sensor

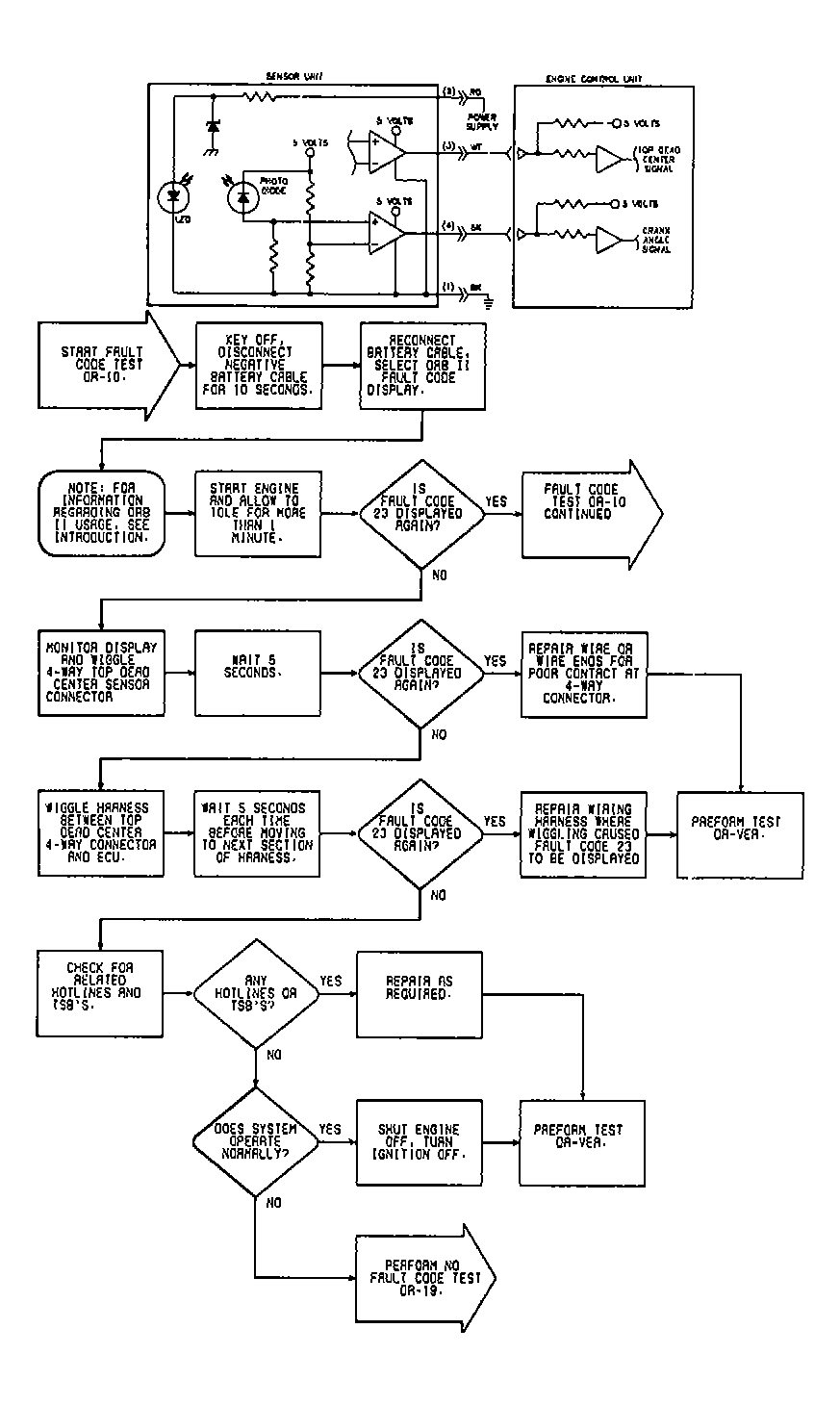

Fig 1: DR-10 Flow Chart & Circuit Diagram (1 of 2)

G90B12683

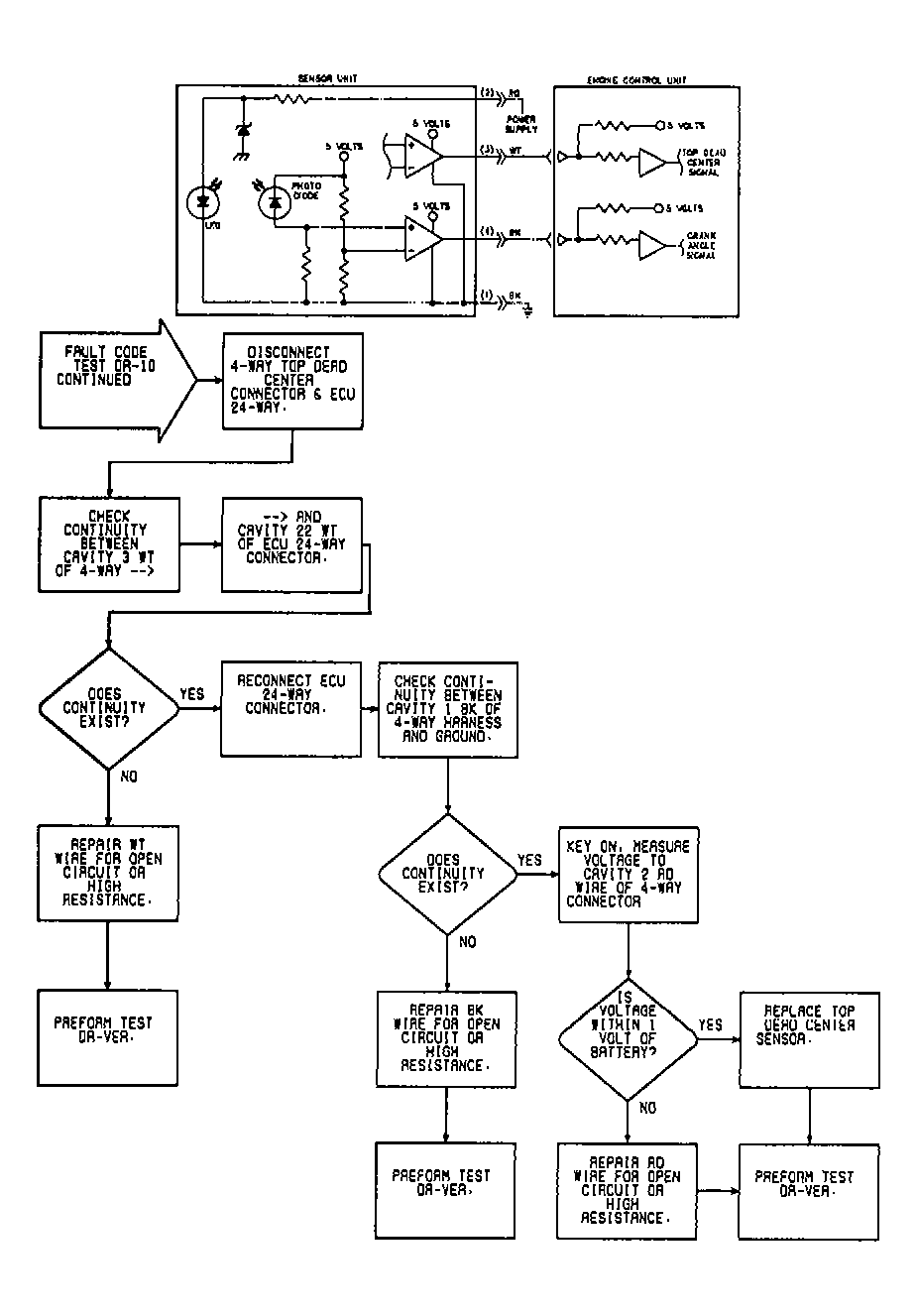

Fig 2: DR-10 Flow Chart & Circuit Diagram (2 of 2)

G90C12684
