Overhaul - ZF 4HP 18: Identification

Automatic Transaxle (A/T) can be identified in 2 ways. A/T sequence number and type is shown on transaxle identification plate which is located on the left side of the case just above oil pan. See Fig 1. The 7th position of the VIN identifies the transmission type (8 = ZF 4-Speed Automatic).

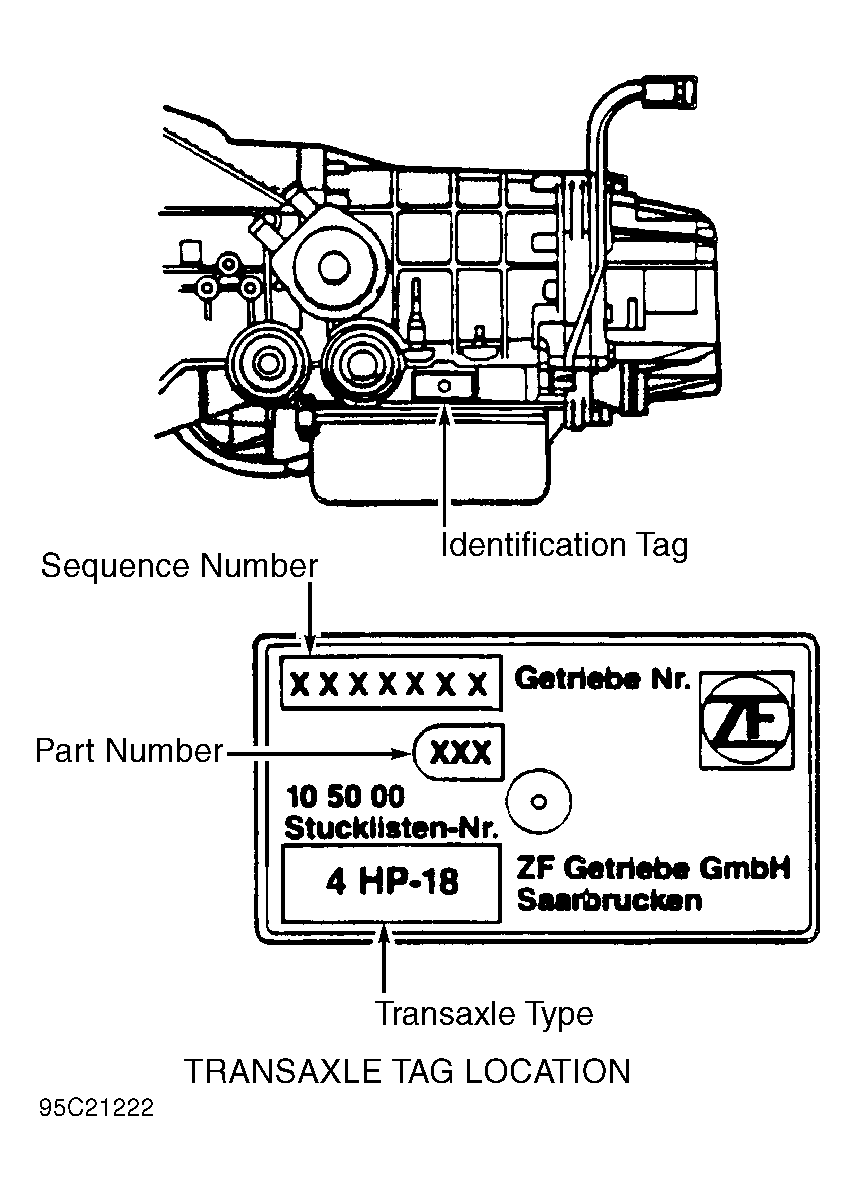

Fig 1: Locating Transaxle Identification Tag

Courtesy of CHRYSLER CORP.
