Fuse Panel Details

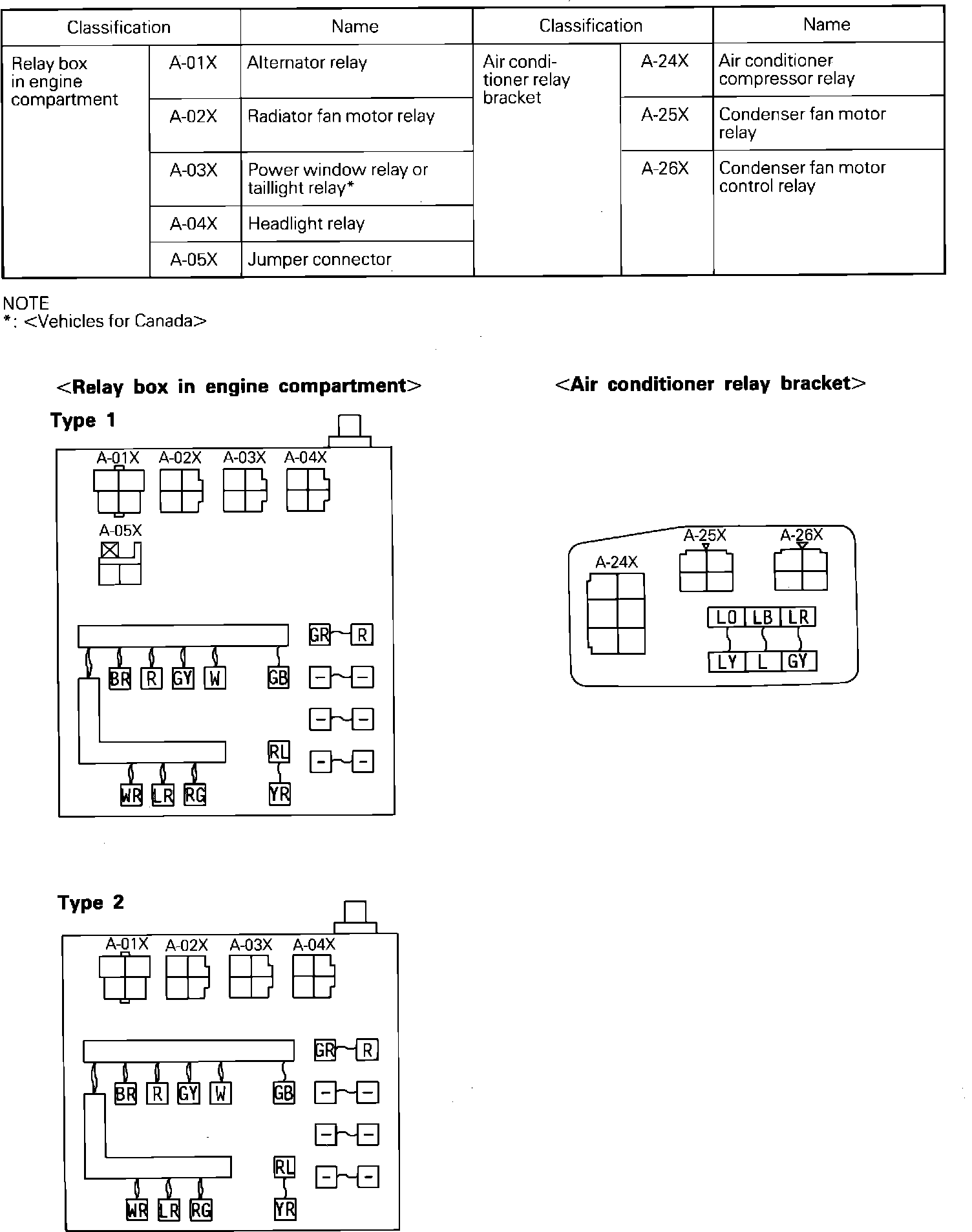

Fuse Panel Details. Relay Block:

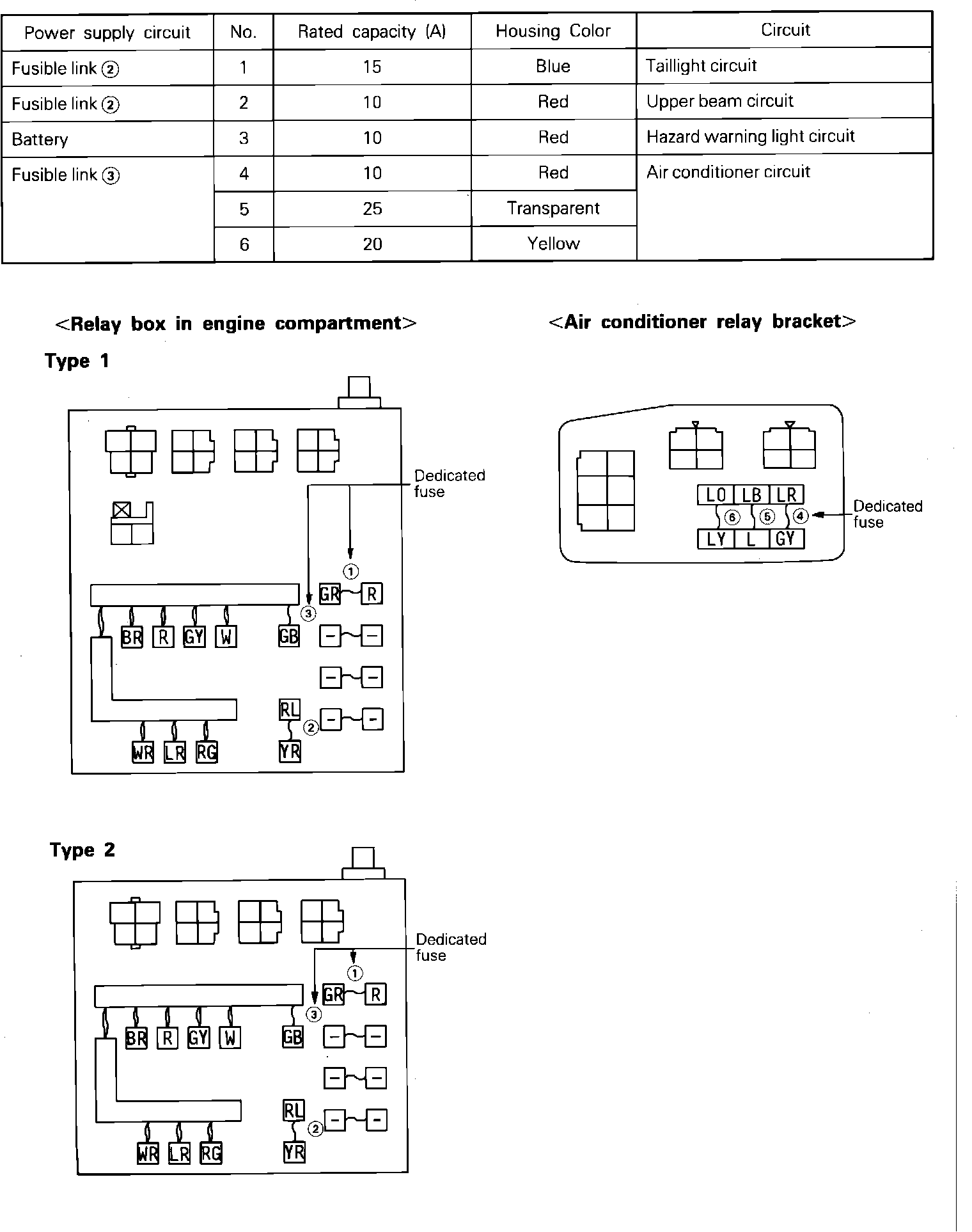

Fuse Panel Details. Relay Block:

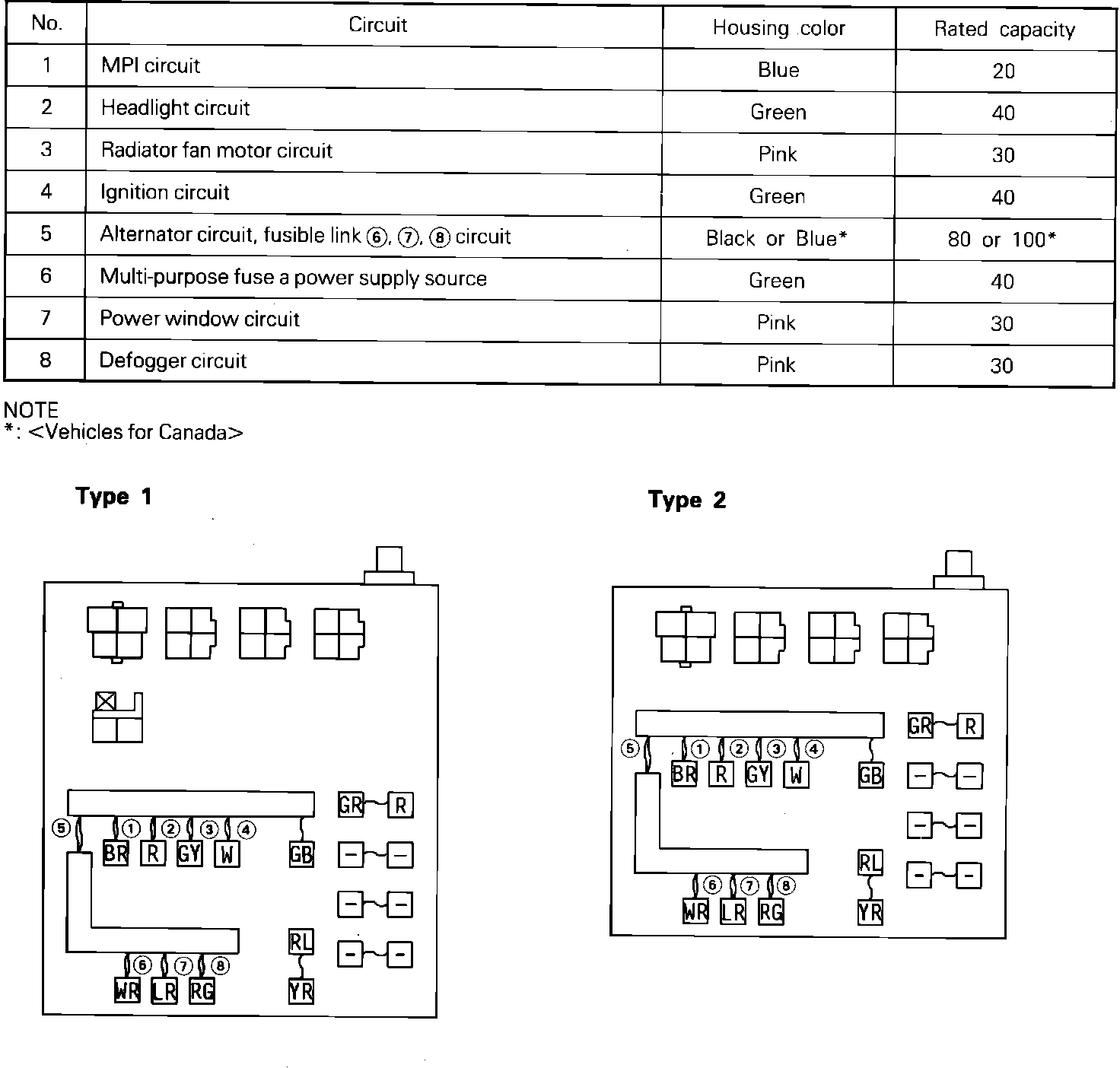

Fuse Panel Details. Relay Block:
