Windshield Wiper/Washer Switch Test

Disconnect switch connectors "A" and "B" at steering column. Check continuity between switch terminals. See Fig 1 . Replace switch as necessary.

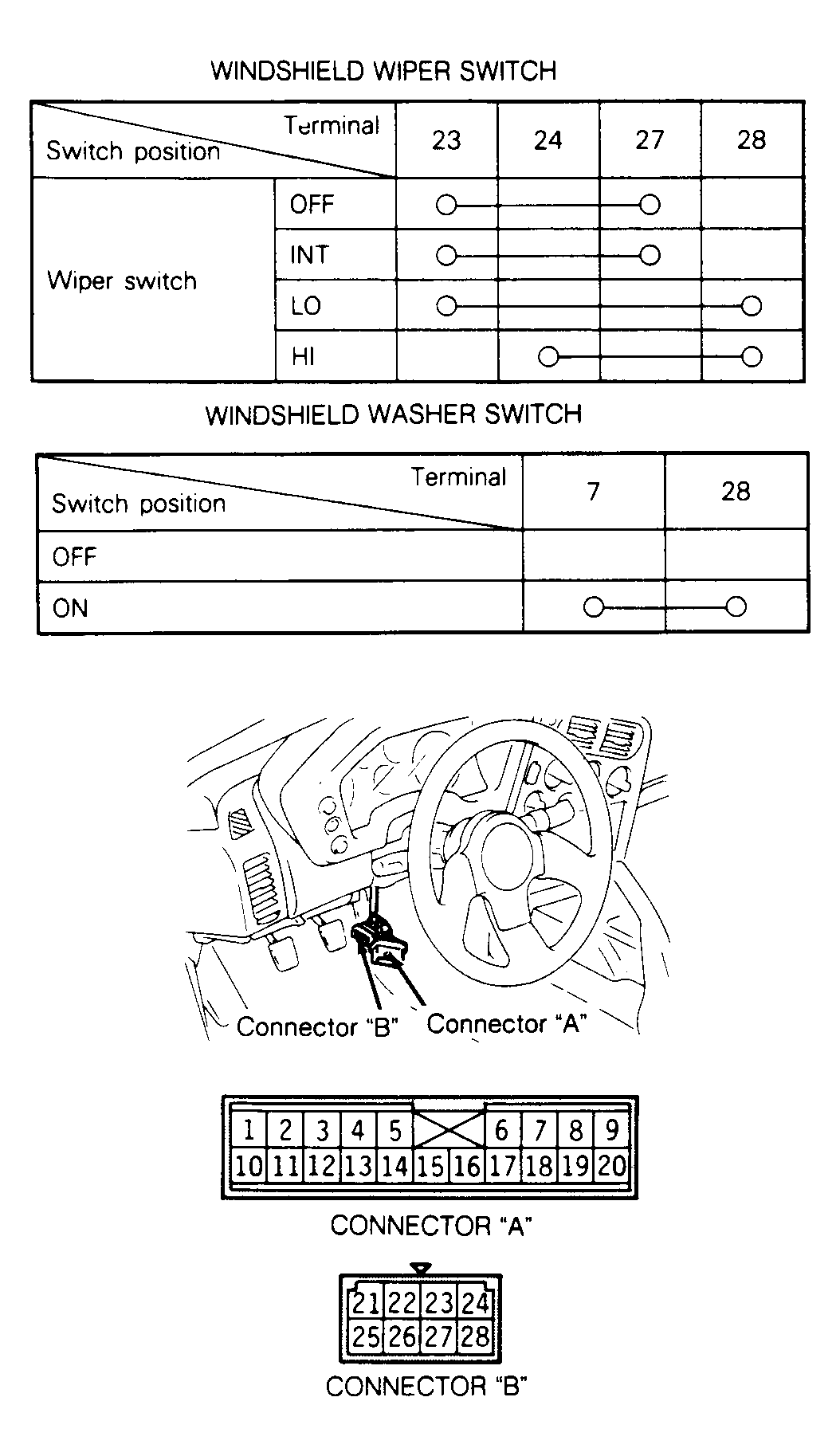

Fig 1: Testing Windshield Wiper/Washer Switch

Courtesy of CHRYSLER MOTORS.
