Wiring Diagrams

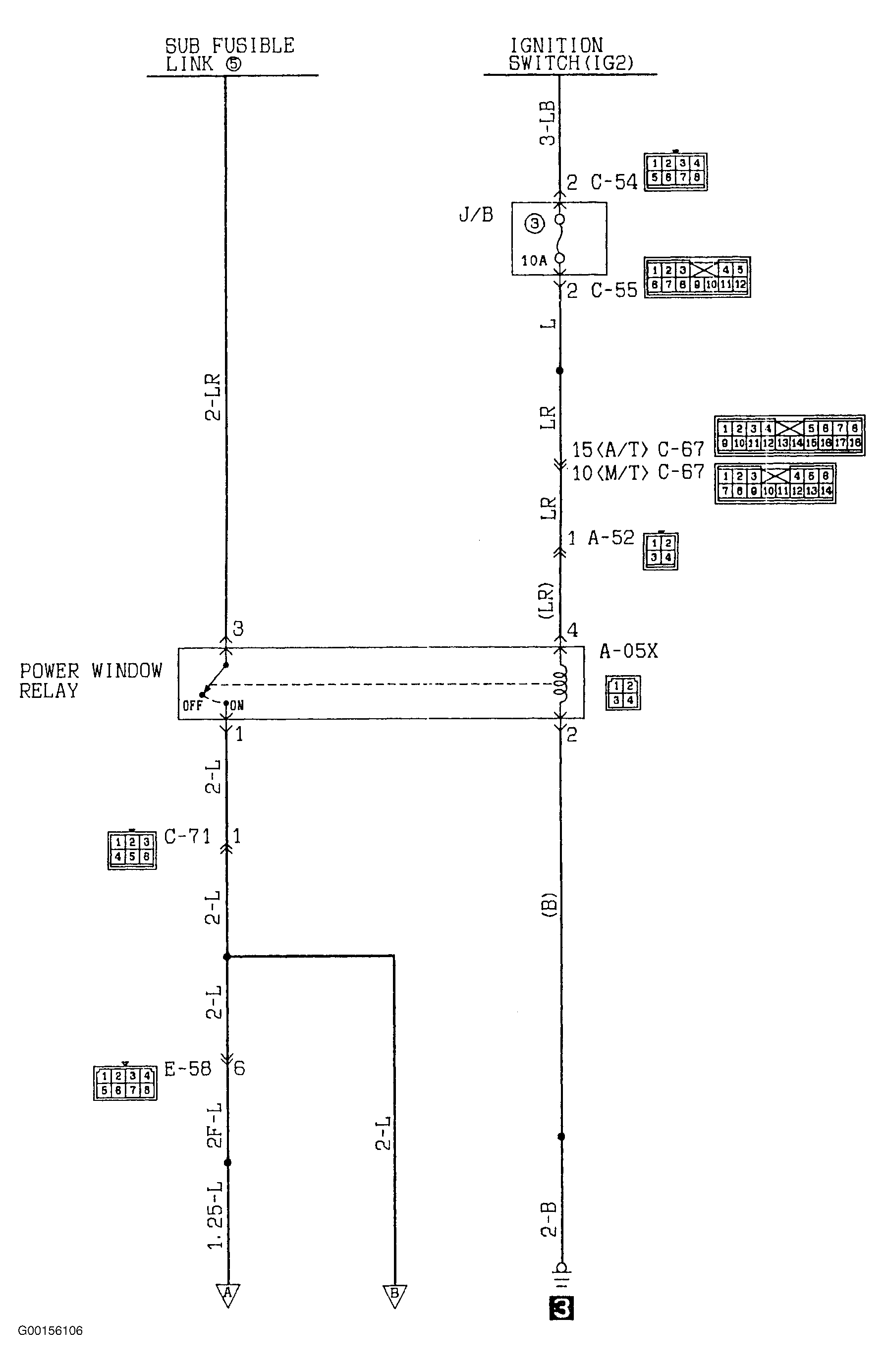

Fig 1: Power Windows Circuit (Eclipse, Laser & Talon - 1 Of 2)
G00156106Courtesy of CHRYSLER CORP.

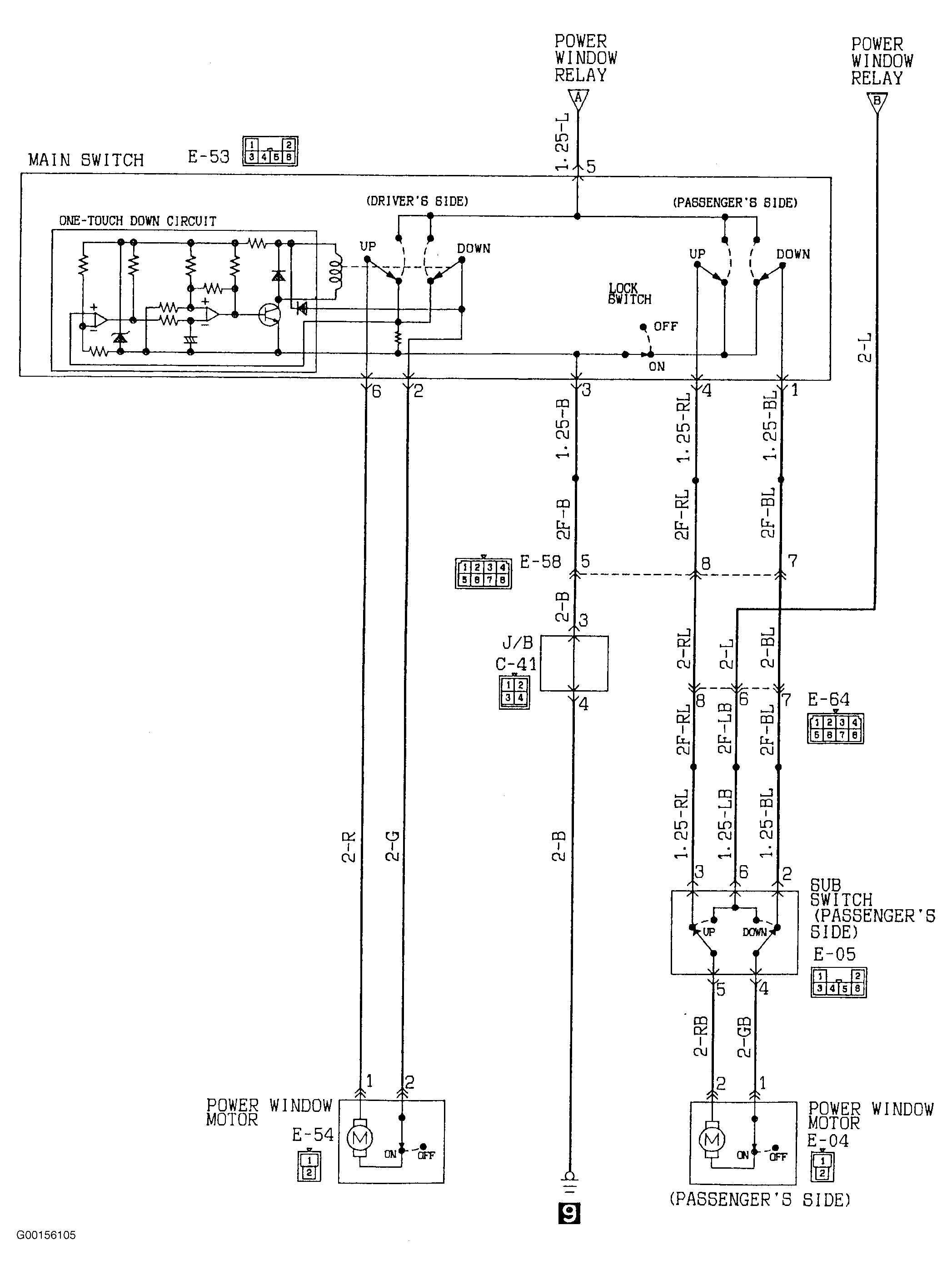

Fig 2: Power Windows Circuit (Eclipse, Laser & Talon - 2 Of 2)
G00156105Courtesy of CHRYSLER CORP.
