NS-6A: Repairing Ignition Coil System

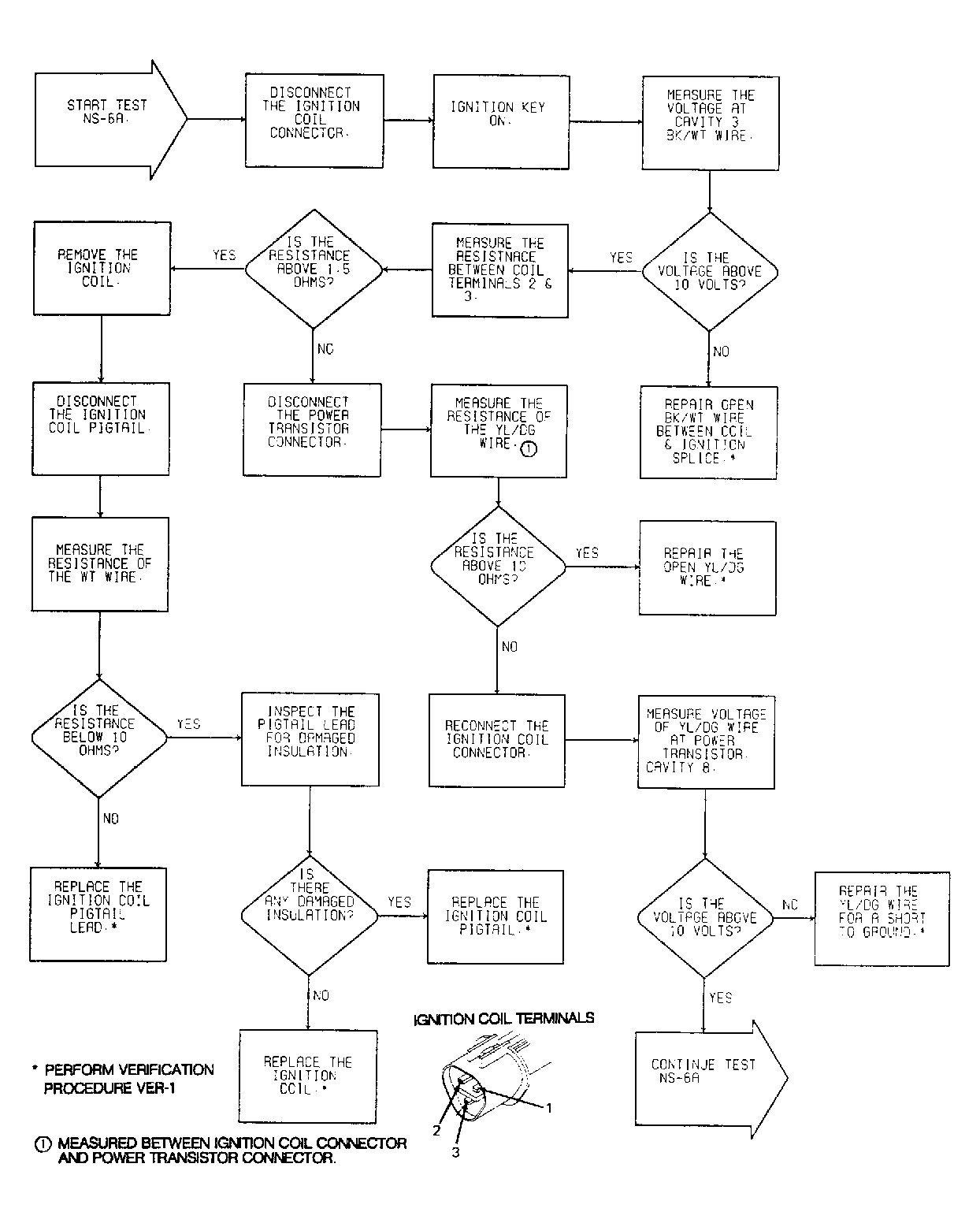

Fig 1: No Start Test NS-6A: Diagnostic Flow Chart (1 of 3)

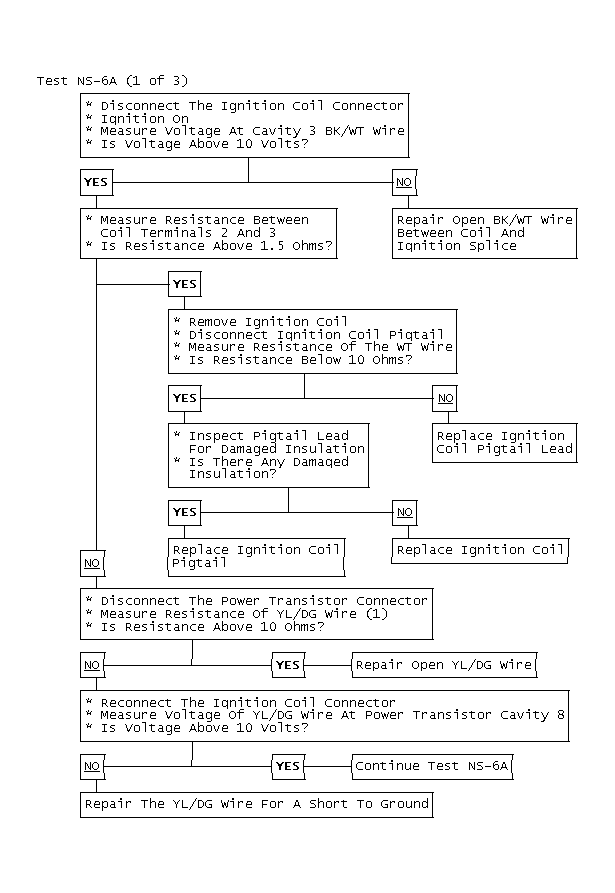

Fig 2: Test NS-6A (1 of 3)

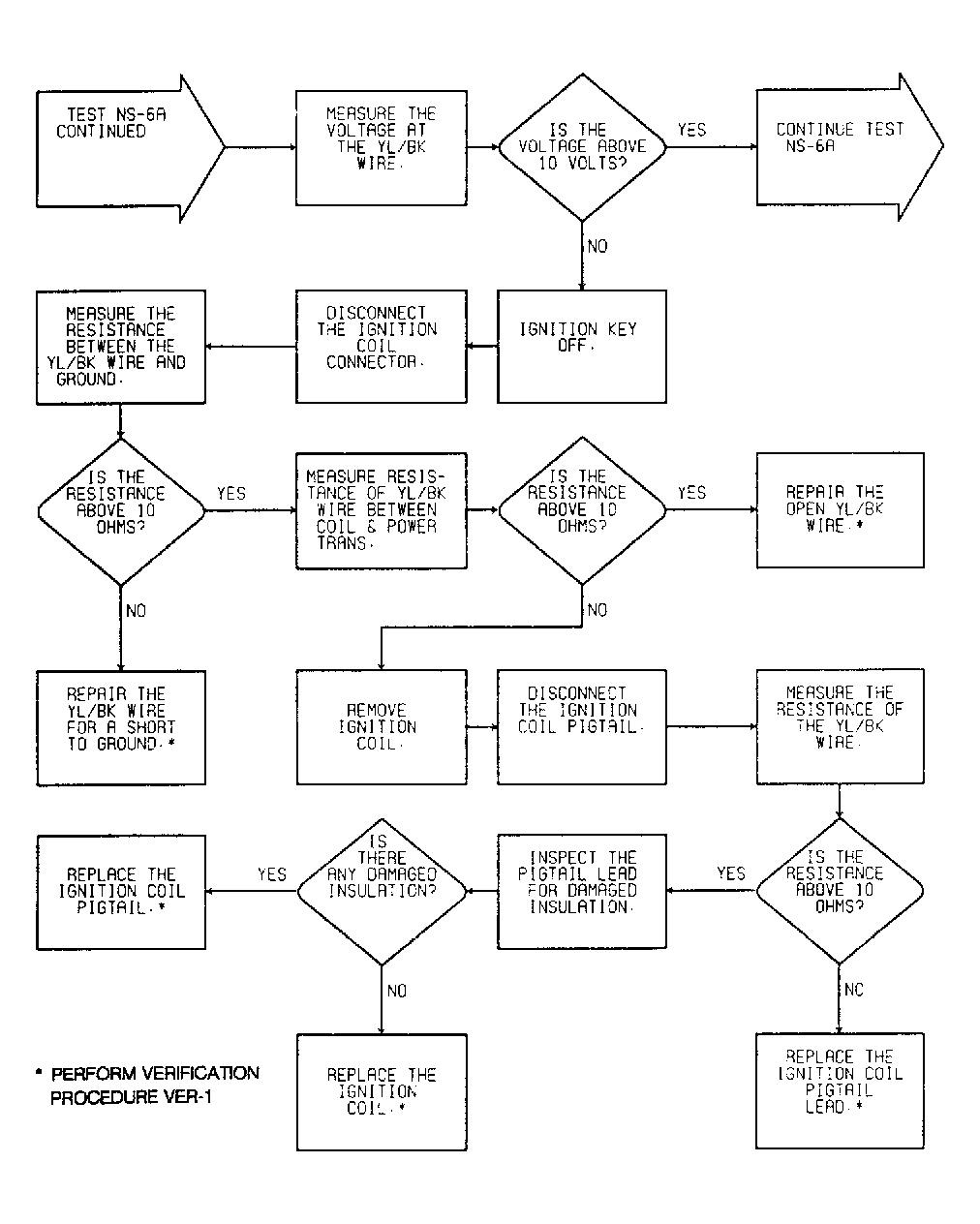

Fig 3: No Start Test NS-6A: Diagnostic Flow Chart (2 of 3)

Fig 4: Test NS-6A Continued (2 of 3)

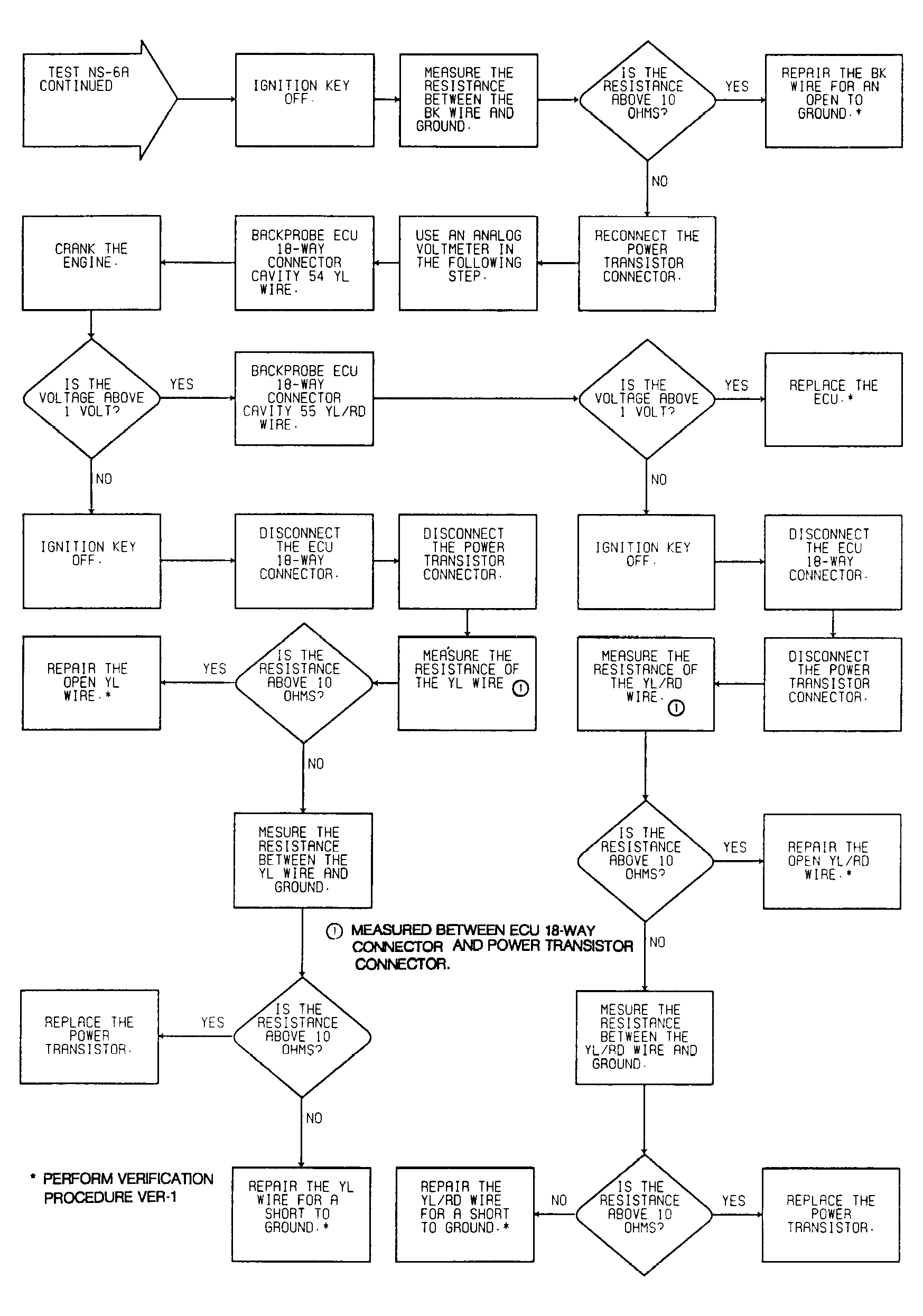

Fig 5: No Start Test NS-6A: Diagnostic Flow Chart (3 of 3)

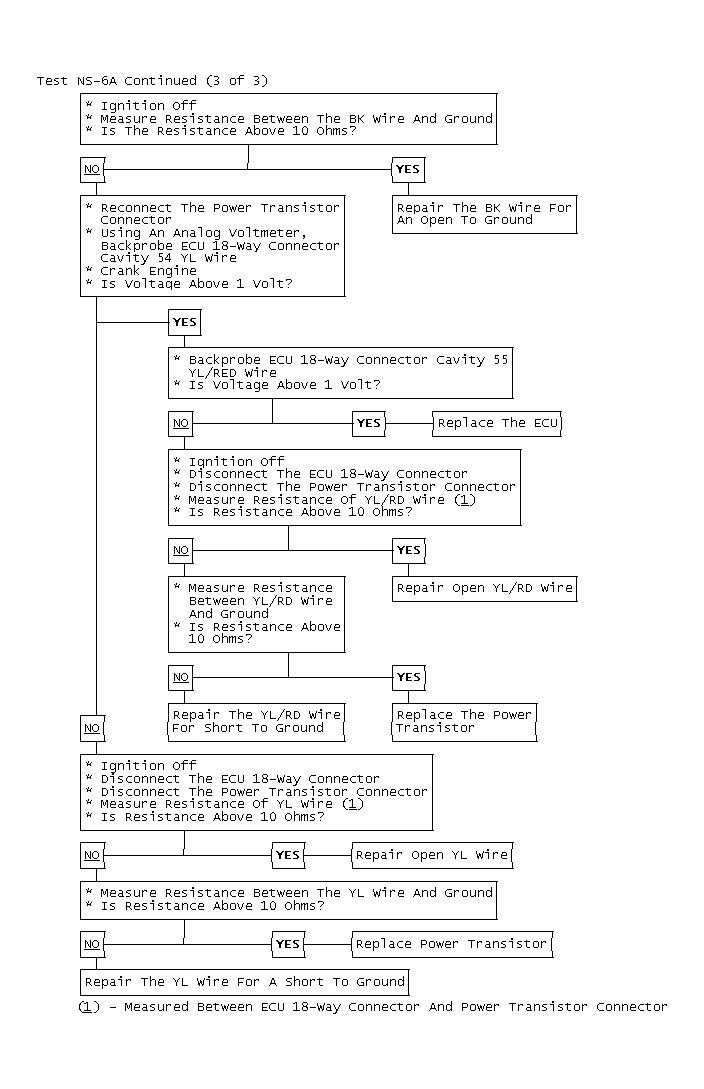

Fig 6: Test NS-6A Continued (3 of 3)
