Crankshaft Position Sensor: Service and Repair

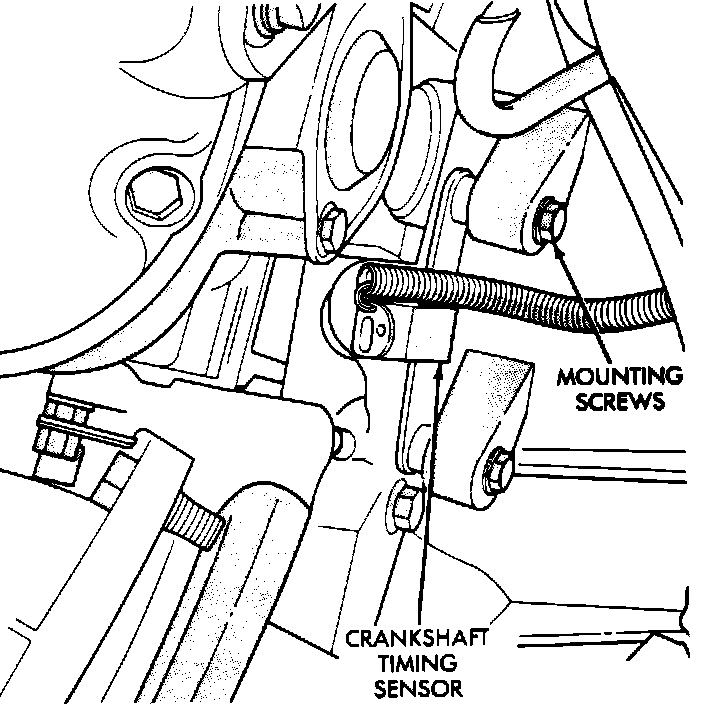

Crankshaft Timing Sensor:

1. Remove the sensor mounting screws (2) and disconnect the sensor electrical connector.
2. Remove the sensor.
3. Install the sensor and mounting screws, torqueing the screws to 71 lbs. in. (8 N-m).
4. Connect the sensor electrical connector to the wiring harness.
