With 4-Speed Transmission

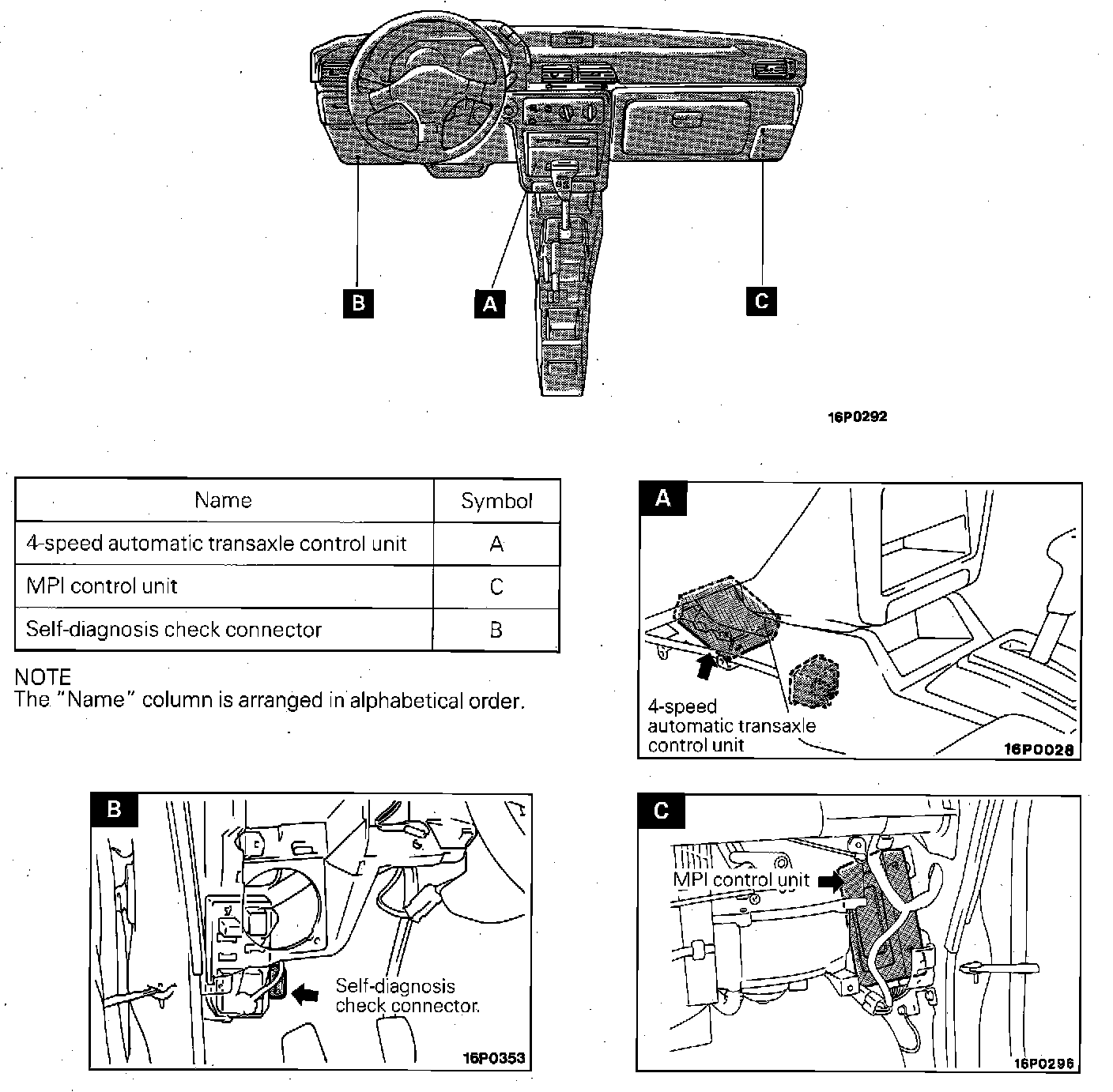

Component/Relay/Switch Locations (Automatic Transaxle, 4-Speed):

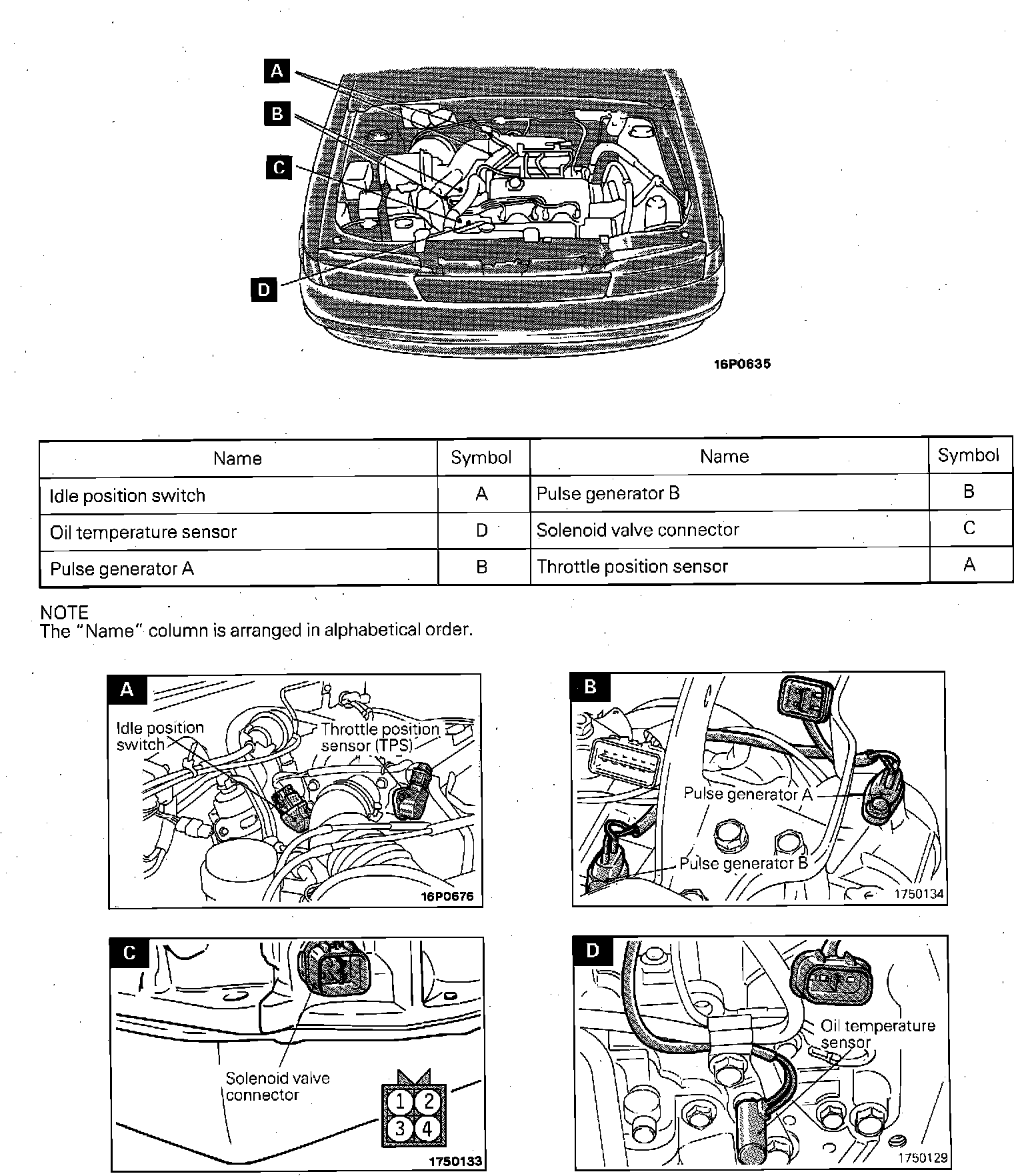

Component/Relay/Switch Locations (Automatic Transaxle, 4-Speed):
