Computers and Control Systems: Locations

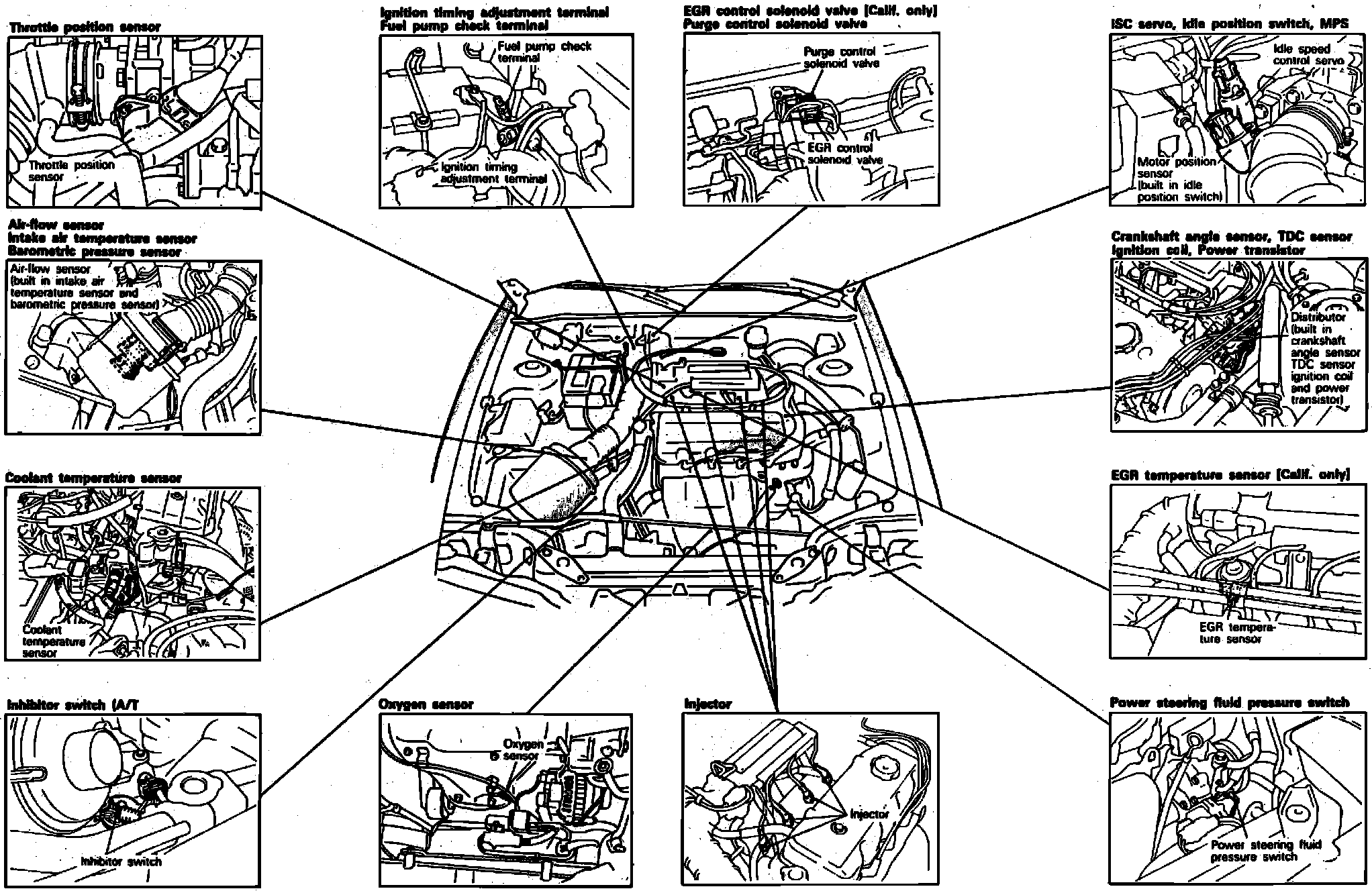

Engine Compartment Component Locations.:





Applicable to: 1.8L/4-107

Automatic Cruise Control Component Location:
