Talon FWD L4-1753cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Power Distribution Block
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power Distribution Block

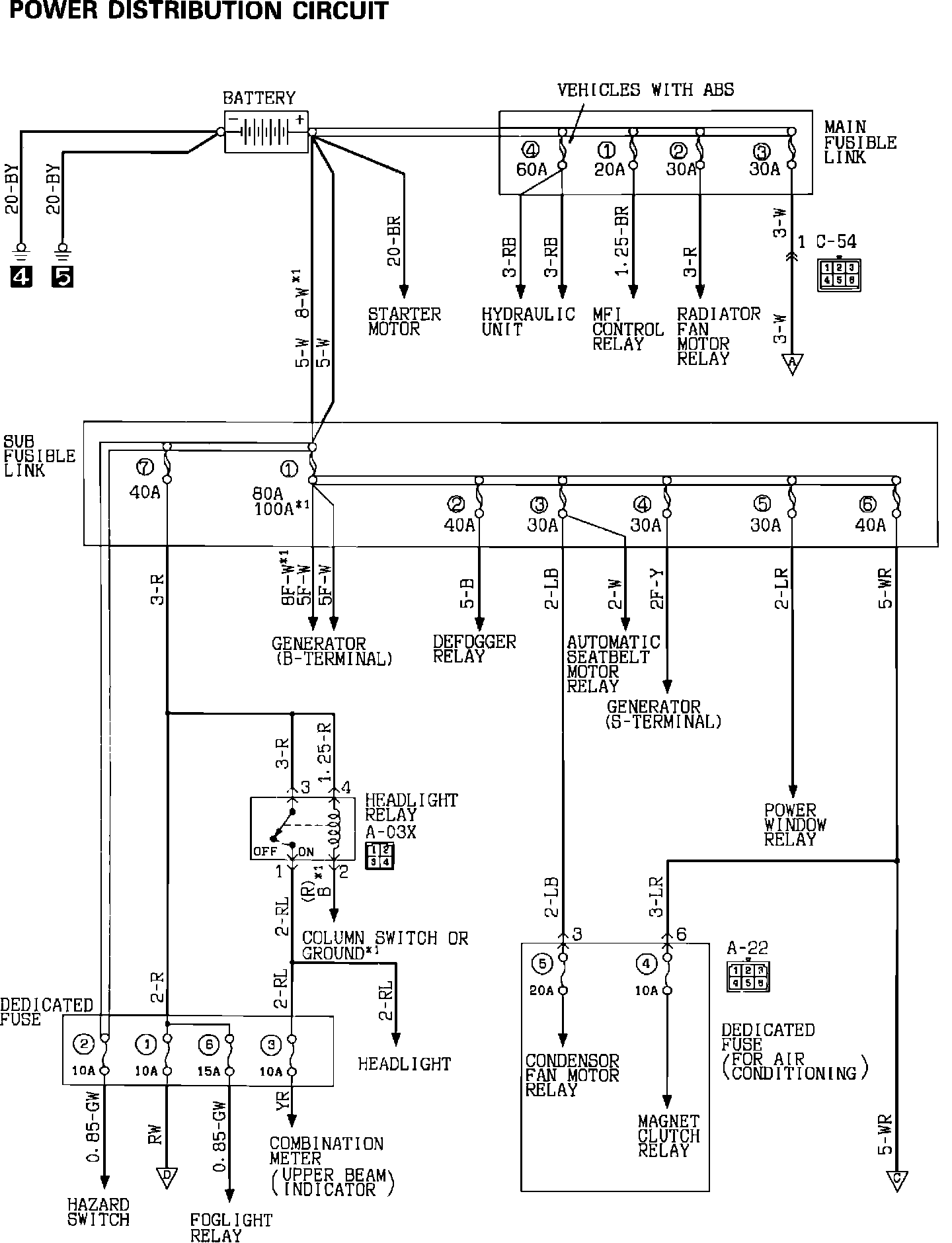

Power Distribution Circuit Diagram:

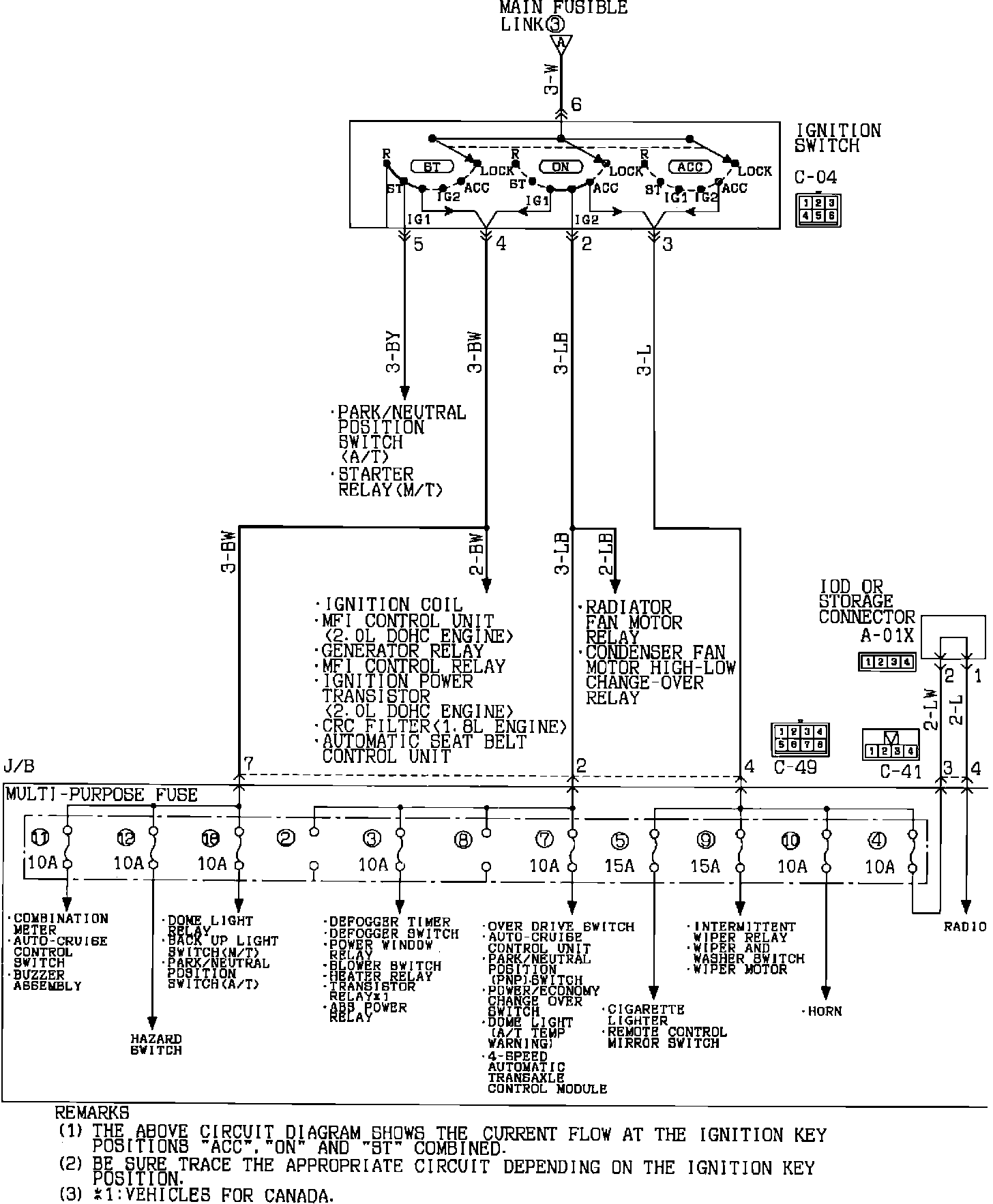

Power Distribution Circuit Diagram:

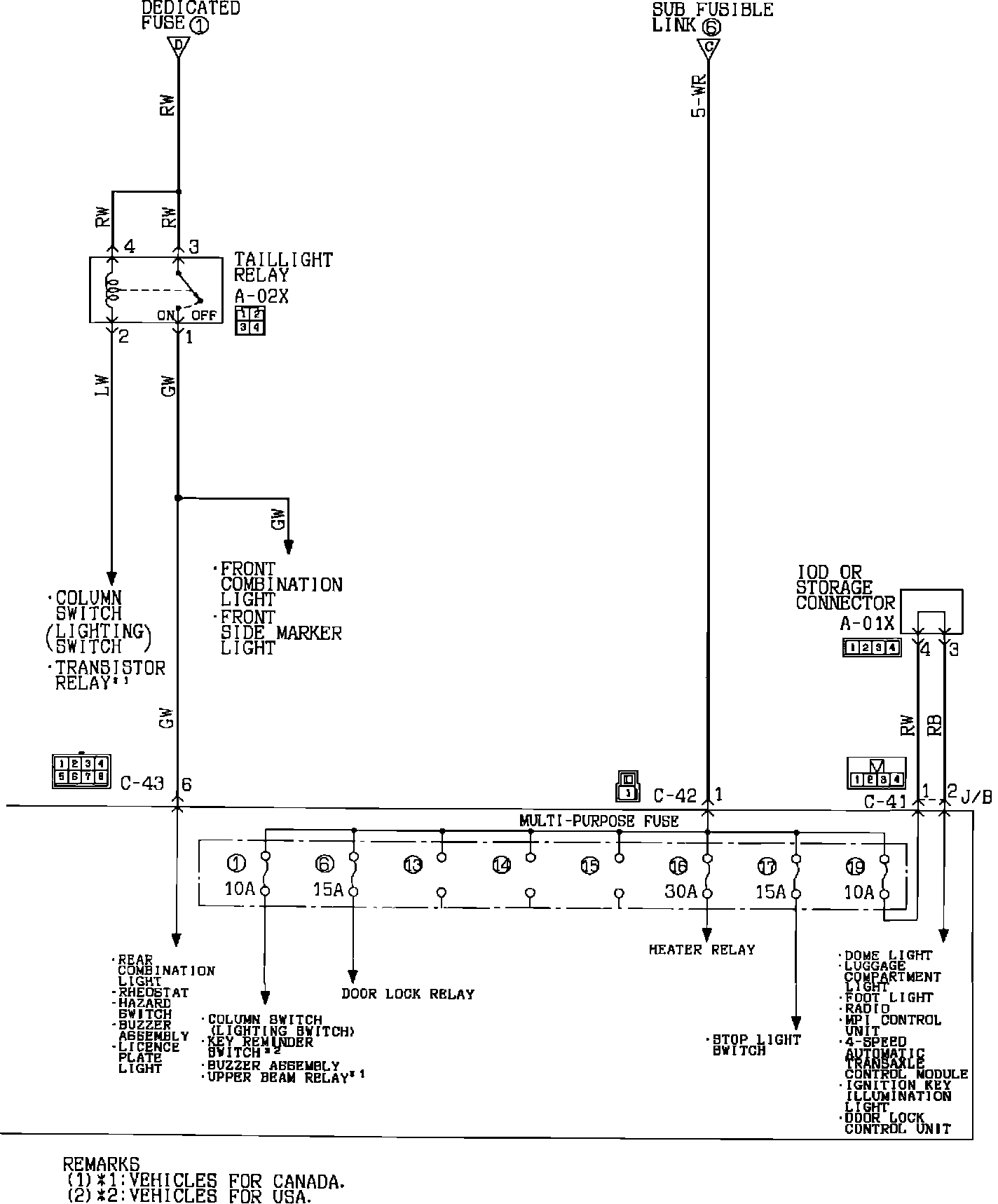

Power Distribution Circuit Diagram:
