Keyless Entry System

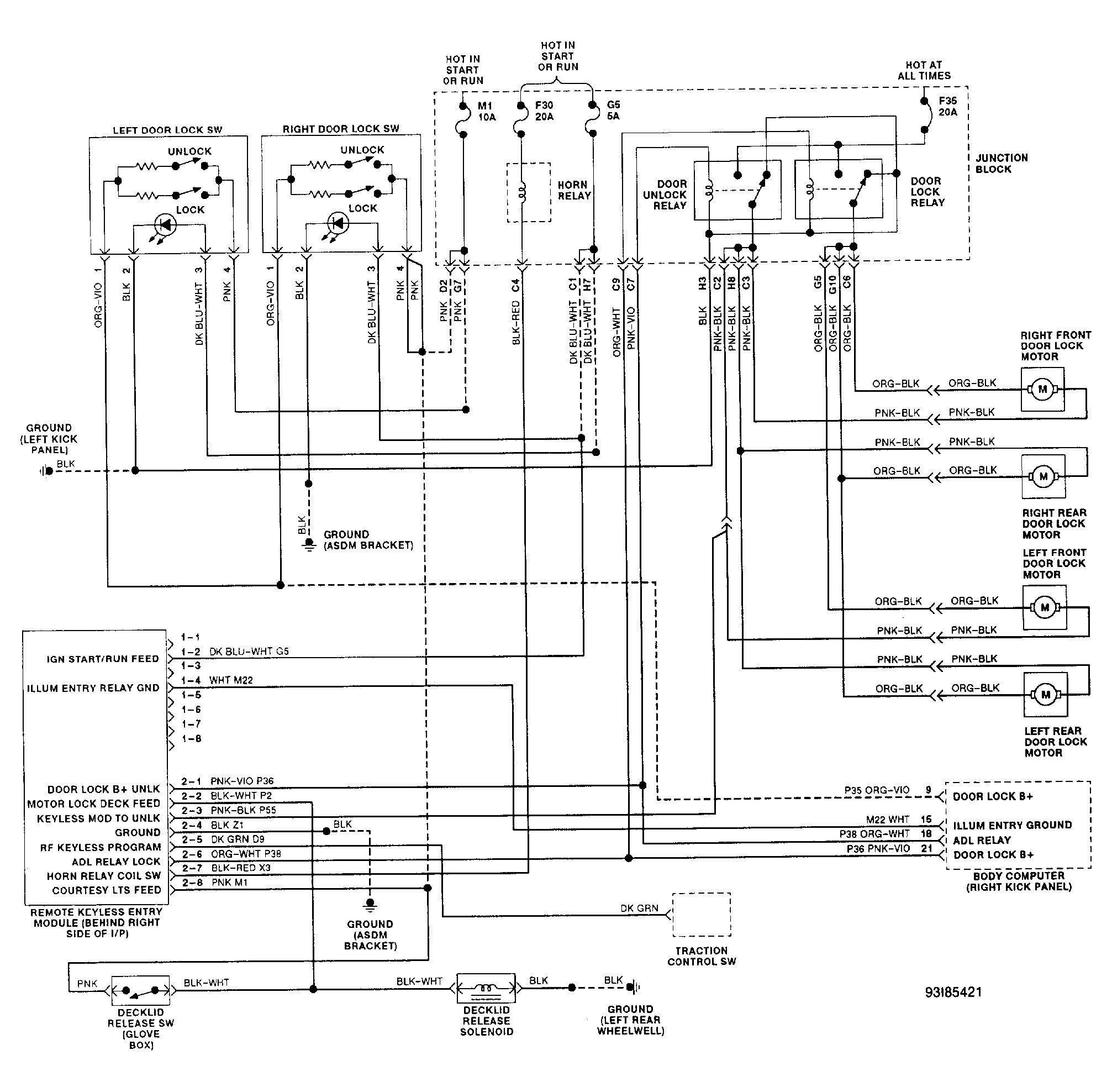

Fig 1: Wiring Diagram (Concorde, Intrepid & Vision)
G93I85421

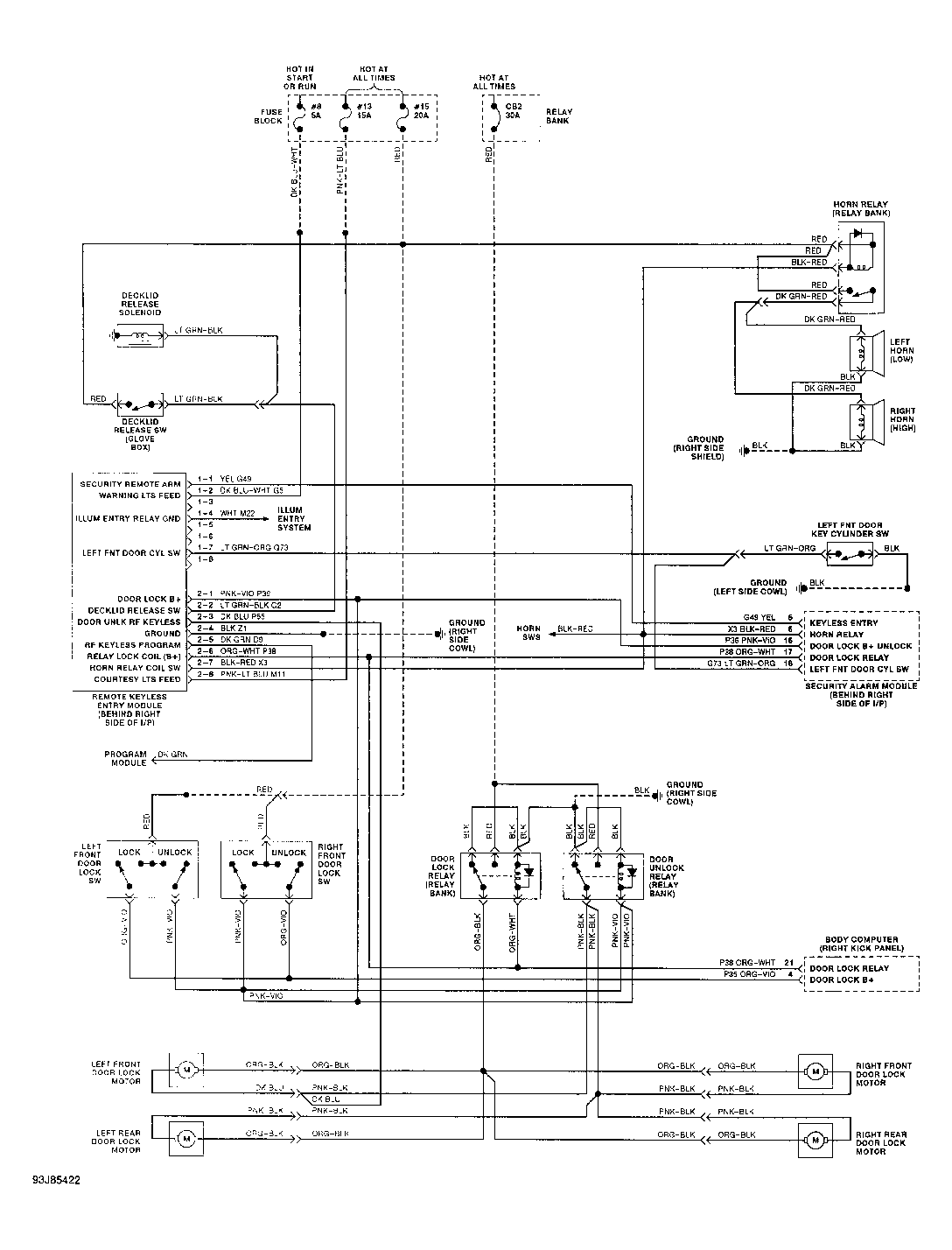

Fig 2: Wiring Diagram (Dynasty, Fifth Avenue, Imperial & New Yorker)
G93J85422
