Fuel Filter: Service and Repair

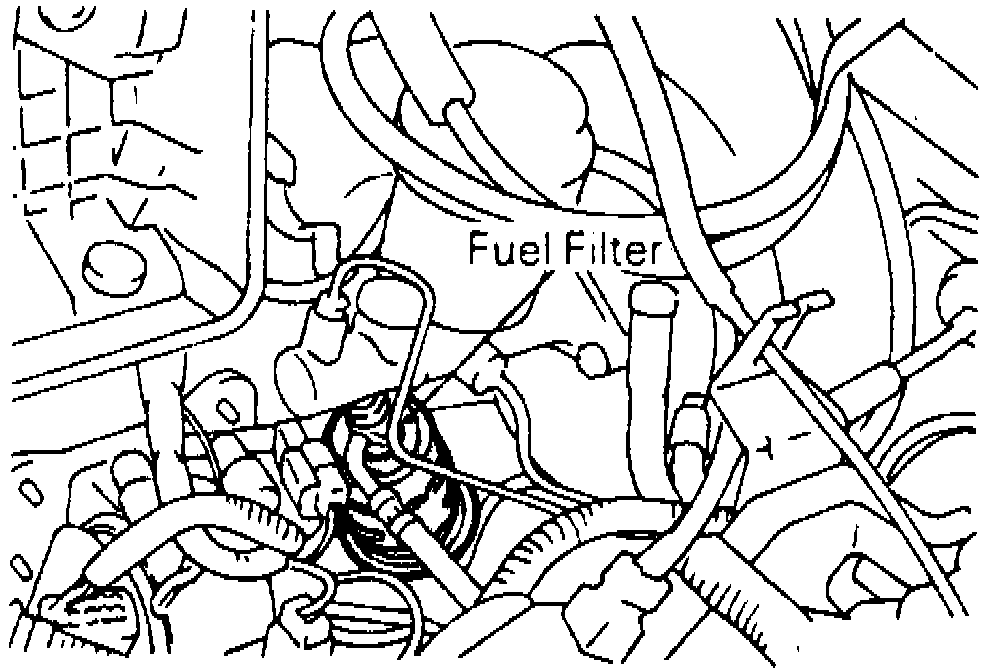

Fig. 58 Fuel Filter Location:

Fig. 59 Fuel Filter Tightening Specifications:

FUEL FILTER REPLACE
1. Release fuel system pressure as outlined under Service Precautions.
2. Remove air cleaner and intake hose.
3. Hold fuel filter and loosen eye bolt and flare nut, Fig. 58.
4. Remove fuel hose and main fuel pipe connections.
5. Remove fuel filter.
6. Reverse procedure to install, noting following:

a. Tighten fuel filter connections to specifications shown in Fig. 59.
b. Apply voltage to fuel pump and check system for leaks.
