Home >> Eagle >> 1994 >> Summit L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Multi-Purpose Fuse
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Multi-Purpose Fuse

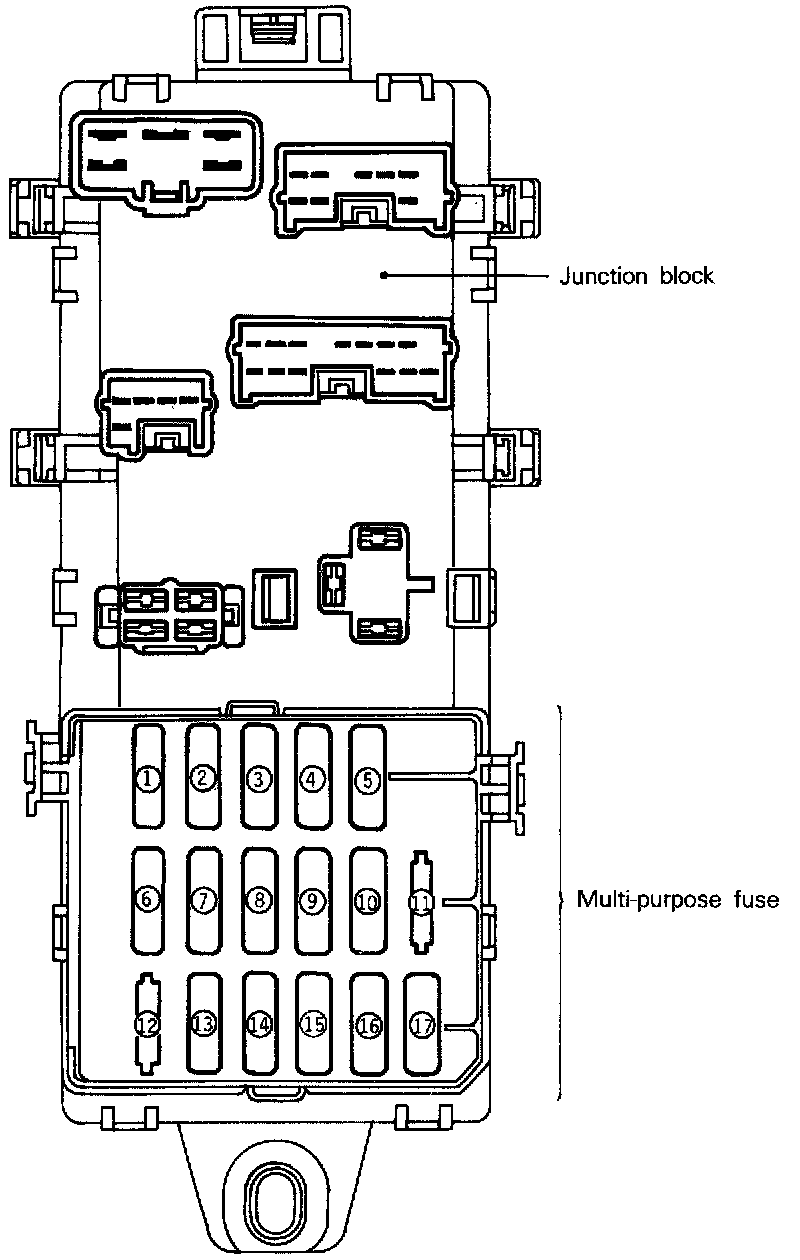

Multi-Purpose Fuse (In Junction Block):

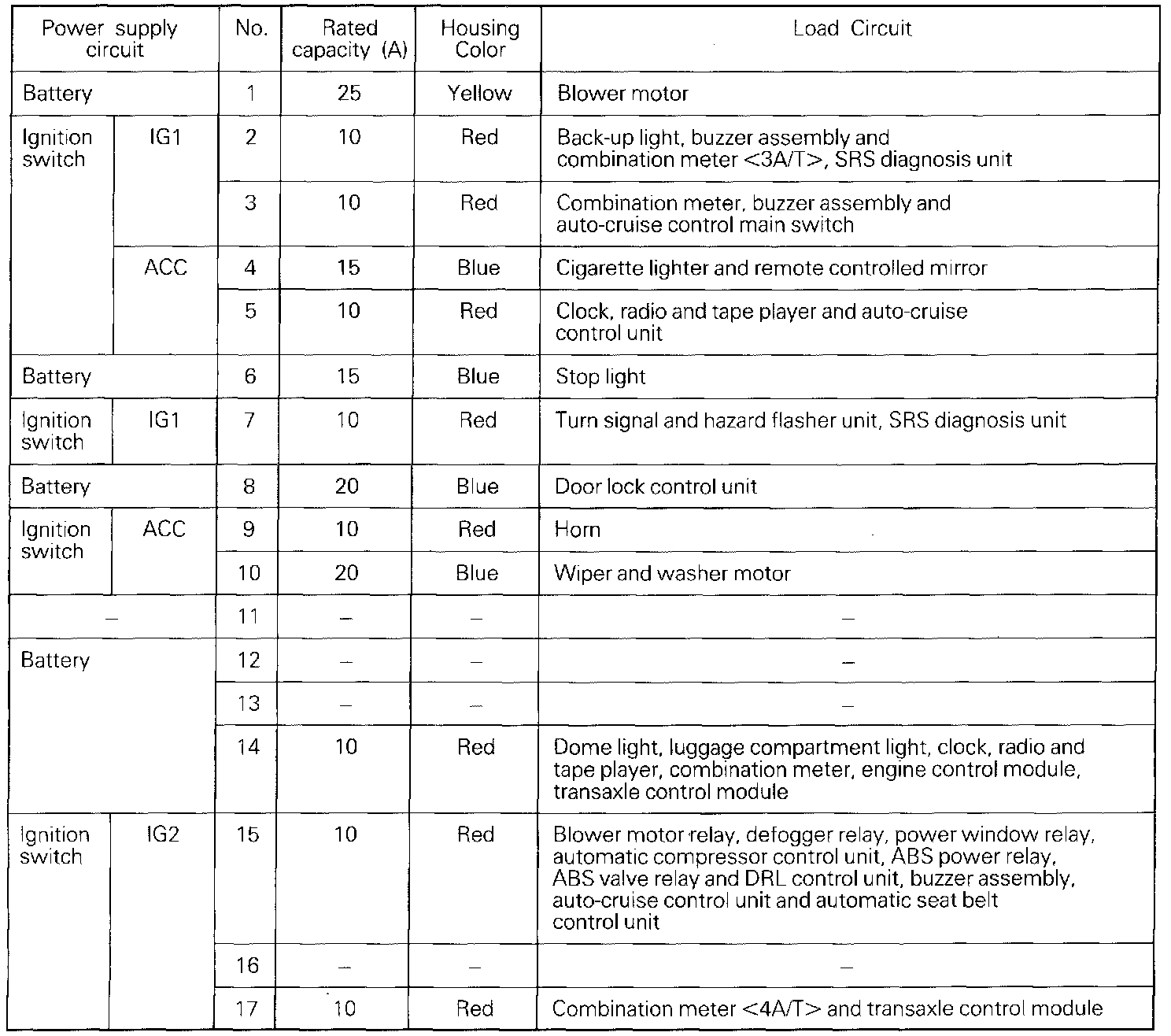

Multi-Purpose Fuse:
