Wiring Diagrams

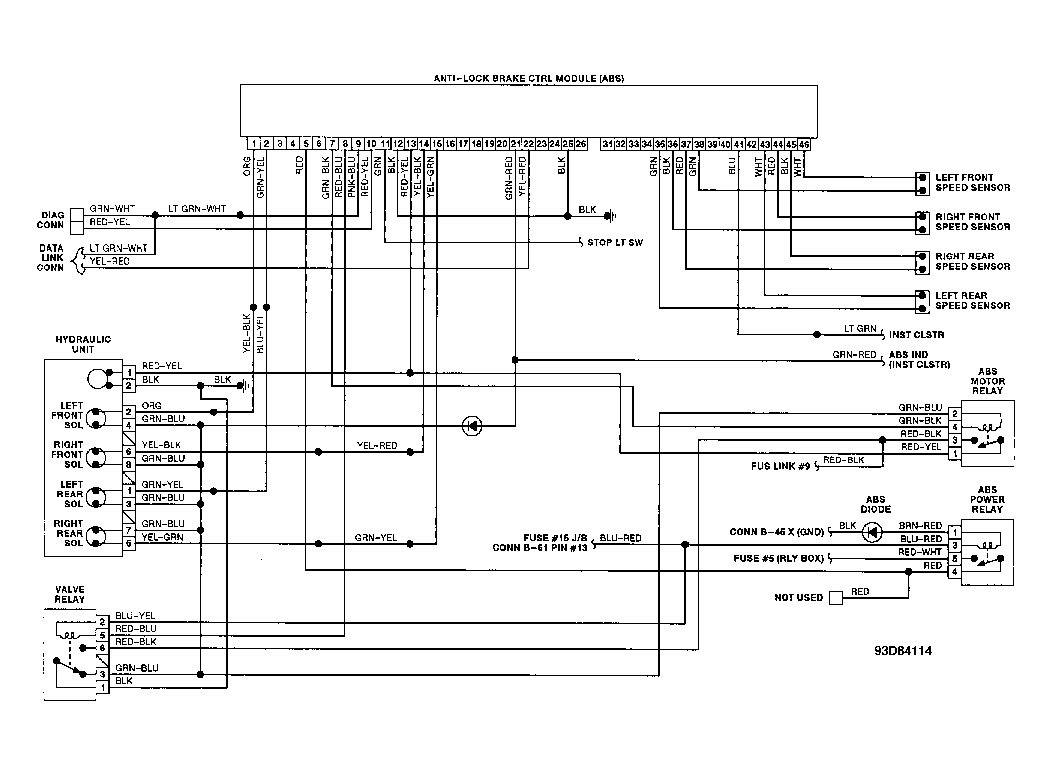

Fig 1: Anti-Lock Brake System Wiring Diagram (1993)
G93D84114
Fig 2: Anti-Lock Brake System Wiring Diagram (1994-96)
