Automatic Transmission

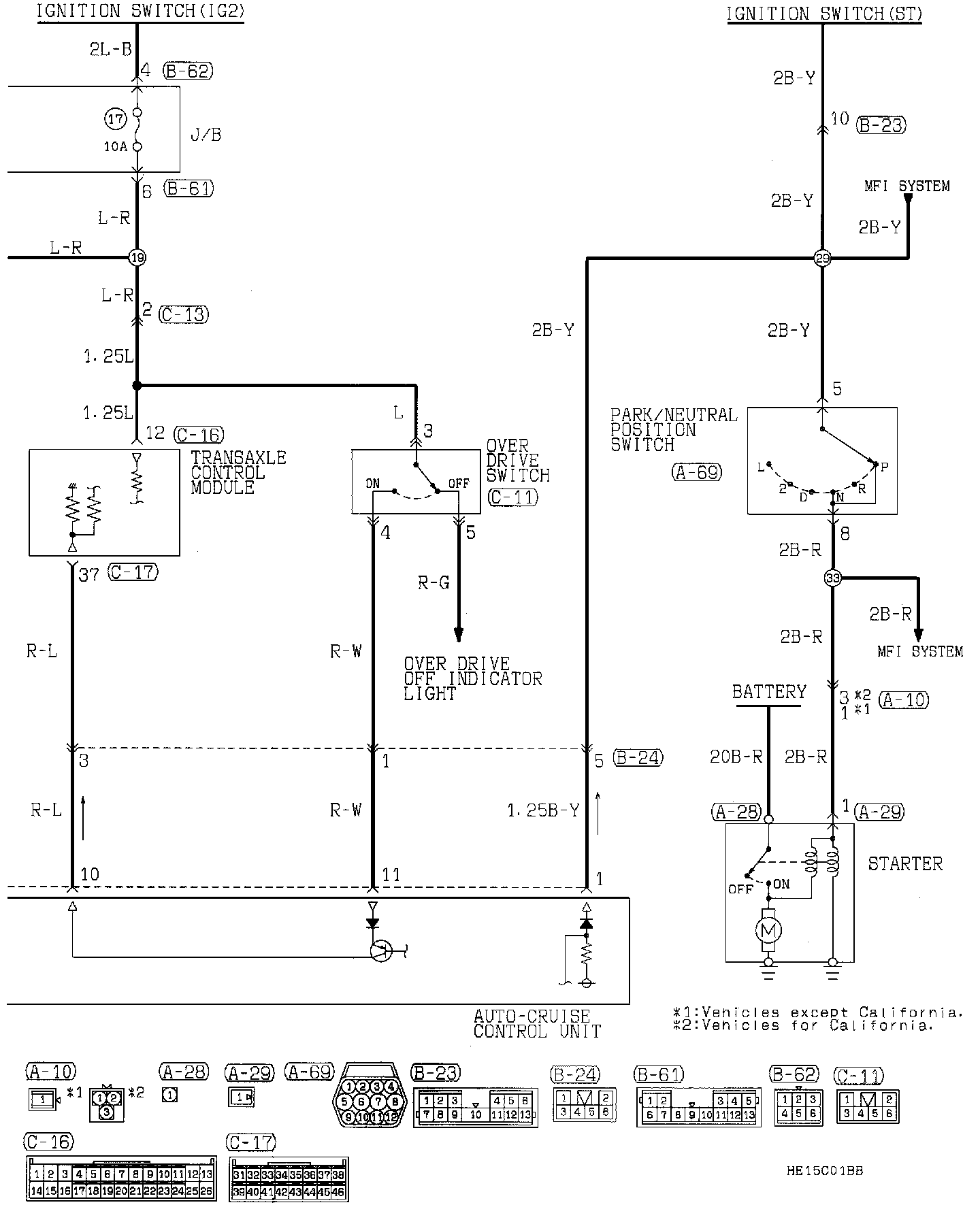

Auto Cruise Control Circuit (Part 1 Of 5):

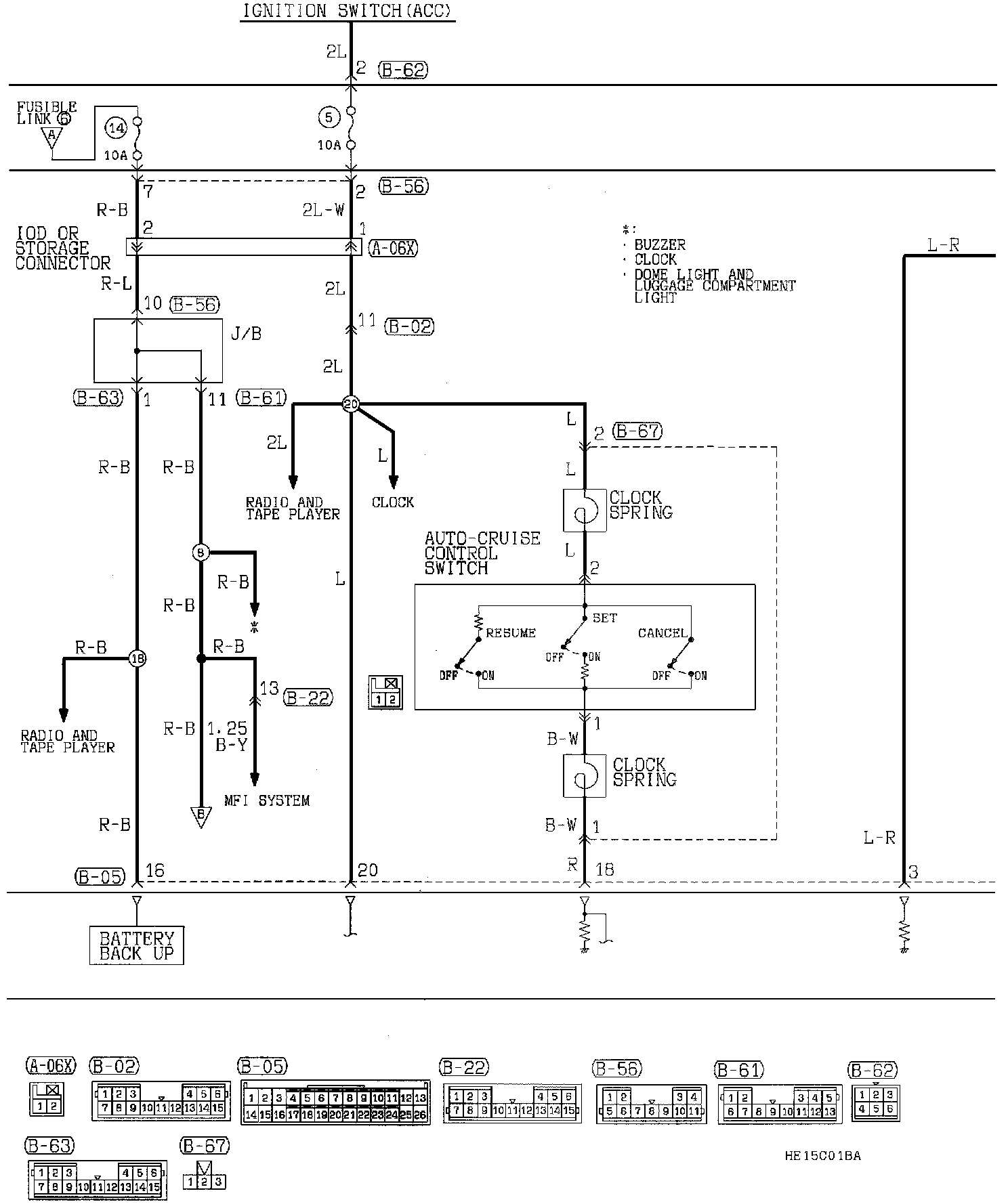

Auto Cruise Control Circuit (Part 2 Of 5):

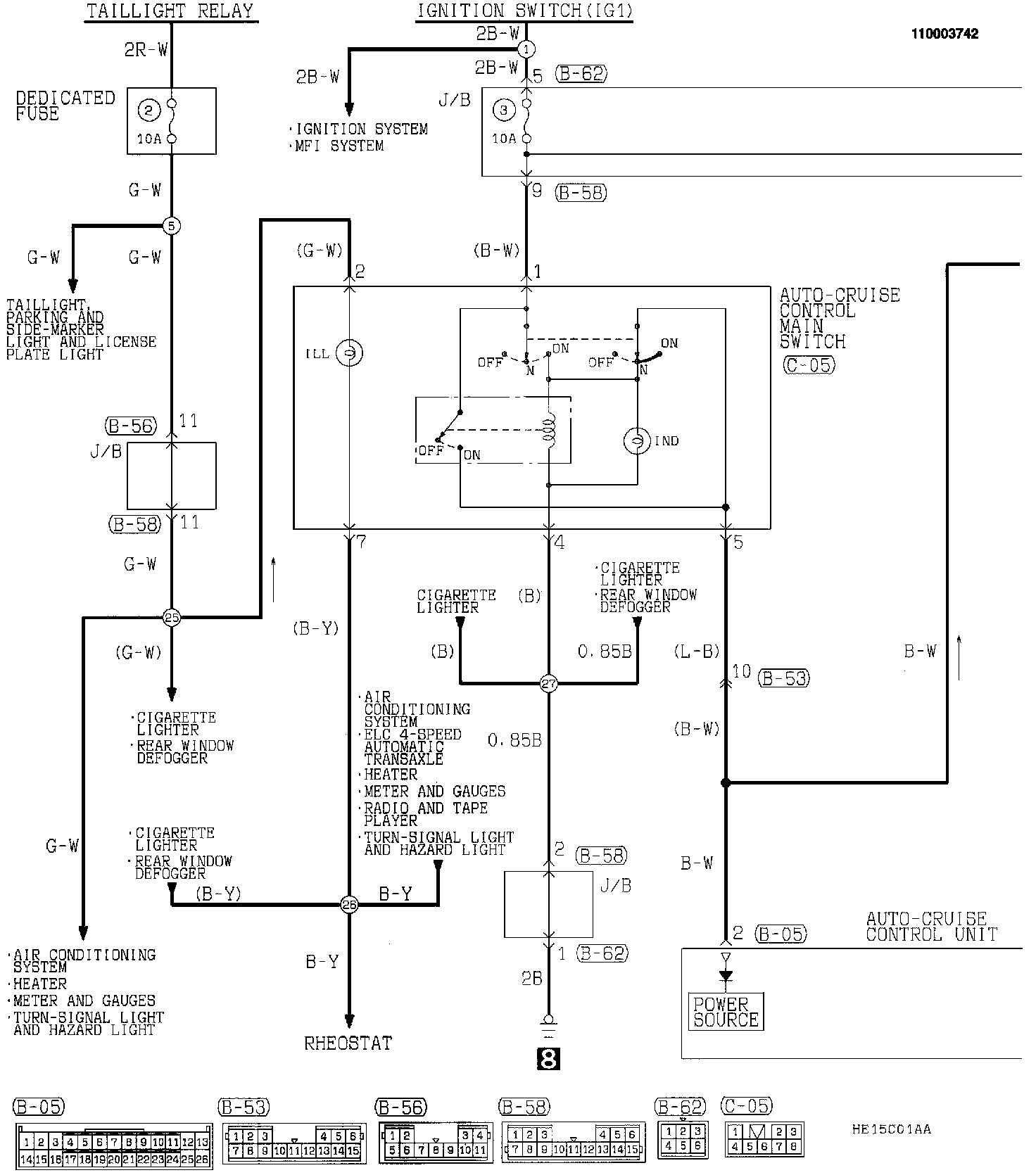

Auto Cruise Control Circuit (Part 3 Of 5):

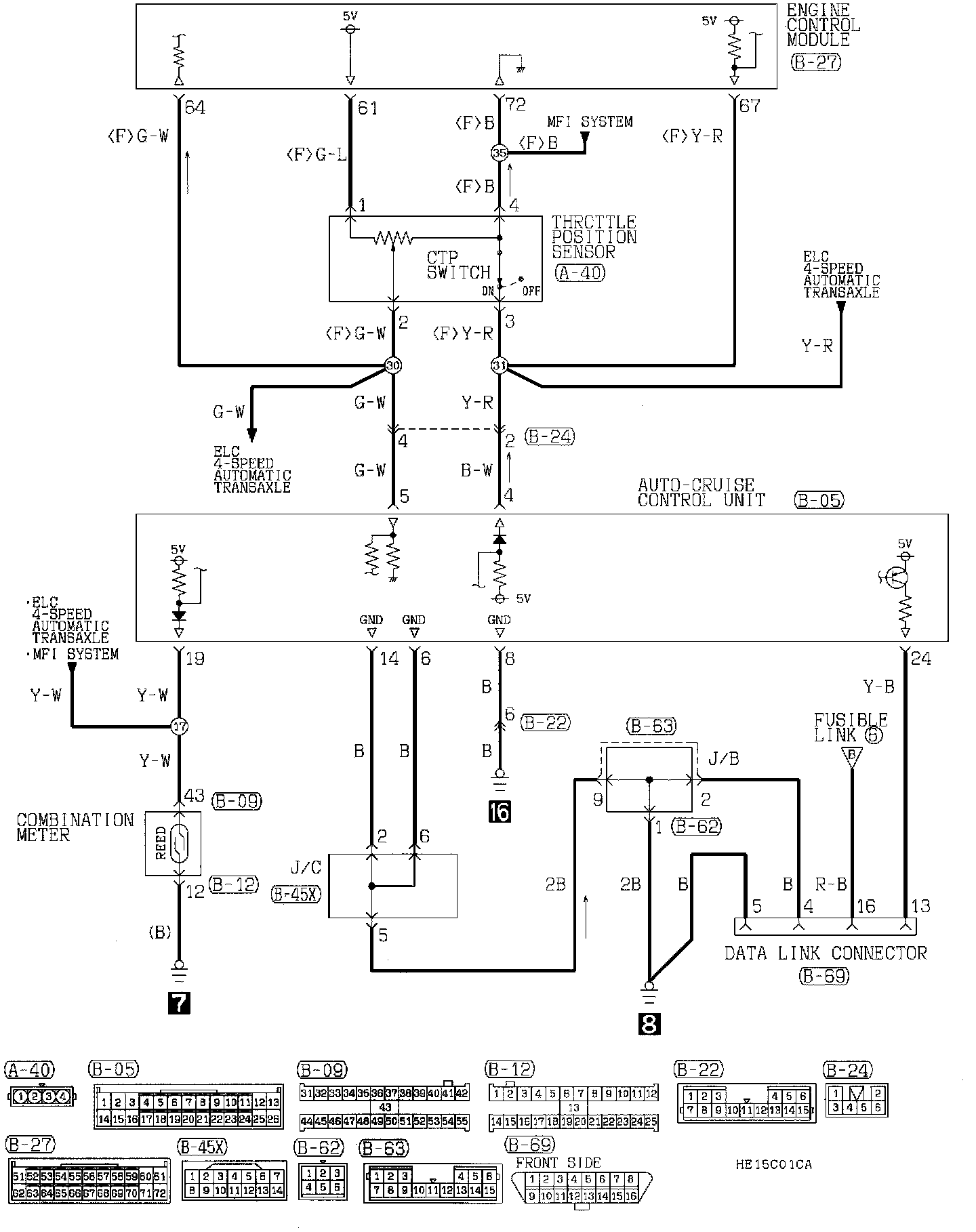

Auto Cruise Control Circuit (Part 4 Of 5):

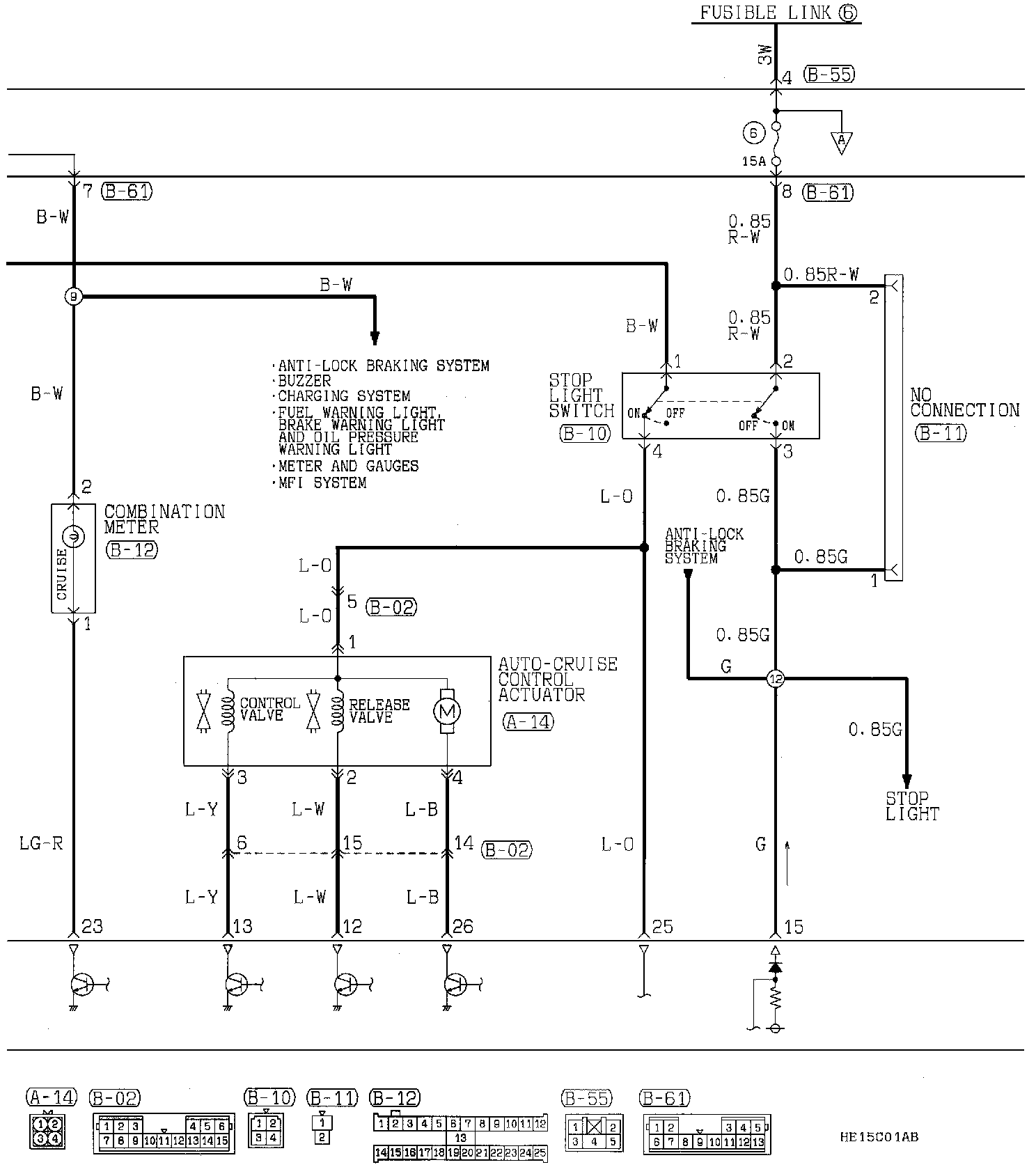

Auto Cruise Control Circuit (Part 5 Of 5):
