Front Suspension: Description

Front suspension consists of a MacPherson hydraulic strut assembly, steering knuckle, control arm, ball joint and stabilizer bar. See Fig 1.

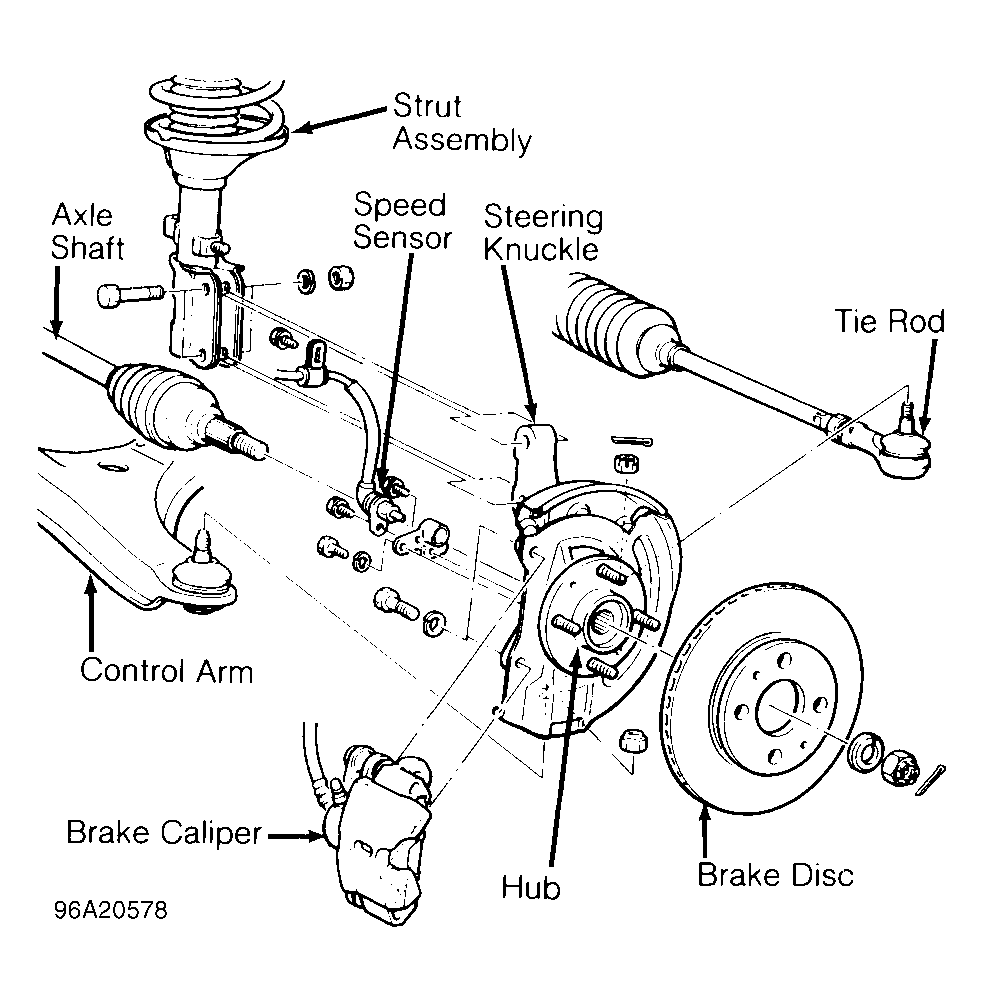

Fig 1: Exploded View Of Front Suspension (Typical)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
