Transmission Control Systems: Locations

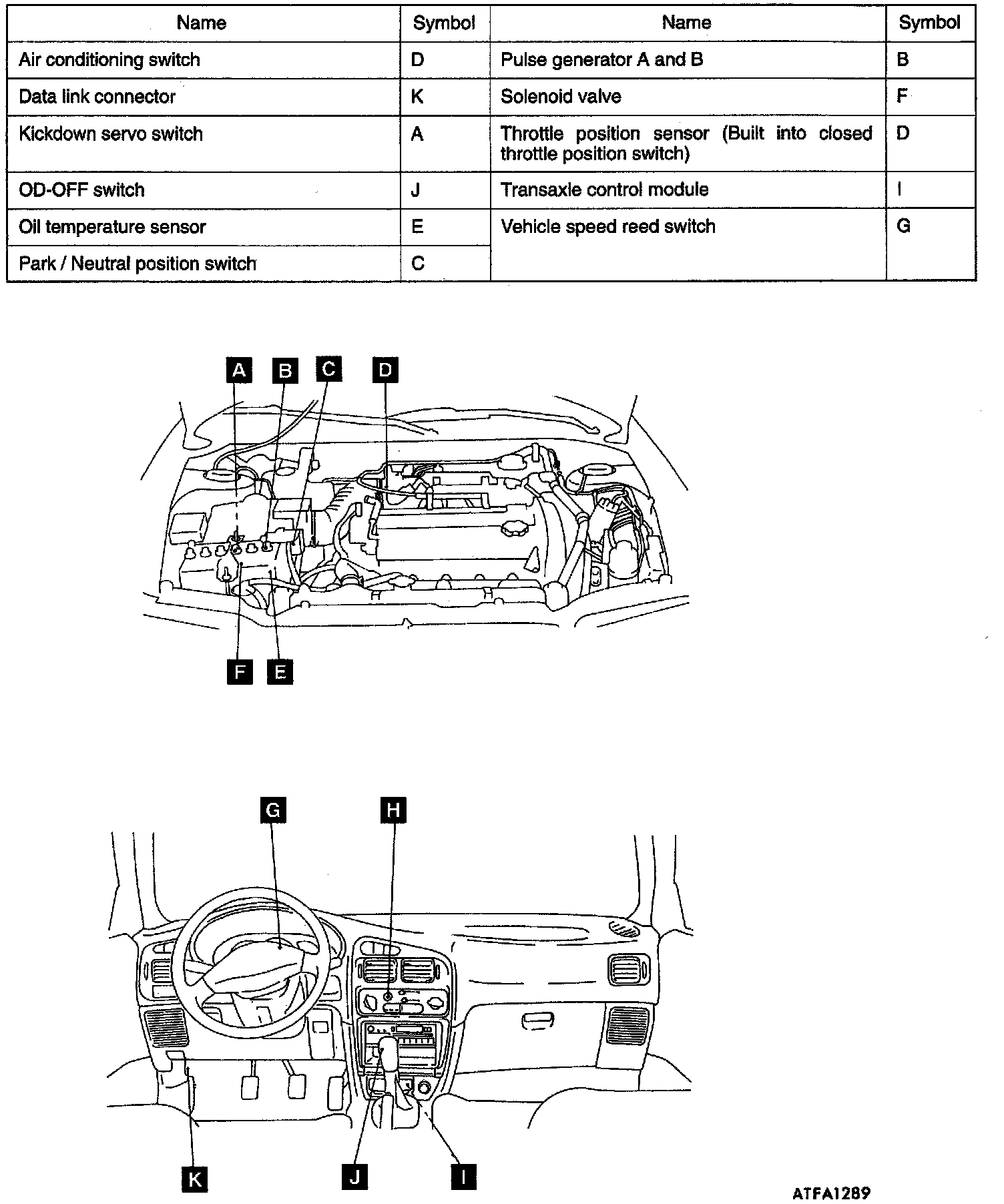

Component Locations:
Index

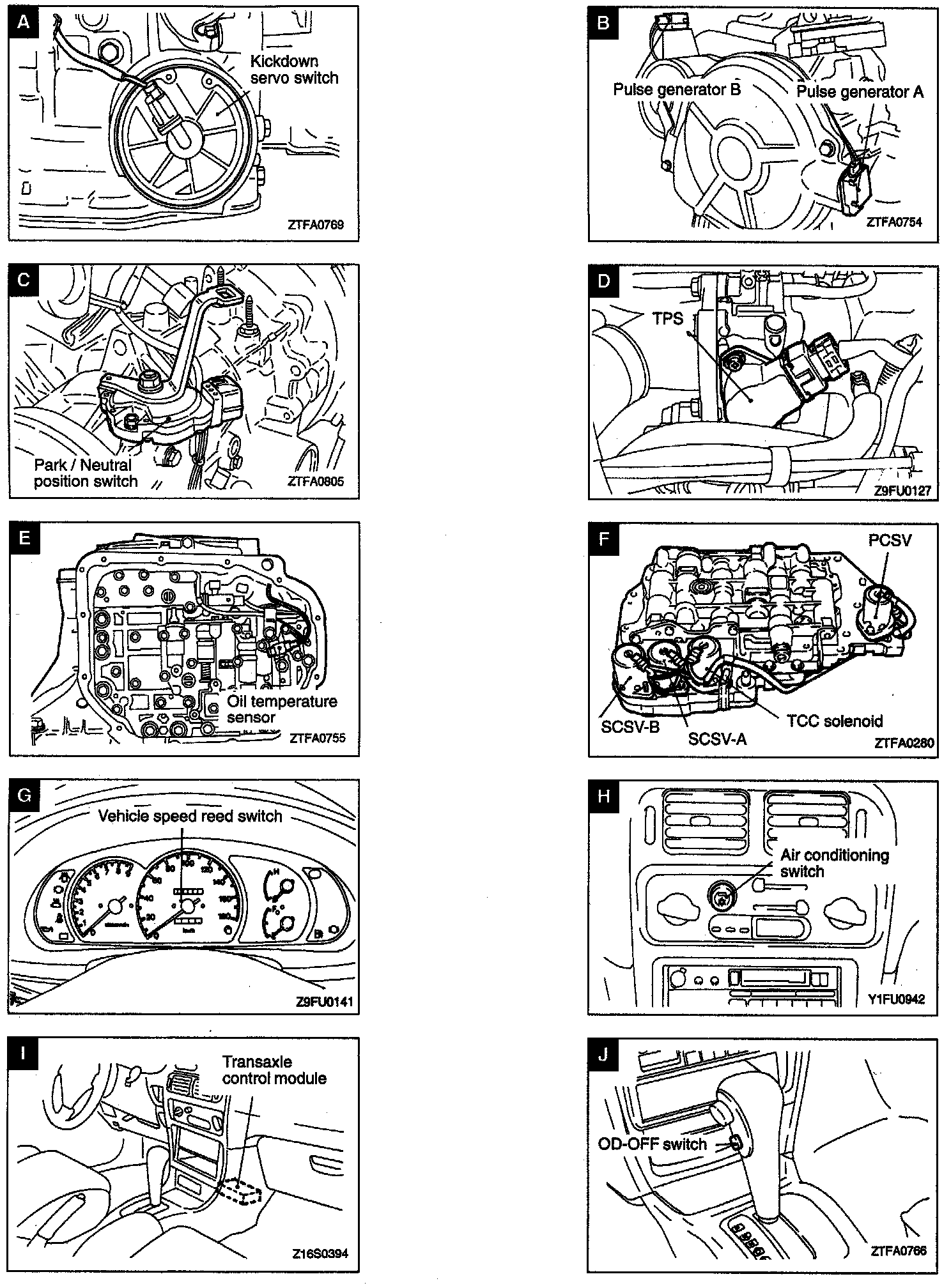

Component Locations:
Close-up views A - J
Component Locations:
Close-up view K
