Power Transfer Unit (AWD Models)
WARNING: This page is about a different car, the 1996 Plymouth Voyager, 1996 Plymouth Grand Voyager, 1996 Dodge Grand Caravan, and 1996 Dodge Caravan. However, it is still accessible from the selected car via links, so may be relevant.

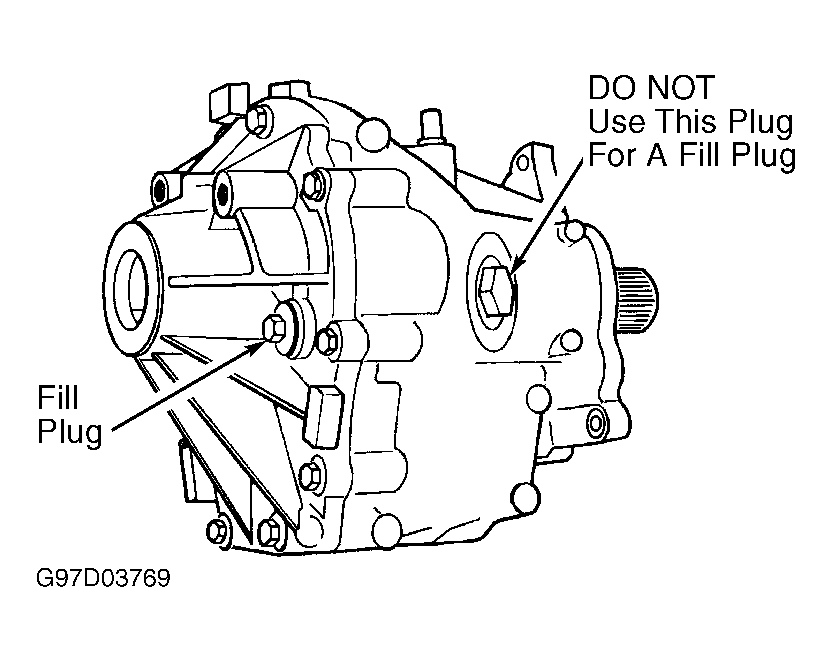

Park vehicle on level surface. Remove fill plug from power transfer unit. See Fig 1 . Fluid level should be even with bottom of fill plug hole. Add appropriate type of fluid if necessary. See RECOMMENDED FLUID . DO NOT overfill transaxle. Install and tighten fill plug to specification. See TORQUE SPECIFICATIONS .
