EGR Tube: Service and Repair

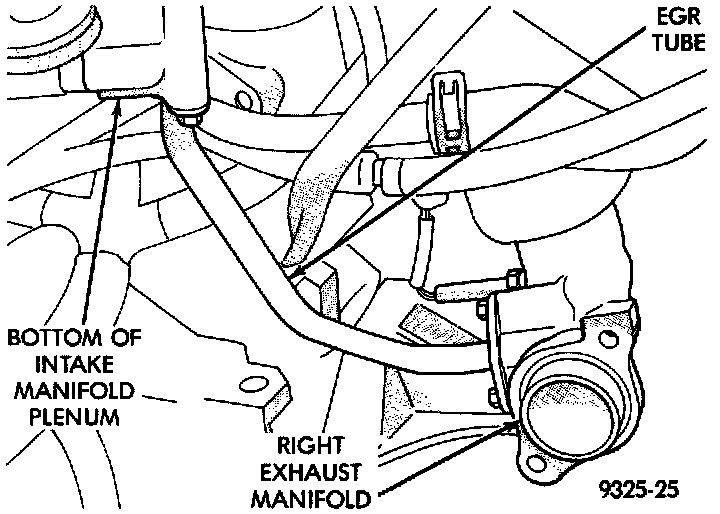

Fig. 7 EGR Tube:

Fig. 8:

NOTE: The EGR tube attaches to the intake manifold plenum below the throttle body and the right exhaust manifold (Fig. 7).

REMOVAL
1. Remove EGR tube mounting screws at intake manifold plenum (Fig. 8).
2. Remove EGR tube mounting screws at exhaust manifold.
3. Remove EGR tube.
- Clean gasket surfaces on the intake manifold plenum and exhaust manifold.

INSTALLATION
1. Using new gaskets, loosely install the EGR tube and mounting screws.
2. Tighten the EGR tube to intake manifold plenum screws to 22 Nm (200 in lb) torque.
3. Tighten the EGR tube to exhaust manifold screws to 22 Nm (200 in lb) torque.
