Camshaft Position Sensor

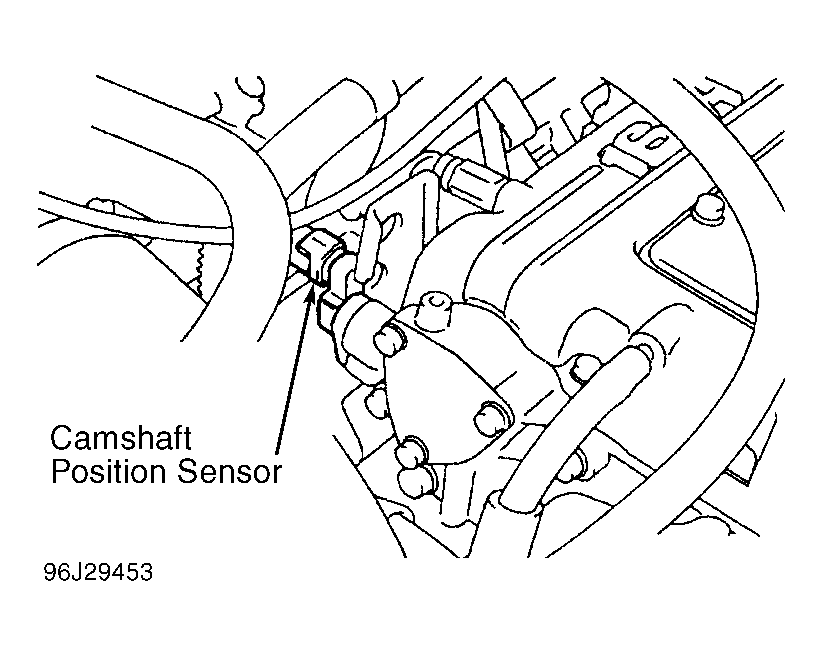

Camshaft position sensor is located at rear of cylinder head on intake manifold side of engine. See Fig 1 . Camshaft position sensor delivers input signal to Engine Control Module (ECM) to indicate camshaft position. The ECM uses input signal for controlling fuel injection system and ignition timing.
