Solar Sensor: Service and Repair

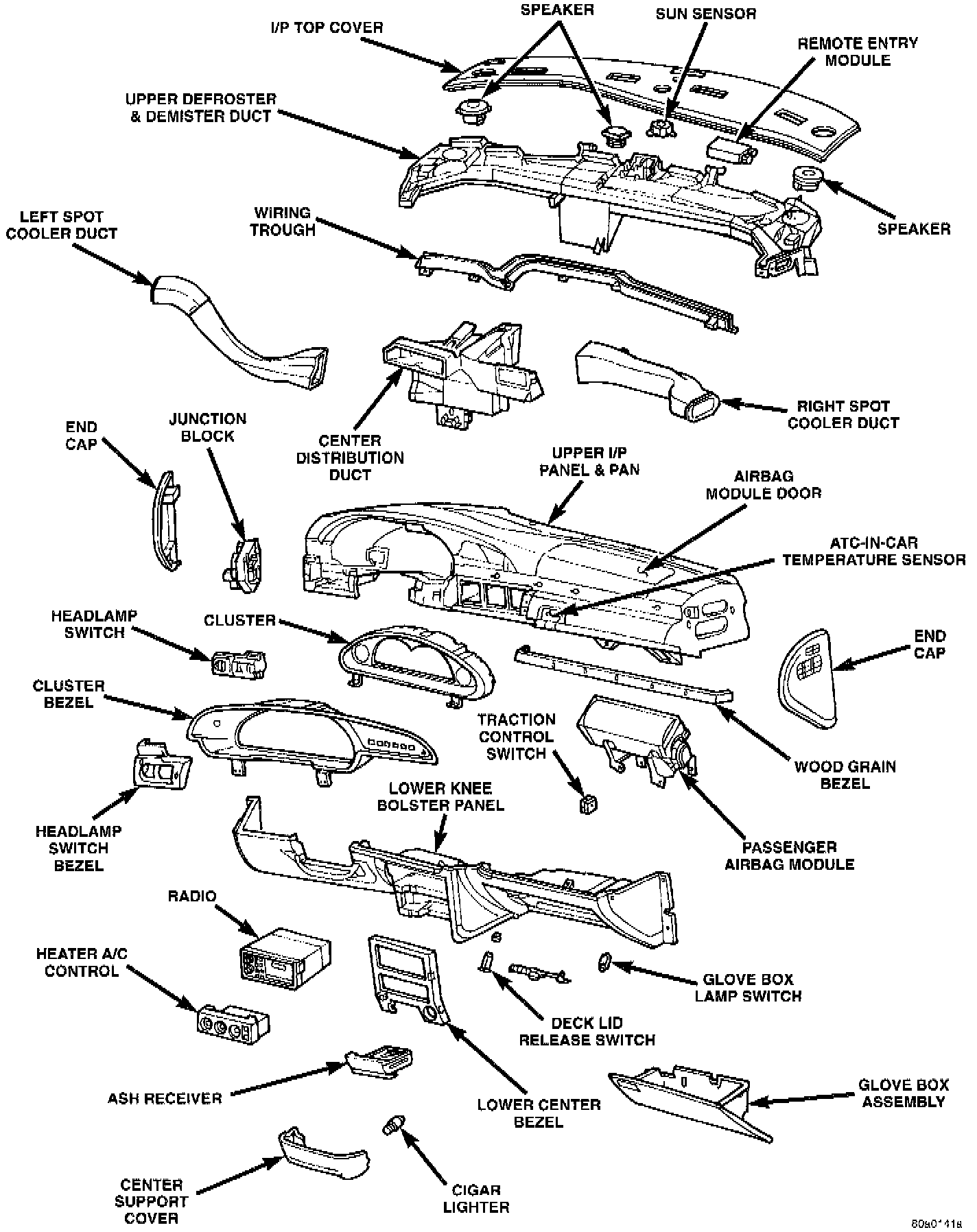

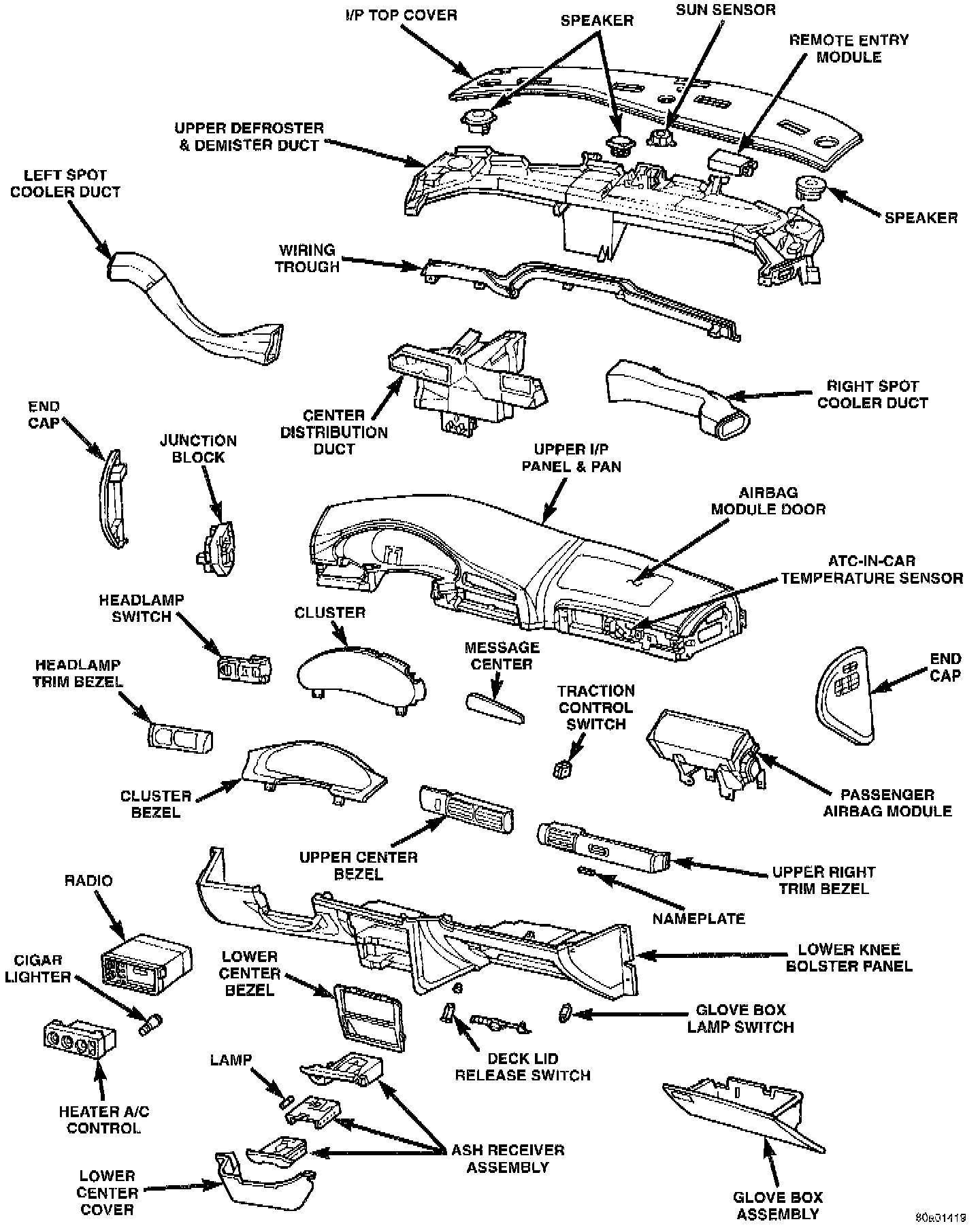

REMOVALInstrument Panel Components:
Instrument Panel Components:
1. Remove the instrument top cover, refer to the above removal and installation procedures.
2. Remove the two sun sensor mounting screws.
3. Disconnect the wire connector and remove the sensor.
INSTALLATION
- For installation, reverse the above procedures.
