Splice Locations Index

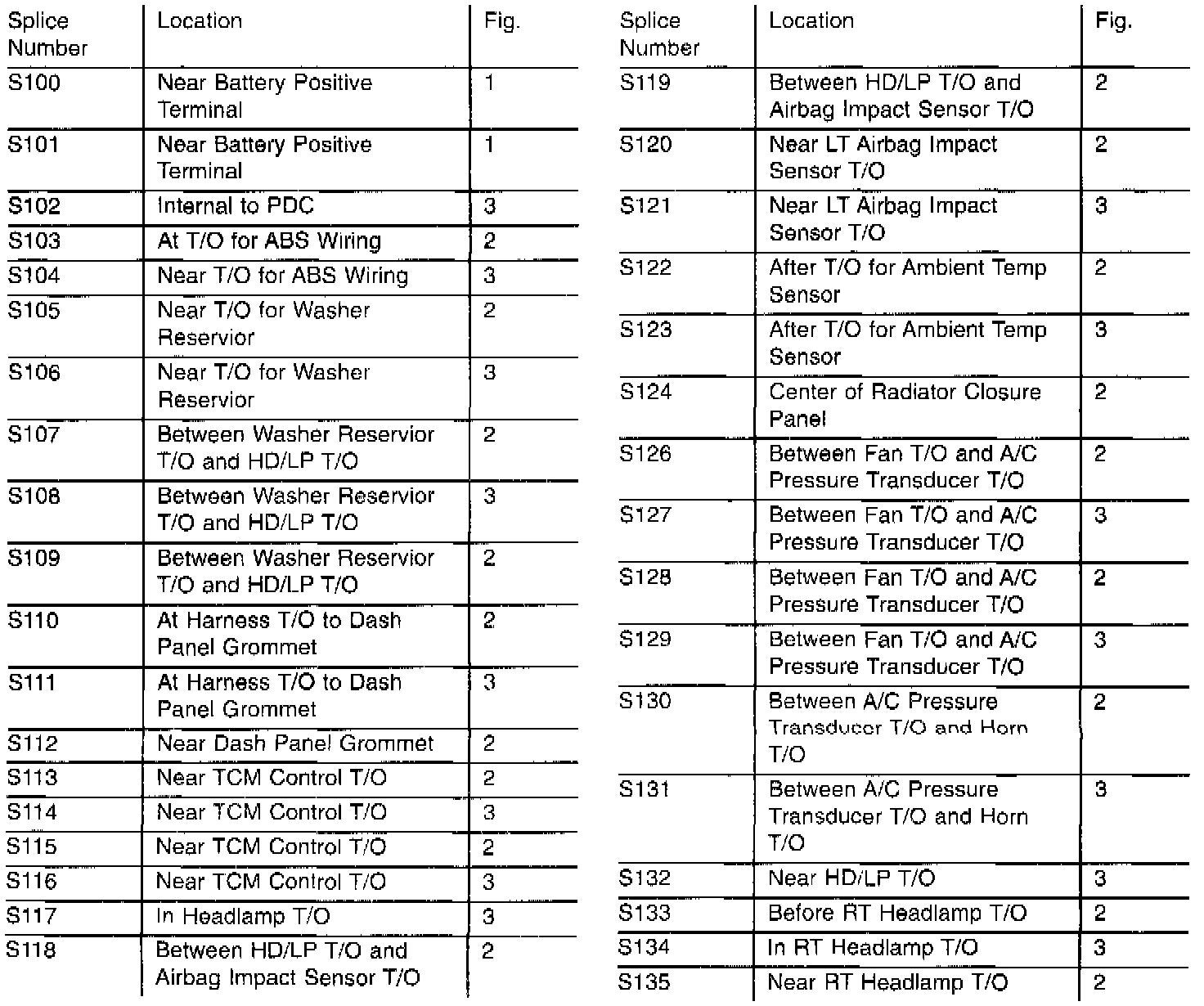

Splice Locations S100 To S135:

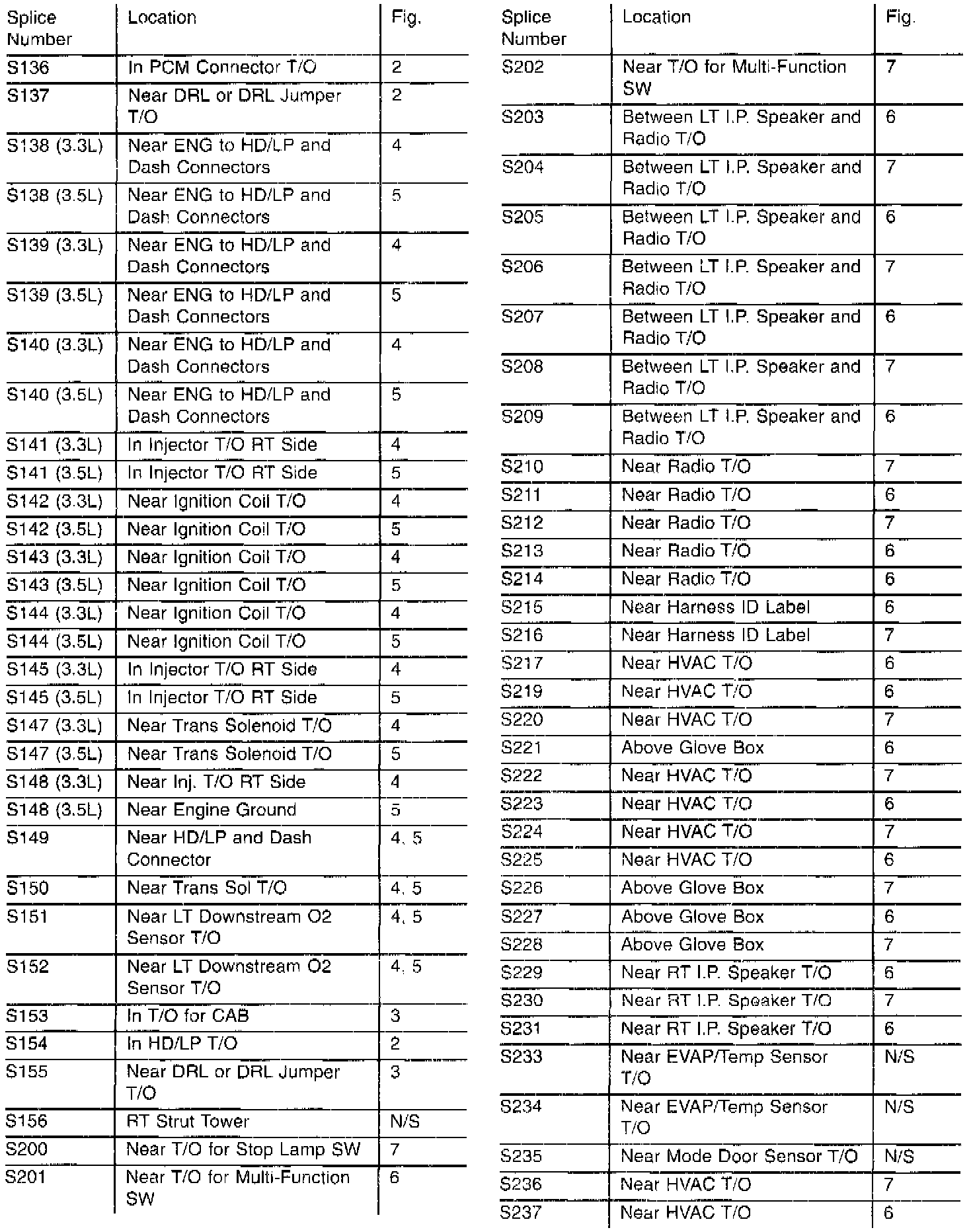

Splice Locations S136 To S237:

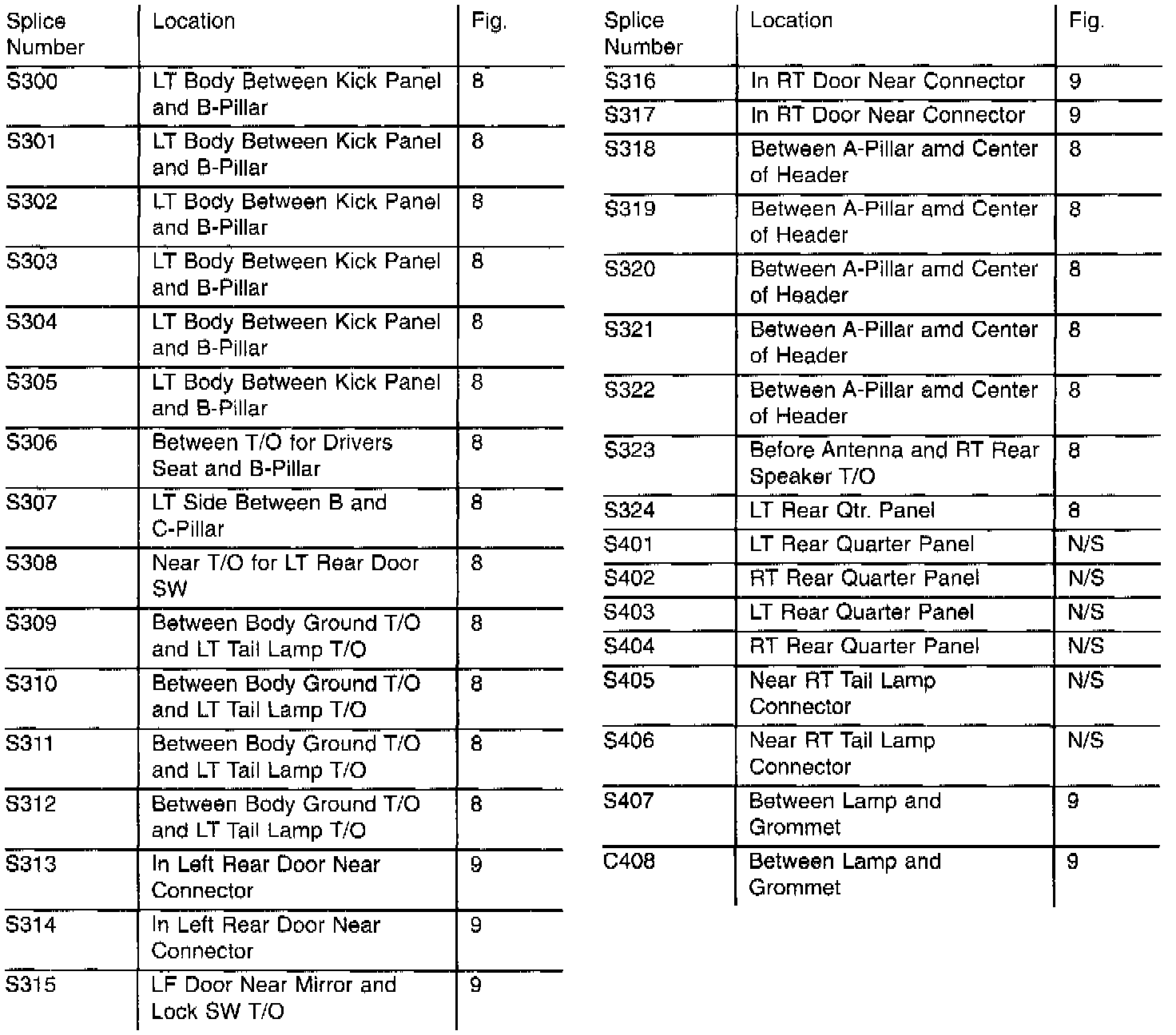

Splice Locations S300 To C408:
