Engine Compartment: Notes

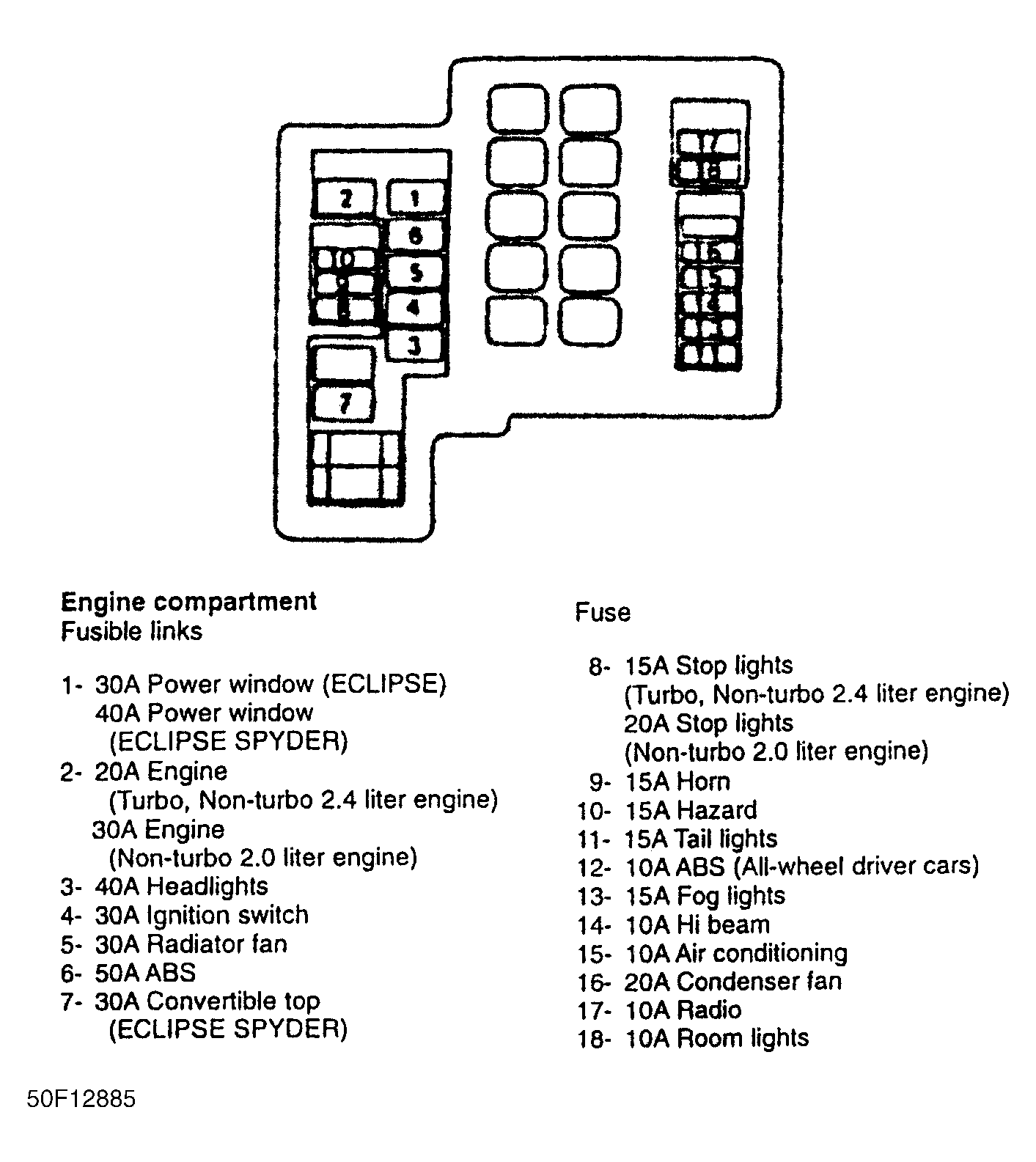

Fig 1: Engine Compartment Fuse & Fusable Link Panel Non-Turbo (2.0L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

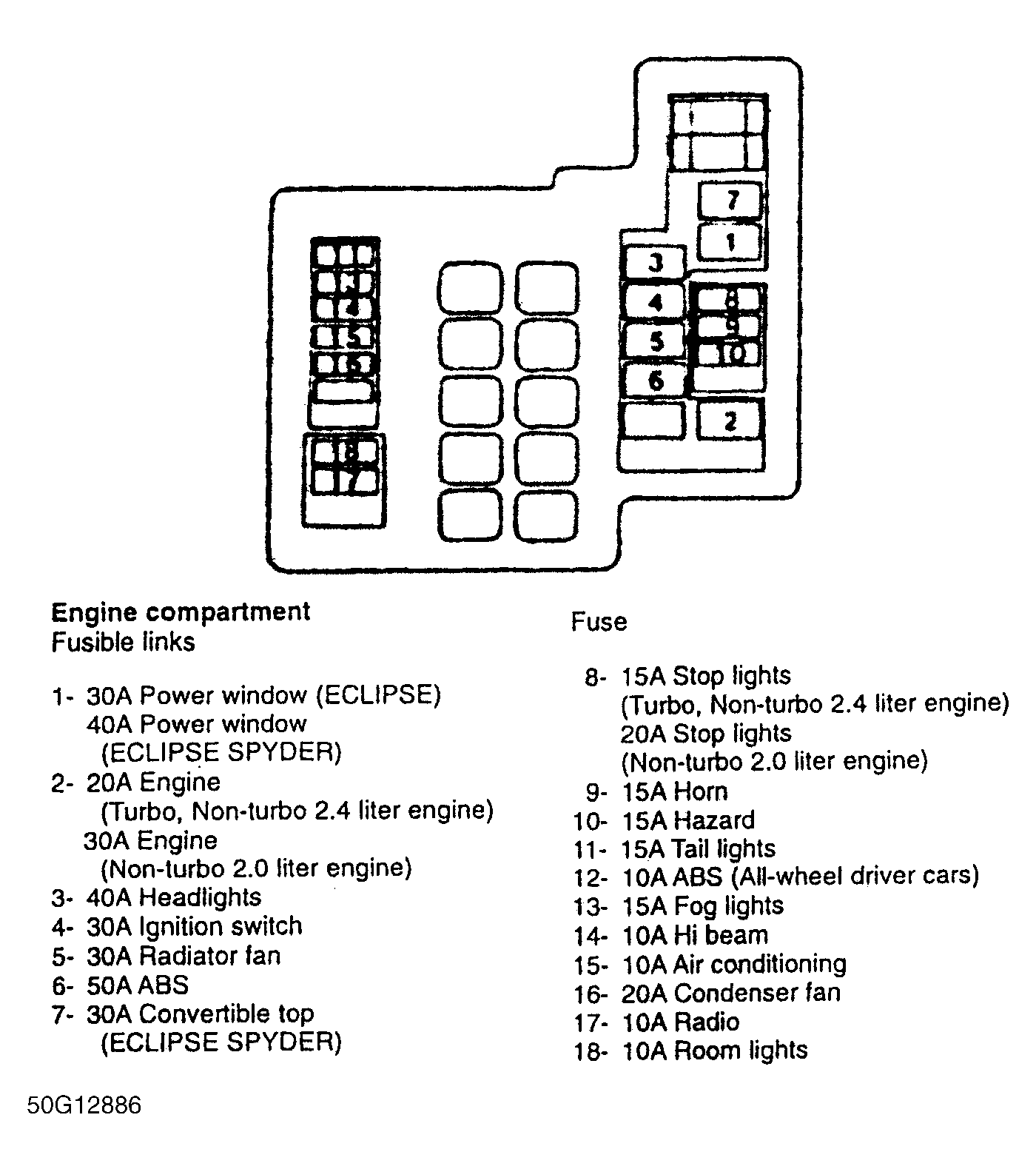

Fig 2: Engine Compartment Fuse & Fusable Link Panel Non-Turbo (2.4L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

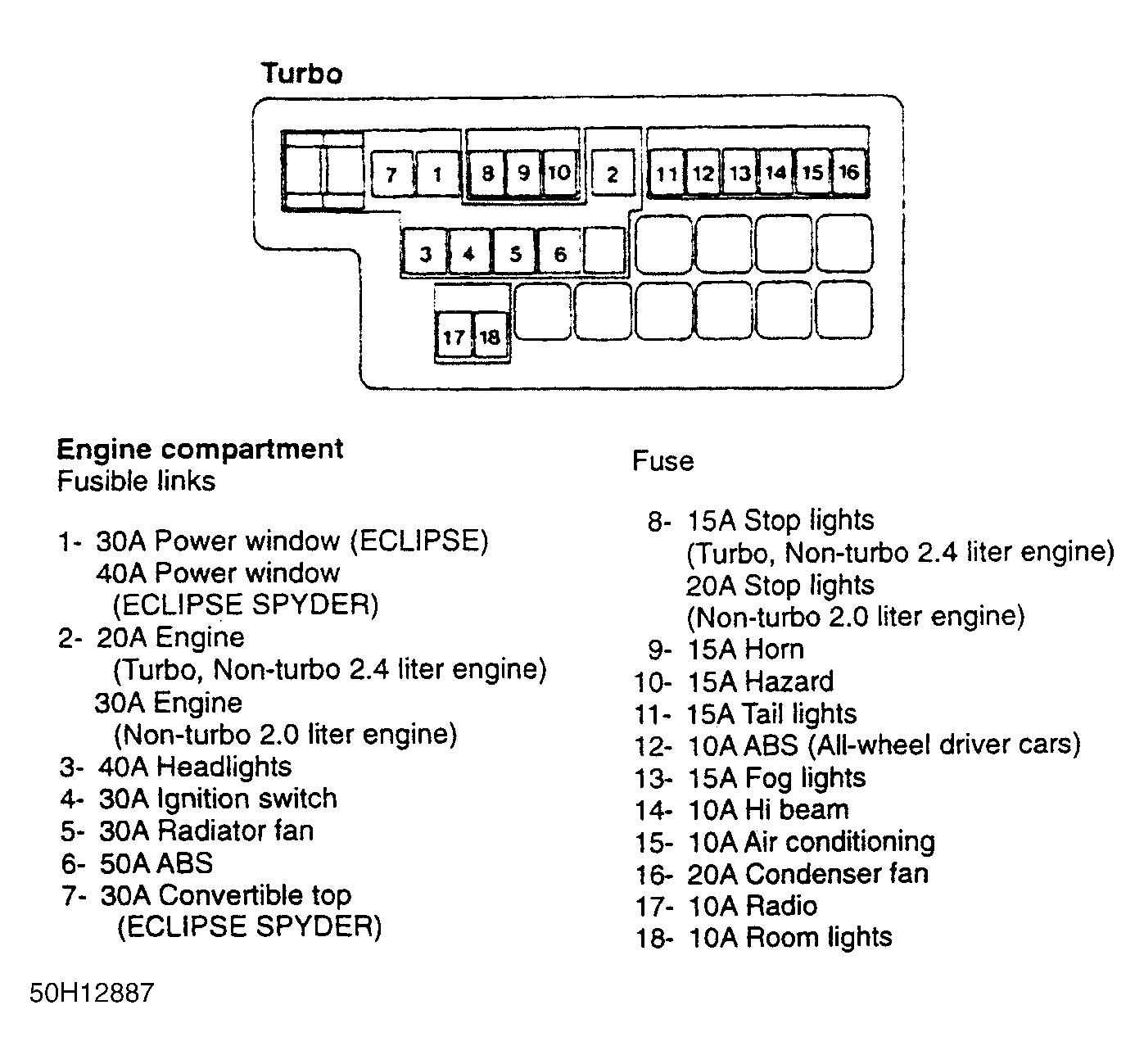

Fig 3: Engine Compartment Fuse & Fusable Link Panel Turbo

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
