Removal & Installation: Installation

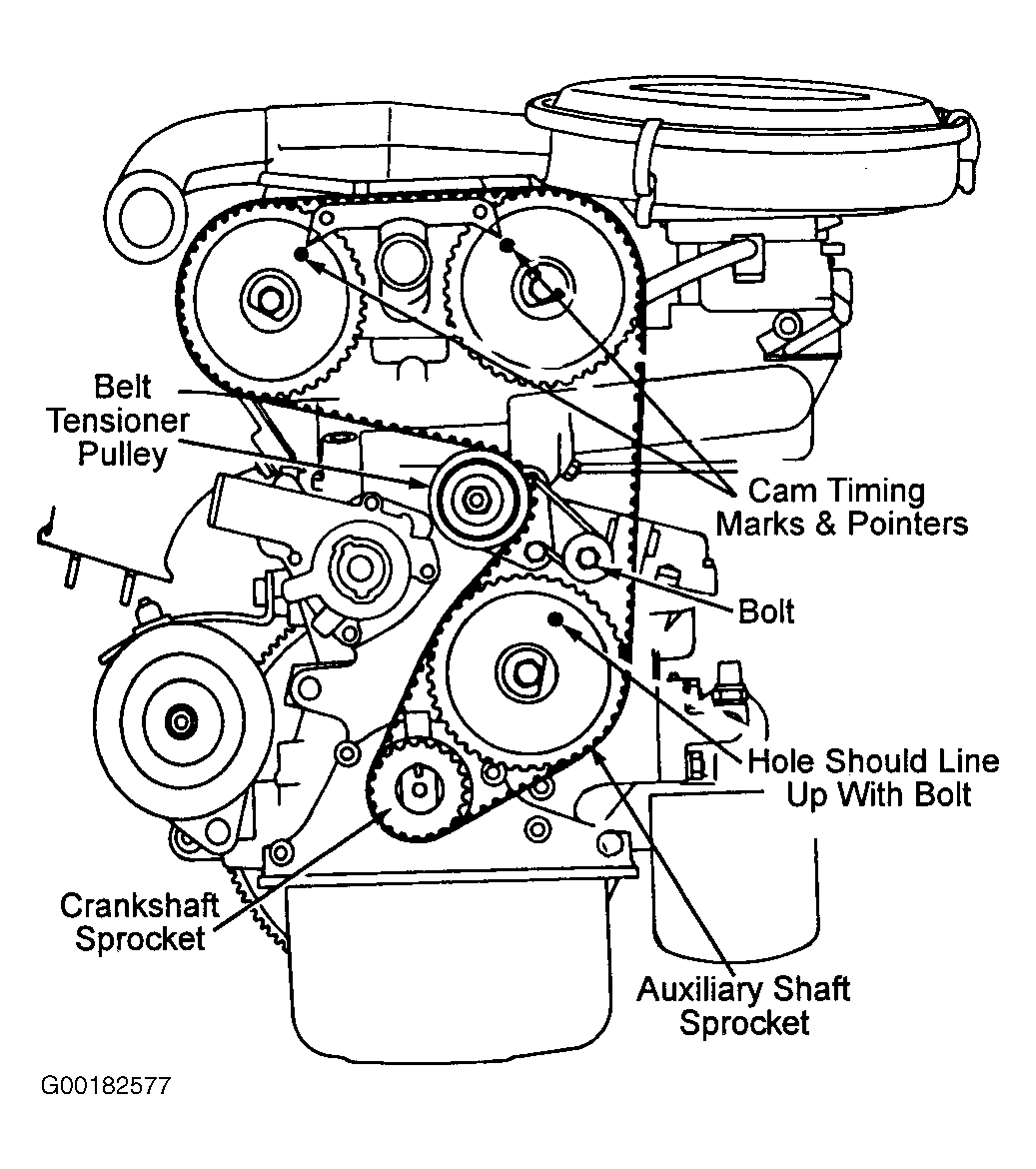

Turn auxiliary sprocket to align hole in sprocket with sprocket bolt and spring retaining bolt. See Fig 2. Install belt and adjust tensioner, then turn crankshaft 2 full turns, and recheck tension and timing. To complete installation, reverse removal procedure. Adjust drive belts to proper tension.
