Vehicle Tracking Module (VTM)

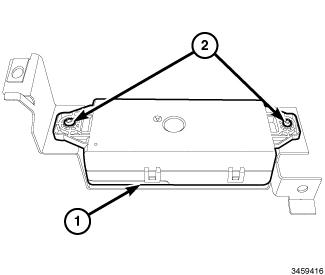

Fig 1: VTM & Mounting Bracket Retainers
GC0153522Courtesy of CHRYSLER GROUP, LLC
  1. Set the Vehicle Tracking Module (VTM) into the bracket.
  2. Install the VTM (1) mounting bracket retainers (2).

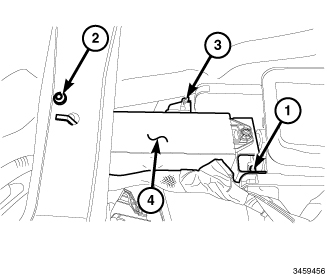

    Fig 2: Vehicle Tracking Module (VTM) Nut, VTM Bracket Retainer, VTM Electrical Connector & VTM
    GC0153523Courtesy of CHRYSLER GROUP, LLC
  3. Connect the VTM electrical connector (3) to the VTM (4).
  4. Position the VTM assembly (4) to the evaporator case and instrument panel support brace.
  5. Install the VTM bracket retainer (2) to the instrument panel support brace.
  6. Install the Vehicle Tracking Module (VTM) nut (1) to evaporator.
    Fig 3: Instrument Panel Cover
    GC0153551Courtesy of CHRYSLER GROUP, LLC
  7. Install the instrument panel cover. Refer to COVER, INSTRUMENT PANEL, INSTALLATION .
  8. Connect the negative battery cable.
